Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-03-50-02-05 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
30 mm |
|
Total Length Option: |
5.0 meters (16.4 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
1.8x1.8x58cm |
|
Weight: |
0.08kg |
Description

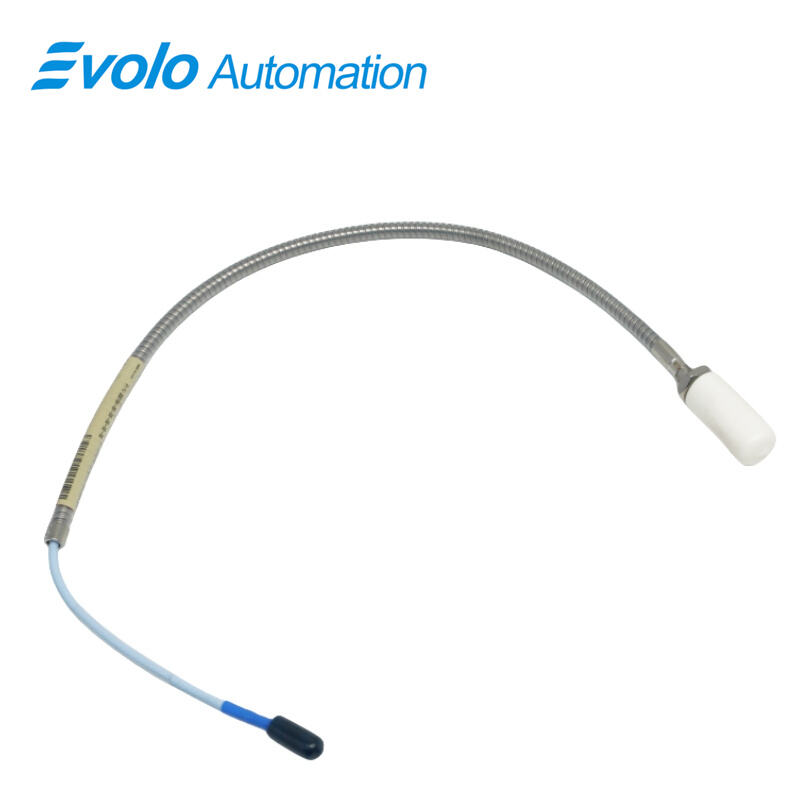

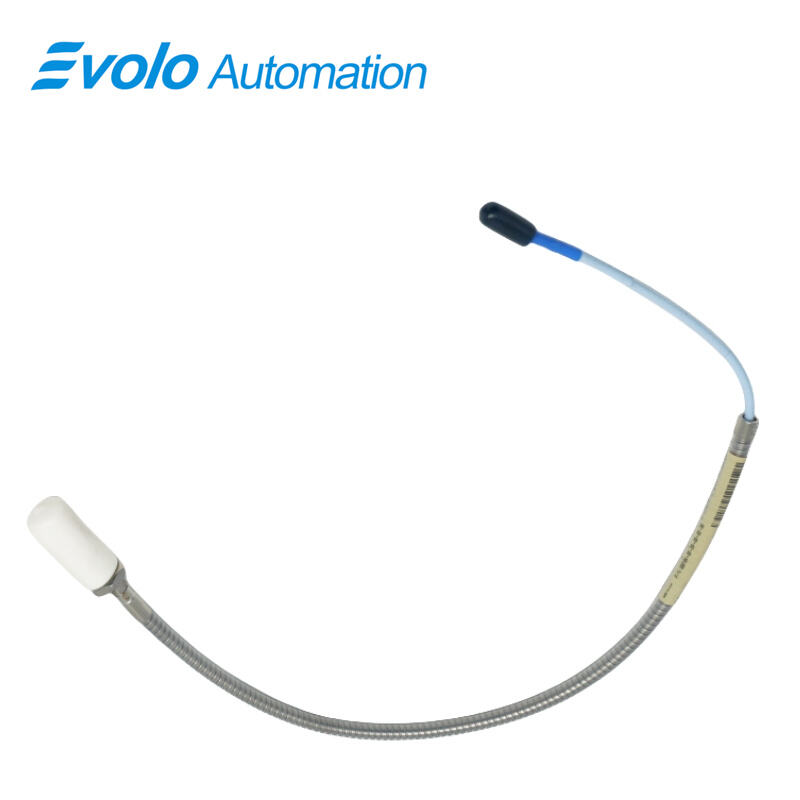

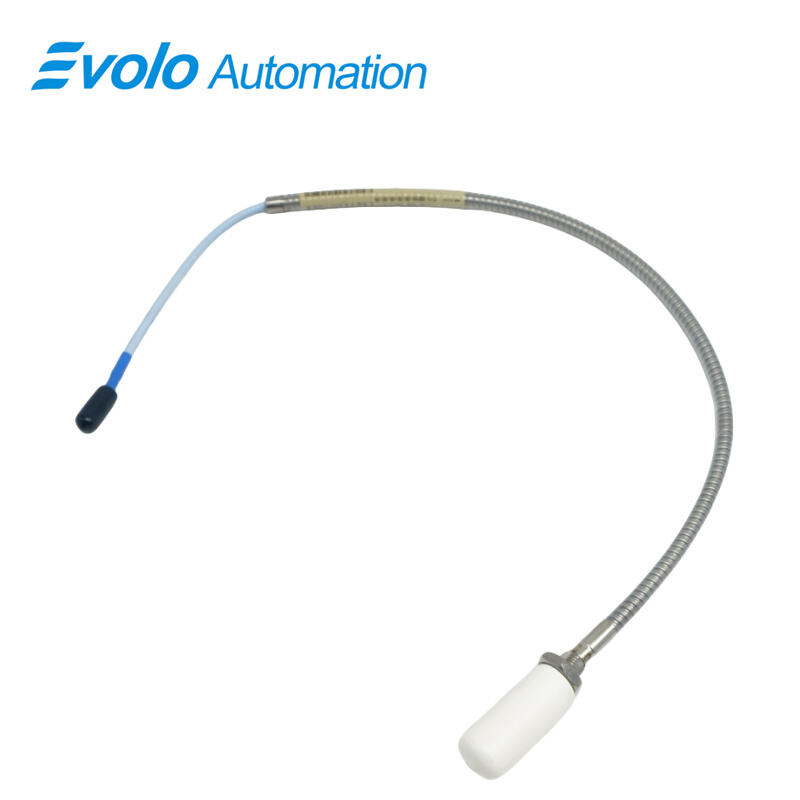

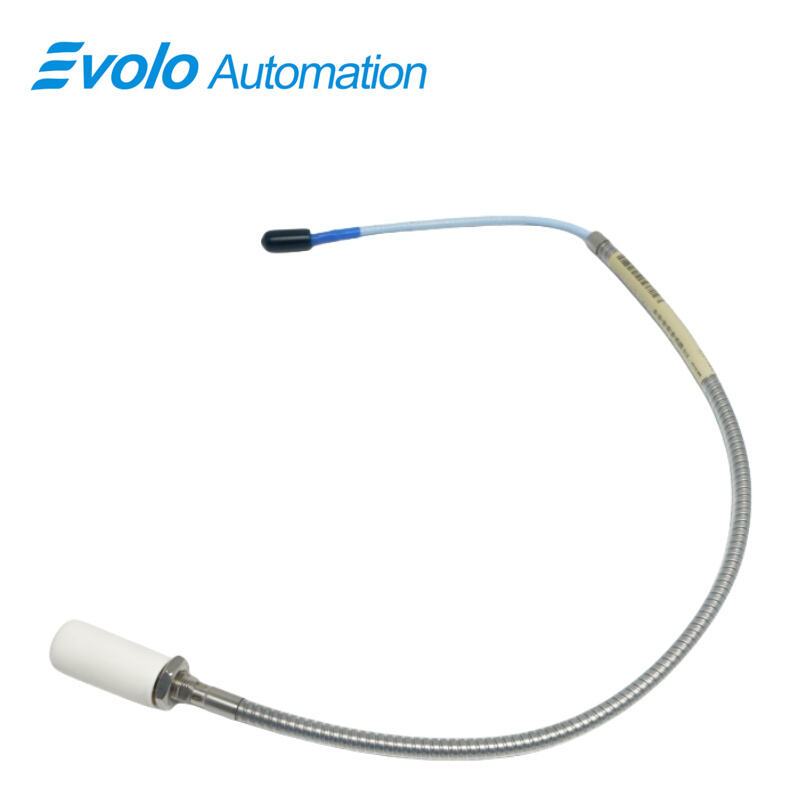

The 330104-00-03-50-02-05 3300 XL 8 mm Proximity Probe is a precision eddy-current transducer engineered for advanced industrial automation applications, providing highly accurate position and vibration measurements. With a total cable length of 5.0 meters and a linear measurement range of 2 mm (80 mils), the probe delivers an output voltage directly proportional to the gap between the probe tip and the monitored conductive surface. This system is optimized for fluid-film bearing machinery, supporting both dynamic vibration and static position monitoring, as well as Keyphasor reference and speed measurements. The probe is designed to operate reliably in extreme environments from -52°C to +177°C (-62°F to +350°F), with minimal sensitivity variation (<2 mV per volt input). Its M10x1 threaded case and standard miniature ClickLoc connector ensure quick installation and integration with 3300 XL Proximitor sensors, extension cables, and automated control systems. Advanced features like the TipLoc molding method and CableLoc design enhance mechanical stability, providing 330 N (75 lbf) pull strength, while the optional FluidLoc cable prevents leakage of fluids into the machine, ensuring durability and consistent measurement accuracy in demanding industrial automation environments.
Applications
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Advantage 1: Wide Operating Temperature Range
Operates from -52°C to +177°C (-62°F to +350°F), supporting high-temperature industrial environments and enabling reliable automation in extreme conditions.
Advantage 2: High Mechanical Strength and Cable Retention
TipLoc molding and CableLoc design provide 330 N pull strength, ensuring the probe and cable remain securely attached even under vibration and mechanical stress.
Advantage 3: Full System Compatibility
Backward compatible with 3300 XL and standard 3300 series components, simplifying upgrades and maintenance in automated industrial systems.
Advantage 4: Fluid and Contamination Protection
Optional FluidLoc cable prevents oil and liquid ingress, protecting measurement integrity and ensuring consistent automated process control in lubrication-heavy machinery.
Advantage 5: Precision Measurement for Automation
Provides linear, high-resolution output (<2 mV per volt input variation) over 2 mm, ensuring accurate integration into automated feedback loops for vibration and position control.
