Siemens SIMATIC S7-300 FM 355 C Continuous Control Module 6ES7355-0VH10-0AE0
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens · SIMATIC S7-300 FM 355

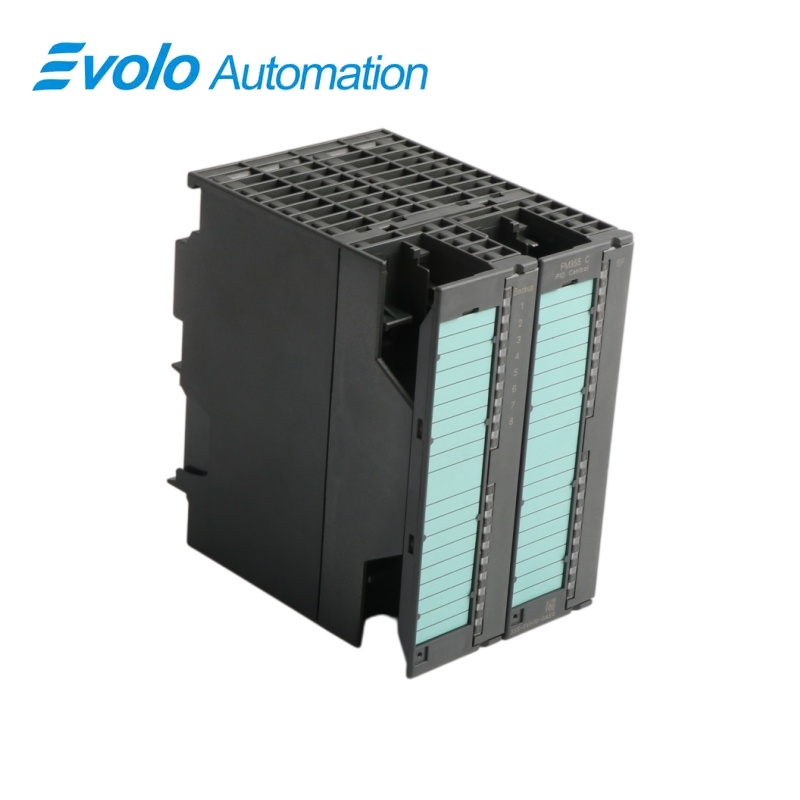

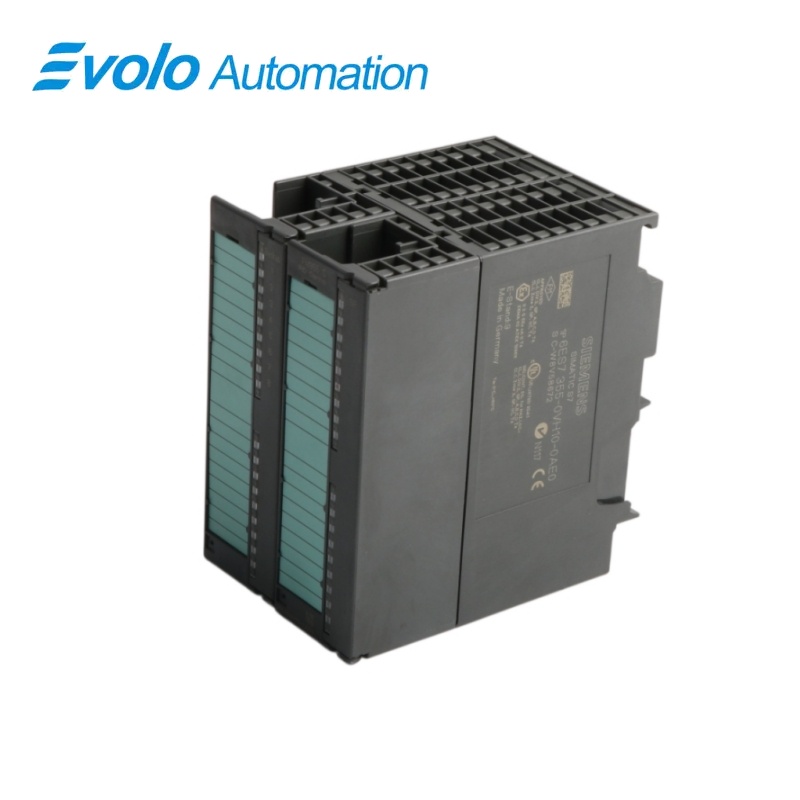

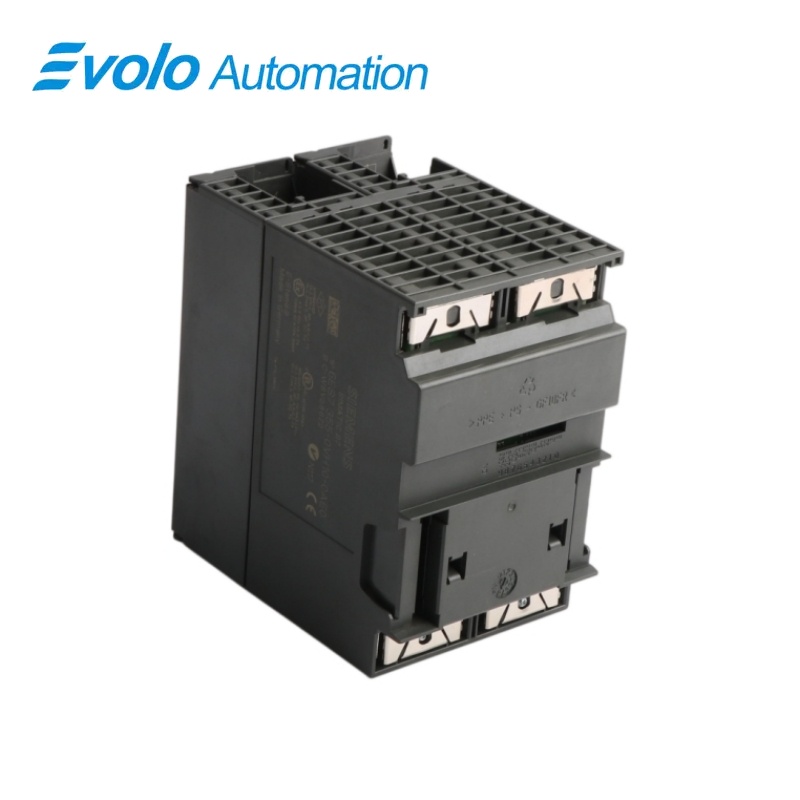

6ES7355-0VH10-0AE0 SIMATIC S7-300 FM 355 C Continuous Control Module
The FM 355 C is a four-channel continuous controller for S7-300 systems, supporting voltage, current, thermocouple and Pt100 inputs with four continuous analog outputs.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6ES7355-0VH10-0AE0 |
| Product Type | Four-channel continuous control function module |
| Core Function | Executes four independent closed-loop control channels with analog process I/O |
| Application or Compatible Series | S7-300 process-control applications requiring continuous PID control and configurable analog signals |
Exact Identification
Match 6ES7355-0VH10-0AE0 character by character and confirm the complete SIMATIC S7-300 FM 355 C Continuous Control Module designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The FM 355 C is a four-channel continuous controller for S7-300 systems, supporting voltage, current, thermocouple and Pt100 inputs with four continuous analog outputs.
The module executes four independent closed-loop control tasks. Configurable analog inputs accept standard voltage, current, thermocouple and Pt100 signals. Four output channels provide voltage or current command signals to final control elements.
Key Functions
Four Control Channels
The module executes four independent closed-loop control tasks.
Flexible Sensor Inputs
Configurable analog inputs accept standard voltage, current, thermocouple and Pt100 signals.
Continuous Analog Outputs
Four output channels provide voltage or current command signals to final control elements.
Official Specifications
| Control Channels | 4 |
|---|---|
| Analog Outputs | 4 |
| Voltage Output Ranges | 0 to 10 V and -10 to +10 V |
| Current Output Ranges | 0 to 20 mA and 4 to 20 mA |
| Input Sensor Types | Voltage, current, thermocouple and Pt100 |
| Supported Thermocouples | B, J, K, R and S |
| Maximum Input Resolution | 14 bit |
| Maximum Signal Cable Length | 200 m |
| Cable Limit for 80 mV / Thermocouple | 50 m |
| Minimum Voltage-Output Load | 1 kΩ |
| Maximum Current-Output Load | 500 Ω |
| Analog Output Settling, Resistive Load | 0.1 ms |
| Analog Output Settling, Capacitive Load | 3.3 ms |
| Analog Output Settling, Inductive Load | 0.5 ms |
| Host System | SIMATIC S7-300 |
Frequently Asked Questions
How many control loops can 6ES7355-0VH10-0AE0 execute?
Four independent continuous-control channels are available.
Which temperature sensors can connect to 6ES7355-0VH10-0AE0?
The approved input configurations include Pt100 and the listed thermocouple types.
How many continuous outputs are provided by 6ES7355-0VH10-0AE0?
Four analog output channels are available.
Can 6ES7355-0VH10-0AE0 drive both voltage and current actuators?
Yes; configure the supported 0–10 V, ±10 V, 0–20 mA or 4–20 mA range.
What must be saved before replacing 6ES7355-0VH10-0AE0?
Preserve the STEP 7 configuration, controller parameters, ranges, scaling and commissioning values.
What cable practice applies to 6ES7355-0VH10-0AE0?
Use shielded analog wiring, observe the specified length limits and separate it from power cables.
What should be tested after installing 6ES7355-0VH10-0AE0?
Validate every input, output range, loop direction, tuning value, limit and fallback response.
Compatibility & Ordering Notes
Compatibility Checklist
- Use the correct FM 355 C hardware entry and parameterization software.
- Match every sensor type, measuring range and analog-output load.
- Restore and validate all controller tuning and fallback parameters.
