330881-BR-05-060-00-02 PROXPAC XL Proximity Transducer

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330881-BR-05-060-00-02
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

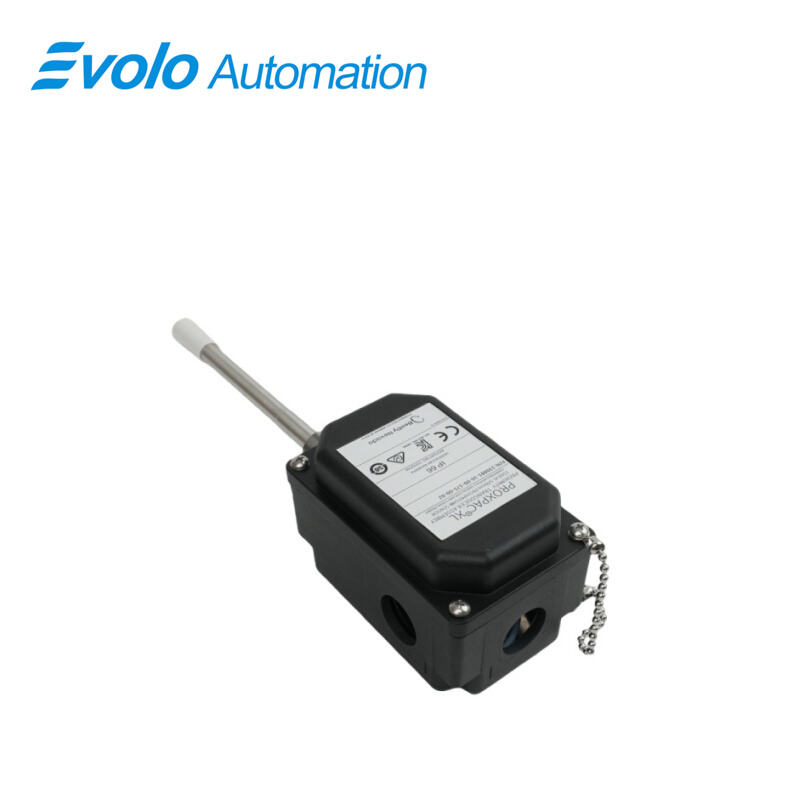

The PROXPAC XL Proximity Transducer (330881-BR-05-060-00-02) is a self-contained proximity sensing assembly engineered for precise shaft vibration and position monitoring in industrial automation and critical rotating machinery. With a 60 mm probe penetration and a 50 mm standoff adapter, this transducer is ideal for installations where compact housing and short probe penetration are required. The assembly integrates a 3300 XL Proximitor sensor within the housing, eliminating the need for separate Proximitor housings or extension cables, which simplifies field wiring and reduces installation complexity.

The housing is made from Polyphenylene Sulfide (PPS) reinforced with glass and conductive fibers, providing superior mechanical strength, electrostatic dissipation, and chemical resistance. The assembly is IP66 and Type 4X rated, enabling reliable operation in wet, dusty, and corrosive industrial environments. It supports a linear range of 2 mm (80 mils) with a recommended gap setting of 1.27 mm (50 mils), and accommodates shafts from 50.8 mm (2.0 in) minimum to 76.2 mm (3.0 in) recommended.

Electrical performance is highly stable, featuring supply sensitivity < 2 mV per volt, output resistance of 50 Ω, and compatibility with 16–24 AWG cables (0.2–1.5 mm²). Operating over a temperature range of -52°C to +100°C (-62°F to +212°F), this PROXPAC XL transducer provides accurate, long-term monitoring for turbines, motors, compressors, and other critical rotating machinery in automated industrial systems, ensuring high reliability, minimal maintenance, and reduced installation errors.

Applications

1. Compact Turbine Shaft Monitoring
The 60 mm probe penetration allows precise detection of turbine shaft displacement and vibration in confined spaces while maintaining a linear range of 2 mm, enabling effective predictive maintenance.

2. Motor Shaft Vibration Detection
The integrated 3300 XL Proximitor sensor continuously monitors motor shafts for imbalance, misalignment, or bearing wear, supporting automated maintenance and reducing downtime.

3. Harsh Industrial Environments
With IP66 and Type 4X ratings, the transducer operates reliably in dusty, wet, and corrosive environments such as petrochemical plants and power generation facilities.

4. Pumps and Compressors
The 50 mm standoff adapter allows secure installation in recessed housings of industrial pumps and compressors, providing accurate vibration readings for early fault detection.

5. Simplified Automation Integration
Self-contained design eliminates the need for separate Proximitor housings or extension cables, simplifying wiring and reducing installation errors in automated industrial systems.

Specifications

Competitive Advantage

1. Integrated Sensor Design
Built-in 3300 XL Proximitor sensor removes the need for external housings or extension cables, minimizing failure points and simplifying installation.

2. Durable and Chemical-Resistant Housing
Reinforced PPS with glass and conductive fibers ensures mechanical strength, chemical resistance, and effective electrostatic dissipation.

3. High-Precision Measurement
With a linear range of 2 mm and recommended gap of 1.27 mm, the assembly provides precise, repeatable vibration and shaft position readings.

4. Harsh Environment Capability
Rated IP66 and Type 4X, the transducer withstands moisture, dust, and corrosive industrial conditions, ensuring reliable operation and longevity.

5. Easy Installation and Maintenance
Preconfigured standoff adapter and support for 16–24 AWG field wiring reduce setup time and minimize maintenance errors in industrial automation systems.
