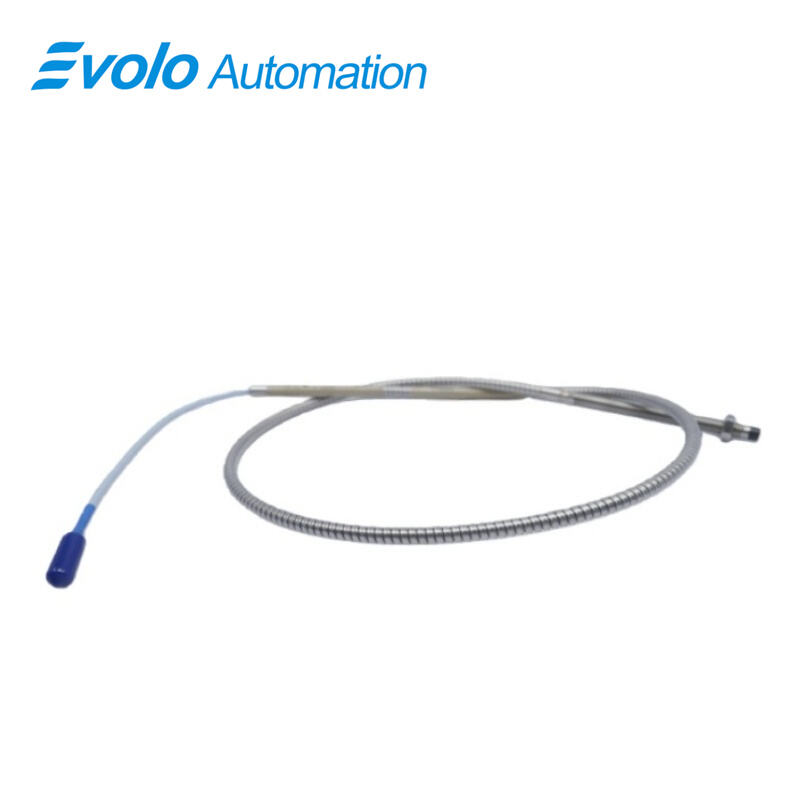

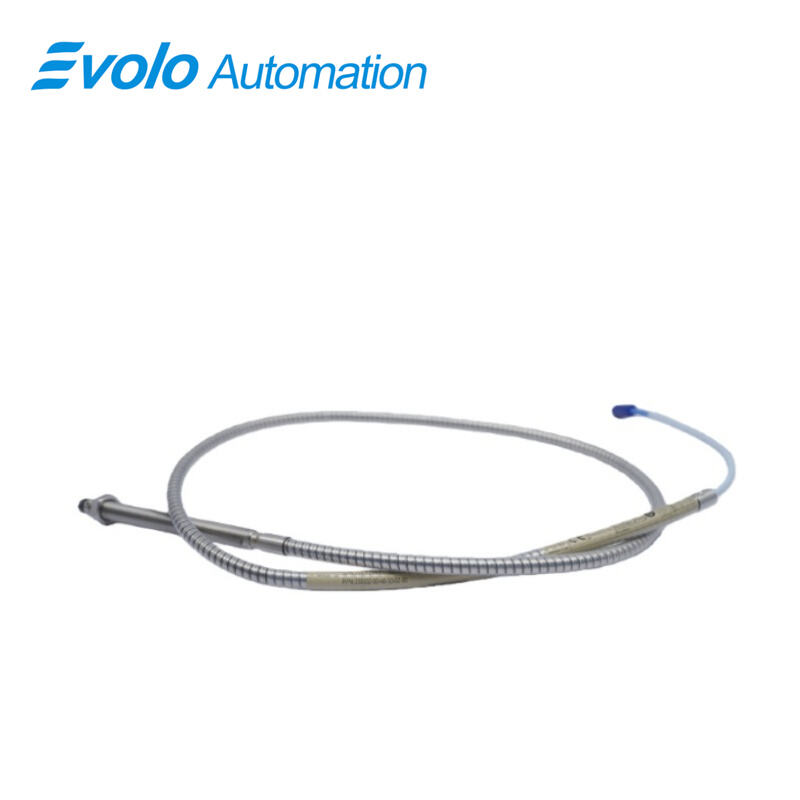

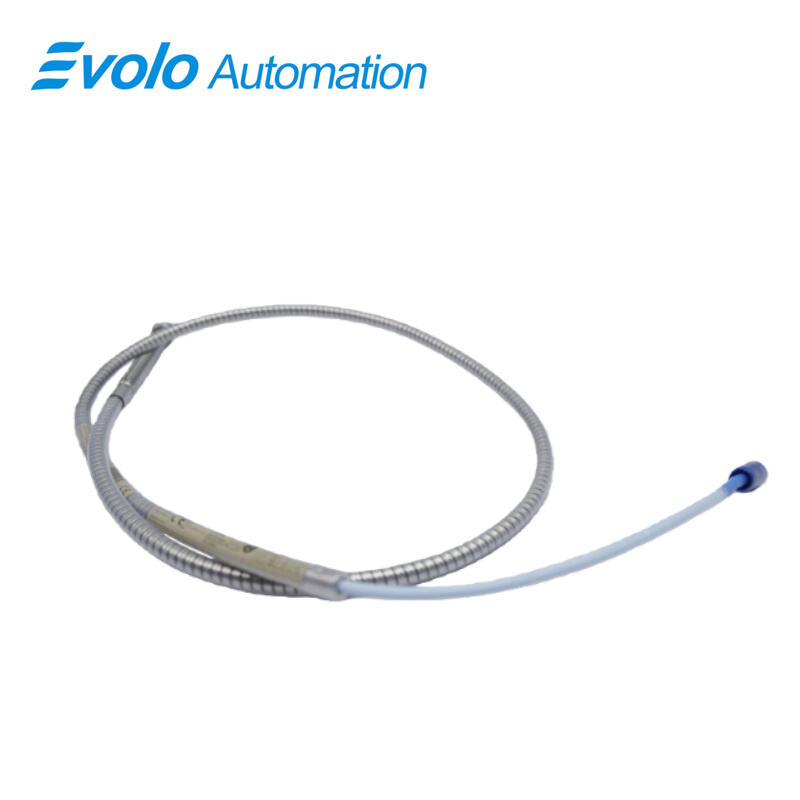

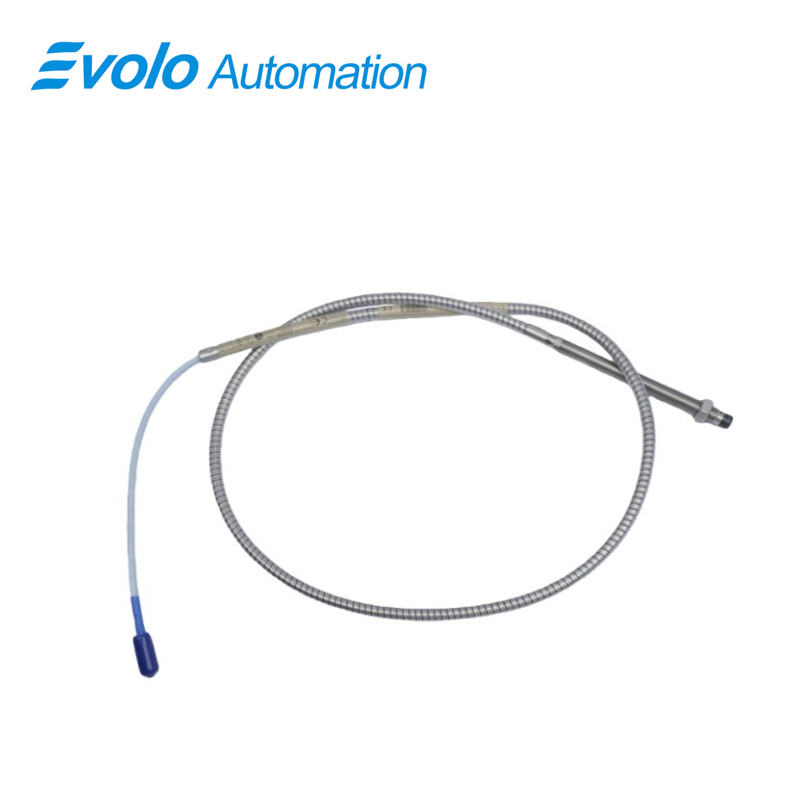

330102-00-43-05-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-43-05-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 3300 XL 8 mm Proximity Probe, model 330102-00-43-05-02-05, is a high-precision eddy current transducer system engineered for advanced industrial automation and condition monitoring applications. Designed to deliver an output voltage directly proportional to the distance between the probe tip and conductive surfaces, it enables accurate measurements of both static positions and dynamic vibrations. Featuring a linear range of 2 mm (80 mils) and an output resistance of 50 Ω, the 3300 XL 8 mm system maintains exceptional stability, with less than 2 mV change per volt of input variation. The probe supports operating temperatures from -52°C to +177°C (-62°F to +350°F) and comes with a 0.5-meter (1.6 ft) standard cable with a miniature coaxial ClickLoc connector. It meets CSA, ATEX, and IECEx approvals, ensuring reliability in hazardous and industrial environments. With a 3/8-24 UNF thread and maximum thread engagement of 0.563 in, the probe is compatible with API 670 standards for mechanical configuration, accuracy, and temperature performance. The 3300 XL series supports complete interchangeability of probes, extension cables, and Proximitor sensors, reducing installation complexity and calibration requirements. Enhanced TipLoc and CableLoc designs provide superior mechanical bonding and a 330 N (75 lbf) cable pull strength, while the optional FluidLoc feature prevents fluid leakage through the cable, making it ideal for lubrication-critical machinery.

Applications

Vibration Monitoring on Fluid-Film Bearings

The 3300 XL 8 mm probe measures vibration amplitudes on fluid-film bearings with high linearity (2 mm range) and resolution, enabling predictive maintenance and reducing unplanned downtime by up to 20%.

Shaft Position Detection

Precise static position monitoring is achieved using the probe’s proportional output, with stability across -52°C to +177°C, suitable for rotating machinery in petrochemical and power generation industries.

Keyphasor Signal Generation

The system provides accurate Keyphasor outputs for speed and phase reference, supporting real-time machine health diagnostics and improving rotational speed measurements to within ±0.1% accuracy.

Speed and Rotational Analysis

Combined with extension cables and Proximitor sensors, the 3300 XL 8 mm probe monitors shaft speed with minimal signal degradation (69.9 pF/m cable capacitance), enhancing automation system performance.

Integration in Harsh Environments

Approved for CSA, ATEX, and IECEx standards, the probe operates reliably in explosive or high-temperature industrial zones, offering robust monitoring for automated safety-critical systems.

Specifications

Competitive Advantage

Superior Linearity and Sensitivity

With a linear range of 2 mm and less than 2 mV/volt input sensitivity variation, the 3300 XL 8 mm probe ensures precise measurements for both position and vibration applications.

Enhanced Mechanical Reliability

Patented TipLoc and CableLoc designs provide robust bonding and 330 N pull strength, minimizing mechanical failures in industrial installations.

Complete Interchangeability

The system is fully backward compatible with all 3300 series 5 mm and 8 mm probes, reducing the need for component-specific calibration and simplifying maintenance logistics.

Optional FluidLoc Cable Protection

Prevents oil and other liquid leakage, improving machine safety and reliability in lubrication-critical systems.

Compliance with Global Standards

CSA, ATEX, and IECEx certifications allow seamless integration in hazardous areas, ensuring that automated monitoring meets international safety regulations.
