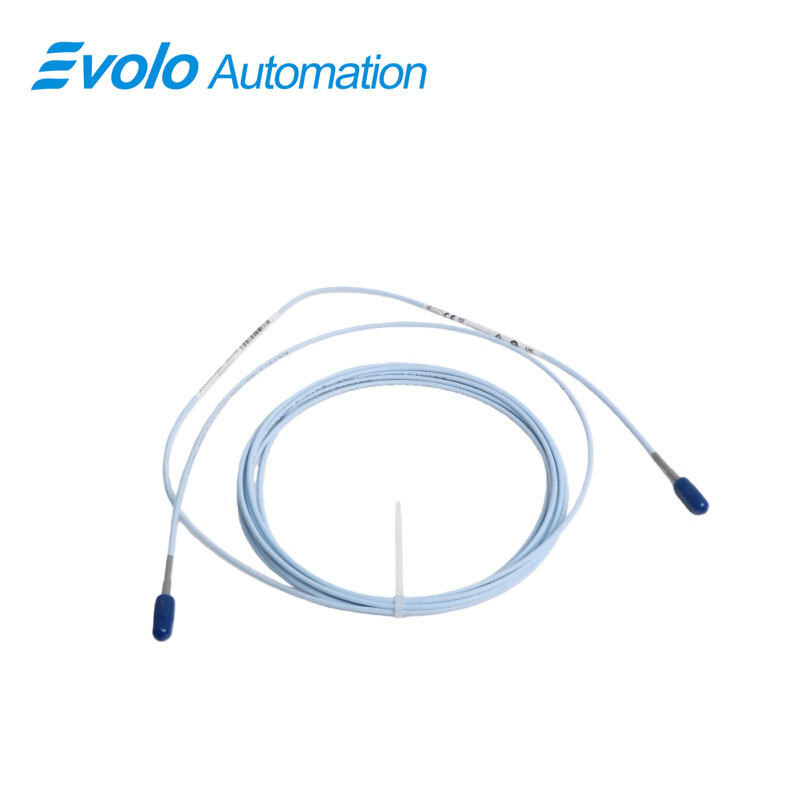

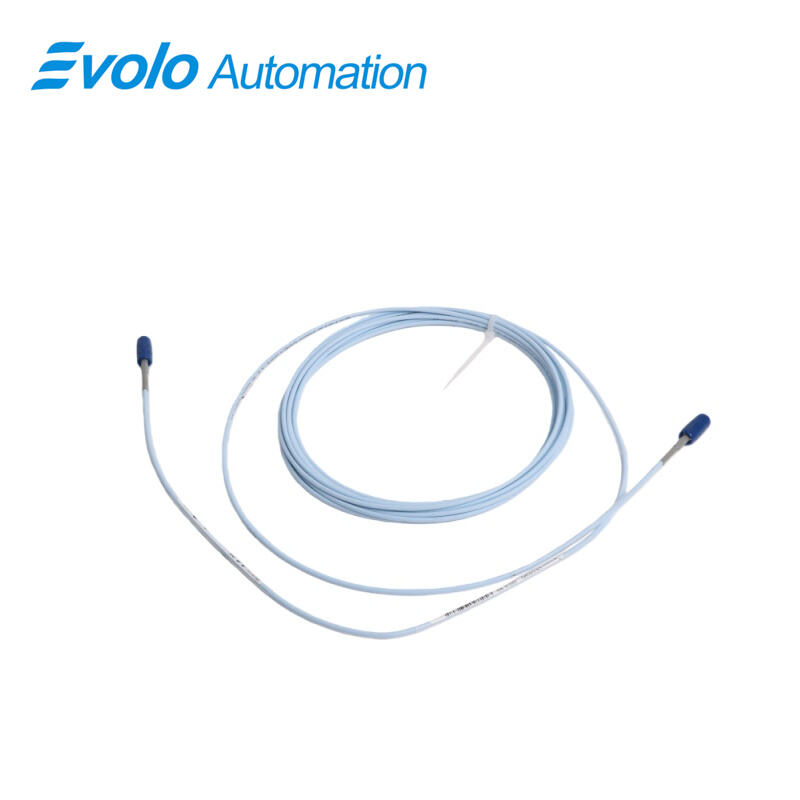

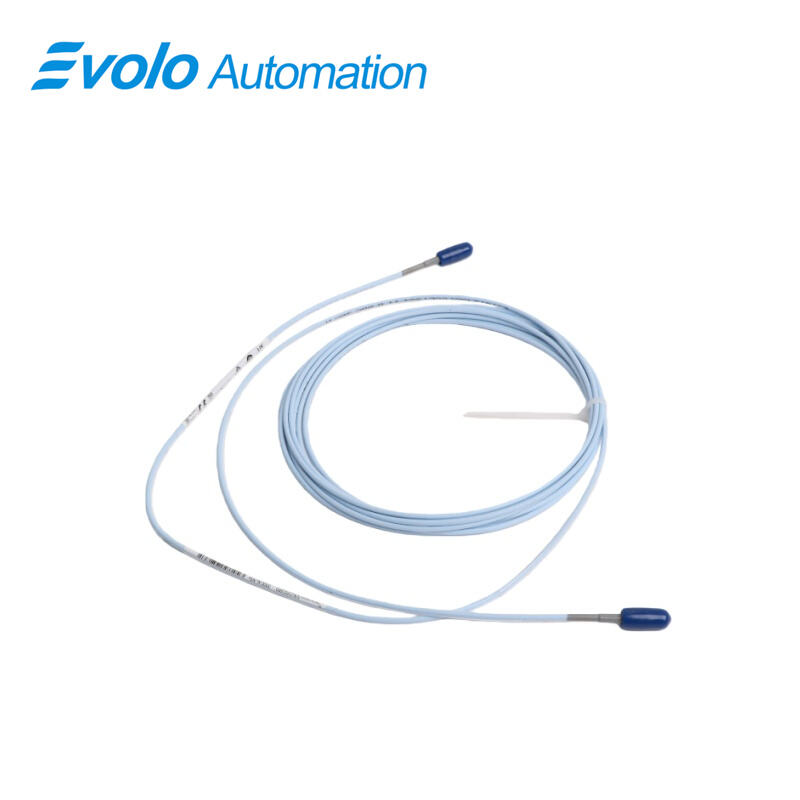

330930-045-00-00 3300 NSv Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330930-045-00-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 3300 NSv Extension Cable (model 330930-045-00-00) is a core accessory engineered to perfectly complement the 3300 NSv proximity probe system, delivering seamless mechanical and electrical compatibility while achieving full interchangeability with Bently Nevada’s legacy 3300 RAM proximity probe and its corresponding extension cable. This compatibility is a pivotal advantage for industrial facilities that are upgrading their existing monitoring systems, as it eliminates the need for costly overhauls of entire transducer setups and ensures uninterrupted operation during the transition phase. What sets the 3300 NSv Extension Cable apart is its synergistic design with the 3300 NSv probe, which boasts enhanced chemical resistance compared to the 3300 RAM probe— a feature that extends the durability and reliability of the entire sensing system when deployed in harsh process compressor applications, where exposure to corrosive fluids, high humidity, and abrasive particulate matter is common.

When paired with the 3300 NSv probe, the 3300 NSv Extension Cable further amplifies the system’s performance superiority over older 3000-series 190 probes, especially in scenarios where the probe is gapped at the same distance from the target. The extension cable’s stable signal transmission capability ensures that the 3300 NSv probe’s superior side-view characteristics are fully preserved, delivering accurate and consistent measurement data even in high-vibration industrial environments. This makes the 3300 NSv Extension Cable an indispensable component for critical condition monitoring tasks, such as turbine shaft displacement detection, rotor position sensing, and reciprocating compressor piston motion monitoring.

Applications

The 3300 NSv Extension Cable (model 330930-045-00-00) is a high-reliability signal transmission accessory specially designed for matching 3300 NSv proximity probe systems, mainly applied in industrial condition monitoring scenarios that require flexible wiring, stable signal transmission and extreme environment adaptation. As a core connecting component of the proximity monitoring system, this extension cable is widely used in power generation, oil & gas, aerospace and heavy machinery manufacturing industries, providing seamless signal transmission support for critical equipment such as gas turbines, steam turbines, centrifugal compressors and high-speed rotating shafts.

With a 4.5-meter (14.8 feet) cable length, the 3300 NSv Extension Cable effectively extends the installation distance between the 3300 NSv probe and the Proximitor Sensor, solving the wiring dilemma in large-scale equipment or large-span installation environments. Its miniature coaxial ClickLoc connector with connector protector and standard cable configuration ensures secure and anti-loose connection, which is suitable for on-site wiring in equipment compartments, pipeline brackets and other complex layouts, and the connector protector can prevent liquid intrusion to ensure long-term stable connection. The cable without stainless steel armor design, combined with compact dimensions of 18×18×1.5cm and lightweight of 0.08kg, makes it easy to install in narrow spaces such as turbine casings and bearing housings, without adding extra load to precision equipment and facilitating later maintenance and replacement.

Specifications

Competitive Advantage

1.Ultra-Flexible Installation & Space-Saving Design

Adopting a without stainless steel armor configuration, paired with compact dimensions of 18×18×1.5cm and an ultra-lightweight of 0.08kg, the 3300 NSv Extension Cable features excellent flexibility and portability. It can be easily routed and installed in narrow spaces such as turbine casings, bearing housings, and equipment compartments, avoiding interference with precision components and reducing the load on the overall monitoring system. The 4.5-meter (14.8 feet) cable length effectively extends the installation distance between the 3300 NSv probe and Proximitor Sensor, solving wiring challenges in large-scale equipment or large-span industrial sites, while facilitating on-site maintenance, disassembly, and replacement.

2.Stable Signal Transmission & Superior Electrical Performance

Equipped with a miniature coaxial ClickLoc connector with connector protector, the cable achieves a secure, anti-loose connection that prevents liquid intrusion and mechanical vibration-induced disconnection, ensuring long-term stable signal transmission. Its optimized electrical parameters—typical extension cable capacitance of 69.9 pF/m (21.3 pF/ft), center conductor DC resistance of 0.220Ω/m (0.067 Ω/ft), 50Ω output resistance, and supply sensitivity of less than 2 mV output voltage change per volt input voltage change—effectively minimize signal attenuation and electromagnetic interference. Even in long-distance transmission and complex industrial environments, it can accurately transmit probe measurement data (e.g., shaft displacement, vibration signals), guaranteeing the reliability of the entire monitoring system.

3.Extreme Environmental Adaptability & Wide Compatibility

With an ultra-wide operating and storage temperature range of -55°C to +177°C (-60°F to +350°F), the 3300 NSv Extension Cable maintains stable performance in extreme conditions, from low-temperature outdoor monitoring to high-temperature engine test bays and high-heat industrial scenarios. It is perfectly compatible with the 3300 NSv proximity probe system, matching the 1.0 mm (40 mils) recommended gap setting and -18.5 Vdc to -26 Vdc power supply requirements, enabling seamless integration with existing systems. Additionally, the "Not Required" agency approval option allows for quick deployment across diverse industries without regulatory barriers, enhancing application flexibility.

4.Cost-Effective & Low-Maintenance Solution

The standard cable configuration without stainless steel armor balances performance and cost, reducing procurement costs while meeting the needs of non-corrosive, low-abrasion industrial environments. The ClickLoc connector’s plug-and-play design and connector protector’s anti-damage feature reduce on-site installation time and maintenance frequency, lowering labor and operational costs. Its robust structure and stable performance minimize downtime caused by cable failures, ensuring long service life and providing industrial users with a cost-effective, low-maintenance signal transmission solution.
