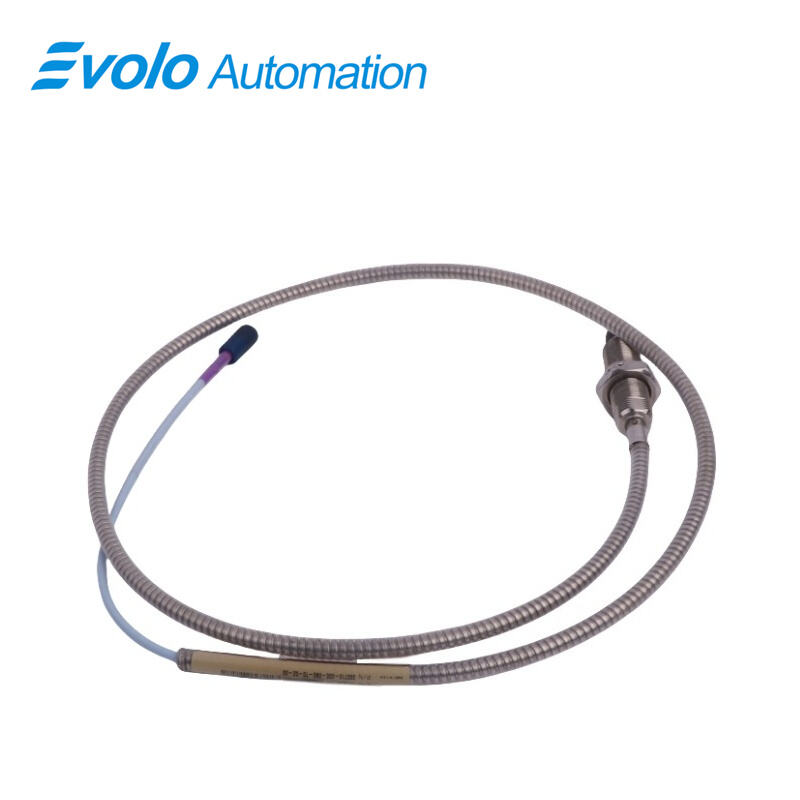

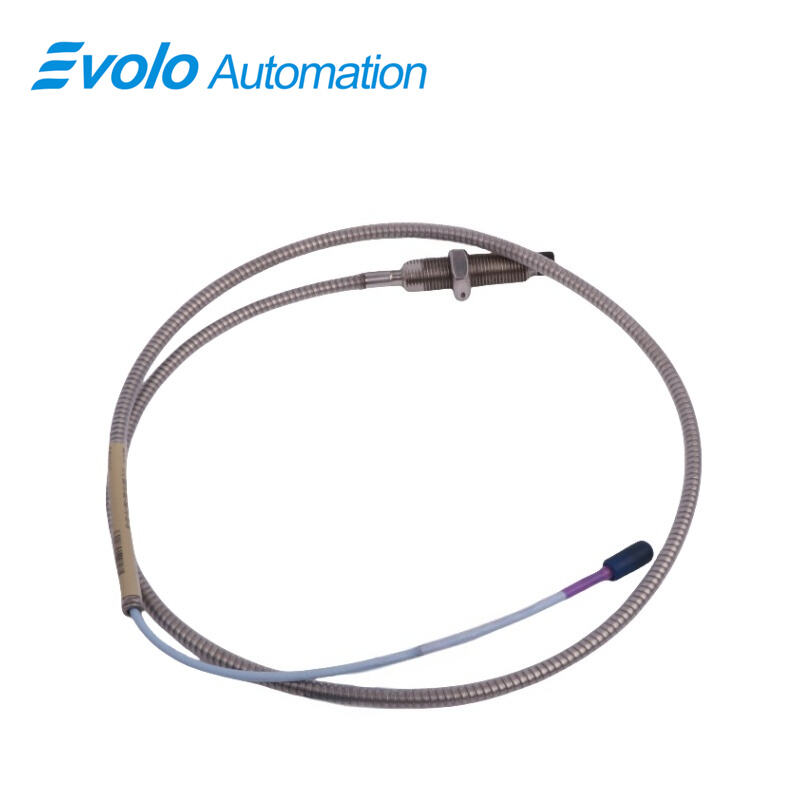

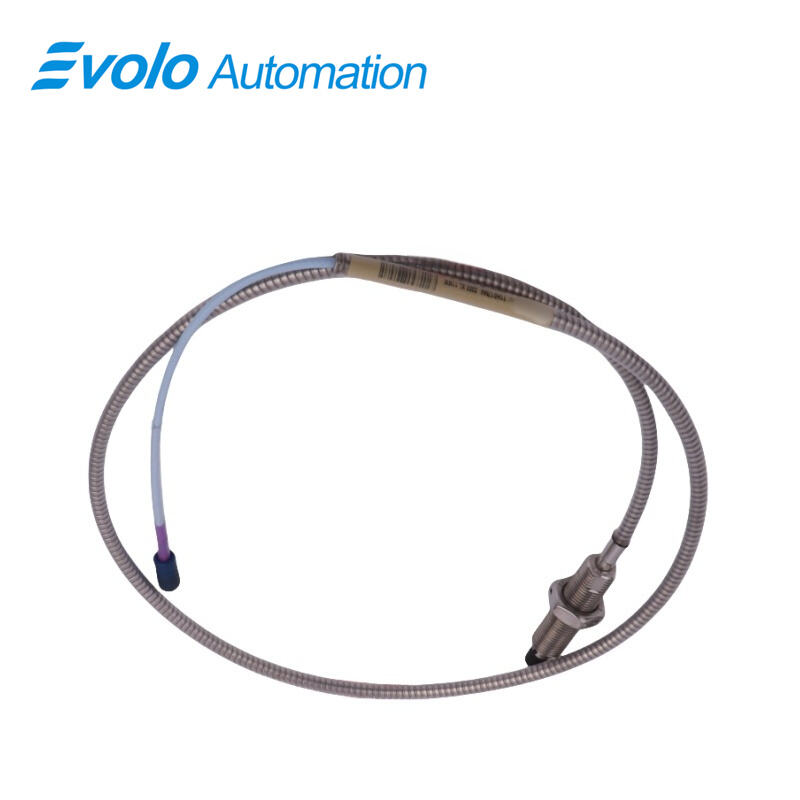

330710-000-060-10-02-00 3300 XL 11 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330710-000-060-10-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330710-000-060-10-02-00 3300 XL 11 mm Proximity Probe is an advanced non-contact sensing solution engineered for industrial automation and machinery condition monitoring systems. This 3300 XL 11 mm proximity probe delivers a calibrated output of 3.94 V/mm (100 mV/mil), enabling highly accurate vibration and displacement measurement on fluid film bearing machines. Compared with standard 3300 XL 8 mm proximity probes, the enlarged 11 mm probe tip provides an extended linear measurement range, making the 330710-000-060-10-02-00 model especially suitable for demanding automation applications that require stable and repeatable position feedback.

In automated rotating equipment such as steam turbines, compressors, and large motors, the 3300 XL 11 mm proximity probe supports axial thrust position monitoring, ramp differential expansion measurement, rod position and rod drop detection on reciprocating compressors, as well as tachometer, zero-speed, and Keyphasor reference signal generation. These functions allow automation control systems to continuously evaluate machine health and respond quickly to abnormal operating conditions, improving plant reliability and process safety.

The 330710-000-060-10-02-00 3300 XL 11 mm Proximity Probe is designed as a modern replacement for legacy 7200-series 11 mm and 14 mm transducer systems, providing a standardized upgrade path within automated monitoring architectures. When integrated into a 3500 or upgraded 3300 monitoring platform, this proximity probe ensures compatibility with current automation software and digital configuration tools, supporting seamless system modernization.

To meet diverse industrial automation installation requirements, the 3300 XL 11 mm proximity probe is available in multiple probe case and thread configurations, including armored and unarmored designs. Gold-plated ClickLoc connectors ensure secure electrical connections, while patented TipLoc and CableLoc technologies enhance mechanical integrity and long-term signal stability. Optional FluidLoc cabling and connector protectors further improve environmental sealing in harsh automation environments. With robust construction and automation-focused performance, the 330710-000-060-10-02-00 3300 XL 11 mm Proximity Probe is a reliable choice for high-precision industrial monitoring systems.

Applications

The 3300 XL 11 mm Proximity Probe is engineered for high-precision non-contact vibration and displacement measurements in demanding industrial environments. Its 11 mm probe tip provides a longer linear range than the standard 8 mm system, making it ideal for applications requiring extended measurement distances. Typical use cases include axial (thrust) position monitoring, ramp differential expansion measurements on steam turbines, and rod position or rod drop detection on reciprocating compressors. The probe also delivers accurate tachometer readings, zero-speed detection, and phase reference (Keyphasor) signals, supporting both dynamic vibration and static position monitoring. Its compatibility with 3500 and other monitoring systems allows seamless integration into upgraded or retrofitted machinery, ensuring precise real-time feedback for predictive maintenance and machine protection programs.

Specifications

Competitive Advantage

The 3300 XL 11 mm Proximity Probe offers significant advantages over older 7200-series transducers and standard 3300 XL 8 mm probes. Its larger tip and patented TipLoc molding provide a robust mechanical bond, while the ClickLoc gold-plated connectors prevent loose connections and maintain signal integrity. The probe cable incorporates CableLoc technology for 330 N pull strength, with an optional FluidLoc design to prevent fluid leakage. With multiple probe case configurations, armored or unarmored threads, and IP67-rated protection against dust and water, the system is highly versatile and reliable in harsh industrial conditions. Additional features such as connector protectors and locknuts with pre-drilled safety wire holes further enhance operational durability and safety, making the 3300 XL 11 mm a superior choice for precision measurement in critical machinery.
