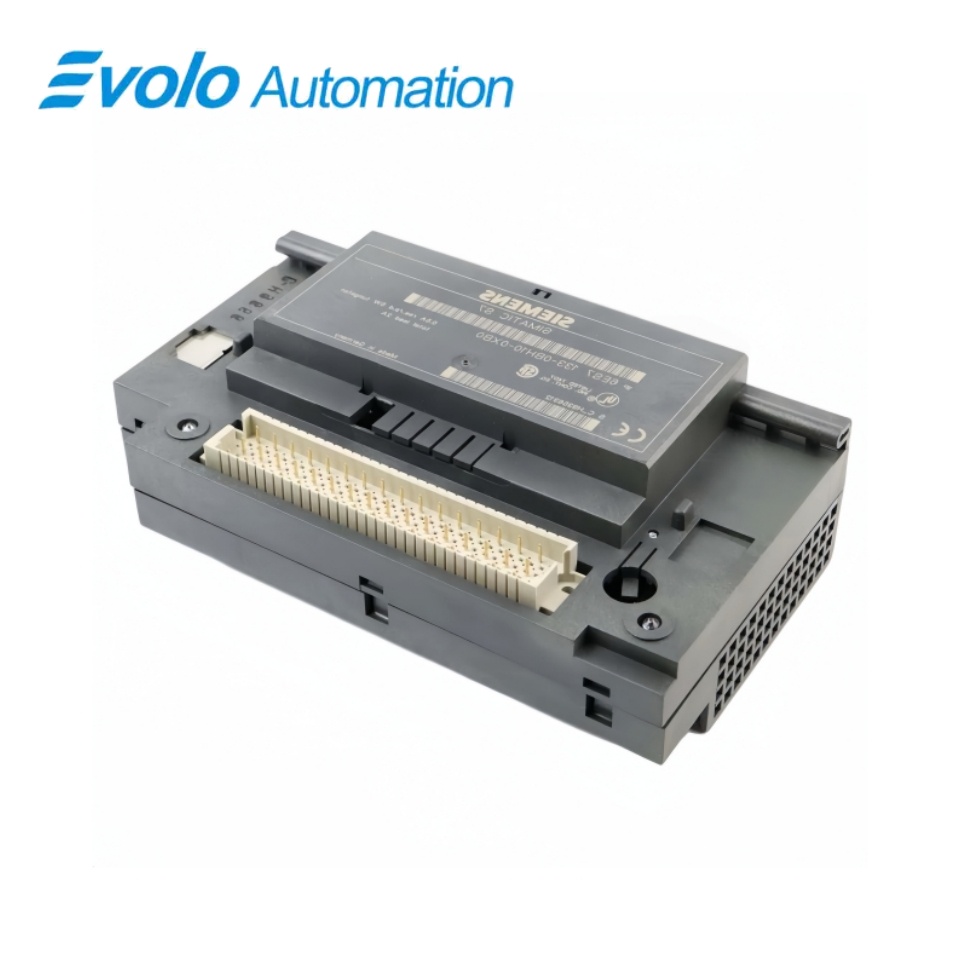

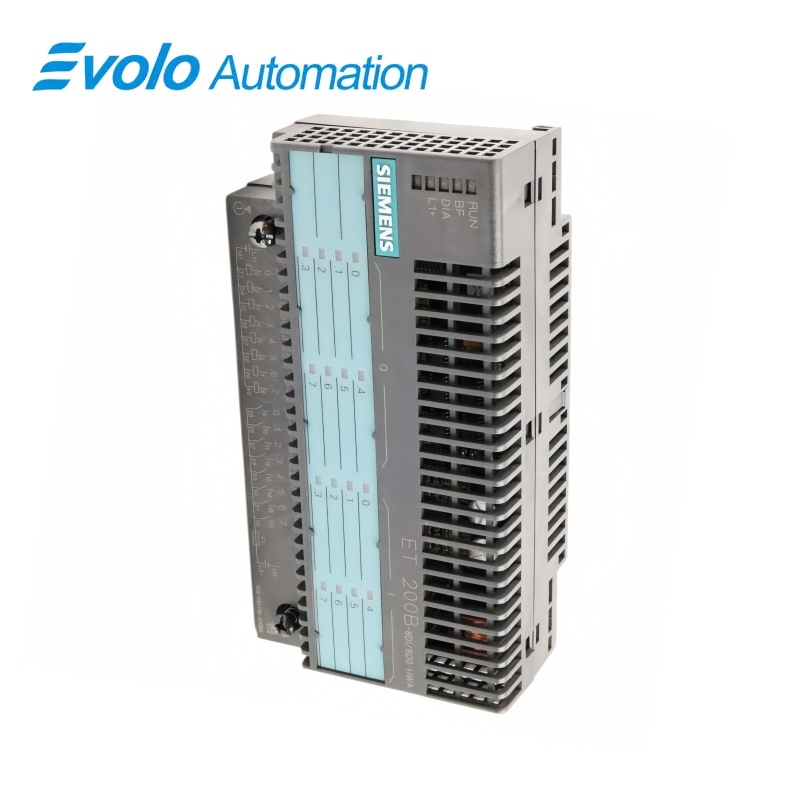

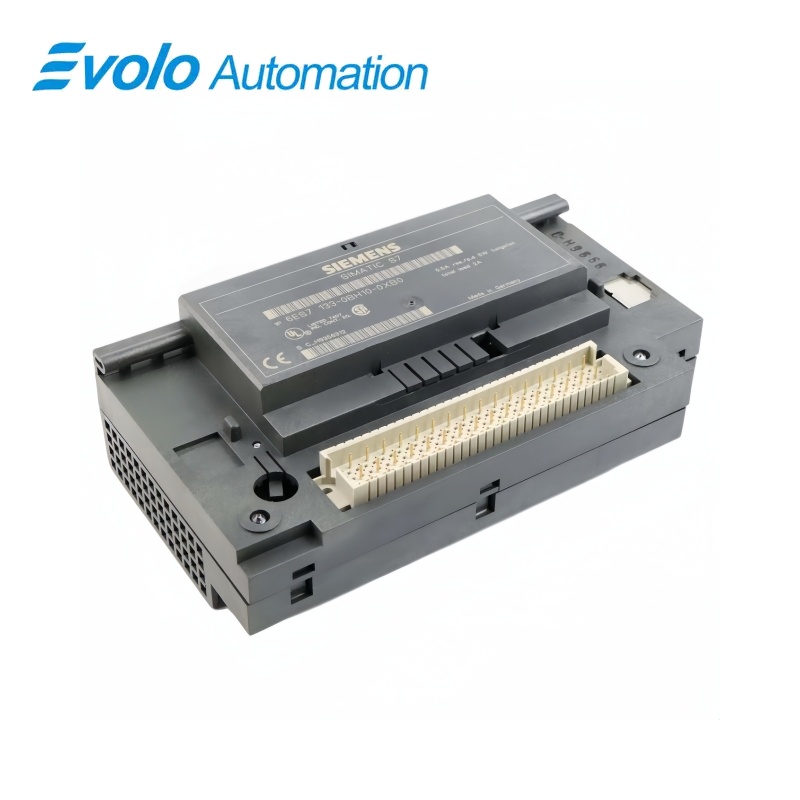

Siemens SIMATIC ET 200B 8DI/8DO Digital Electronic Module 6ES7133-0BH10-0XB0
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens • SIMATIC ET 200B
6ES7133-0BH10-0XB0 SIMATIC ET 200B 8DI/8DO Digital Electronic Module
This 160 mm ET 200B electronic module combines eight 24 V DC digital inputs with eight 24 V DC, 0.5 A digital outputs and integrated hardware output shutdown.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6ES7133-0BH10-0XB0 |
| Product Type | Combined digital input and output module |
| Core Function | Provides combined discrete field-signal acquisition and actuation |
| Application or Compatible Series | Legacy SIMATIC DP ET 200B distributed-I/O installations |
Exact Identification
Match 6ES7133-0BH10-0XB0 character by character and confirm the complete SIMATIC ET 200B 8DI/8DO Digital Electronic Module designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
This 160 mm ET 200B electronic module combines eight 24 V DC digital inputs with eight 24 V DC, 0.5 A digital outputs and integrated hardware output shutdown.
Eight inputs and eight outputs reduce the number of modules needed for a small distributed-I/O node. The integrated shutdown path supports the original ET 200B output-control arrangement. The module operates as part of the configured ET 200B distributed-I/O station and its documented bus parameters.
Key Functions
Combined Discrete I/O
Eight inputs and eight outputs reduce the number of modules needed for a small distributed-I/O node.
Hardware Output Shutdown
The integrated shutdown path supports the original ET 200B output-control arrangement.
PROFIBUS DP Station Integration
The module operates as part of the configured ET 200B distributed-I/O station and its documented bus parameters.
Official Specifications
| Module Width | 160 mm |
|---|---|
| Digital Inputs | 8 |
| Input Rated Voltage | 24 V DC |
| Digital Outputs | 8 |
| Output Rated Voltage | 24 V DC |
| Maximum Output Current per Channel | 0.5 A |
| Output Shutdown | Integrated hardware function |
| Maximum PROFIBUS DP Rate | 12 Mbit/s |
| Net Weight | 0.237 kg |
Frequently Asked Questions
How many field points are available on 6ES7133-0BH10-0XB0?
The module provides eight digital inputs and eight digital outputs.
Which field voltage should I use with 6ES7133-0BH10-0XB0?
Wire the input and output circuits for the documented 24 V DC rating.
What is the maximum output current on 6ES7133-0BH10-0XB0?
Each digital output is rated for a maximum of 0.5 A under the specified conditions.
Does 6ES7133-0BH10-0XB0 include a hardware output-shutdown function?
Yes; retain the original shutdown wiring and validate its behavior after replacement.
What station details should I record before removing 6ES7133-0BH10-0XB0?
Record the ET 200B station address, bus speed, module position, terminal assignments and shutdown wiring.
Can I substitute another ET 200B electronic module for 6ES7133-0BH10-0XB0?
Only use a module whose complete article number and input, output and shutdown functions match the configured station.
What should I test after fitting 6ES7133-0BH10-0XB0?
Force and monitor every permitted input and output, verify diagnostics and prove the hardware shutdown under the approved test plan.
Compatibility & Ordering Notes
Compatibility Checklist
- Maintain the original ET 200B station and terminal-block arrangement.
- Do not exceed the documented channel current or bus parameters.
- Validate the integrated output shutdown before returning the machine to service.
