330130-080-03-00 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-080-03-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

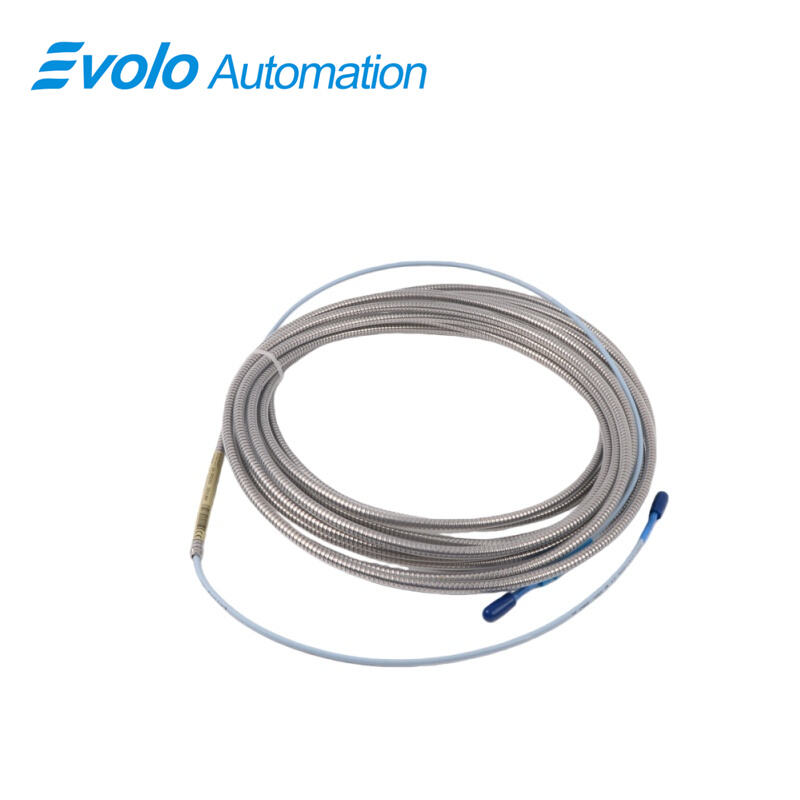

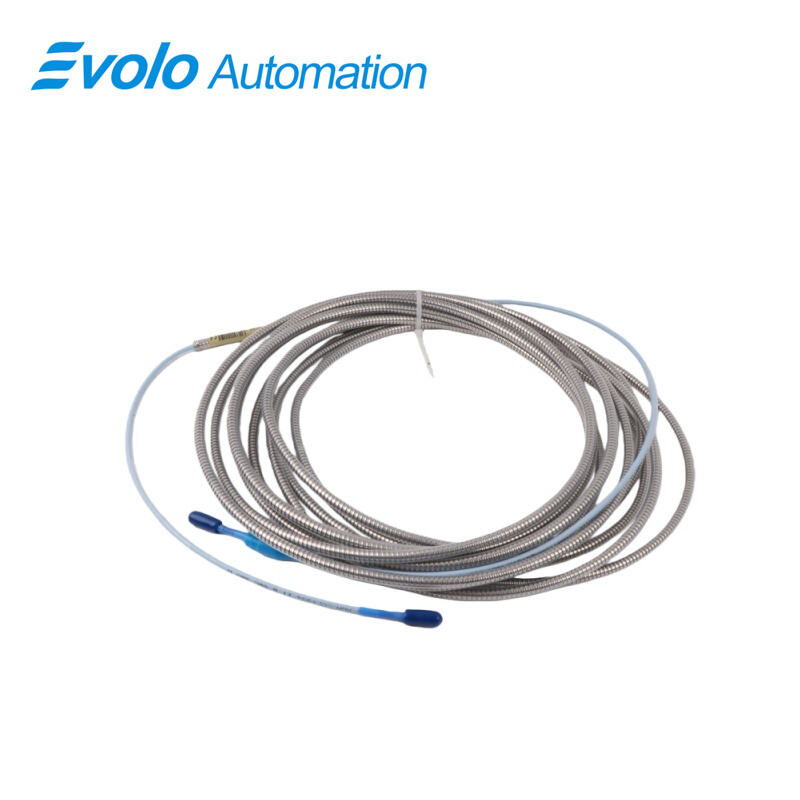

The 330130-080-03-00 3300 XL Standard Extension Cable is a high-performance interconnect solution engineered by Bently Nevada to bridge the critical gap between proximity probes and Proximitor sensors. As a vital link in the 3300 XL transducer system, the 330130-080-03-00 3300 XL Standard Extension Cable ensures the seamless transmission of eddy current signals, which are essential for monitoring shaft vibration and axial position in rotating machinery. This specific model features an 8.0-meter length and is constructed using a 75Ω triaxial standard cable, providing the electrical impedance matching required for high-accuracy displacement measurements.

A standout feature of the 330130-080-03-00 3300 XL Standard Extension Cable is its "03" option, which signifies an armored cable design equipped with a connector protector. This physical reinforcement allows the 330130-080-03-00 3300 XL Standard Extension Cable to operate reliably in the most punishing industrial environments, shielding the sensitive inner conductors from mechanical crushing, abrasion, and fluid ingress. The integrated connector protector specifically prevents the miniature ClickLoc coaxial connections from loosening due to high-frequency machine vibration or accidental impact during maintenance routines.

Applications

Heavy-Duty Machinery Casing and Bearing Monitoring The 330130-080-03-00 is primarily used to connect 8 mm proximity probes to monitoring racks in large-scale rotating equipment. Its 8.0-meter length and armored protection make it ideal for routing through the complex internal structures of steam turbines and large gas compressors. The armor prevents damage from sharp metal edges or high-pressure oil sprays within the machine casing, ensuring that vital vibration and thrust position data reach the Proximitor sensor without interference.

High-Interference Industrial Environments Utilizing a 75Ω triaxial construction, this extension cable excels in facilities with high levels of electromagnetic noise. It is frequently deployed in power generation plants and petrochemical refineries where electrical interference from large motors or switchgear could otherwise degrade signal quality. The triaxial shielding ensures that the delicate voltage-to-gap relationship remains accurate, allowing for precise tracking of shaft runout and thermal expansion even over long cable runs.

Interchangeable System Upgrades and Retrofits The 330130-080-03-00 is designed for seamless integration into existing Bently Nevada monitoring infrastructures. Because it is part of the 3300 XL series, it is backward compatible with older 3300 series probes, making it a cost-effective solution for retrofitting legacy equipment. The "plug-and-play" nature of the ClickLoc connectors and the standardized capacitance allow maintenance teams to replace damaged cables quickly without performing a full system recalibration, significantly reducing downtime.

Specifications

Competitive Advantage

1.Superior Armored Protection and Connector Security

The 330130-080-03-00 features high-durability stainless steel armor that provides exceptional resistance to crushing and physical abrasion. Unlike standard unarmored cables that are prone to failure in high-traffic maintenance areas, this cable includes a built-in connector protector. This ensures the coaxial link remains hermetically sealed and vibration-proof, extending the sensor system's MTBF (Mean Time Between Failures) in harsh environments.

2.Total System Interchangeability

One of the most significant advantages of the 3300 XL extension cable is its "calibration-free" interchangeability. The 330130-080-03-00 can be swapped with any other 3300 XL cable of the same length without affecting the system's accuracy. This eliminates the need for specialized matching between probes, cables, and sensors, greatly simplifying spare parts inventory management and reducing labor costs during emergency repairs.

3.Advanced Triaxial Shielding Technology

The use of triaxial cabling provides a superior level of noise immunity compared to standard coaxial designs. By providing an additional layer of shielding, the 330130-080-03-00 effectively blocks both electrostatic and magnetic interference. This ensures a clean, low-noise signal path which is critical for detecting subtle changes in machine health, such as early-stage bearing wear or rotor unbalance.
