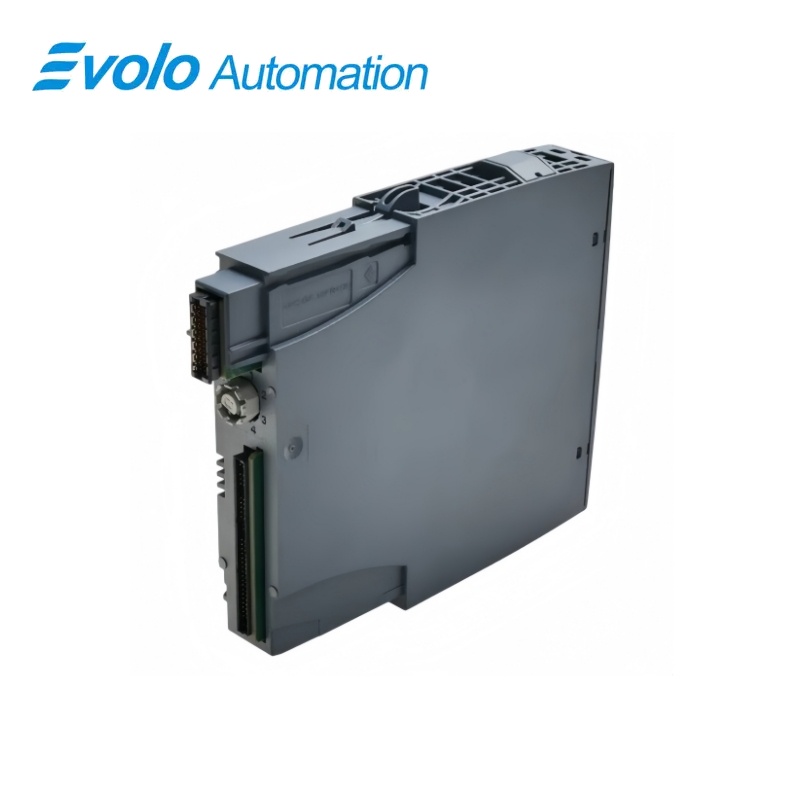

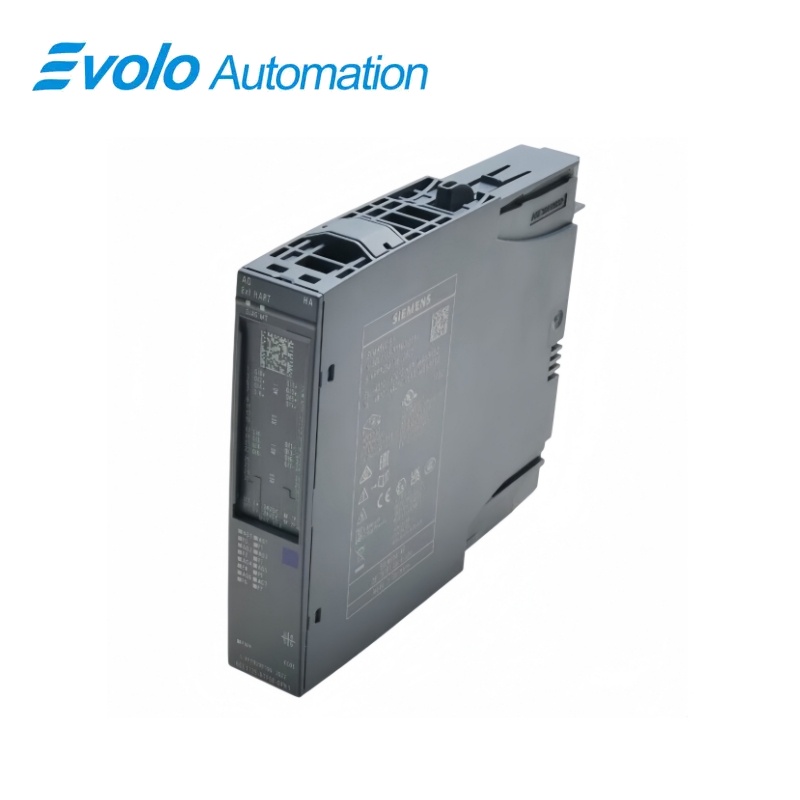

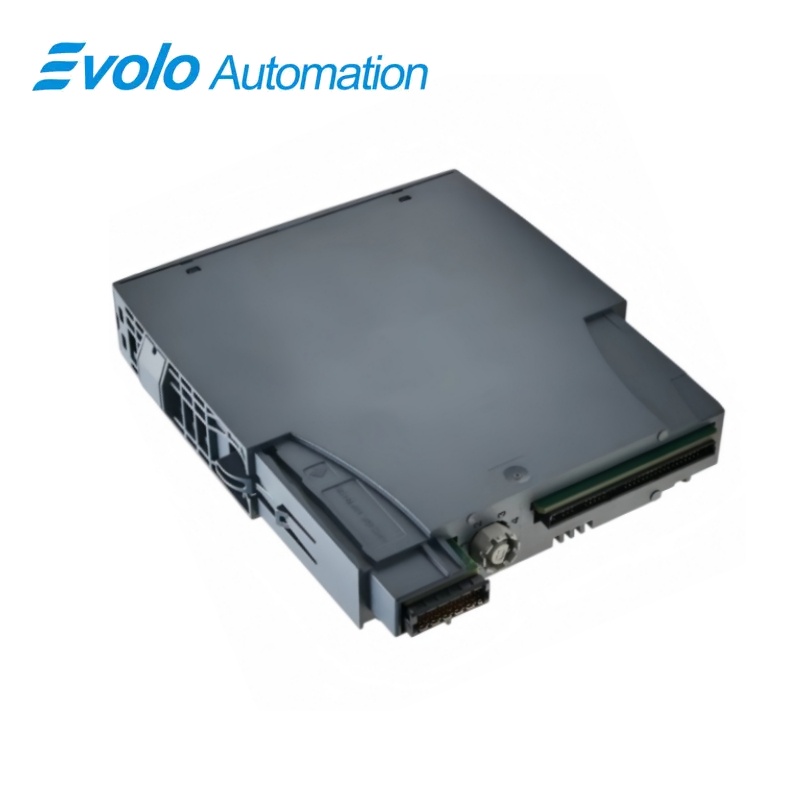

Siemens SIMATIC ET 200SP HA AQ 8xI HART Analog Output Module 6DL1135-6TF00-0PH1
Manufacturer: Siemens
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
Siemens · SIMATIC ET 200SP HA
6DL1135-6TF00-0PH1 SIMATIC ET 200SP HA AQ 8xI HART Analog Output Module
The ET 200SP HA AQ 8xI HART module provides eight precision current outputs with HART communication, channel diagnostics, 16-bit representation and redundant operation on an M1 terminal block.
At a Glance
| Brand | Siemens |
|---|---|
| Model | 6DL1135-6TF00-0PH1 |
| Product Type | Eight-channel HART analog current output module |
| Core Function | Outputs precision current signals and exchanges HART data with field actuators |
| Application or Compatible Series | SIMATIC PCS 7 ET 200SP HA stations using H1 or M1 terminal blocks |
Exact Identification
Match 6DL1135-6TF00-0PH1 character by character and confirm the complete SIMATIC ET 200SP HA AQ 8xI HART Analog Output Module designation.
Interface Arrangement
Confirm the installed supply, ports, field connections and required accessories before wiring the replacement.
Configuration Check
Preserve the approved engineering project, network parameters and application data used by the installed system.
Product Overview
The ET 200SP HA AQ 8xI HART module provides eight precision current outputs with HART communication, channel diagnostics, 16-bit representation and redundant operation on an M1 terminal block.
Eight channels provide analog current control with HART communication to compatible field devices. M1 terminal-block installation supports redundant module operation with a maximum 20 ms failover. Per-channel wire-break, short-circuit and range diagnostics support plant maintenance.
Key Functions
Eight HART Current Outputs
Eight channels provide analog current control with HART communication to compatible field devices.
High-Availability Operation
M1 terminal-block installation supports redundant module operation with a maximum 20 ms failover.
Channel Diagnostics
Per-channel wire-break, short-circuit and range diagnostics support plant maintenance.
Official Specifications
| Analog Outputs | 8 current channels |
|---|---|
| Output Ranges | 0–10 mA, 0–20 mA and 4–20 mA |
| 4–20 mA Representation | 16 bit including sign |
| Basic Accuracy at 25 °C | ±0.1% |
| Maximum Load Resistance | 750 Ω |
| Maximum Inductive Load | 10 mH |
| Maximum Shielded Cable Length | 1000 m |
| Rated Supply Voltage | 24 V DC |
| Permitted Supply Range | 19.2 to 28.8 V DC |
| Typical Power Loss | 3.2 W |
| Terminal Blocks | H1 and M1 |
| Redundancy | Supported with M1 terminal block |
| Maximum Redundancy Failover Time | 20 ms |
| Operating Temperature, Horizontal | -40 to +70 °C |
| Dimensions | 22.5 x 115 x 138 mm |
| Approximate Weight | 160 g |
Frequently Asked Questions
Which current ranges can be configured on 6DL1135-6TF00-0PH1?
Use 0 to 10 mA, 0 to 20 mA or 4 to 20 mA according to the connected actuator.
Can 6DL1135-6TF00-0PH1 communicate with HART field devices?
Yes; each analog current channel supports the documented HART communication function.
Which terminal block enables redundancy for 6DL1135-6TF00-0PH1?
Use the M1 terminal block for the specified redundant module arrangement.
What is the maximum redundancy failover time for 6DL1135-6TF00-0PH1?
The specified maximum failover time is 20 ms in an error-free redundant arrangement.
Which channel faults can 6DL1135-6TF00-0PH1 diagnose?
The module detects wire break, short circuit and overflow or underflow on a channel basis.
How long can the shielded actuator cable be for 6DL1135-6TF00-0PH1?
The specified maximum shielded cable length is 1000 metres.
What should be preserved before replacing 6DL1135-6TF00-0PH1?
Record the channel ranges, HART parameters, substitute values, diagnostics, terminal block and redundancy assignment.
Compatibility & Ordering Notes
Compatibility Checklist
- Use H1 or M1 terminal blocks and choose M1 when the documented redundant arrangement is required.
- Confirm every actuator load remains within the specified current-output impedance and cable limits.
- Preserve HART variables, diagnostics and substitute values before exchanging the module.
