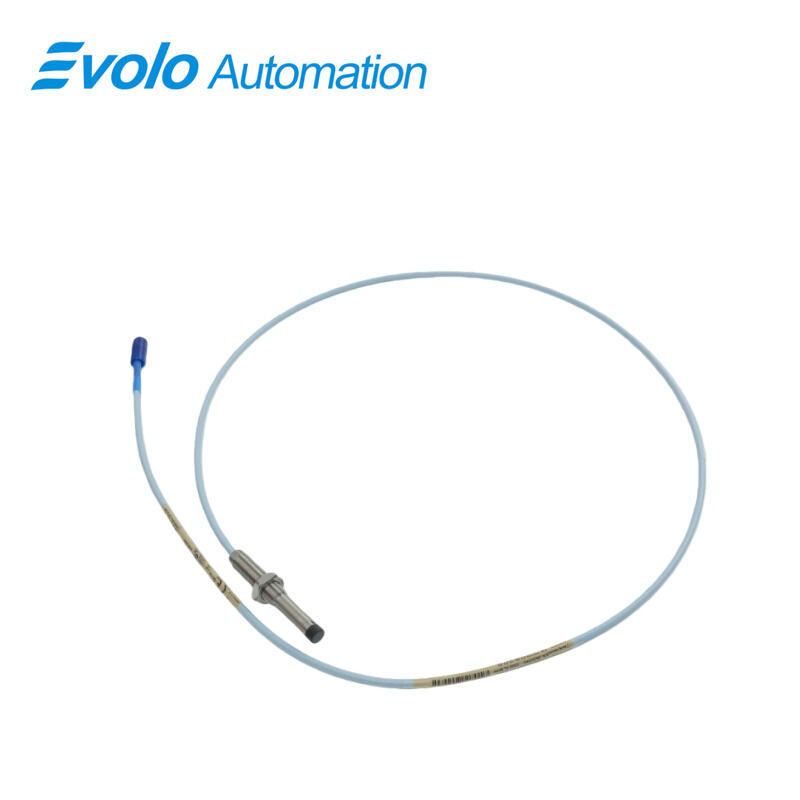

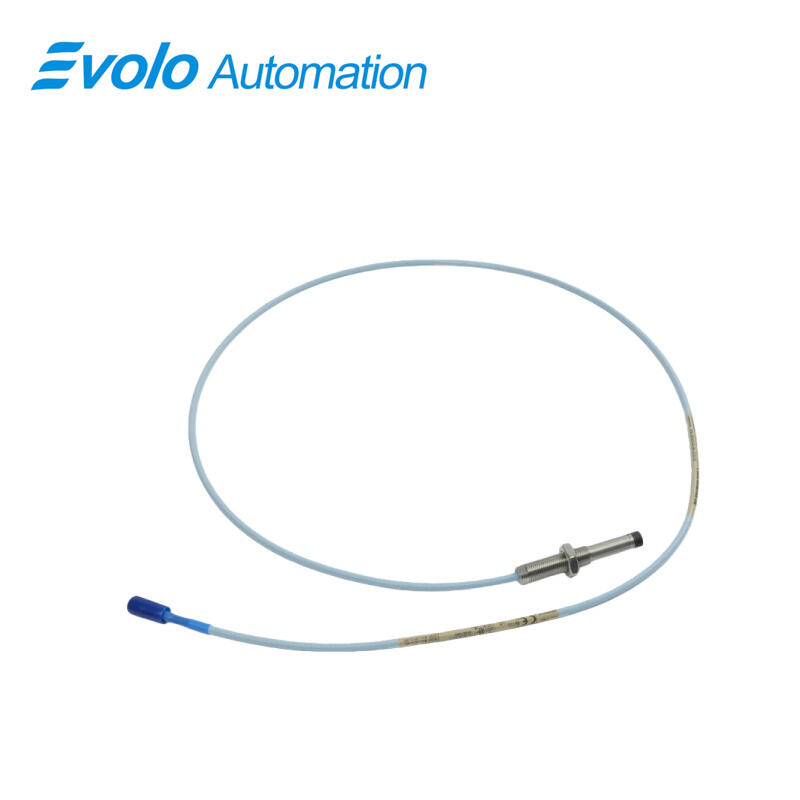

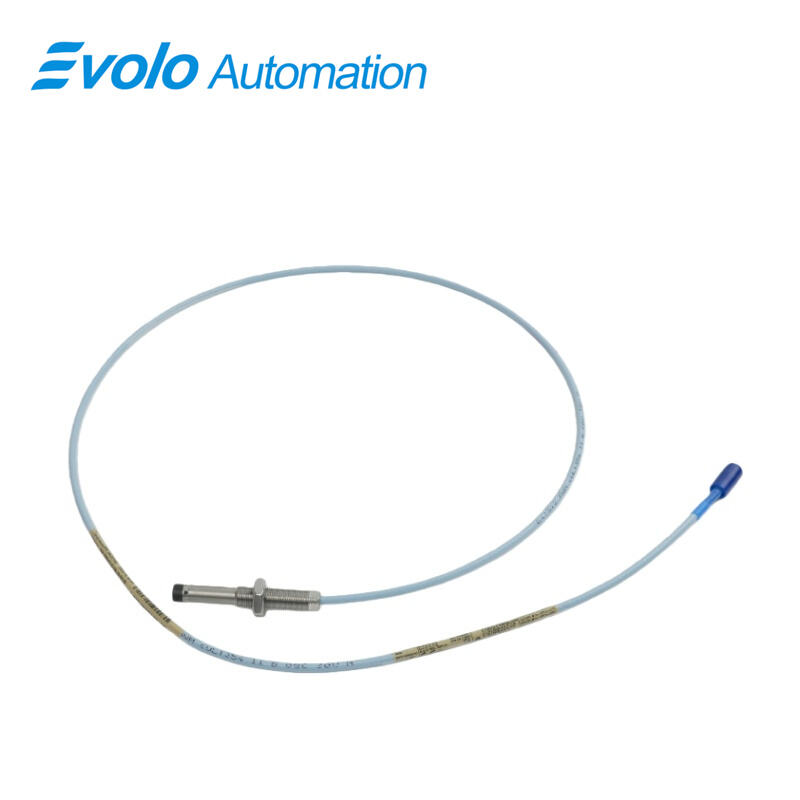

330103-02-06-10-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-02-06-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-02-06-10-02-05 3300 XL 8 mm Proximity Probe is a high-accuracy eddy-current transducer designed for vibration, displacement, and dynamic shaft position measurements in industrial automation and rotating machinery environments. As part of the 3300 XL 8 mm Proximity Transducer System, model 330103-02-06-10-02-05 delivers a proportional voltage output for non-contact monitoring of turbine, compressor, and fluid-film bearing machines where stable signal response is critical for condition-based maintenance and predictive diagnostics. Featuring a 2 mm linear range, 50 Ω output resistance, and operating temperature capability from −52°C to +177°C, the probe supports both static and dynamic condition monitoring through SCADA, DCS, and advanced machinery health platforms. It incorporates the patented CableLoc and TipLoc mechanical designs providing 330 N pull strength and ensuring long-term reliability in aggressive industrial service. CSA, ATEX, and IECEx approvals enable deployment in hazardous petrochemical and power generation facilities. ClickLoc miniature connectors allow robust field wiring and component interchangeability, while backward compatibility with non-XL 3300-series 5 mm and 8 mm transducers enhances upgrade flexibility without recalibration overhead. The 330103-02-06-10-02-05 probe supports Keyphasor reference, speed measurement, and high-fidelity vibration diagnostics that improve asset uptime, mechanical protection logic, and overall automation performance across turbine-driven production assets.

Applications

Application 1 Turbine Shaft Vibration Diagnostics
The 330103-02-06-10-02-05 provides non-contact vibration measurement across a 2 mm linear range, supporting synchronous orbit, amplitude, and frequency analysis on steam and gas turbines. Integration with condition monitoring platforms enhances early detection of imbalance, rub, and misalignment.

Application 2 Compressor Shaft Position and Dynamic Motion
Fluid-film bearing compressors require high sensitivity for dynamic displacement signals. With 50 Ω output resistance and stable voltage proportionality, the probe improves rod motion tracking for predictive maintenance scheduling in petrochemical and LNG compression facilities.

Application 3 Keyphasor Phase Reference and Speed Sensing
High-resolution phase angle and RPM acquisition provide critical timing reference for shaft orbit plots and fault diagnostics. The proportional voltage characteristics support zero-speed detection and transient startup monitoring in automated turbine control systems.

Application 4 API 670-Compliant Monitoring in Industrial Automation
The 3300 XL 8 mm platform complies with API 670 requirements for linear range, accuracy, and temperature stability, enabling integration in SCADA-based protection loops for refinery, pipeline, and power plant rotating assets.

Application 5 Hazardous Facility Condition Monitoring
CSA, IECEx, and ATEX approvals enable installation in hazardous petrochemical units. The −52°C to +177°C thermal envelope supports high-temperature steam turbine housings and cold-start outdoor compressor stations without signal degradation.

Specifications

Competitive Advantage

Advantage 1 Backward Compatibility Reduces Upgrade Cost
The 3300 XL 8 mm system is interchangeable with non-XL 5 mm and 8 mm transducers, eliminating recalibration, reducing retrofit time, and lowering modernization CAPEX for automation assets.

Advantage 2 Robust Mechanical Cable Architecture
Patented CableLoc and TipLoc provide 330 N pull strength, improving cable retention against vibration-induced failures and routing stress, extending service intervals for turbine and compressor installations.

Advantage 3 Hazardous Location Certifications
CSA, IECEx, and ATEX approvals allow global deployment in explosive atmospheres associated with petrochemical processing, ensuring compliance without product requalification.

Advantage 4 Temperature Stability for Harsh Operations
Operational capacity from −52°C to +177°C enables continuous measurement through hot-reheat turbine zones and cold startup cycles, supporting reliability models in power generation and refinery automation.

Advantage 5 Predictive Maintenance and Diagnostic Accuracy
Non-contact sensing improves vibration amplitude fidelity, enhances diagnostic resolution, and supports predictive maintenance algorithms that increase asset availability and reduce unplanned outage risk across high-value machinery.
