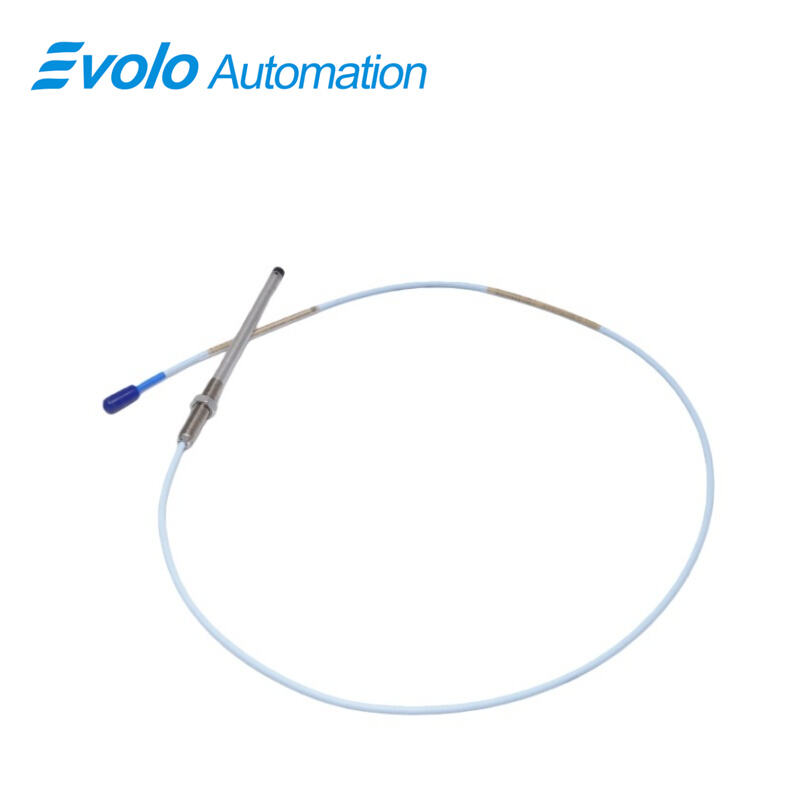

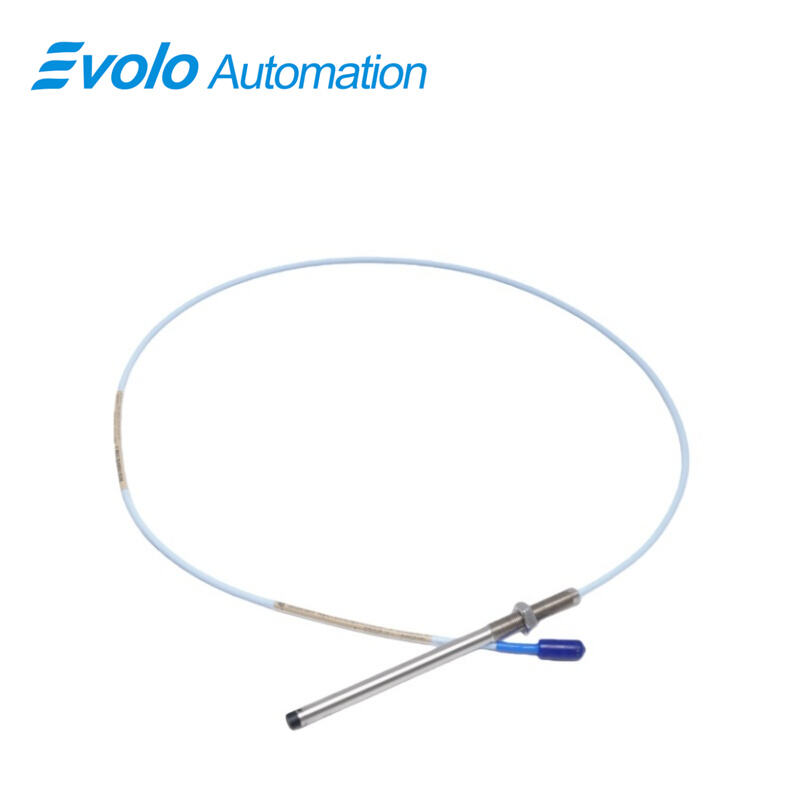

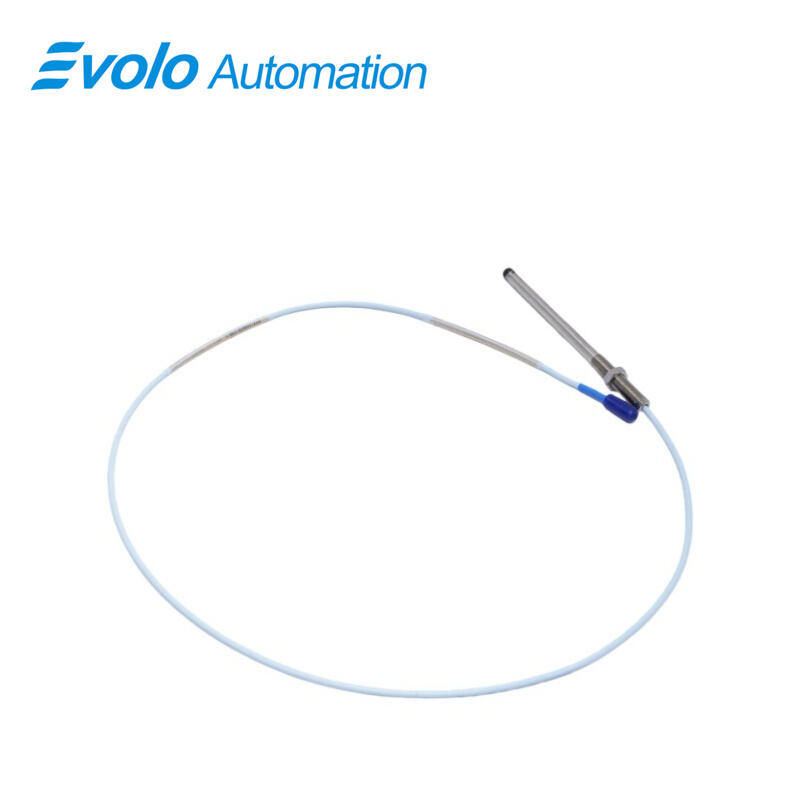

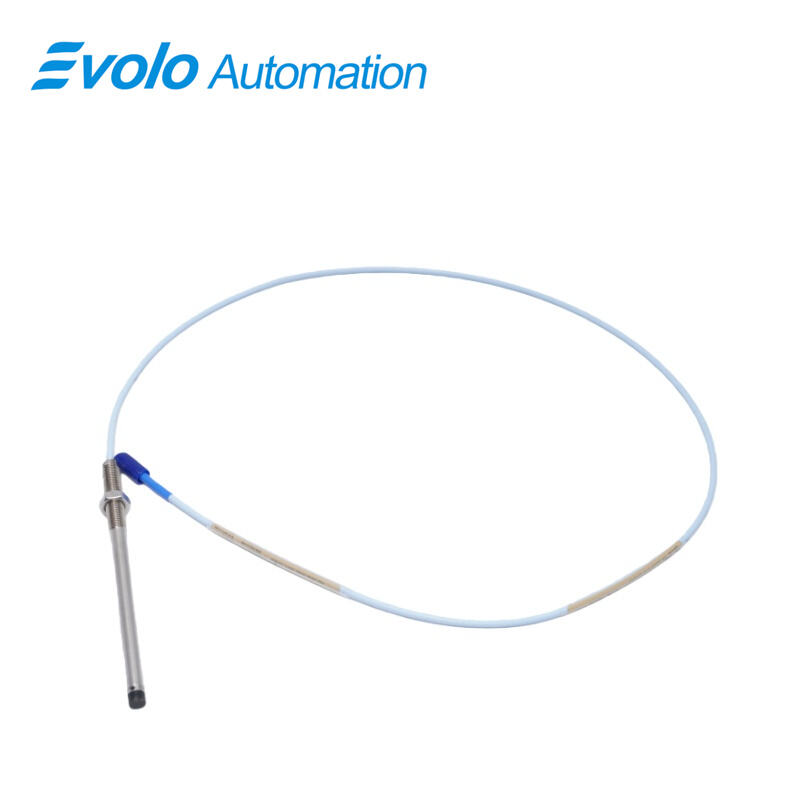

330101-33-60-10-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-33-60-10-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-33-60-10-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer designed for advanced industrial automation and condition monitoring applications. This probe delivers an output voltage directly proportional to the distance between the probe tip and the observed conductive surface, enabling accurate measurements of both static (position) and dynamic (vibration) parameters. It is particularly suitable for monitoring fluid-film bearing machines, detecting machinery vibration, measuring positional changes, and providing Keyphasor reference signals and speed detection.

Engineered to meet the rigorous demands of modern automation systems, the 3300 XL 8 mm Proximity Probe ensures compliance with the API 670 Standard, offering exceptional linearity, accuracy, and thermal stability. Its 5-meter standard configuration allows seamless integration into automation networks while maintaining full compatibility with existing 3300 series Proximitor sensors, probes, and extension cables. This backward compatibility eliminates the need for bench calibration or matching components, reducing maintenance time and ensuring reliable performance across different installations.

The probe design incorporates significant mechanical enhancements, including a TipLoc molded probe tip for superior structural integrity and a CableLoc reinforced cable connection, providing a pull strength of 330 N (75 lbf) to maintain secure electrical connectivity in high-vibration environments. Optional FluidLoc cables further enhance reliability by preventing oil or fluid ingress, critical for automated systems operating in harsh industrial conditions.

With its robust construction, precision measurement capability, and full system interchangeability, the 330101-33-60-10-02-00 3300 XL 8 mm Proximity Probe is an ideal choice for automation engineers and maintenance teams aiming to optimize machinery reliability, extend equipment lifespan, and improve predictive maintenance strategies. Its compact 8 mm probe size also allows flexible installation in tight spaces, offering a versatile solution across diverse industrial automation platforms.

Applications

The 330101-33-60-10-02-00 3300 XL 8 mm Proximity Probe is specifically designed for high-precision industrial automation and condition monitoring tasks. Its primary function is to provide an output voltage directly proportional to the distance between the probe tip and the observed conductive surface, enabling accurate detection of both static (position) and dynamic (vibration) measurements.

Vibration Monitoring and Analysis

This probe excels in vibration measurement applications on fluid-film bearing machines, turbines, compressors, and rotating machinery. By measuring minute displacement variations, it supports predictive maintenance programs and reduces the risk of unexpected equipment failures. Its high linearity (2 mm range) and temperature stability (-52°C to +177°C) make it suitable for challenging industrial environments.

Position Detection and Alignment

The 3300 XL 8 mm probe is ideal for position monitoring and shaft alignment tasks. It can detect static position changes with high accuracy, providing critical feedback for automated control systems. Its compact 8 mm tip diameter allows installation in tight spaces where larger probes cannot fit, without compromising measurement reliability.

Keyphasor and Speed Sensing

In addition to position and vibration, the probe serves as a Keyphasor reference and speed measurement sensor, essential for rotor synchronization, phase detection, and monitoring rotational speeds in automated machinery.

Harsh Environment Applications

With a robust probe case made of AISI 303/304 stainless steel and a PPS probe tip, the 3300 XL 8 mm probe withstands high temperatures, oil exposure, and mechanical stress. Optional FluidLoc cables prevent fluid ingress, ensuring long-term reliability in industrial automation settings. The patented TipLoc and CableLoc designs enhance durability by securely bonding the probe tip to the body and providing strong cable attachment.

Overall, the 330101-33-60-10-02-00 3300 XL 8 mm Proximity Probe is widely used in rotating equipment monitoring, predictive maintenance, and automated control systems, offering precise, reliable, and robust sensing for modern industrial automation applications.

Specifications

Competitive Advantage

High-Precision Measurement

The 3300 XL 8 mm Proximity Probe delivers highly accurate output proportional to the distance between the probe tip and the observed conductive surface. It can measure both static position and dynamic vibration with exceptional linearity (2 mm range) and minimal supply sensitivity (<2 mV per volt), ensuring reliable performance in precision automation and machinery monitoring applications.

Advanced Durability and Environmental Resistance

Constructed with a stainless steel (AISI 303/304) case and a PPS probe tip, the 3300 XL 8 mm probe operates across extreme temperatures (-52°C to +177°C) and harsh industrial conditions. Its robust design and optional FluidLoc cable prevent fluid ingress, enhancing operational reliability in demanding automation environments.

Interchangeability and System Flexibility

All 3300 XL 8 mm components, including probes, extension cables, and Proximitor sensors, are fully interchangeable and backward compatible with non-XL 3300 series 5 mm and 8 mm systems. This feature eliminates the need for component matching or bench calibration, simplifying system upgrades and reducing maintenance downtime.

Enhanced Mechanical Design

The probe incorporates TipLoc molding for a stronger bond between the probe tip and body, while the CableLoc design provides 330 N (75 lbf) pull strength for secure cable attachment. These innovations ensure long-term mechanical stability, particularly in high-vibration or high-stress automation applications.

Compliance and Industry Standards

The 3300 XL 8 mm system meets the API 670 Standard, guaranteeing consistent performance in linear range, accuracy, and temperature stability, making it a trusted choice for industrial condition monitoring, predictive maintenance, and automated control systems.

Compact and Versatile Installation

With an 8 mm probe diameter and 1-meter total length, this probe fits in tight spaces where larger probes cannot be installed, offering flexibility without compromising measurement performance.
