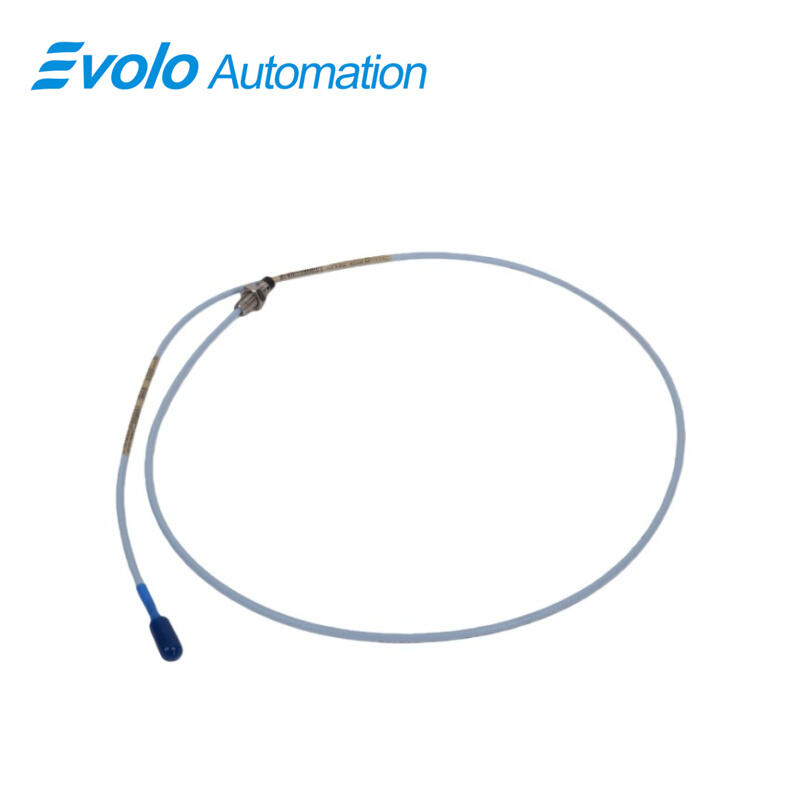

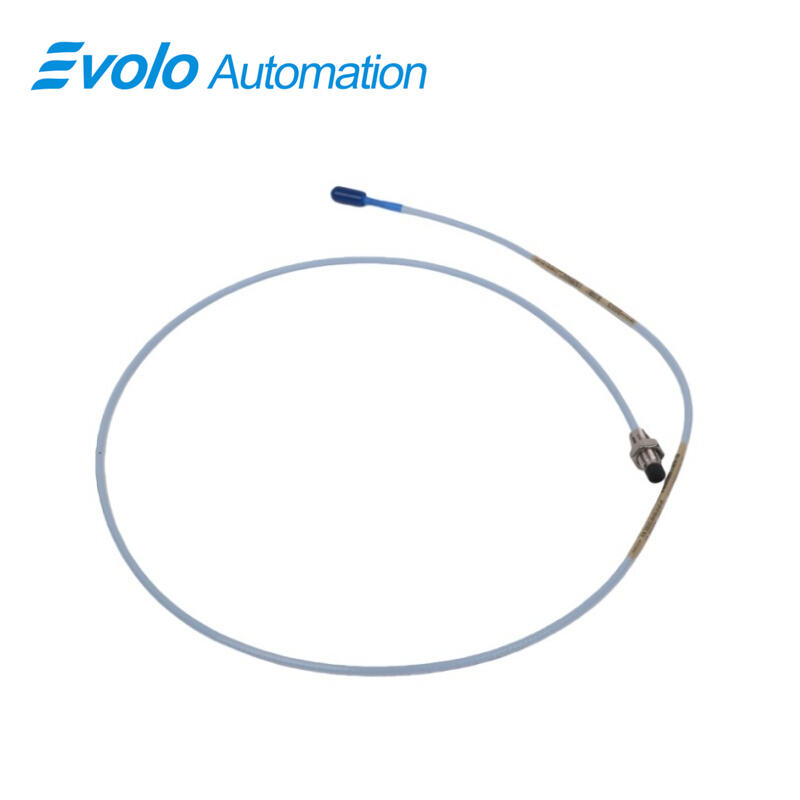

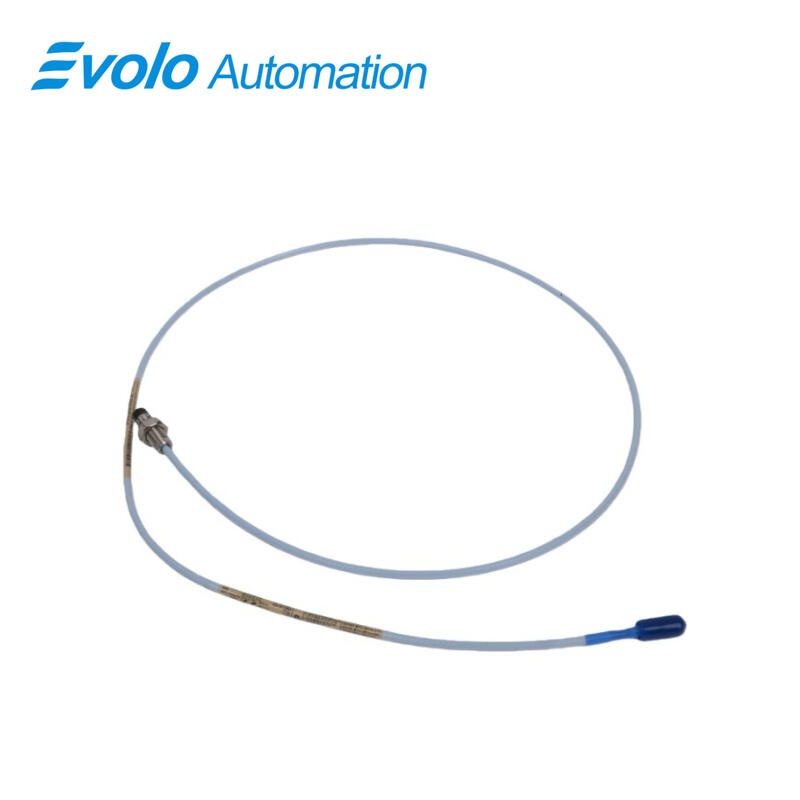

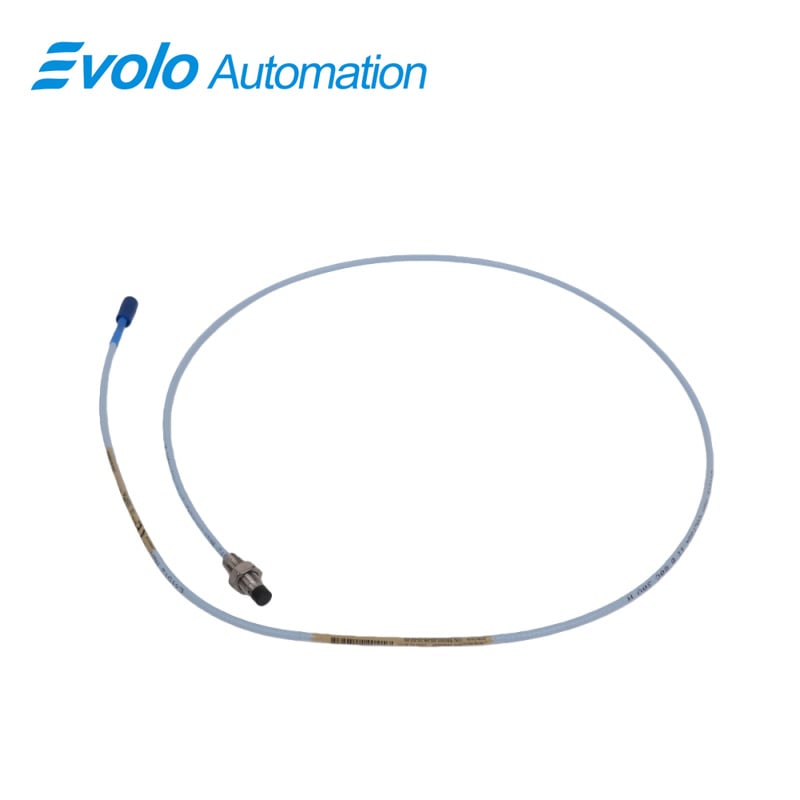

330101-00-09-15-12-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-09-15-12-CN
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-09-15-12-CN 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer designed for advanced industrial automation, vibration monitoring, and position measurement applications. This 8 mm probe produces an output voltage directly proportional to the distance between the probe tip and a conductive surface, enabling accurate measurement of both static displacement and dynamic vibration. Its compact design, featuring a 0.9-inch overall case length and 1.5-meter standard cable with a Miniature coaxial ClickLoc connector, ensures easy integration into automated machinery, rotating equipment, and predictive maintenance systems.

The probe supports 3/8-24 UNF threaded mounting with 0.563-inch maximum thread engagement, operates in extreme temperatures from -52°C to +177°C (-62°F to +350°F), and delivers consistent performance with less than 2 mV/V supply sensitivity, 50 Ω output resistance, and 69.9 pF/m extension cable capacitance. Optional FluidLoc cabling prevents oil or fluid ingress, enhancing reliability in lubrication-rich environments. Weighing only 0.06 kg, and measuring 1.8 x 1.6 x 123 cm, it carries CSA, ATEX, and IECEx approvals, making it suitable for hazardous and explosive environments. Fully API 670 compliant, the 3300 XL 8 mm probe supports interchangeability with 3300 series probes and Proximitor sensors, facilitating flexible integration into modern automated monitoring systems. Patented TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength, ensuring durability and stable connection under high-vibration conditions.

Applications

Application 1: Fluid-Film Bearing Vibration Monitoring

The probe measures axial and radial vibration with a 2 mm linear range, enabling automated systems to detect early-stage bearing wear and prevent unscheduled downtime.

Application 2: Shaft Displacement Measurement

High-resolution position data allows automated machinery to adjust rotor alignment, improving efficiency and reducing mechanical stress on critical components.

Application 3: Keyphasor Reference Signal

Provides phase-synchronized output for precise rotational speed monitoring and predictive maintenance in turbine and compressor systems.

Application 4: Automated Machinery Diagnostics

Integration into condition monitoring platforms enables real-time alerts and automated maintenance scheduling based on vibration and position trends.

Application 5: Overspeed and Safety Shutdown Systems

Provides immediate rotational feedback to protect equipment from overspeed events, improving safety and automation reliability.

Specifications

Competitive Advantage

Competitive Advantage 1: Hazardous Area Certification

With CSA, ATEX, and IECEx approvals, the probe ensures safe operation in explosive and hazardous industrial environments, critical for automation in petrochemical plants.

Competitive Advantage 2: FluidLoc Cable Protection

The optional FluidLoc cable prevents fluid ingress, maintaining signal integrity and system reliability in oil-lubricated machinery.

Competitive Advantage 3: Extreme Temperature Tolerance

Operates accurately in -52°C to +177°C, providing stable output in harsh industrial conditions, supporting high-precision automated monitoring.

Competitive Advantage 4: Enhanced Mechanical Strength

Patented TipLoc and CableLoc designs provide 330 N (75 lbf) pull strength, securing both probe and cable under vibration-heavy conditions for reliable operation.

Competitive Advantage 5: API 670 Compliance and Interchangeability

Fully API 670 compliant and compatible with 3300 series probes and Proximitor sensors, enabling standardized automated systems and simplified integration.
