Overview

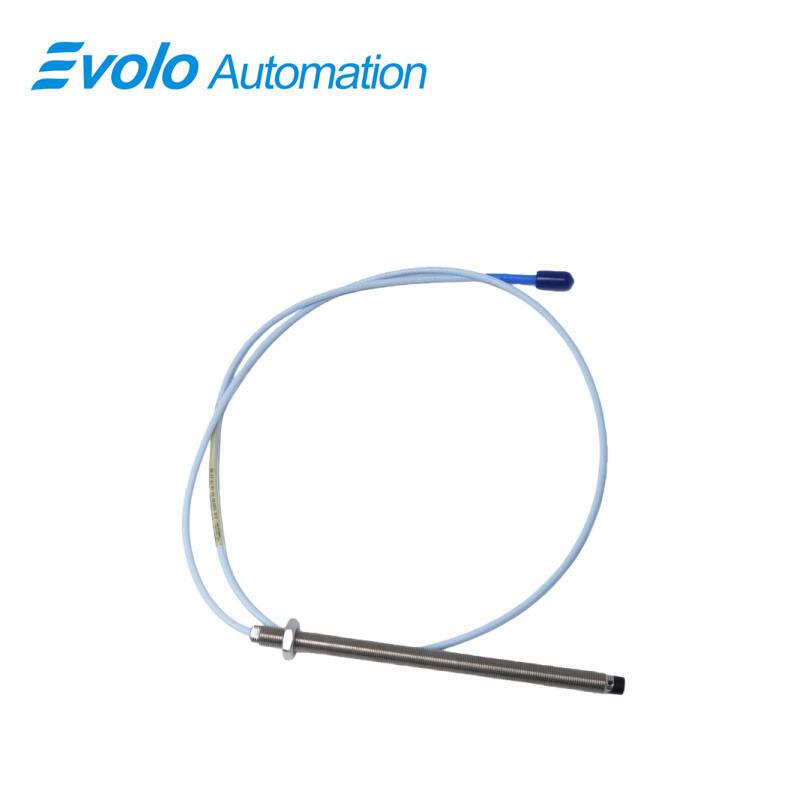

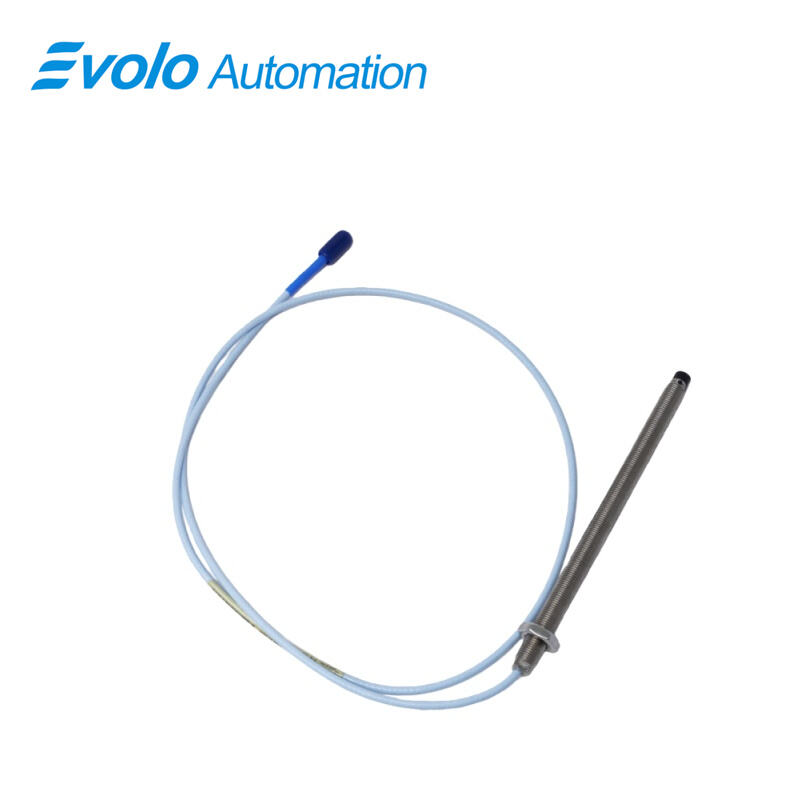

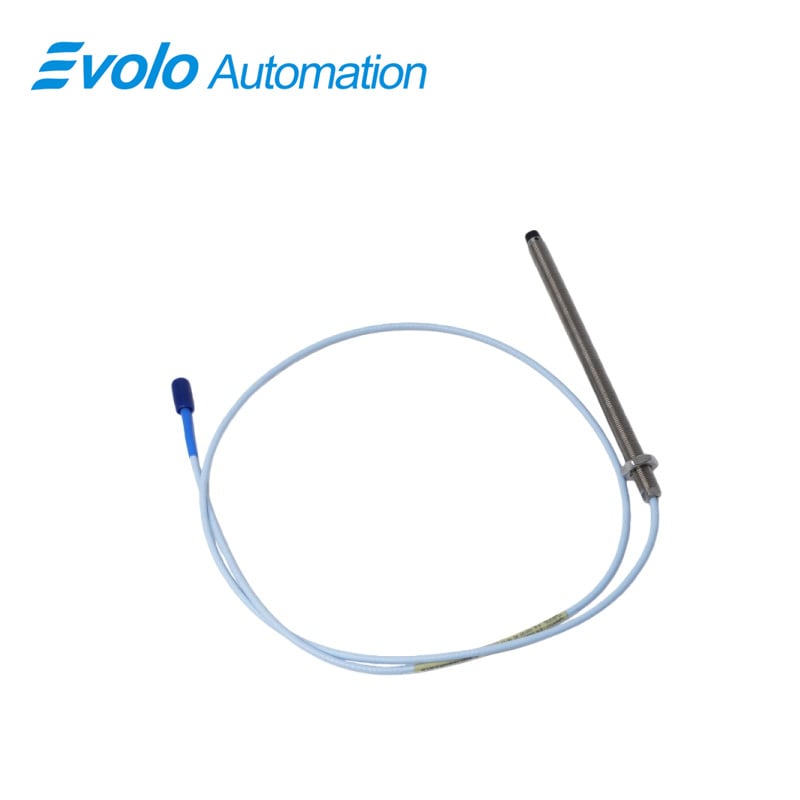

330103-00-19-10-12-05 3300 XL 8 mm Proximity Probes
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330103-00-19-10-12-05 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The 330103-00-19-10-12-05 3300 XL 8 mm Proximity Probes are high-performance non-contact eddy current sensors engineered for accurate vibration and displacement measurement in critical rotating machinery. As a precision member of the 3300 XL 8 mm Proximity Probes series, this model is designed to deliver stable, repeatable, and linear measurement results under continuous industrial operating conditions. The 3300 XL 8 mm Proximity Probes are widely recognized for their reliability in shaft vibration, radial position, and axial displacement monitoring applications where mechanical integrity and signal stability are essential.
The operating principle of the 3300 XL 8 mm Proximity Probes is based on eddy current technology. When installed facing a conductive target surface, the probe generates an electromagnetic field that changes proportionally with the distance between the probe tip and the target. These changes are converted into a precise voltage output, allowing the 3300 XL 8 mm Proximity Probes to provide accurate real-time displacement data. With a defined 2 mm linear range, this model supports high-resolution monitoring required for early detection of imbalance, misalignment, shaft eccentricity, and bearing wear.
Key Functions
Applications
1.Rotating Machinery Vibration Monitoring
The 3300 XL 8 mm Proximity Probes are widely used for non-contact vibration monitoring of shafts in turbines, compressors, motors, and pumps, providing accurate radial displacement data for machinery health assessment.
2.Shaft Position and Displacement Measurement
With a 2 mm linear range and stable output characteristics, the 330103-00-19-10-12-05 3300 XL 8 mm Proximity Probes are suitable for continuous shaft position and axial movement monitoring in high-speed rotating equipment.
3.Hazardous Area Condition Monitoring
Thanks to CSA, ATEX, and IECEx certifications, the 3300 XL 8 mm Proximity Probes can be safely installed in hazardous locations such as petrochemical plants, refineries, and gas processing facilities.
Official Specifications
Quick Detail
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Unthreaded Length Option : |
0 mm |
|
Overall Case Length Option : |
190 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, FluidLoc cable |
|
Dimension: |
1.5x1.5x110cm |
|
Weight: |
0.08kg |
Specifications
|
Operating Temperature Range: |
-55°C to +165°C (-60°F to+340°F) |
|
Linear Range: |
2 mm |
|
Output Resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage. |
|
Power: |
Requires -17.7 Vdc to -15 Vdc |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 303 or 304 stainless steel(SST) |
Frequently Asked Questions
What is the model number?
The listed model number is 330103-00-19-10-12-05.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
1.High Measurement Stability
Low supply sensitivity and a defined 2 mm linear range allow the 3300 XL 8 mm Proximity Probes to maintain consistent output accuracy even under fluctuating power and temperature conditions.
2.Robust Mechanical and Environmental Design
Stainless steel probe construction, PPS probe tip material, and FluidLoc cable design provide excellent resistance to vibration, oil contamination, and harsh industrial environments.
3.Global Hazardous Area Certification
CSA, ATEX, and IECEx approvals enable the 330103-00-19-10-12-05 3300 XL 8 mm Proximity Probes to be deployed worldwide without additional compliance modifications.
4.Flexible Installation Configuration
The combination of compact probe diameter, extended case length, and secure ClickLoc connector supports diverse installation requirements across different machinery designs
