Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
SDCS-COM-1 3BSE005028R1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
SDCS-COM-1 3BSE005028R1 |
|
Product Type |
Drive Link Board |
|
Dimensions |
15.6 x 8.4 x 1.8 cm |
|
Weight |
0.08 kg |
|
Communication Protocols |
Drive Link / Modbus RTU / CANopen / OPC-UA / Ethernet |
|
Input Voltage |
24 V DC or 100–240 V AC (depending on configuration) |
|
Processor Speed |
Up to 1 GHz |
|
Memory |
1 GB RAM / 16 GB Flash |
|
Data Transfer Rate |
Up to 10 Mbps |
|
Isolation Voltage |
500 V DC / 1500 V AC (variant dependent) |
|
Operating Temperature |
-20°C to +70°C |
|
Mounting Options |
DIN rail / Panel mount |
Description

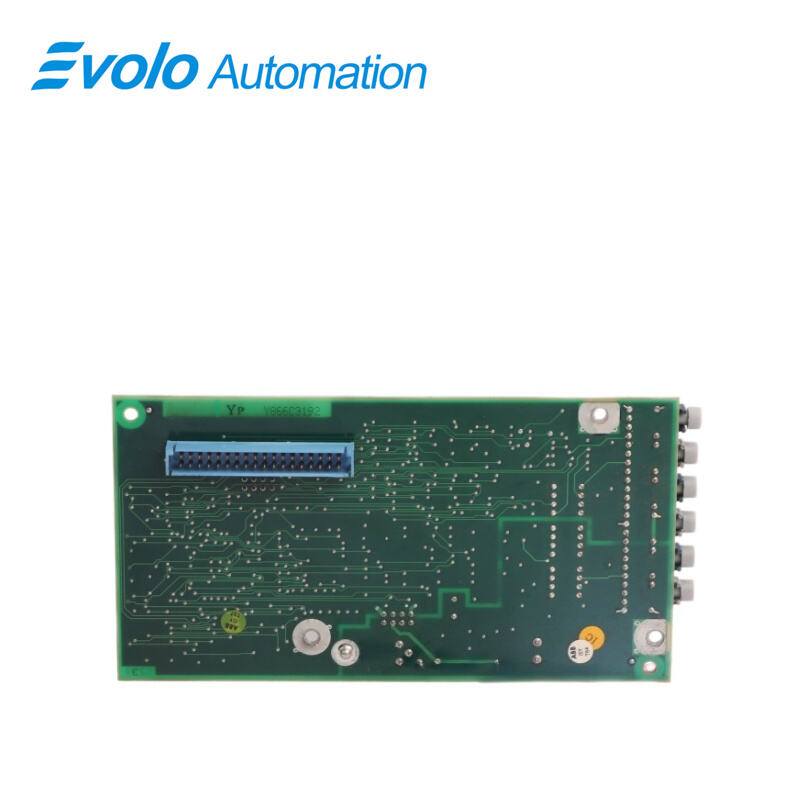

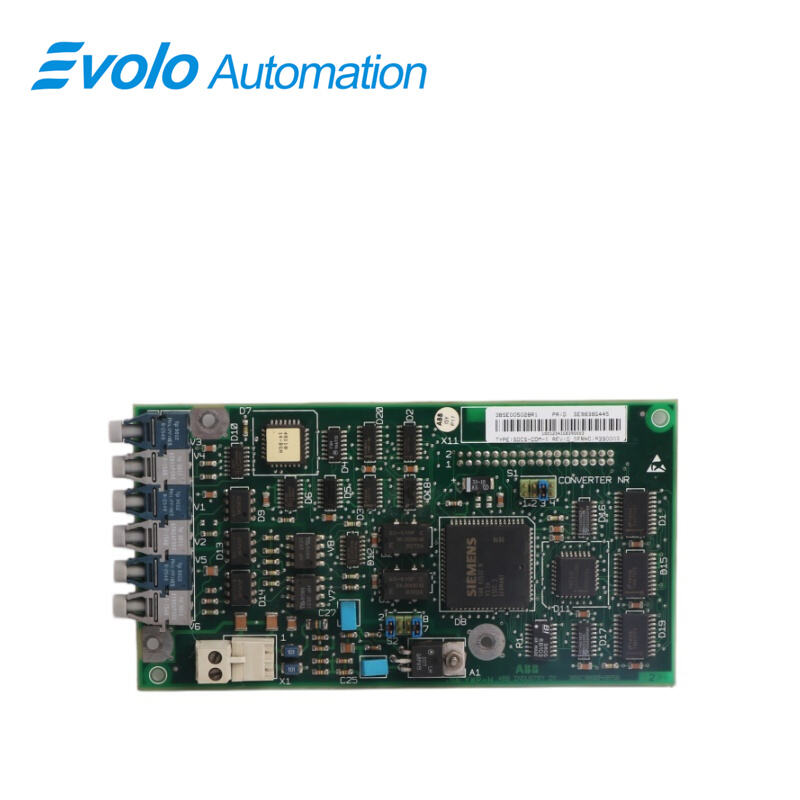

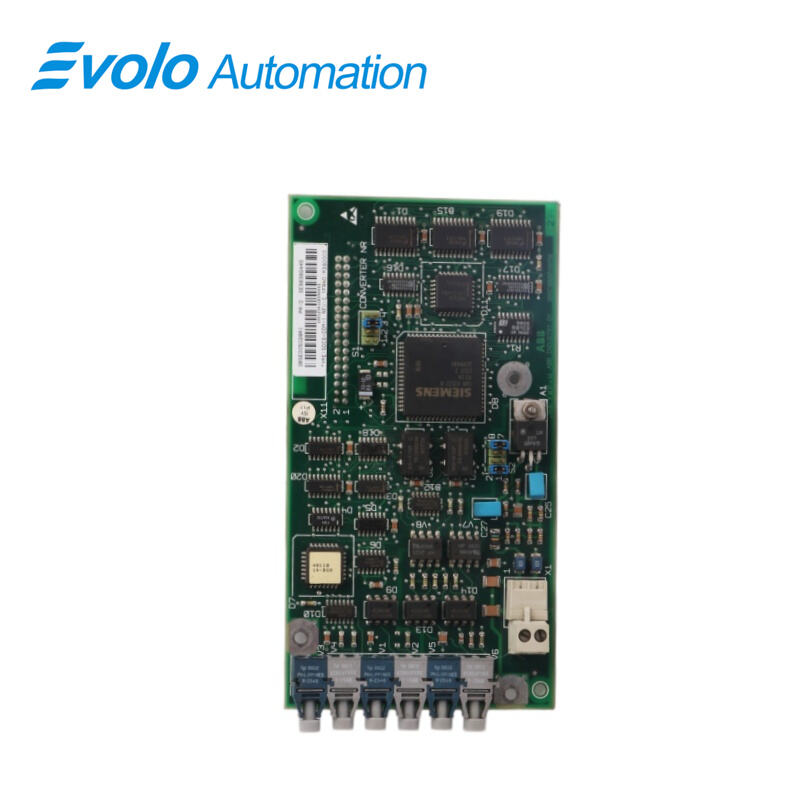

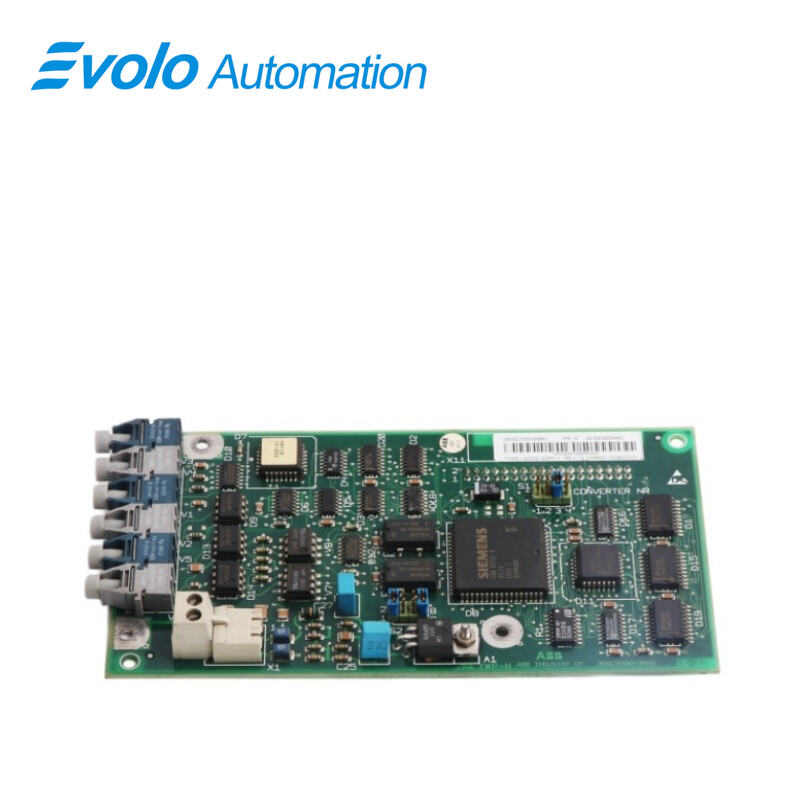

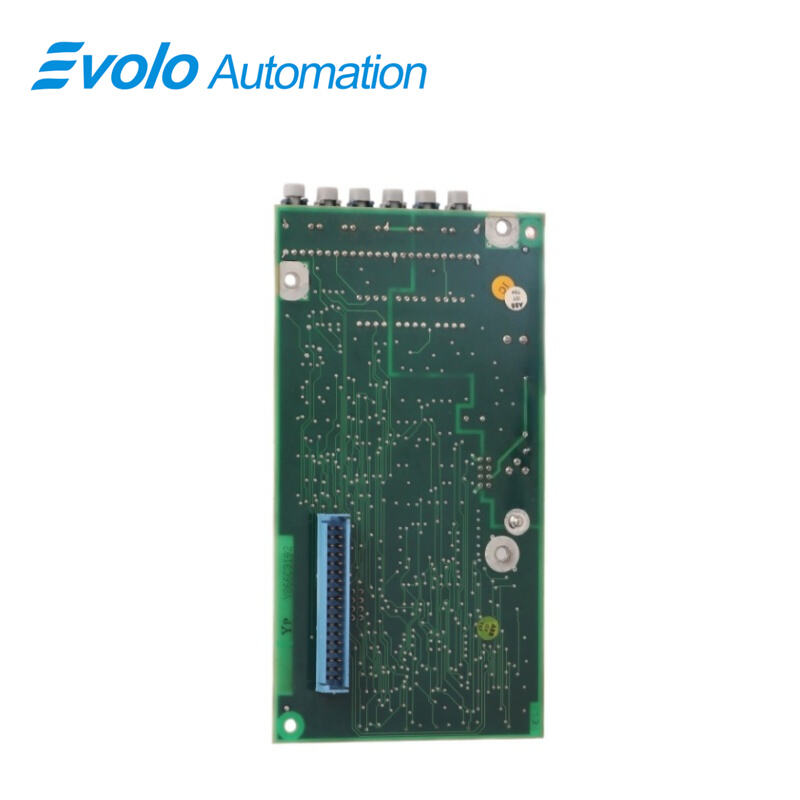

The ABB SDCS-COM-1 3BSE005028R1 is a drive link communication module designed for ABB DCS drive systems. It enables reliable data exchange between drive components, supporting high-speed and deterministic communication in industrial automation environments.
Applications
Features
Optimized for ABB Dcs Drives: Ensures seamless integration and communication
High-Speed Processing: Supports real-time data exchange for precise control
Multi-Protocol support: Compatible with various industrial communication standards
Compact Design: Fits easily into space-constrained control cabinets
Diagnostic Capabilities: Built-in fault detection and system monitoring
Robust Construction: Designed for harsh industrial environments
Easy Installation: Plug-and-play setup with intuitive configuration
Long-Term Reliability: Proven performance in demanding automation systems
FAQ
Q: What is the maximum transmission speed supported by the SDCS-COM-1 3BSE005028R1 board?
A: The maximum data transmission rate is 10 Mbps.
Q: Can the SDCS-COM-1 3BSE005028R1 connect directly to a cloud platform via Ethernet?
A: Yes, it has built-in support for the OPC-UA protocol, facilitating industrial IoT integration.
Q: What is the memory configuration of the SDCS-COM-1 3BSE005028R1?
A: Equipped with 1 GB RAM and 16 GB Flash storage.
Q: Can the SDCS-COM-1 3BSE005028R1 be mounted on a DIN rail?
A: Supports both DIN rail mounting and panel mounting.
Q: What is the highest isolation voltage the SDCS-COM-1 3BSE005028R1 can withstand?
A: Depending on the specific variant, it can provide electrical isolation protection up to 1500V AC.
