330800-16-00-039-03-02 PROXPAC XL Proximity Transducer

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330800-16-00-039-03-02
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

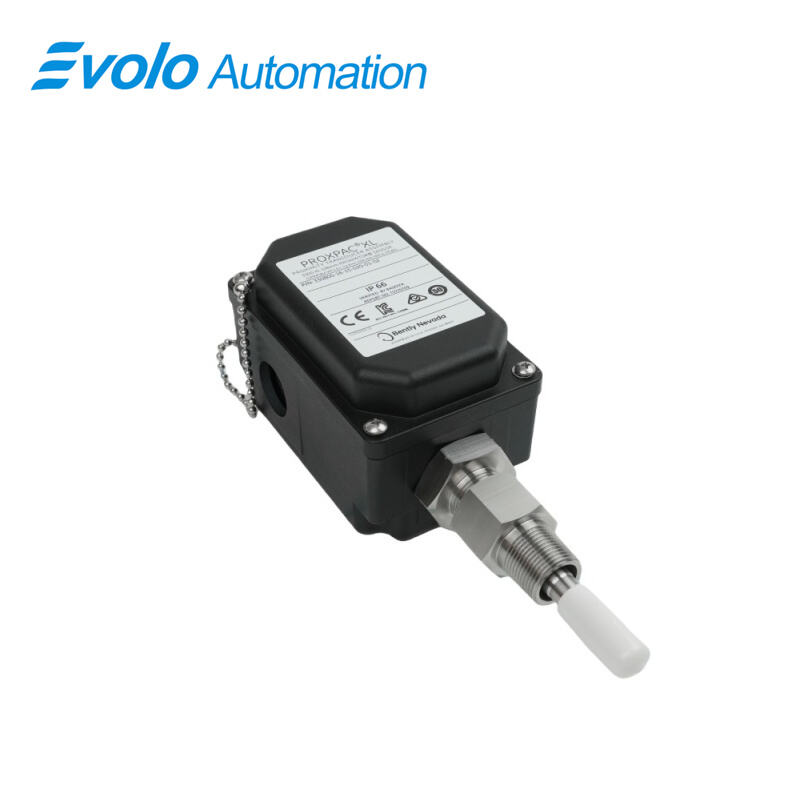

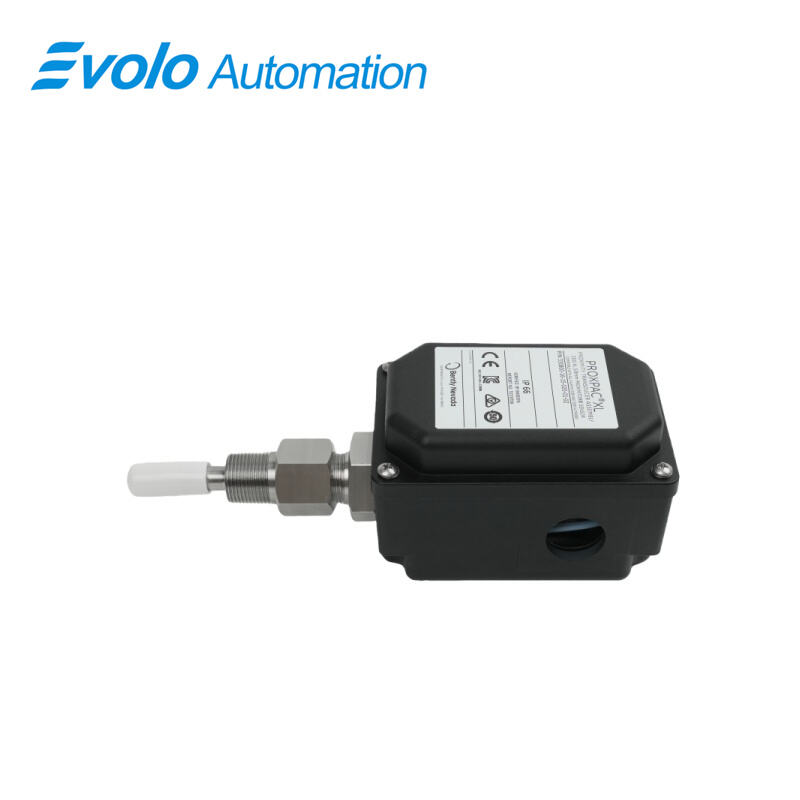

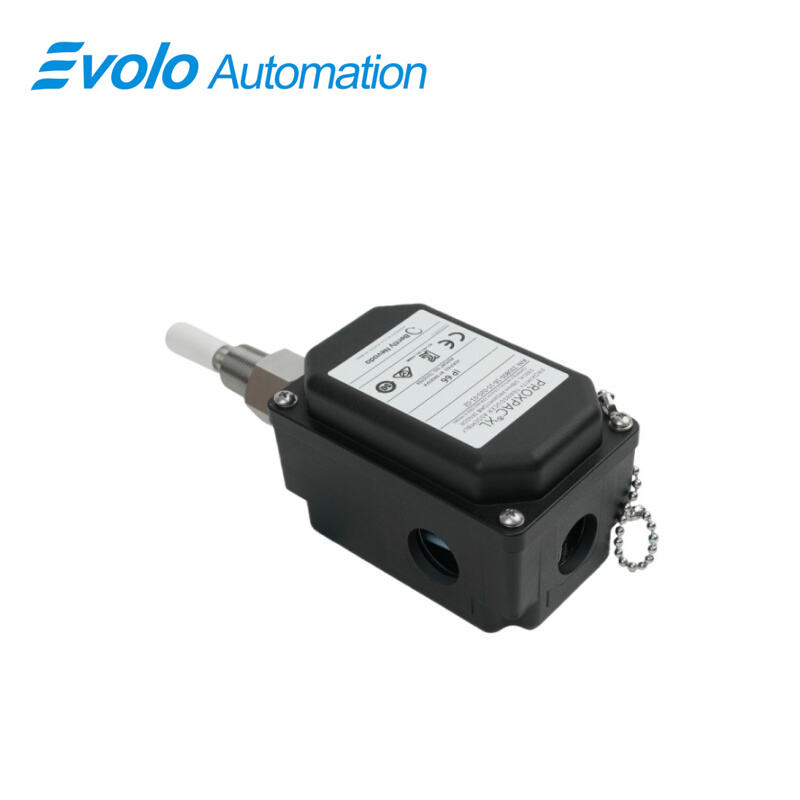

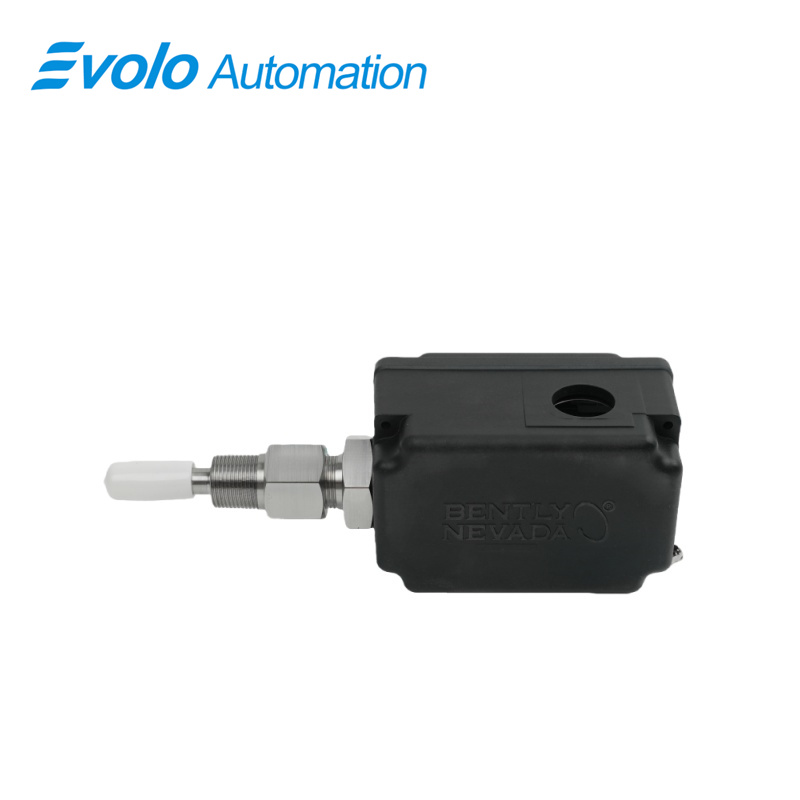

The 330800-16-00-039-03-02 PROXPAC XL Proximity Transducer is a fully integrated, self-contained proximity measurement solution designed for advanced industrial automation and machinery monitoring. Unlike traditional systems that require a separate Proximitor sensor and extension cable, the PROXPAC XL assembly incorporates a 3300 XL 8 mm Proximitor sensor directly into its Polyphenylene Sulfide (PPS) housing, eliminating additional housings and connections. The PPS housing includes glass and conductive fibers to strengthen the assembly and dissipate electrostatic charges efficiently, providing IP66 and Type 4X environmental protection in harsh industrial conditions. With a linear range of 2 mm (80 mils), a recommended gap of 1.27 mm (50 mils), and a supply sensitivity of less than 2 mV per volt change, this transducer delivers highly accurate displacement and vibration measurements. The PROXPAC XL assembly supports field wiring from 0.2 to 1.5 mm² (16–24 AWG), offers 3/4-14 NPT mounting threads, and operates reliably across -52°C to +100°C (-62°F to +212°F). Its compact, self-contained design simplifies installation, reduces wiring complexity, and ensures robust and precise automation system monitoring for critical rotating machinery.

Applications

Non-Contact Shaft Vibration Monitoring
The PROXPAC XL transducer monitors vibration on shafts with a minimum diameter of 50.8 mm (2 in), enabling predictive maintenance by detecting early-stage misalignment or imbalance.

Axial and Radial Position Measurement
With a linear range of 2 mm, it accurately measures shaft displacement, including axial (thrust) and radial movements, ensuring optimal alignment in pumps, compressors, and turbines.

Direct Proximitor Integration for Simplified Wiring
Eliminating the extension cable and separate Proximitor housing, the PROXPAC XL reduces installation time and complexity, connecting directly to automation monitoring systems.

Harsh Environment Machine Protection
Rated IP66 and Type 4X, this transducer withstands dust, water, and corrosive conditions while maintaining signal integrity, making it ideal for offshore, petrochemical, and power generation industries.

Phase Reference and Speed Signal Generation
The integrated 3300 XL sensor provides consistent output for Keyphasor signals and tachometer functions, supporting automated shutdown, vibration analysis, and machine safety systems.

Specifications

Competitive Advantage

Self-Contained Design
Combining the proximity probe and Proximitor sensor in a single housing eliminates extension cables, reduces installation errors, and minimizes system complexity.

High Environmental Resistance
The PPS housing with glass and conductive fiber reinforcement delivers IP66 and Type 4X ratings, allowing operation in extreme temperatures from -52°C to +100°C without signal degradation.

Precision Measurement
With a recommended gap of 1.27 mm and supply sensitivity < 2 mV per volt, the transducer ensures precise displacement and vibration readings in demanding industrial applications.

Simplified Installation
Supplied with fittings, adapters, and mounting threads, the PROXPAC XL reduces setup time and ensures reliable mechanical connections for immediate integration into automated monitoring systems.

Enhanced Signal Integrity
The housing design and integrated sensor minimize noise, improve Keyphasor signal accuracy, and provide stable output resistance of 50 Ω, essential for industrial process control and predictive maintenance.
