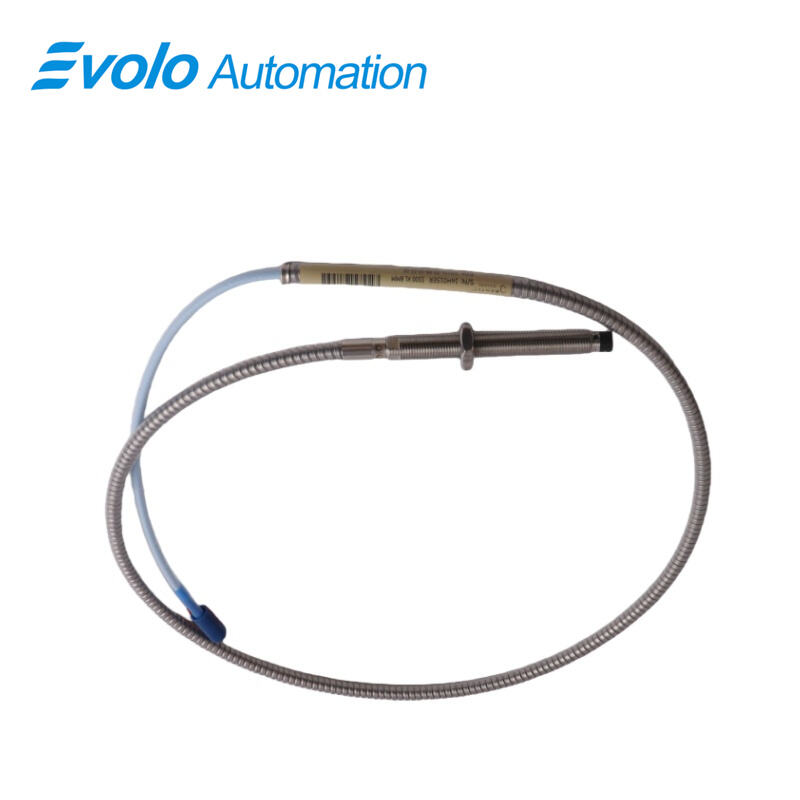

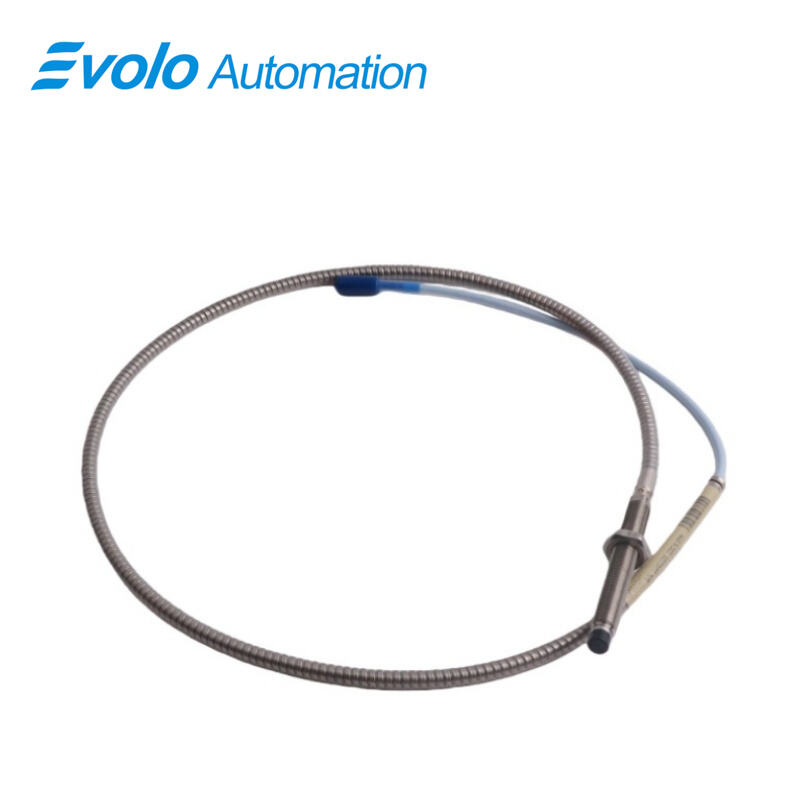

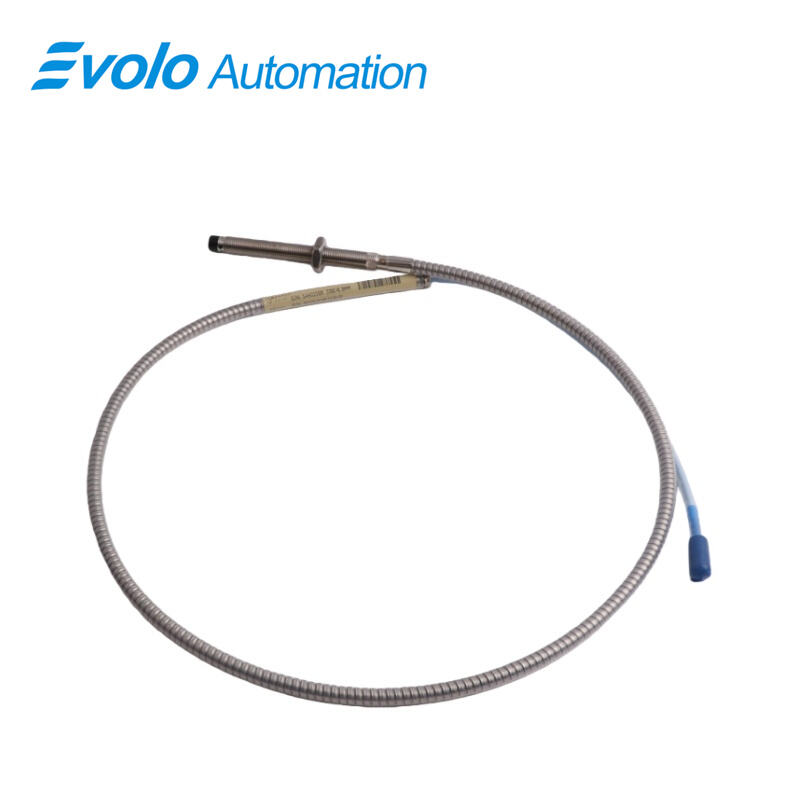

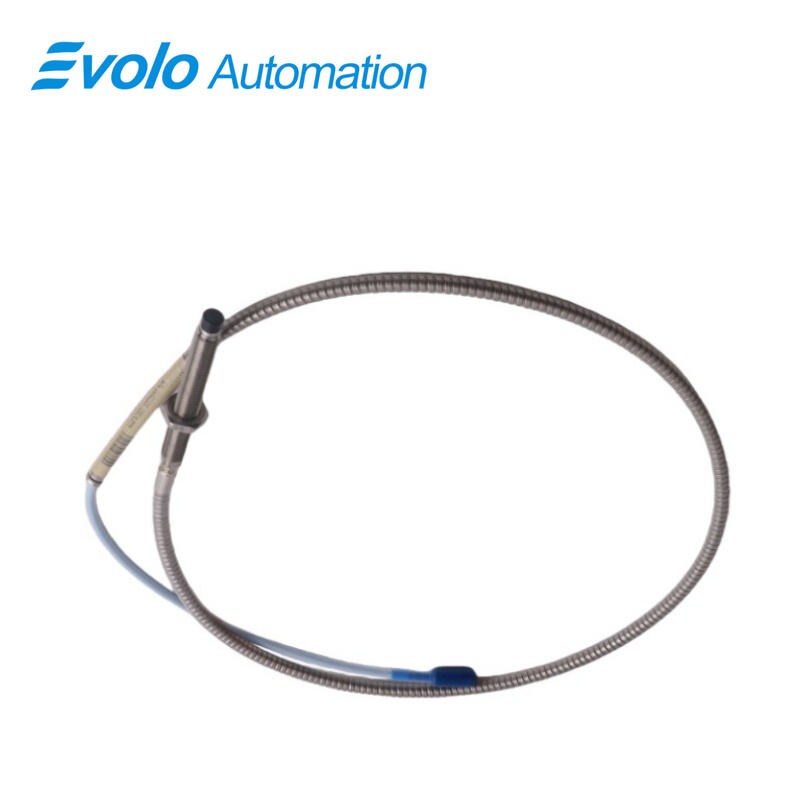

330104-00-08-10-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-08-10-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-08-10-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current proximity sensor designed for demanding industrial automation and machinery protection systems. As part of the advanced 3300 XL 8 mm Proximity Probe family, this model delivers a stable output voltage directly proportional to the distance between the probe tip and a conductive target, enabling accurate monitoring of shaft position, vibration, and displacement. With an overall case length of 80 mm, M10x1 probe case thread, and a linear range of 2 mm, the 330104-00-08-10-02-00 probe is optimized for tight installation spaces while maintaining excellent measurement repeatability.

This 3300 XL 8 mm Proximity Probe operates reliably across a wide temperature range from -52°C to +177°C, making it suitable for harsh industrial environments such as turbines, compressors, pumps, and motors. The miniature coaxial ClickLoc connector with standard cable ensures secure signal transmission, while low supply sensitivity and 50 Ω output resistance contribute to signal stability in automation control systems. Designed for seamless integration with 3300 XL extension cables and Proximitor sensors, the probe supports full interchangeability without individual calibration. The robust mechanical design, combined with patented TipLoc and CableLoc technologies, enhances durability and long-term performance in continuous operation. As a result, the 330104-00-08-10-02-00 3300 XL 8 mm Proximity Probe is a reliable sensing solution for critical automation and condition monitoring applications.

Applications

The 330104-00-08-10-02-00 3300 XL 8 mm Proximity Probe is widely applied in industrial automation systems for vibration monitoring, axial and radial position measurement, and speed or phase reference detection. It is commonly installed on fluid-film bearing machinery such as steam turbines, gas turbines, centrifugal compressors, and large pumps. In automated plants, the probe provides real-time feedback to machinery protection systems and distributed control systems, enabling predictive maintenance and reducing unplanned downtime. Its compact 8 mm form factor and wide temperature tolerance make it especially suitable for installations with limited mounting space and extreme operating conditions.

Specifications

Competitive Advantage

The key competitive advantage of the 330104-00-08-10-02-00 3300 XL 8 mm Proximity Probe lies in its combination of measurement accuracy, mechanical robustness, and system compatibility. Full interchangeability with other 3300 XL components eliminates calibration complexity and reduces spare parts inventory. Compliance with stringent industry standards and stable performance over temperature variations ensure consistent data quality for automation systems. Additionally, patented probe tip and cable retention designs improve mechanical strength and reliability, providing long service life in high-vibration environments. These advantages make the 3300 XL 8 mm Proximity Probe a cost-effective and trusted solution for critical industrial automation and machinery monitoring applications.
