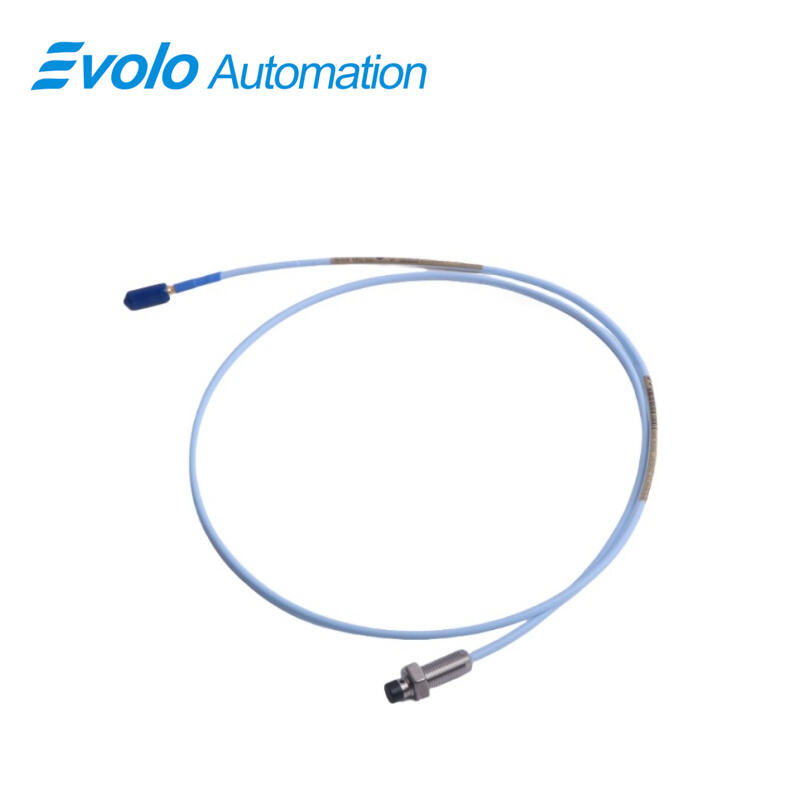

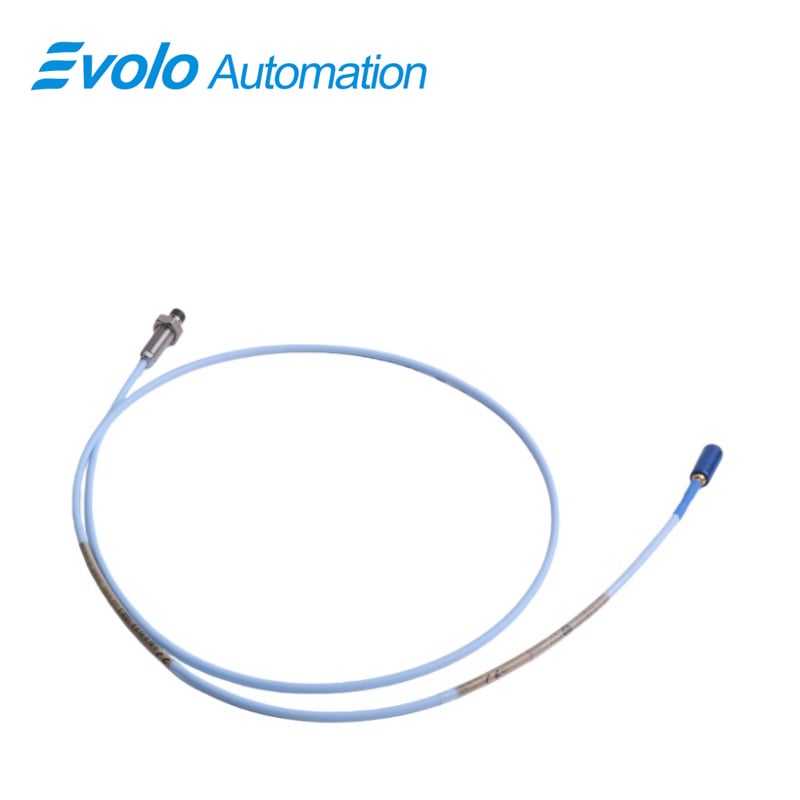

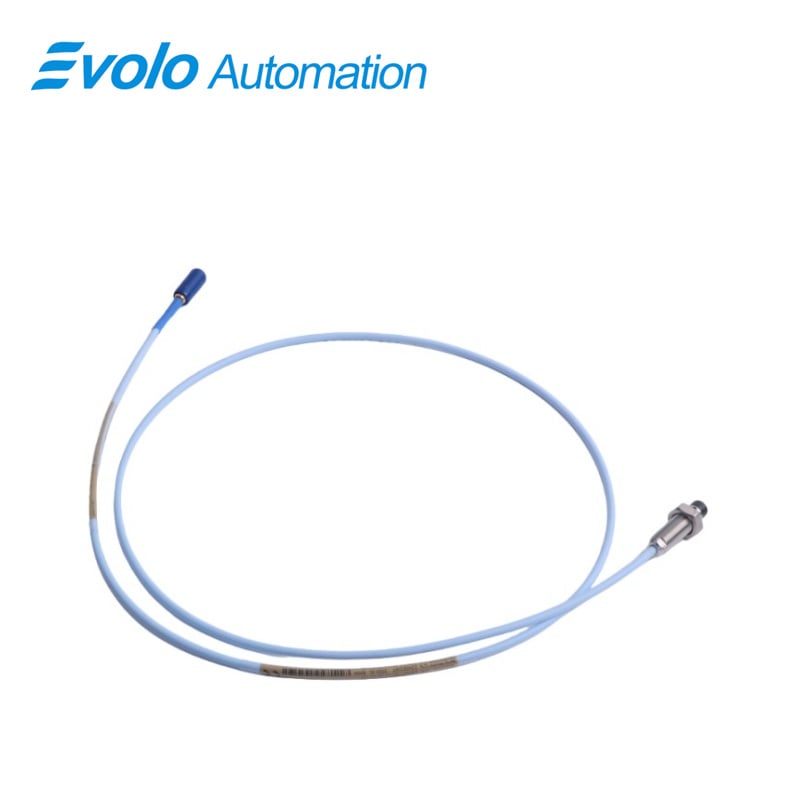

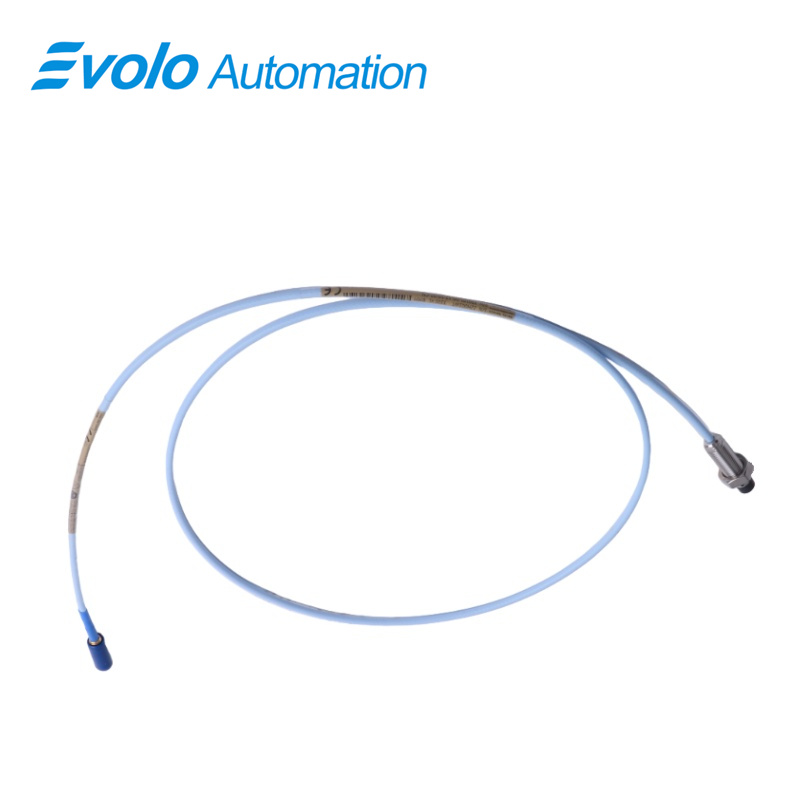

330101-00-12-10-02-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-12-10-02-CN
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-12-10-02-CN 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer designed for industrial automation, vibration monitoring, and precise position measurement. This 8 mm probe provides an output voltage directly proportional to the distance between the probe tip and the conductive target surface, enabling accurate measurement of both static displacement and dynamic vibration in automated machinery, turbines, and fluid-film bearing systems. Its compact 1.2-inch case length and 1.0-meter total cable with Miniature coaxial ClickLoc connector ensure reliable integration into rotating equipment and predictive maintenance platforms, where space constraints and high precision are critical.

Engineered for extreme environments, the probe operates across -52°C to +177°C (-62°F to +350°F) with minimal supply sensitivity (<2 mV/V), 50 Ω output resistance, and 69.9 pF/m extension cable capacitance. The 3/8-24 UNF threaded mount ensures secure installation, while patented TipLoc and CableLoc designs deliver 330 N (75 lbf) pull strength, maintaining robust mechanical stability under vibration-heavy conditions. Optional FluidLoc cabling prevents leakage of oil or other liquids, ensuring reliable operation in lubrication-intensive environments. Fully CSA, ATEX, and IECEx certified, and API 670 compliant, the probe is fully backward compatible with other 3300 series probes and Proximitor sensors, supporting standardized, interchangeable automated monitoring systems.

Applications

Application 1: Rotating Machinery Vibration Analysis

The probe’s 2 mm linear range enables high-resolution measurement of rotor vibrations, allowing predictive maintenance to prevent unexpected machinery failures.

Application 2: Shaft Position Monitoring

Provides precise shaft displacement data for automated control of turbines, compressors, and pumps, optimizing operational efficiency.

Application 3: Keyphasor Signal for Speed Feedback

Delivers synchronized phase signals for speed measurement and monitoring of rotating equipment, ensuring accurate timing for automated process controls.

Application 4: Industrial Automation Condition Monitoring

Integration with automated systems enables continuous real-time tracking of position and vibration, triggering preventive maintenance alerts.

Application 5: Lubrication System Integrity Monitoring

Optional FluidLoc cabling prevents oil ingress, ensuring reliable displacement measurement in machines with heavy lubrication environments.

Specifications

Competitive Advantage

Competitive Advantage 1: Hazardous Area Certification

With CSA, ATEX, and IECEx approvals, the probe operates safely in explosive or hazardous industrial environments.

Competitive Advantage 2: FluidLoc Cable Option

Protects against fluid leakage, maintaining signal reliability and extending sensor life in lubrication-intensive machinery.

Competitive Advantage 3: Extreme Temperature Capability

Operates accurately between -52°C and +177°C, enabling performance in high-temperature or cryogenic industrial processes.

Competitive Advantage 4: High Mechanical Integrity

Patented TipLoc and CableLoc designs provide 330 N pull strength, ensuring stable attachment of probe and cable under heavy vibration.

Competitive Advantage 5: API 670 Compliance and Interchangeability

Fully compatible with other 3300 series components, simplifying system upgrades and maintenance while maintaining API 670 standard performance.
