330102-20-96-10-02-05 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-20-96-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

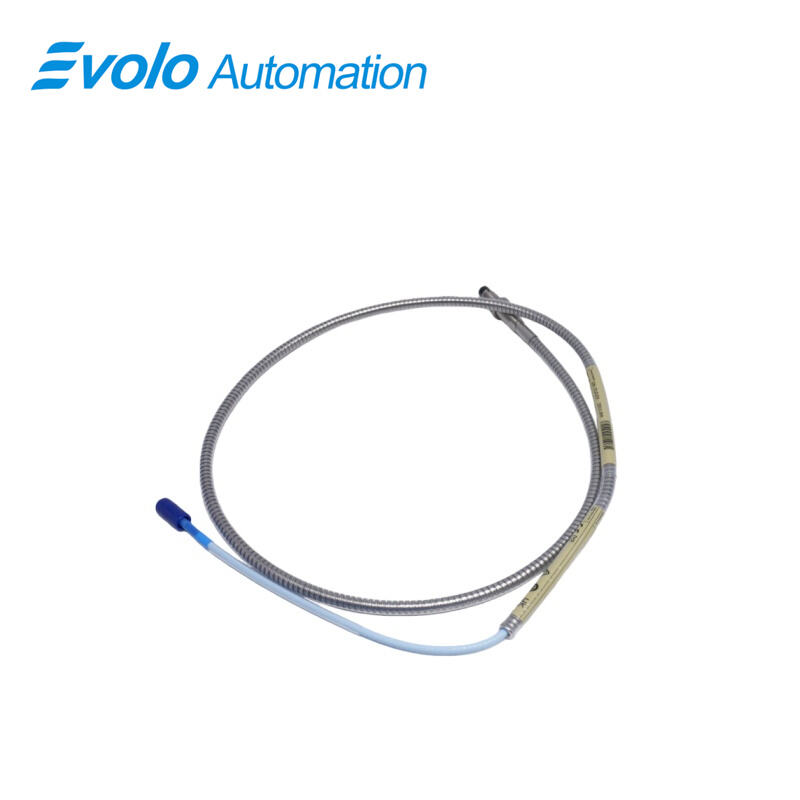

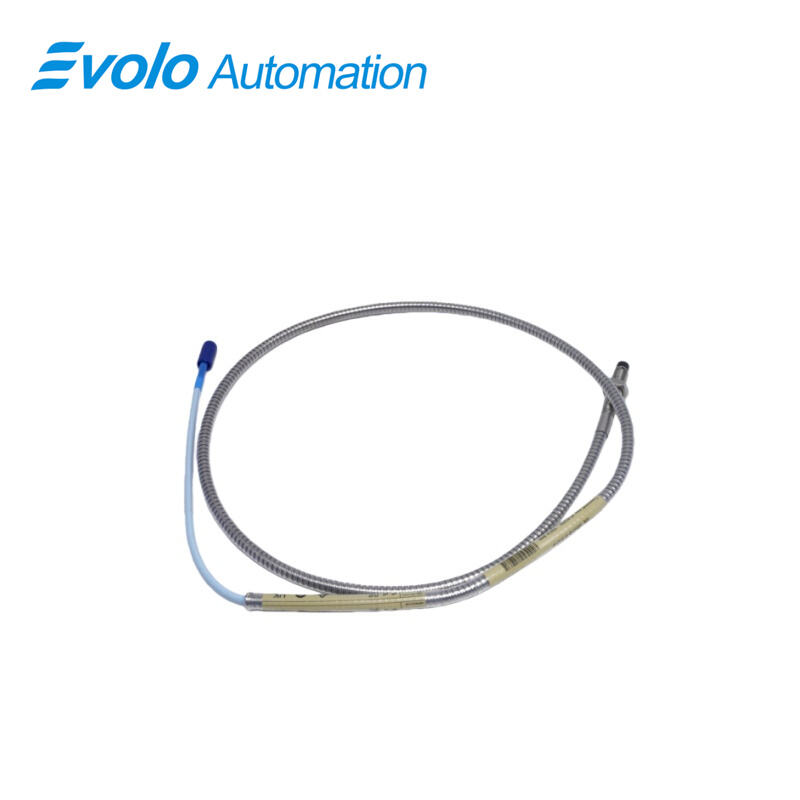

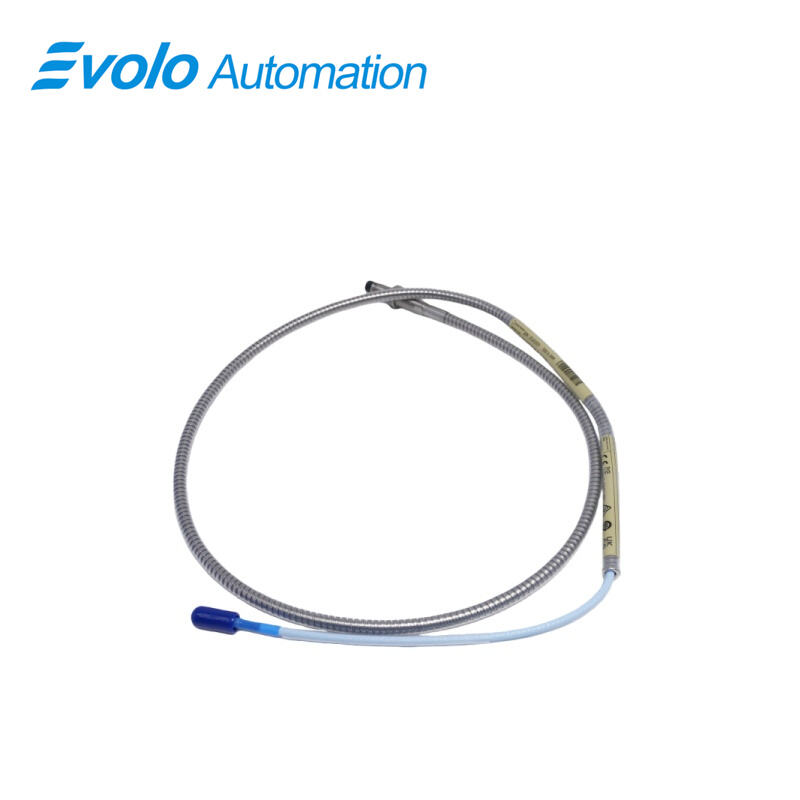

The 330102-20-96-10-02-05 3300 XL 8 mm Proximity Probes are precision-engineered non-contact sensors designed for continuous displacement and vibration measurement in critical rotating machinery. As part of the advanced 3300 XL platform, the 3300 XL 8 mm Proximity Probes deliver exceptional measurement stability, mechanical robustness, and long-term reliability in demanding industrial environments. Manufactured in the USA, the 330102-20-96-10-02-05 3300 XL 8 mm Proximity Probes are widely recognized for their consistent performance in machinery protection and condition monitoring systems.

A key design strength of the 330102-20-96-10-02-05 3300 XL 8 mm Proximity Probes lies in their solid mechanical construction. The probe body is manufactured from high-grade stainless steel, providing excellent resistance to corrosion, mechanical stress, and harsh environmental conditions. The PPS probe tip material ensures dimensional stability and electrical consistency across a wide operating temperature range from -60°C to +175°C, enabling the 3300 XL 8 mm Proximity Probes to maintain accurate output in extreme cold or high-temperature applications.

From an electrical performance perspective, the 330102-20-96-10-02-05 3300 XL 8 mm Proximity Probes offer a 2 mm linear measurement range, a 50 Ω output resistance, and extremely low supply sensitivity. These characteristics allow the 3300 XL 8 mm Proximity Probes to produce stable and repeatable signals even when supply voltage fluctuates. When powered within the required -17.5 Vdc to -25 Vdc range, the probe maintains precise displacement measurement essential for reliable vibration analysis.

Applications

The 330102-20-96-10-02-05 3300 XL 8 mm Proximity Probes are extensively applied in vibration and displacement monitoring of rotating equipment such as steam turbines, gas turbines, and centrifugal compressors. Their 2 mm linear range enables accurate detection of shaft vibration and radial displacement, supporting early fault identification and machinery protection.

In power generation, oil and gas, and petrochemical facilities, the 3300 XL 8 mm Proximity Probes are used in hazardous environments where CSA, ATEX, and IECEx approvals are mandatory. The stainless steel probe case and PPS probe tip allow reliable operation under corrosive atmospheres, temperature extremes, and continuous mechanical stress.

The compact structure and 1.0 meter cable length of the 330102-20-96-10-02-05 3300 XL 8 mm Proximity Probes make them suitable for installation in limited spaces such as bearing housings and gearbox enclosures. When integrated with compatible signal conditioning equipment, the probes provide stable long-term data for predictive maintenance and condition-based monitoring systems.

Specifications

Competitive Advantage

1.Certified Hazardous Area Compliance

The 330102-20-96-10-02-05 3300 XL 8 mm Proximity Probes meet CSA, ATEX, and IECEx standards, allowing safe deployment in explosive or regulated industrial environments while maintaining reliable measurement performance.

2.High Mechanical and Environmental Durability

With a stainless steel probe case and PPS probe tip, the 3300 XL 8 mm Proximity Probes offer excellent resistance to corrosion, vibration, and thermal stress across a wide operating temperature range.

3.Stable Electrical Performance for Accurate Monitoring

The combination of low supply sensitivity, 50 Ω output resistance, and a 2 mm linear range ensures the 330102-20-96-10-02-05 3300 XL 8 mm Proximity Probes deliver consistent and repeatable displacement measurements, supporting dependable condition monitoring and reduced maintenance risk.
