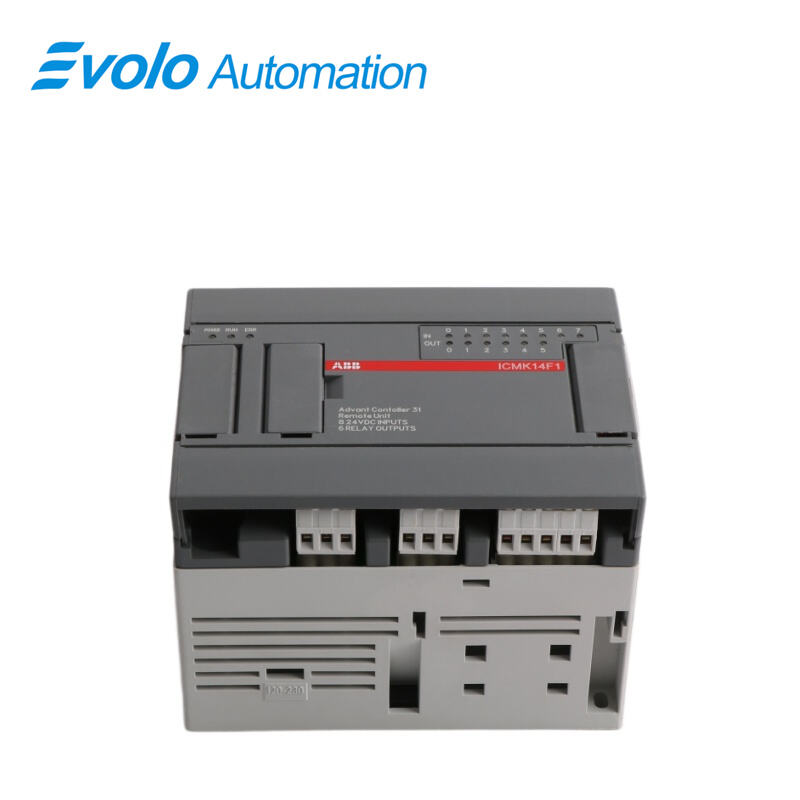

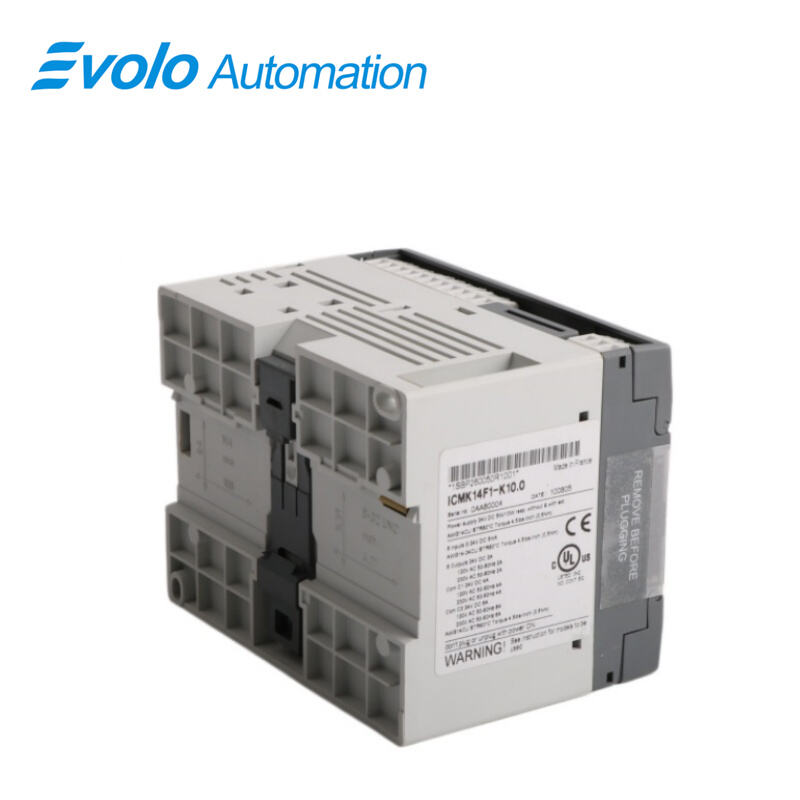

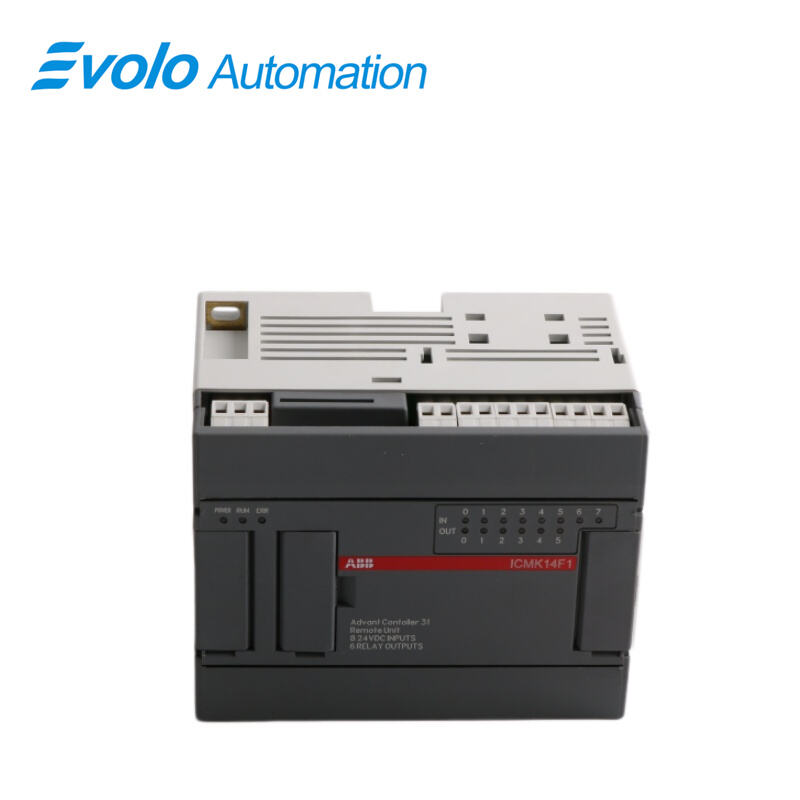

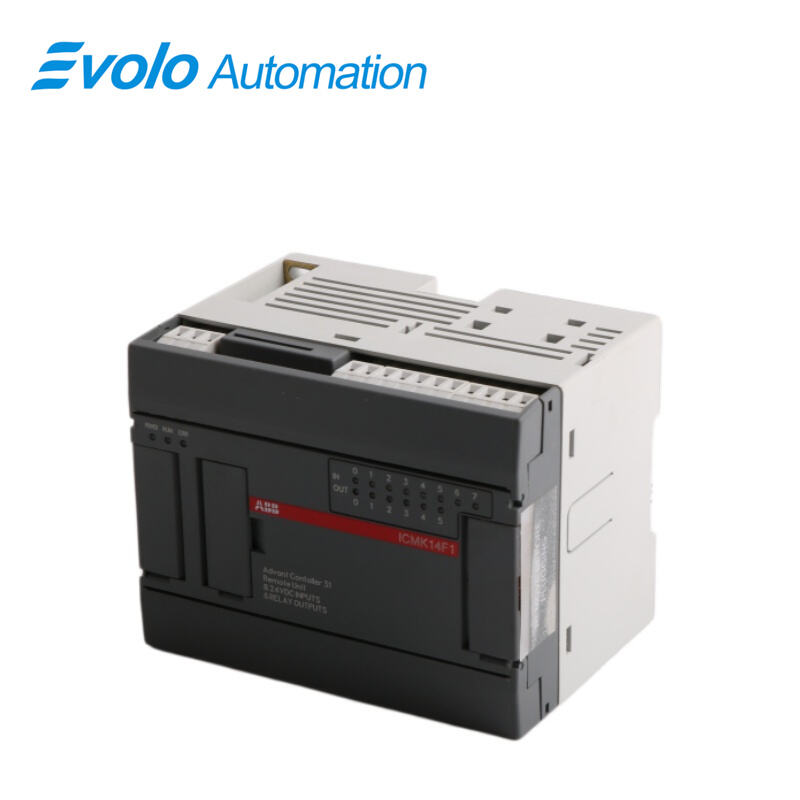

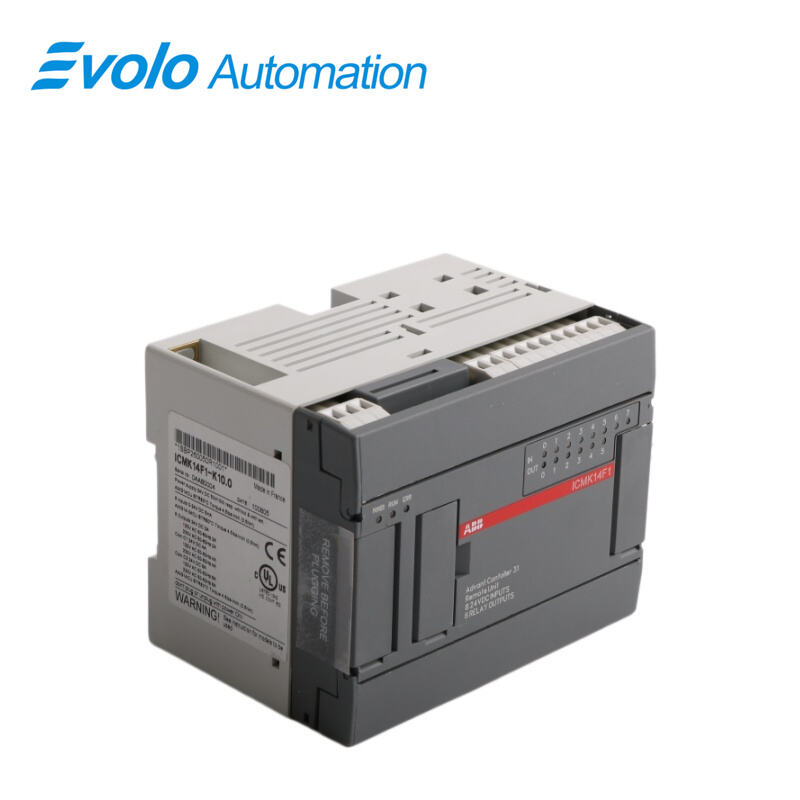

Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
ICMK14F1 1SBP260050R1001 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Part Number |
ICMK14F1 1SBP260050R1001 |
|
Product Type |
Extensible Remote Unit |
|
Dimensions |
12×9.3×8.5 cm |
|
Weight |
0.38 kg |
|
Power Supply |
24 VDC (19.2–30 VDC) |
|
Power Consumption |
80 mA (typical), 400 mA (max configuration) |
|
Power Features |
Polarity reversal protection, 5 W dissipation |
|
Binary Inputs |
Yes |
|
Input Types |
PNP and NPN |
|
Input Voltage |
24 VDC (0–5 V = 0, 15–30 V = 1) |
|
Input Current |
7 mA (Ixx.02–Ixx.07), 9 mA (Ixx.00–Ixx.01) |
|
Input Isolation |
1500 VAC |
|
Input Filtering Time |
5 ms |
|
Cable Length (Inputs) |
300 m unshielded / 500 m shielded |
|
Relay Outputs |
6 relays |
|
Output Isolation |
1500 Vms (1 min) |
|
Output Load Capacity |
2 A / 5 A (DC), various AC ratings |
|
Output Leakage Current |
Specified |
|
Minimum Cut-off Voltage |
12 VDC / 10 mA |
|
Breaking Power (UL B300) |
2 A @ 120 VAC / 2 A @ 250 VAC |
|
Common Groups |
2 (2+4) |
|
Switching Frequency |
<1 Hz (resistive), <0.2 Hz (inductive/lamps) |
|
Lifetime (Switching Cycles) |
1M (AC-1), 100,000 (AC-15) |
|
Protection Features |
External short circuit & surge protection required |
|
Output Diagnostics |
Supported |
|
Cable Length (Outputs) |
150 m unshielded / 500 m shielded |
Description
The ABB ICMK14F1 1SBP260050R1001 is a high-performance, extensible remote unit designed for distributed automation, featuring versatile sensor polarity compatibility and isolated relay outputs. It simplifies on-site wiring, enhances system flexibility through scalable I/O density, and offers robust signal management for complex industrial environments.
Applications
Wastewater treatment: Monitors pumps and valve control via long-distance centralized equipment management.
Automotive plants: Acquires sensor signals and controls solenoid valves on assembly lines.
Coal power plants: Uses high isolation to resist EMI and ensure stable auxiliary system control.
Food processing: Controls packaging conveyors and monitors safety light curtain signals.
Logistics centers: Processes high-speed parcel detection signals and drives robotic sorting arms.
Troubleshooting and Maintenance Recommendations
Troubleshooting: If the output relay fails to operate, first check the common terminal voltage and the external short-circuit protection fuse. If the input signal flickers, check the cable shield grounding or adjust the filter parameters.
Maintenance Recommendations: Regularly check the tightness of the wiring terminals to prevent poor contact due to vibration. Monitor the relay switching frequency; for high-frequency applications, a replacement plan should be developed in advance based on a lifespan of 100,000 cycles (AC-15).
FAQ
Q: Can the ICMK14F1 1SBP260050R1001 support PNP and NPN inputs?
A: Yes. It supports both PNP and NPN wiring for binary inputs.
Q: What is the max switching frequency of the ICMK14F1 1SBP260050R1001 with inductive loads?
A: Must be kept below 0.2 Hz for inductive or lighting loads.
Q: What is the max signal cable distance for the ICMK14F1 1SBP260050R1001?
A: Up to 500 m with shielded cable, 300 m unshielded.
Q: How are relay outputs grouped in the ICMK14F1 1SBP260050R1001?
A: 6 outputs split into two commons: 2 + 4 grouping.
Q: Can the ICMK14F1 1SBP260050R1001 operate at 20 VDC?
A: Yes. Operating range is 19.2–30 VDC.
