Overview

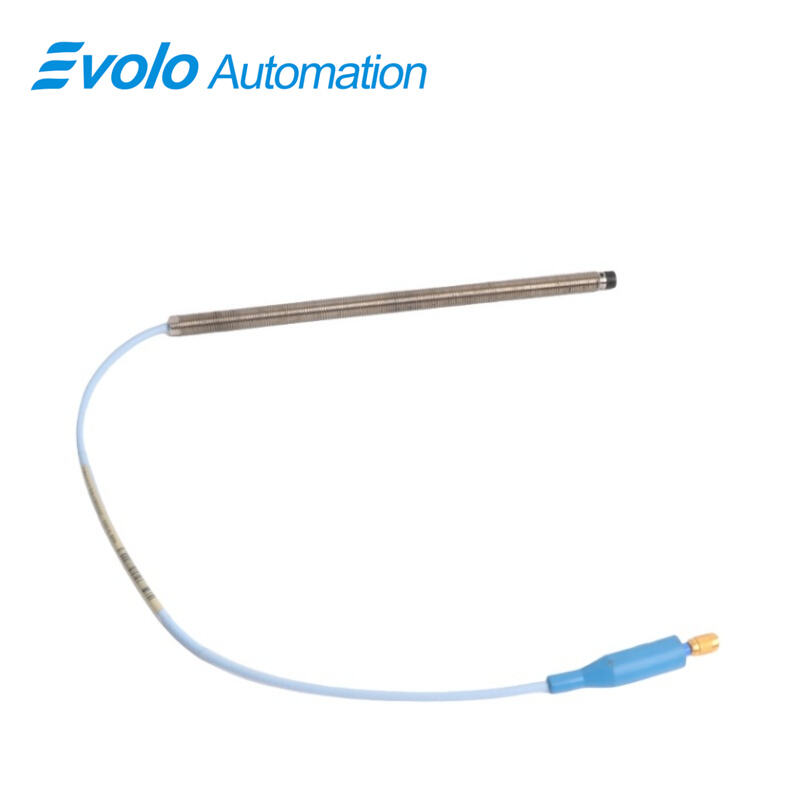

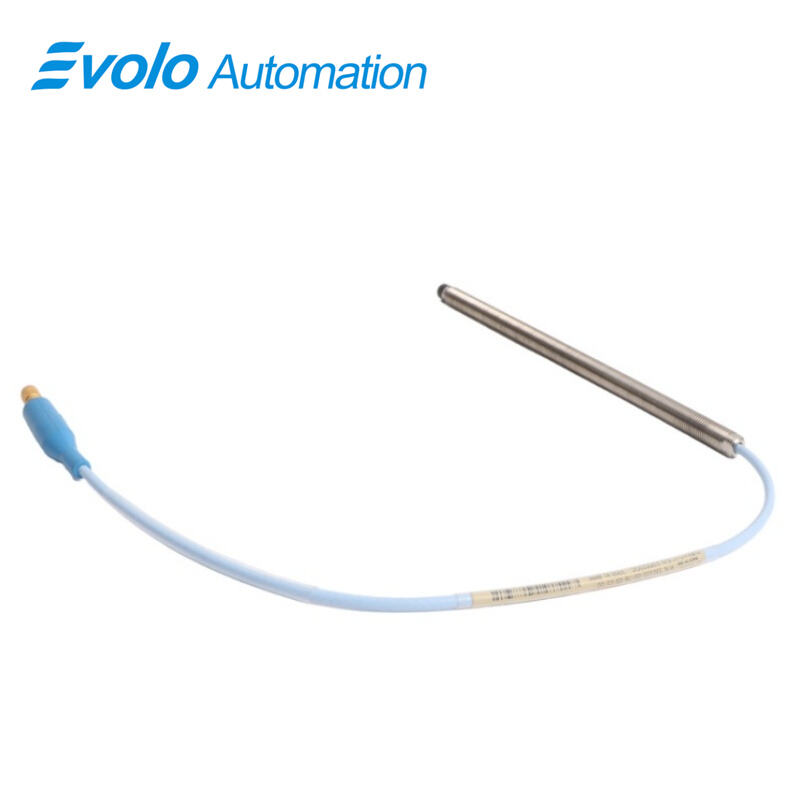

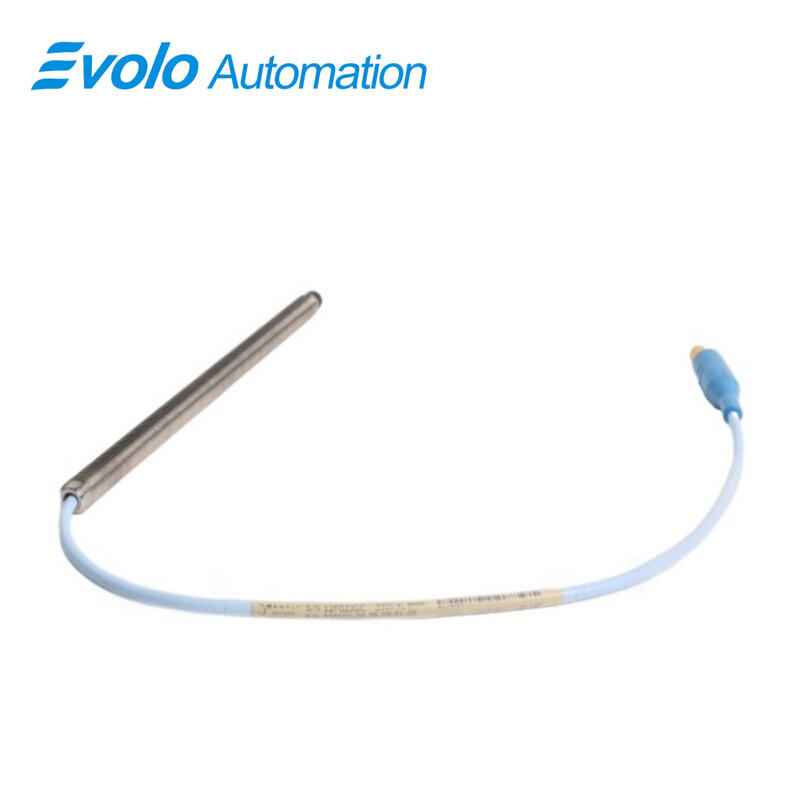

330101-00-78-15-02-05 3300 XL 8 mm Proximity Probes
At a Glance
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-78-15-02-05 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Product Overview
Description
The 3300 XL 8 mm Proximity Probe (model 330101-00-78-15-02-05) is a high-precision eddy current transducer system designed for industrial automation and machinery monitoring. Delivering an output voltage directly proportional to the distance between the probe tip and the target conductive surface, it enables accurate measurement of both static positions and dynamic vibrations. Featuring a miniature coaxial ClickLoc connector and a 1.5-meter standard cable, this probe operates reliably within a temperature range of -52°C to +177°C (-62°F to +350°F). Its linear range of 2 mm (80 mils) ensures precise position sensing, while supply sensitivity remains under 2 mV per volt of input variation. The 3300 XL 8 mm system is fully compliant with API 670 standards, supports complete interchangeability with 5 mm and 8 mm non-XL probes, and incorporates robust TipLoc and CableLoc designs, offering enhanced durability and 330 N pull strength. Optional FluidLoc cabling prevents fluid leakage, making it ideal for high-performance vibration monitoring and position control in fluid-film bearing machines and other critical industrial automation equipment.
Key Functions
Applications
1. Vibration Monitoring in Fluid-Film Bearings
The 3300 XL 8 mm probe measures shaft vibration with high linearity and 2 mm range, ensuring early detection of imbalance, misalignment, or bearing wear in industrial turbines and compressors.
2. Static Position Measurement in Rotating Machinery
Its output voltage proportionality allows precise position tracking of shafts and rotating elements with ±2% accuracy, suitable for automated alignment in pumps, generators, and large motors.
3. Keyphasor and Speed Measurement
Provides accurate Keyphasor signals for rotational speed monitoring, supporting speed detection in high-speed turbines up to 3600 RPM and ensuring reliable process synchronization.
4. API 670 Compliance for Industrial Automation
Used in systems requiring API 670 mechanical configuration standards, ensuring robust and reliable integration into automated process control systems for oil & gas, petrochemical, and power plants.
5. Harsh Environment Industrial Monitoring
Operating from -52°C to +177°C and compatible with CSA, ATEX, and IECEx approvals, it can monitor machinery in extreme conditions, including offshore platforms and chemical processing plants.
Official Specifications
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
7.8 in |
|
Total Length Option: |
1.5 meter (4.9 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
57.8x1.2x1.2cm |
|
Weight: |
0.1kg |
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Frequently Asked Questions
What is the model number?
The listed model number is 330101-00-78-15-02-05.
What is the brand name?
The listed brand name is Bently Nevada.
What is the place of origin?
The listed place of origin is USA.
What are the packaging details?
The listed packaging details are Original new Factory Sealed.
What is the delivery time?
The listed delivery time is 5-7 days.
Is this model available?
The listed supply status is In stock.
What are the payment terms?
The listed payment terms are T/T.
Compatibility & Ordering Notes
Competitive Advantage
1. High Interchangeability
All components, including probes, extension cables, and Proximitor sensors, are backward compatible, reducing maintenance complexity and inventory costs.
2. Patented TipLoc and CableLoc Design
TipLoc provides a robust bond between probe tip and body, while CableLoc ensures 330 N (75 lbf) pull strength, significantly improving mechanical reliability in automated systems.
3. Superior Electrical Performance
With an output resistance of 50 Ω and extension cable capacitance of 69.9 pF/m, the probe maintains signal integrity over long distances, minimizing noise in automated monitoring networks.
4. Optional FluidLoc Cabling
Prevents oil and other fluid leakage through the cable, protecting both the probe and sensitive machinery, enhancing safety and operational uptime.
5. Broad Temperature and Agency Approval Range
With operating temperatures from -52°C to +177°C and certifications including CSA, ATEX, and IECEx, the 3300 XL 8 mm probe can be deployed in a wide range of industrial automation environments without additional protective measures.
