Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330104-00-06-05-02-00 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
00 mm |
|
Overall Case Length Option(Minimum case length): |
60 mm |
|
Total Length Option: |
0.5 meter (1.6 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10x1 |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Dimension: |
1.8x1.6x71cm |
|
Weight: |
0.08kg |
Description

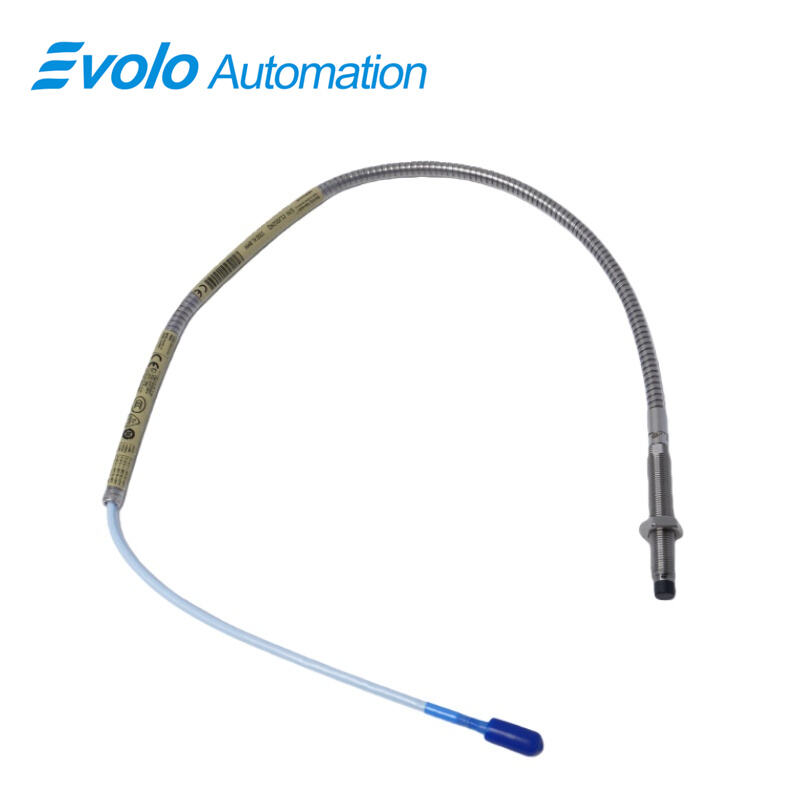

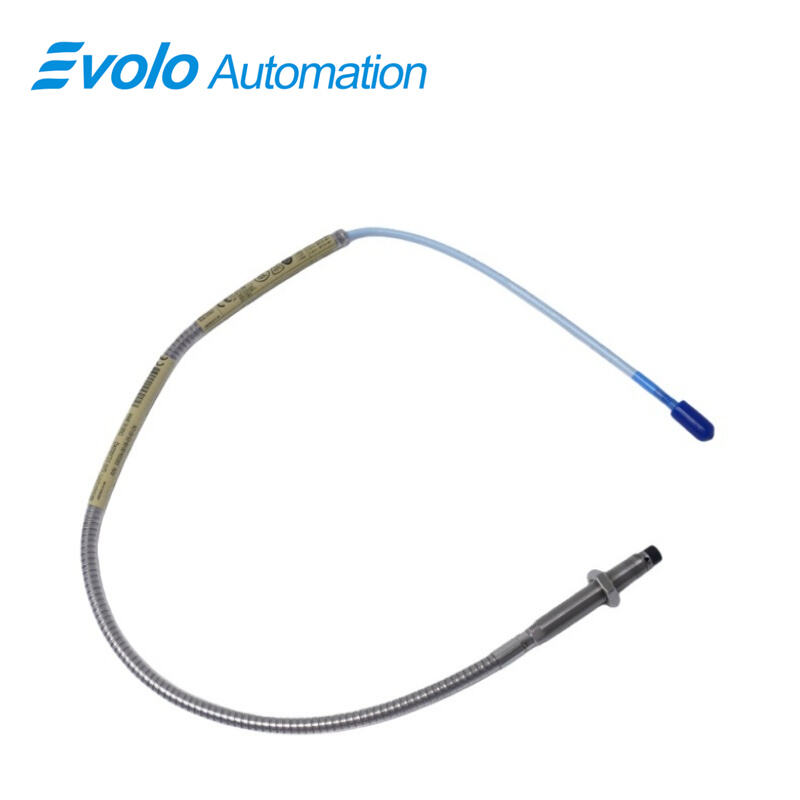

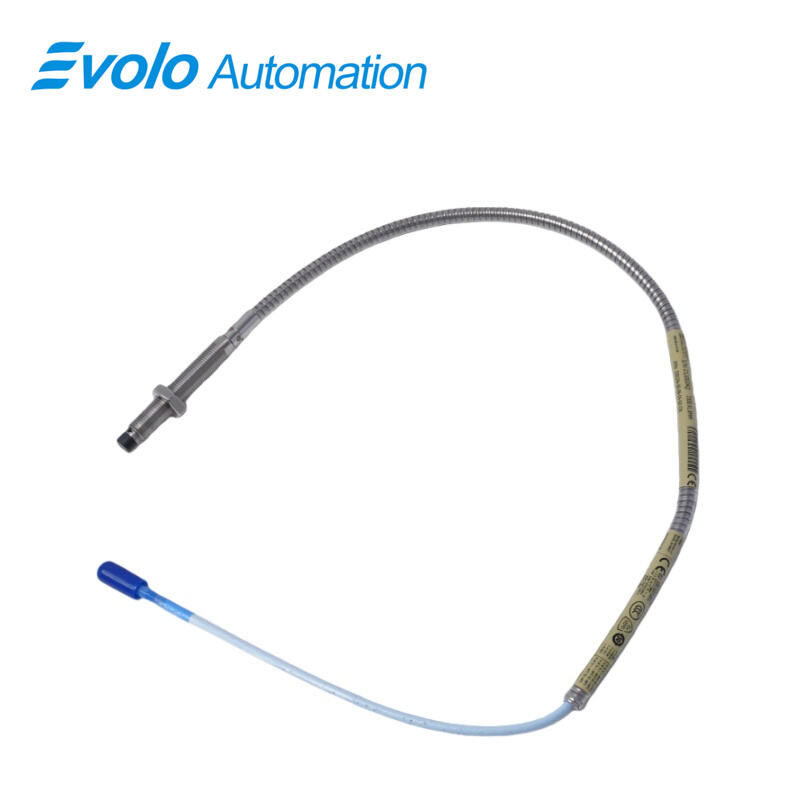

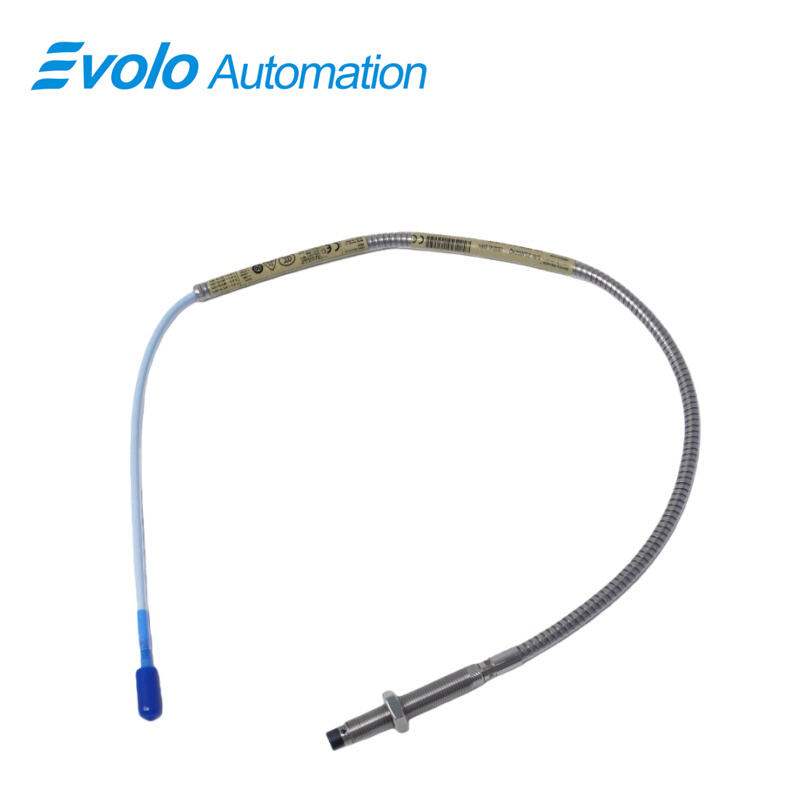

The 330104-00-06-05-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer system engineered for industrial automation applications requiring reliable vibration and position monitoring. Providing an output voltage directly proportional to the distance between the probe tip and the target conductive surface, it measures both static positions and dynamic vibrations with exceptional accuracy. With a linear range of 2 mm (80 mils) and robust M10x1 probe threading, this 3300 XL 8 mm probe is ideal for fluid-film bearing machines, speed monitoring, and Keyphasor phase reference signals. Its advanced design includes the patented TipLoc molding for superior probe-tip bonding, CableLoc retention providing 330 N pull strength, and optional FluidLoc cables to prevent leakage of oil or other liquids. The system operates over an extended temperature range from -52°C to +177°C (-62°F to +350°F), and features high shielding and 50 Ω output resistance, ensuring reliable performance under harsh industrial conditions. Fully compatible with 3300 series 5 mm and 8 mm components, the 3300 XL 8 mm Proximity Probe delivers interchangeability, backward compatibility, and API 670 compliance, making it a versatile solution for automation and vibration monitoring applications.
Applications
The 3300 XL 8 mm Proximity Probe is widely utilized in industrial automation environments where precision monitoring of rotating machinery is critical. It is particularly suitable for vibration and position measurements on fluid-film bearing machines, providing real-time feedback for predictive maintenance and performance optimization. Applications include shaft position detection, rotor vibration monitoring, Keyphasor phase reference signal generation, and speed measurement in turbines, compressors, and pumps. The probe’s compact 8 mm size also allows installation in restricted spaces where larger probes are unsuitable, making it adaptable for retrofitting legacy systems or integrating into advanced industrial automation setups.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
The 3300 XL 8 mm Proximity Probe stands out due to its combination of precision, durability, and automation compatibility. Its 8 mm tip provides high accuracy while fitting into compact installations, and its patented TipLoc and CableLoc designs ensure robust mechanical reliability and secure cable connections. Optional FluidLoc cabling prevents leakage of oils or fluids, enhancing operational safety and reducing maintenance needs. Full backward compatibility with other 3300 series components simplifies system upgrades and replacements, minimizing downtime. Compliance with API 670 standards guarantees high stability, linearity, and performance in demanding industrial conditions, making the 3300 XL 8 mm Proximity Probe an optimal choice for automated monitoring of critical rotating machinery.
