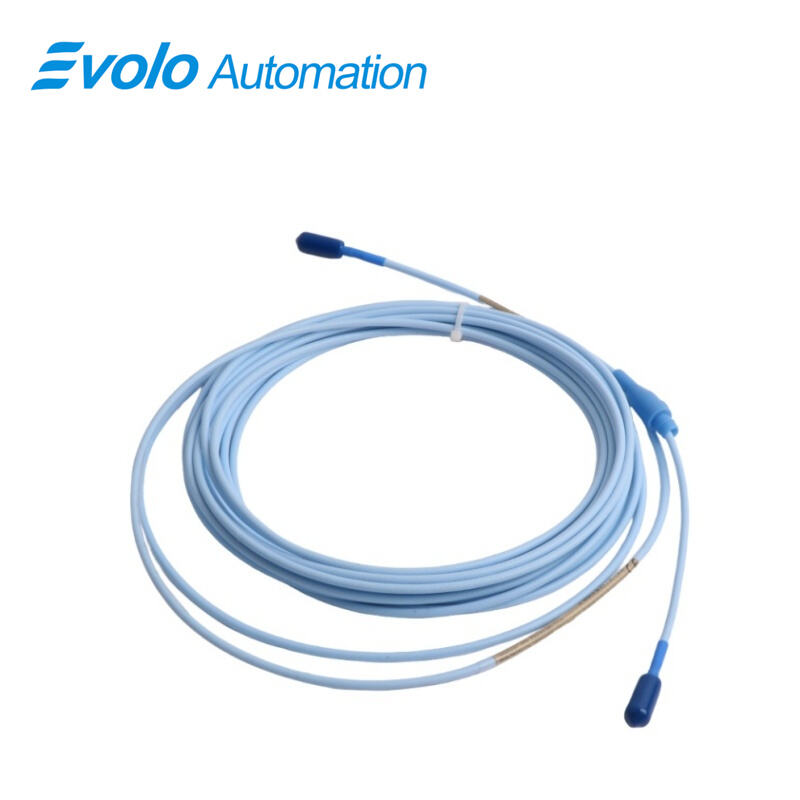

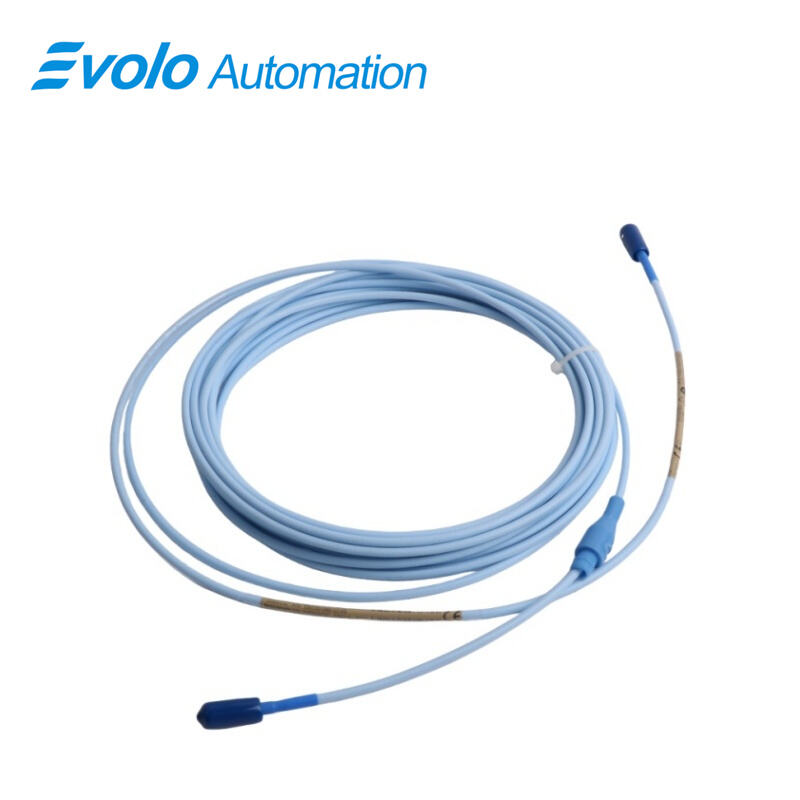

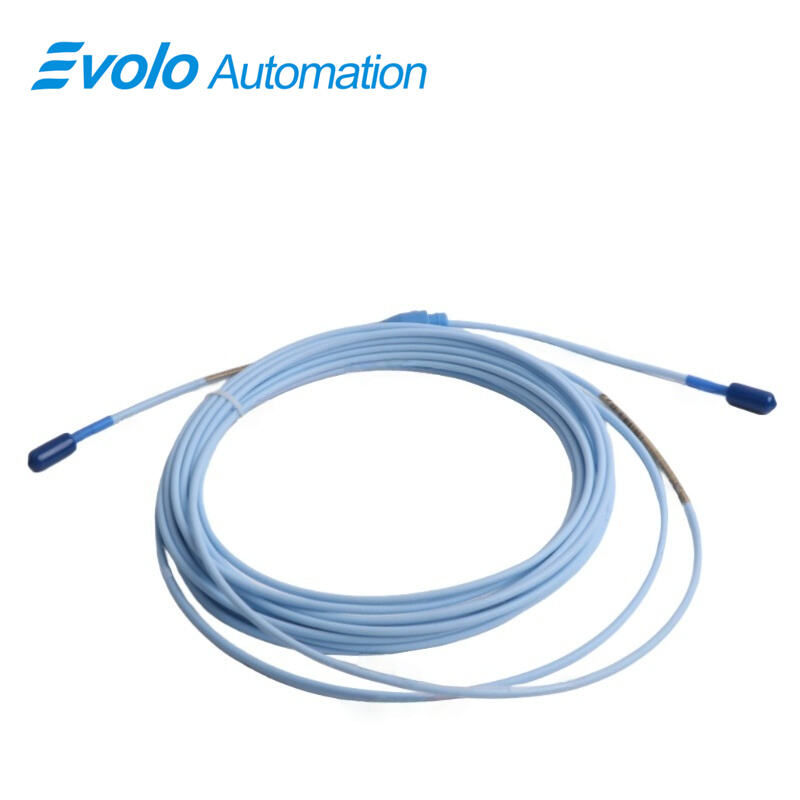

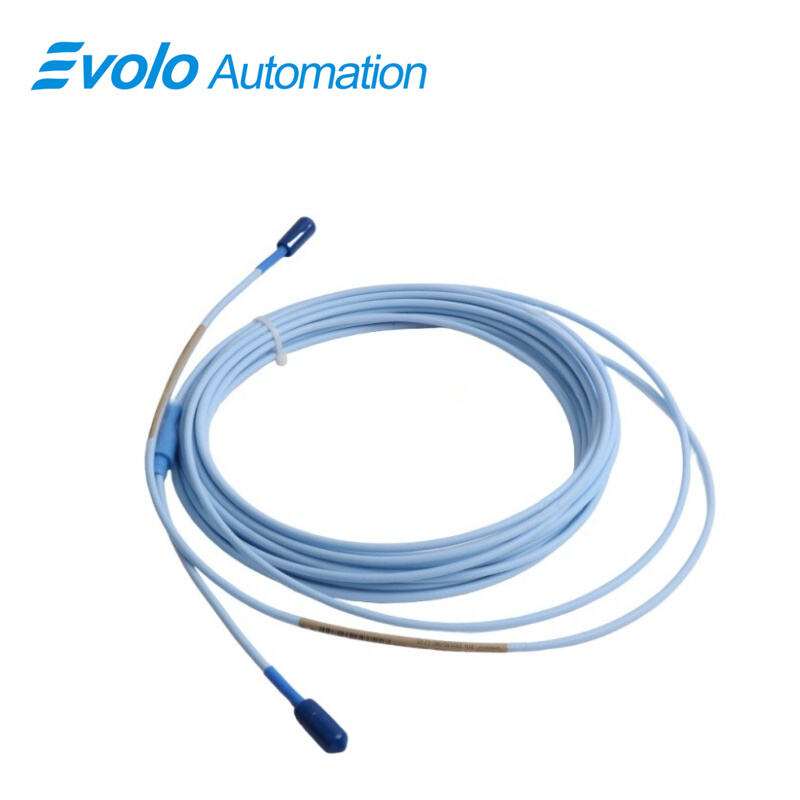

330130-080-12-00 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-080-12-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-080-12-00 3300 XL Standard Extension Cable is an advanced industrial automation accessory designed for seamless integration with 3300 XL 8 mm Proximity Transducer Systems. With a length of 8.0 meters (26.2 feet) and 75 Q triaxial FEP insulation, this extension cable maintains signal integrity in harsh industrial environments while providing stable output for both static position and dynamic vibration measurements. The FluidLoc cable option with connector protector prevents oil and fluid ingress, making it ideal for high-performance machinery monitoring. This extension cable features low supply sensitivity (less than 2 mV per volt input variation), 50 Ω output resistance, and 69.9 pF/m capacitance, supporting high-accuracy measurement and long-distance wiring up to 305 meters (1000 feet). Fully compatible with 3300 XL probes and Proximitor sensors, it ensures plug-and-play installation, supports linear range operation of 2 mm (80 mils), and complies with API 670 standards for mechanical configuration, linearity, and reliability in automated monitoring applications.

Applications

Application 1: Extended Vibration Monitoring
Provides flexible wiring for remote installation of 3300 XL probes on compressors, turbines, and pumps, allowing automated vibration monitoring up to 305 meters (1000 feet) from the control panel.

Application 2: Position Feedback Automation
Transmits accurate shaft position data to PLC or DCS systems for real-time monitoring of fluid-film bearing machines, supporting automated process control.

Application 3: Harsh Environment Machinery
FluidLoc cable prevents oil and liquid ingress, ensuring reliable signal transmission in high-temperature or lubricant-rich industrial environments.

Application 4: Keyphasor Reference Integration
Supports Keyphasor speed and phase reference signals for automated rotational analysis, enabling predictive maintenance of turbines and generators.

Application 5: Flexible System Expansion
Allows rapid installation of additional probes in automated monitoring systems without recalibration, maintaining API 670 standard compliance and supporting future system upgrades.

Specifications

Competitive Advantage

Advantage 1: Superior Signal Integrity
75 Q triaxial FEP insulation maintains low capacitance (69.9 pF/m) and minimal voltage variation (<2 mV per volt input), enabling precise vibration and position measurements in automated systems.

Advantage 2: Fluid Protection
Optional FluidLoc cable with connector protector prevents oil and liquid leakage, ensuring long-term reliability in automated lubrication-intensive machinery.

Advantage 3: Long Distance Capability
Supports field wiring up to 305 meters (1000 feet) without signal degradation, enabling flexible placement of probes in large industrial plants.

Advantage 4: API 670 Compliance
Compatible with API 670 standards for linearity and mechanical stability, ensuring integration into automated vibration monitoring systems with full regulatory compliance.

Advantage 5: Plug-and-Play Interchangeability
Designed for full backward compatibility with 3300 XL 8 mm probes and Proximitor sensors, eliminating the need for bench calibration and reducing installation downtime in automated environments.
