Overview
Place of Origin: |
USA |
Brand Name: |
GE |
Model Number: |
IC693MDL741C |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Description |
Specification |
|
Model |
IC693MDL741C |
|
Part name |
Output Module |
|
Compatibility |
GE Fanuc 90-30 PLCs |
|
Output points |
16 |
|
Number of channels |
16 |
|
Peak module current draw |
110 mA |
|
Number of output groups |
2 |
|
Channels per group |
8 |
|
Module voltage input |
5 V DC |
|
Rated voltage |
12/24 V DC |
|
Output voltage range |
12–24 V DC (+20%, -15%) |
|
Nominal output voltage |
12 / 24 V DC |
|
Isolation |
1500 V (field to logic), 500 V (between groups) |
|
Peak output voltage drop |
0.5 V |
|
Output current |
0.5 A per point; 2 A per common |
|
On response time (max) |
2 ms |
|
Off response time (max) |
2 ms |
|
Off-state leakage |
current 1 mA max |
|
Operating temperature |
0 to 60°C |
|
Product lifecycle status |
Discontinued / Obsolete |

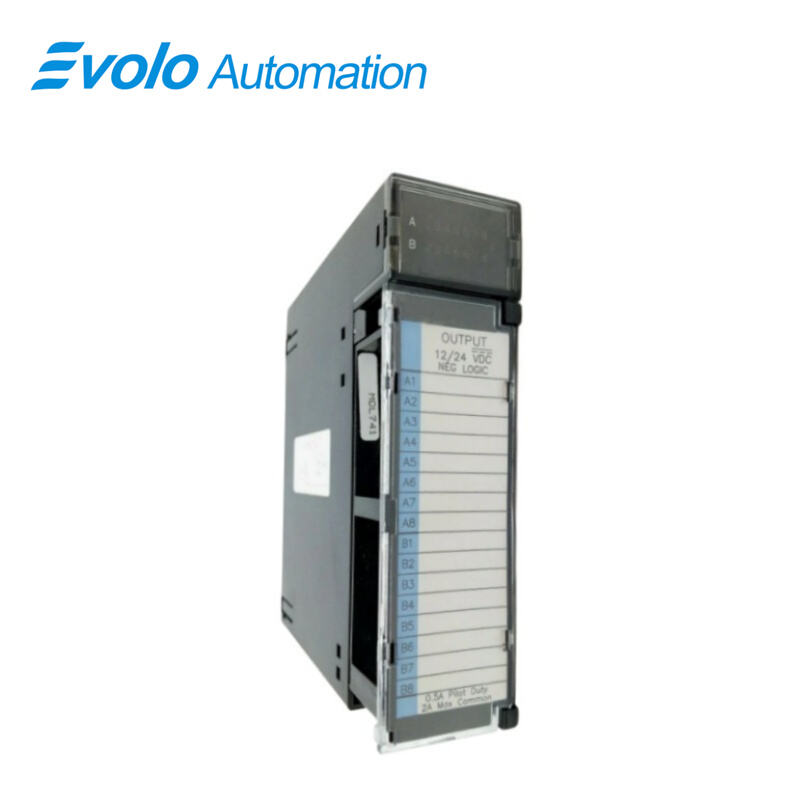

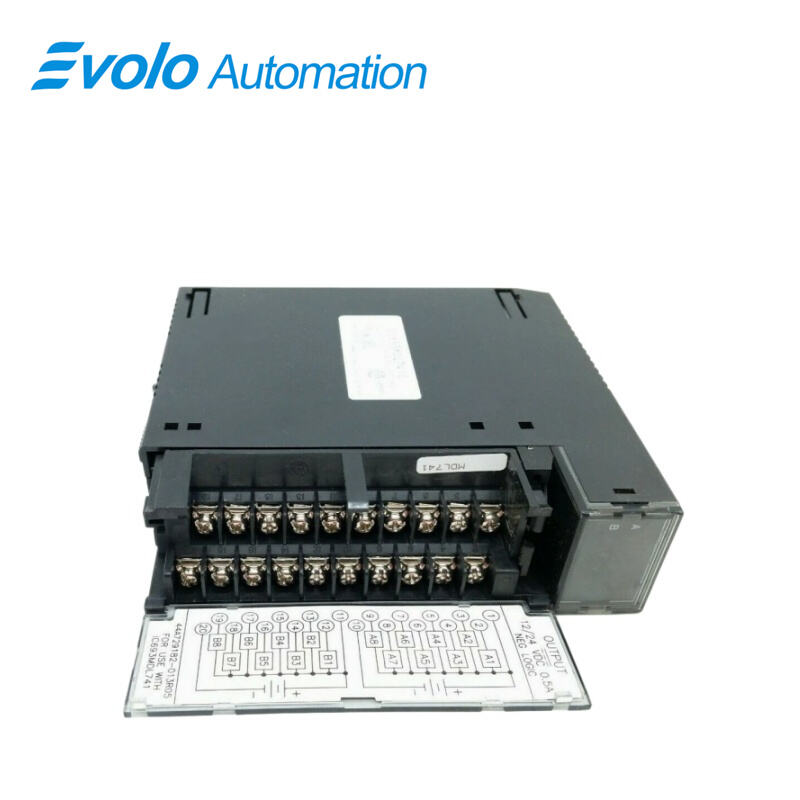

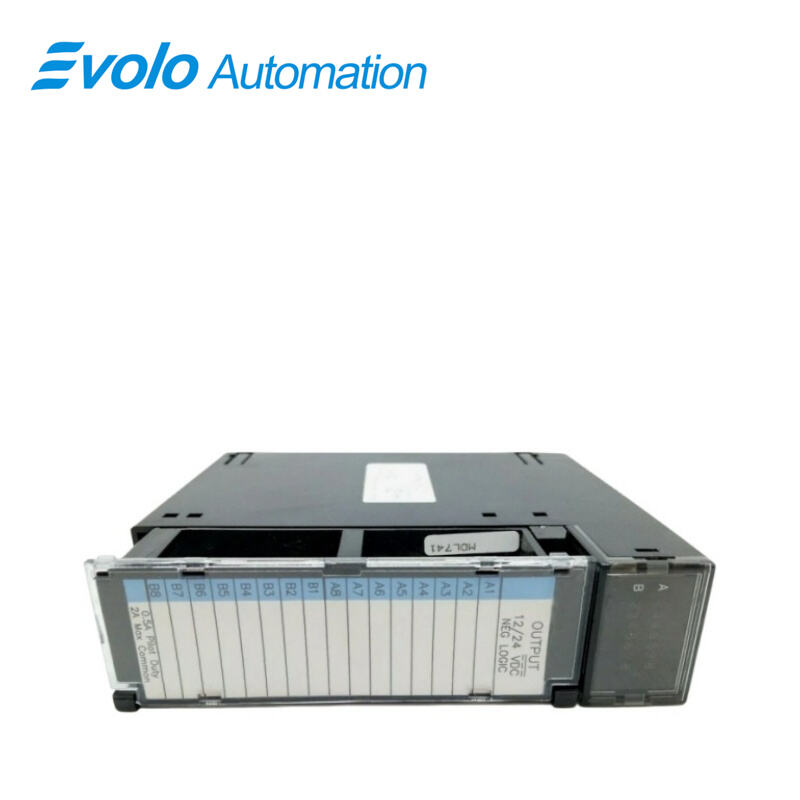

Description
The IC693MDL741 is a high-performance output module. As an instruction execution unit in automation systems, this module employs an advanced negative logic wiring architecture, enabling efficient driving of various actuators in industrial settings. In addition to high logical reliability, the module integrates an intuitive status feedback matrix for convenient real-time monitoring of the operating status of each channel.
Applications
Automotive Plants: Control welding fixtures and pneumatic components for precise assembly.
Food & Beverage Plants: Drive packaging lines with high-reliability isolation.
Petrochemical Plants: Enable remote pump control and monitoring in harsh environments.
Water Treatment Plants: Manage relays in control cabinets with low-power operation.
Tobacco & Logistics Plants: Execute conveyor and sorting logic with simplified wiring.
Maintenance and Troubleshooting
Troubleshooting: If individual channels fail to trigger, first check the panel status lights to determine if the logic output is normal. If the indicator lights are on but the load is not active, focus on checking the external power supply circuit and the wiring status of the corresponding common terminal.
Maintenance Recommendations: Given that this model is an obsolete spare part, it is recommended to establish redundant stock on key production lines. Due to the module's good thermal stability, maintenance only requires ensuring good ventilation of the substrate and periodically verifying the insulation integrity of the output circuit using test points.
FAQ
Q: What is the backplane current consumption of the IC693MDL741C?
A: The module has backplane current consumption 110 mA.
Q: What are the output groupings of the IC693MDL741C?
A: The module has Two (2) groups of Eight (8) outputs each.
Q: What is the output current of the IC693MDL741C?
A: The module has output current of 0.5 mA per point and 2 Amperes per common.
Q: With what are the output characteristics of the IC693MDL741C compatible?
A: They are compatible with motor starters, solenoids, and indicators.
Q: Into what can the IC693MDL741C be installed?
A: The module can be installed in any I/O slot of a 5 or 10 baseplate in a Series 90-30 PLC system.
