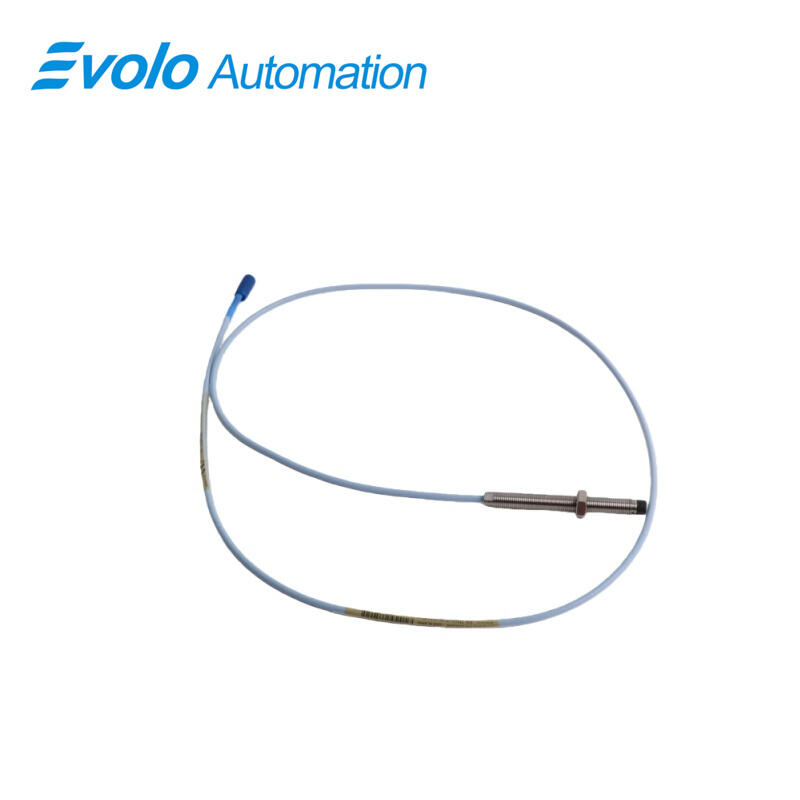

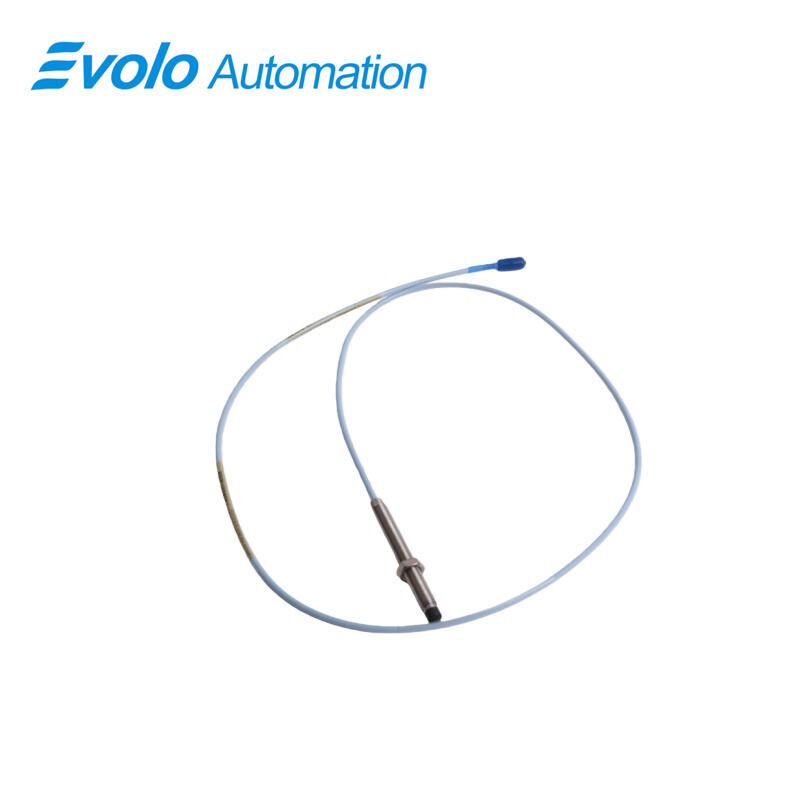

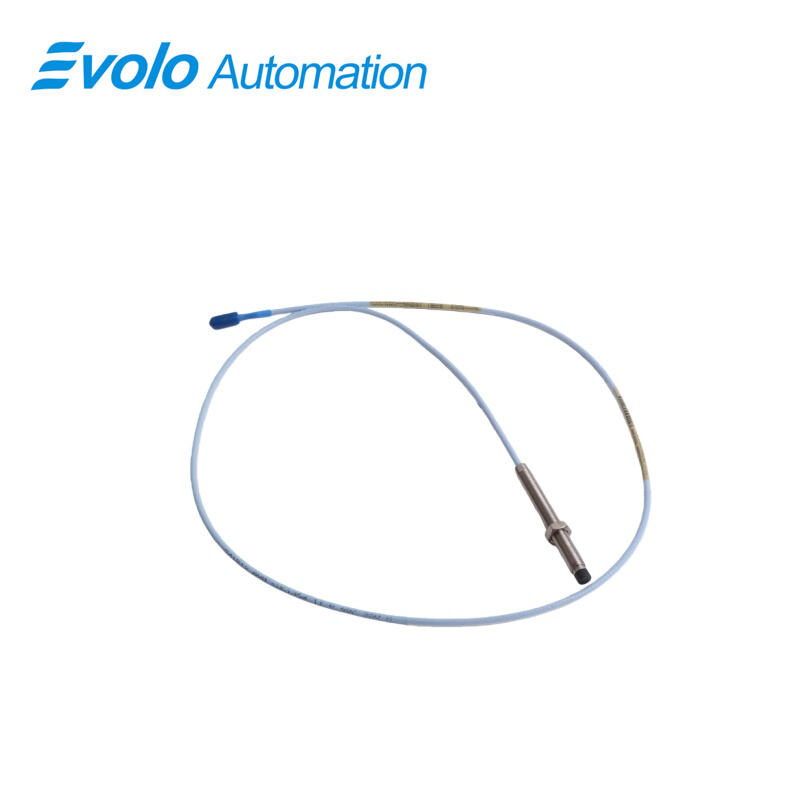

330101-00-38-90-02-00 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-38-90-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-38-90-02-00 represents a critical component of the 3300 XL 8 mm Proximity Probes series, specifically engineered to provide high-precision eddy current measurement for industrial machinery. As a cornerstone of the Bently Nevada 3300 XL 8 mm Proximity Probes ecosystem, this transducer system converts the physical distance between the probe tip and a target conductive surface into a proportional voltage output. The 330101-00-38-90-02-00 model is designed with a 3.8-inch overall case length and an unthreaded length of 0 inches, paired with a substantial 9.0-meter total length option, ensuring it meets specific spatial and reach requirements in complex installations.

Utilizing advanced eddy current technology, the 3300 XL 8 mm Proximity Probes are indispensable for monitoring fluid-film bearing machines. The 330101-00-38-90-02-00 excel in capturing both static position data and dynamic vibration signals, allowing for real-time health assessment of turbines, compressors, and motors. This specific 3300 XL 8 mm Proximity Probes configuration fully complies with the API 670 standard, guaranteeing exceptional linear range, accuracy, and thermal stability in the most demanding environments.

Furthermore, the 330101-00-38-90-02-00 offers complete interchangeability within the 3300 XL 8 mm Proximity Probes family. This means the probe can be seamlessly integrated with various Proximitor sensors and extension cables without the need for individual calibration. The 3300 XL 8 mm Proximity Probes system is also backward compatible with legacy 3300 series components, protecting your existing infrastructure investments.

Applications

The 330101-00-38-90-02-00 is primarily utilized for precision vibration and displacement monitoring in high-speed rotating machinery. With its 2 mm linear range and 9.0-meter cable length, it is ideally suited for tracking shaft motion in large-scale industrial turbines and compressors. It provides essential data for detecting mechanical issues like shaft misalignment or unbalance, ensuring the integrity of fluid-film bearings and preventing catastrophic equipment failure.

This proximity probe serves as a reliable Keyphasor and speed measurement tool, critical for synchronization and phase analysis in complex mechanical systems. The PPS tip material and stainless steel casing allow it to function accurately within a temperature range of -44°C to +70°C. By providing a once-per-turn pulse, the probe enables maintenance teams to determine rotational speed and correlate vibration data with shaft position, which is vital for balancing procedures and diagnostic accuracy.

The extended 9.0-meter total length and Miniature coaxial ClickLoc connector make the 330101-00-38-90-02-00 perfect for remote or deep-access installation points within harsh industrial environments. Its robust construction resists the corrosive atmospheres common in oil and gas refineries and power generation plants. By integrating seamlessly with Bently Nevada Proximitor sensors, it facilitates a continuous condition-monitoring loop that supports predictive maintenance and reduces unplanned downtime in critical infrastructure.

Specifications

Competitive Advantage

Superior Material Construction and Durability: The 330101-00-38-90-02-00 is built using high-grade AISI 303/304 stainless steel for the probe case and Polyphenylene Sulphide (PPS) for the tip. This combination ensures the 3300 XL 8 mm Proximity Probes remain resilient against chemical exposure and mechanical wear. The inclusion of the ClickLoc connector provides a secure, vibration-resistant link that maintains signal integrity even in high-motion environments, far surpassing the reliability of standard connectors.

Advanced System Compatibility and Flexibility: A standout feature of the 3300 XL 8 mm Proximity Probes is their total interchangeability. The 330101-00-38-90-02-00 does not require custom bench calibration when paired with other 3300 XL components, significantly reducing installation time and complexity. Additionally, its backward compatibility with the legacy 3300 5 mm and 8 mm series allows facilities to upgrade their monitoring capabilities incrementally without replacing entire existing systems.

Compliance with Global Engineering Standards: Designed to meet the rigorous API 670 requirements, this probe provides industry-leading accuracy and temperature stability. The 3300 XL 8 mm Proximity Probes series offers a stable output sensitivity (less than 2 mV change per volt of input), ensuring that measurements remain precise even during power supply fluctuations. This level of certification and technical performance makes it the preferred choice for safety-critical applications in hazardous areas worldwide.
