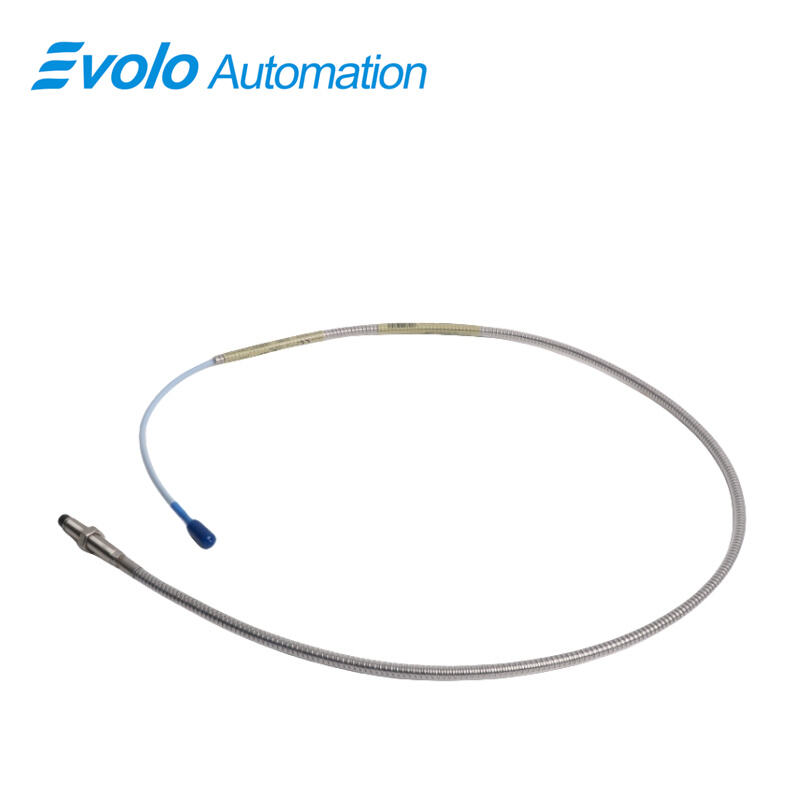

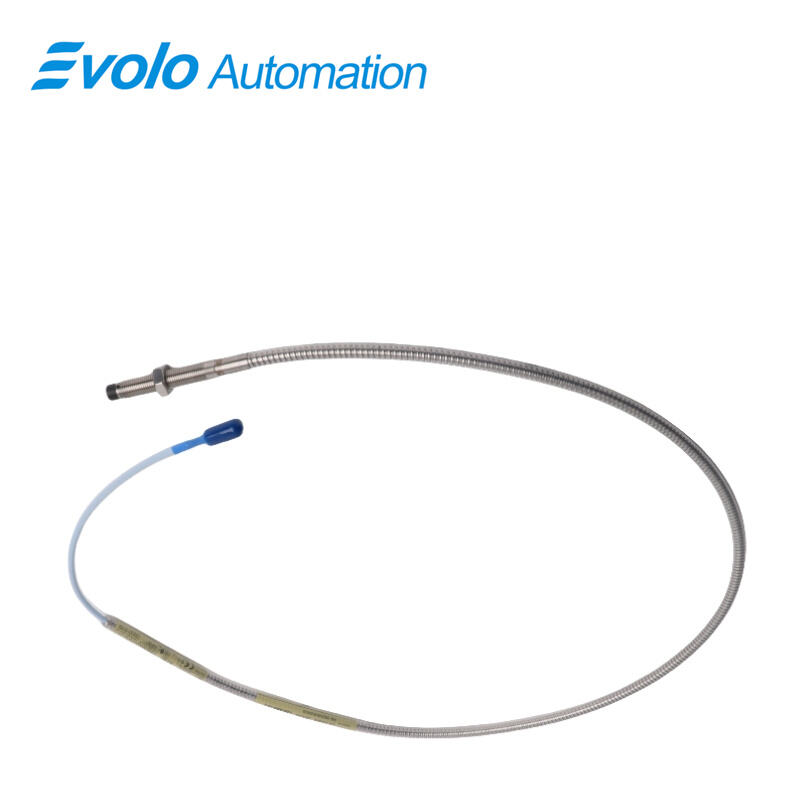

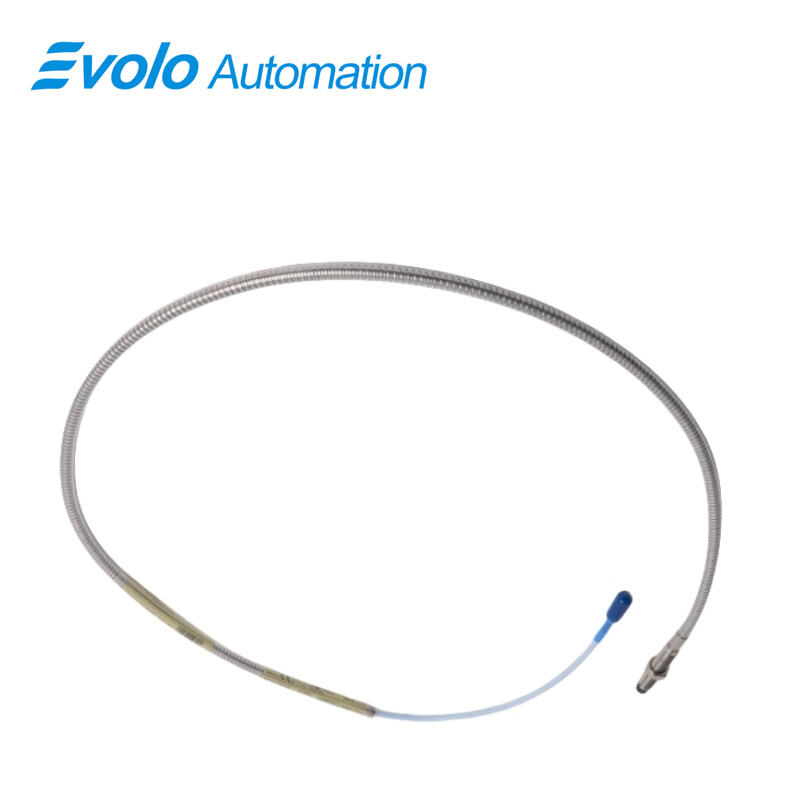

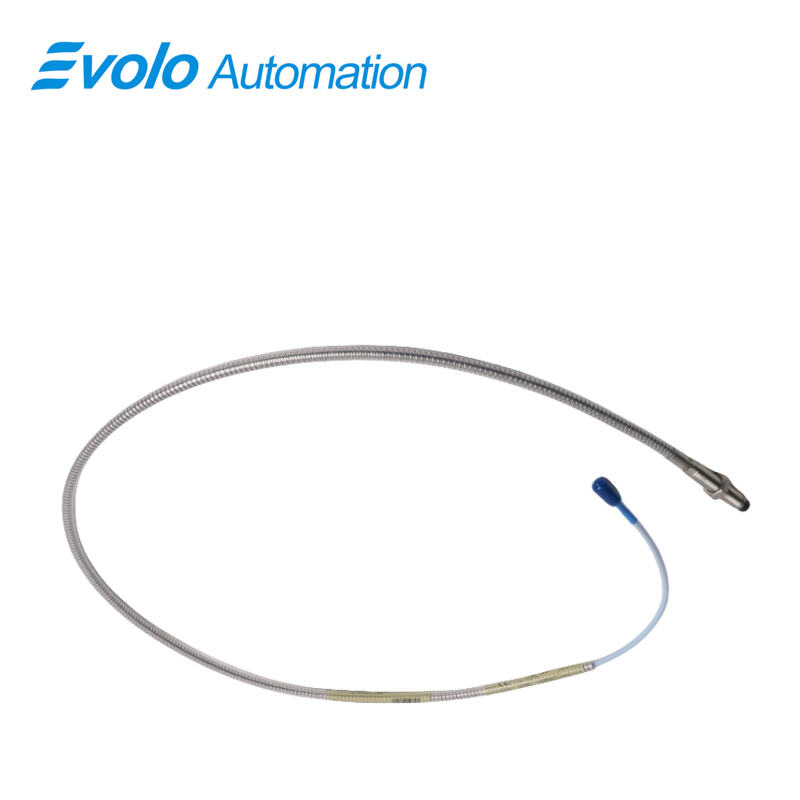

330102-00-24-50-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330102-00-24-50-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330102-00-24-50-02-00 3300 XL 8 mm Proximity Probe is designed for demanding industrial automation environments where highly accurate displacement, vibration, and shaft position data are essential for predictive maintenance and real-time machine diagnostics. Using eddy current sensing technology, the 3300 XL 8 mm probe delivers linearized output across a 2 mm measurement range, enabling precise monitoring of dynamic vibration and static shaft position on fluid-film bearing machines, turbines, compressors, and rotating drives commonly found in petrochemical, refineries, and power generation facilities. Built with a patented TipLoc and CableLoc mechanical design, the probe ensures mechanical strength and superior pull resistance (up to 330 N) while maintaining API 670 compliance for accuracy, temperature stability, and installation configuration. The 330102-00-24-50-02-00 3300 XL 8 mm Proximity Probe features miniature coaxial ClickLoc connectors, a 5-meter cable, and a robust operating temperature range from −52°C to +177°C, enabling stable condition monitoring in harsh industrial settings with elevated heat exposure. Full backward compatibility with legacy 3300 series components simplifies field interchangeability and eliminates the requirement for matched calibration between cables, probes, and Proximitor sensors. This makes the 3300 XL 8 mm an optimal choice for integrating vibration monitoring, Keyphasor speed detection, and position measurement into modern automated reliability programs.

Applications

Application 1 Fluid-Film Bearing Turbines
The 2 mm linear range and API 670 compliance support precise vibration tracking for turbines using hydrodynamic bearings where temperature can reach up to +177°C during continuous operation.

Application 2 Petrochemical Compressor Systems
Total cable length of 5 meters simplifies routing within compressor trains and supports reliable displacement measurements for surge control and predictive diagnostics.

Application 3 Keyphasor Speed & Reference Detection
High linearity and <2 mV/V supply sensitivity enable accurate zero-crossing detection for Keyphasor reference signals used in rotational speed and phase tracking in high-RPM machines.

Application 4 High-Temperature Power Plant Drives
−52°C to +177°C operating envelope allows deployment near steam exposure zones and hot casings commonly encountered in power generation mechanical trains.

Application 5 Compact OEM Machinery Integration
3/8-24 UNF thread and 0.563 in thread engagement allow installation in confined machine geometries where smaller mounting footprint is required compared to 8 mm legacy probes.

Specifications

Competitive Advantage

Competitive Advantage 1 API 670 Performance Compliance
Conformance to API 670 for linear range, configuration, and stability reduces qualification time for refinery and petrochemical applications and ensures cross-site standardization.

Competitive Advantage 2 Mechanical Reinforcement via CableLoc + TipLoc
Patented CableLoc system provides up to 330 N (75 lbf) pull strength, minimizing mechanical cable failure and field rework during long-term machine operation.

Competitive Advantage 3 Full Backward Compatibility
Interchangeability with non-XL 3300 series 5 mm and 8 mm components removes calibration matching requirements and reduces spare inventory complexity.

Competitive Advantage 4 Wide Temperature Operating Window
−52°C to +177°C rating supports both cryogenic compressor installations and high-temperature turbine housings, extending monitoring capability across extreme industrial sectors.

Competitive Advantage 5 Low Sensitivity to Supply Variation
<2 mV change per volt input ensures low-noise output stability for integration into vibration monitoring networks and automated diagnostic platforms.
