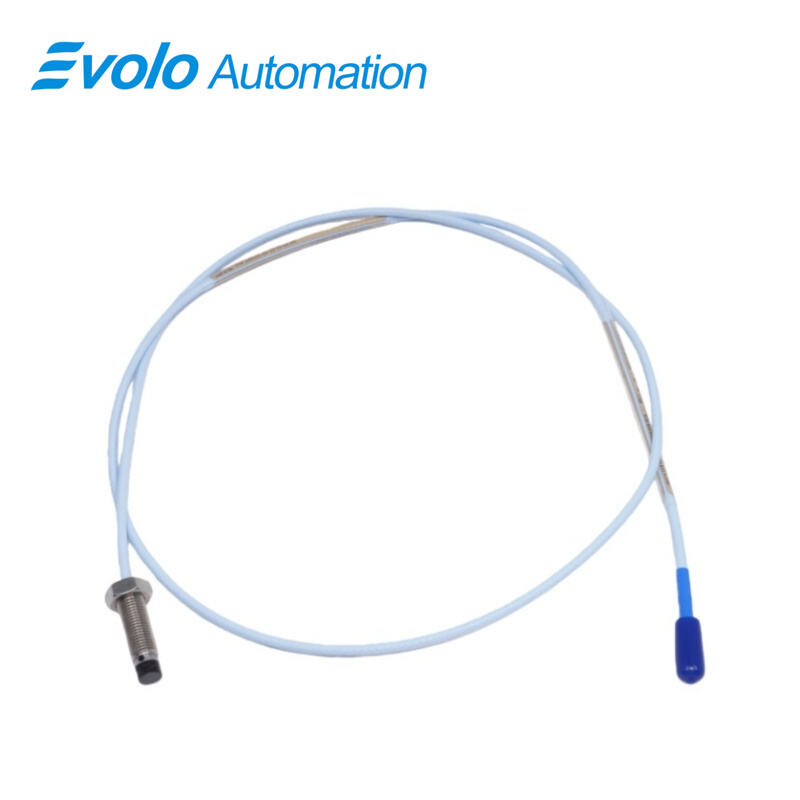

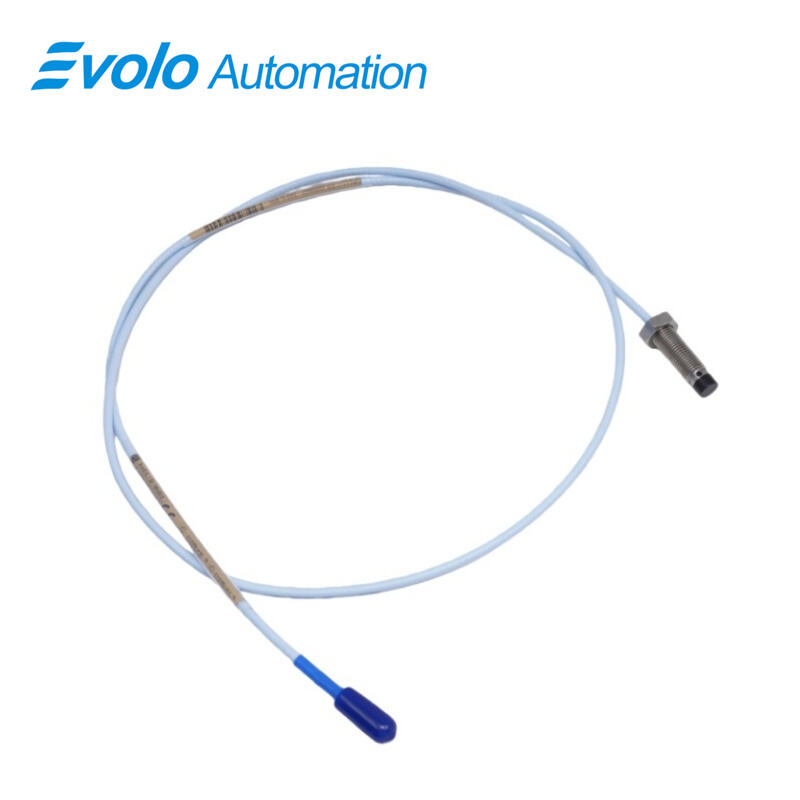

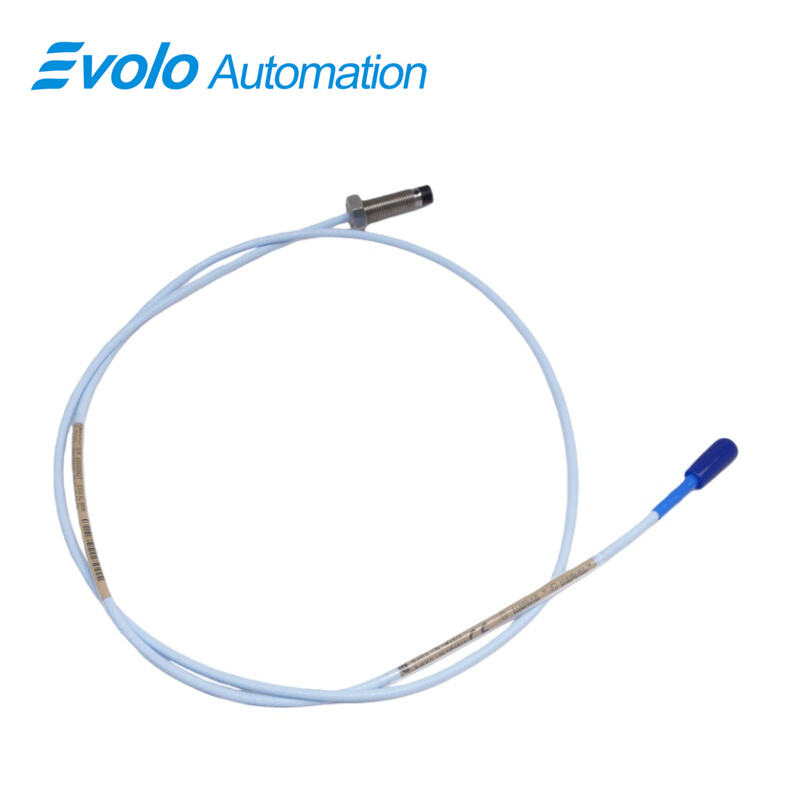

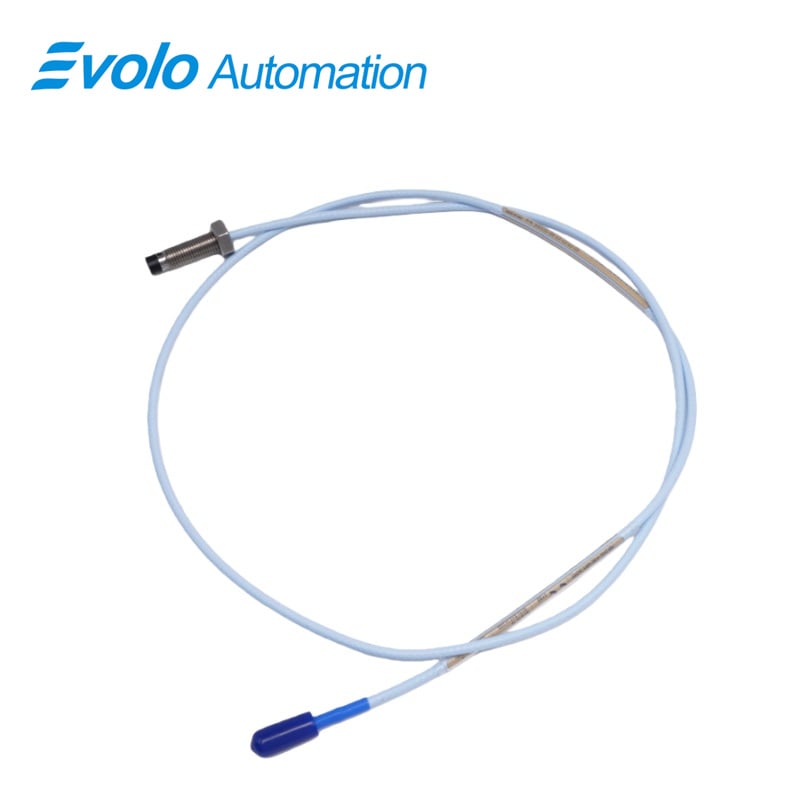

330101-00-12-05-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-12-05-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 3300 XL 8 mm Proximity Probe (part number 330101-00-12-05-02-05) is a high-performance eddy current transducer specifically engineered for precision vibration and position measurement in industrial machinery. Designed with a 3/8-24 UNF threaded stainless steel case and a robust polyphenylene sulfide tip, this probe ensures reliable operation in demanding environments while maintaining high measurement accuracy. The probe’s linear range of 2 mm (80 mils) and direct voltage output proportional to target distance make it suitable for both static position detection and dynamic vibration analysis.

With a total cable length of 0.5 meters (1.6 feet) and a Miniature coaxial ClickLoc connector, the 3300 XL 8 mm Probe offers easy integration into standard industrial setups. Its field wiring supports 16–24 AWG (0.2–1.5 mm²) conductors, facilitating flexible installation and connectivity. The probe is designed to operate across a wide temperature spectrum, from -52°C to +177°C (-62°F to +350°F), ensuring stability and durability in extreme conditions.

Engineered in full compliance with API 670 standards, the 3300 XL 8 mm system guarantees superior mechanical configuration, linearity, and thermal performance. This probe is fully compatible with existing 3300 series transducer systems, including 5 mm and 8 mm probes, enabling seamless interchangeability of probes, extension cables, and Proximitor sensors. This backward compatibility reduces installation time and eliminates the need for bench calibration, making system upgrades and replacements more convenient.

The 3300 XL 8 mm Probe incorporates several design enhancements over previous models. A patented TipLoc molding process strengthens the bond between the probe tip and body, while the CableLoc design provides up to 330 N (75 lbf) pull strength, securing the cable-to-probe connection. An optional FluidLoc cable version is available to prevent fluid leakage, making it ideal for lubricated or liquid-exposed machinery.

Widely used for Keyphasor reference signals, speed monitoring, and vibration diagnostics on fluid-film bearing machines, the 3300 XL 8 mm Proximity Probe delivers exceptional reliability and precision in critical industrial applications. Whether for routine monitoring, preventive maintenance, or performance analysis, this probe represents a proven choice for industries requiring advanced vibration and position sensing technology.

Applications

Precision Vibration Monitoring

The 3300 XL 8 mm Proximity Probe is ideally suited for measuring both static and dynamic vibration in industrial machinery. Its linear range of 2 mm (80 mils) and direct voltage output proportional to target distance allow it to detect minute positional changes. This capability is critical for fluid-film bearing machines, turbines, compressors, and generators, where accurate vibration monitoring ensures operational stability and helps prevent catastrophic mechanical failures.

Keyphasor and Speed Measurement

This probe is frequently used as a Keyphasor reference sensor, providing essential timing signals for machinery speed monitoring. By capturing precise rotational information, it enables accurate calculation of shaft speed and phase relationships in rotating equipment. This application is vital for predictive maintenance programs and real-time monitoring in power generation and petrochemical plants.

Industrial Condition Monitoring

Thanks to its rugged AISI 303/304 stainless steel case and high-performance polyphenylene sulfide probe tip, the 3300 XL 8 mm Proximity Probe withstands harsh industrial environments, including extreme temperatures from -52°C to +177°C (-62°F to +350°F). Its miniature coaxial ClickLoc connector and standard cable simplify integration into existing monitoring systems. Additionally, the optional FluidLoc cable design prevents oil or liquid leakage, making it suitable for lubricated machinery applications.

Interchangeable and Flexible System Integration

The 3300 XL 8 mm probe is fully compatible with other 3300 series components, including 5 mm probes, extension cables, and Proximitor sensors. This interchangeability eliminates the need for individual calibration or component matching, streamlining maintenance and system upgrades. Its compact design with a 3/8-24 UNF threaded case also enables installation in high-density areas where space is limited.

Compliance with Industry Standards

Meeting API 670 standards, the 3300 XL 8 mm system ensures reliable mechanical configuration, linearity, accuracy, and temperature stability. These features make it a trusted solution for high-precision monitoring applications in industries such as oil & gas, power generation, and heavy manufacturing, where continuous operational safety and efficiency are paramount.

Specifications

Competitive Advantage

High-Precision Measurement

The 3300 XL 8 mm Proximity Probe provides highly accurate output voltage directly proportional to the distance between the probe tip and the target conductive surface. Its 2 mm (80 mils) linear range enables precise measurement of both static positions and dynamic vibrations, making it ideal for fluid-film bearing machines and other high-speed rotating equipment. This level of precision supports predictive maintenance and ensures optimal machinery performance.

Rugged and Reliable Construction

Constructed from AISI 303/304 stainless steel and featuring a polyphenylene sulfide probe tip, the 3300 XL 8 mm probe is built to withstand extreme conditions. Operating and storage temperatures range from -52°C to +177°C (-62°F to +350°F), ensuring consistent performance in harsh industrial environments. The 3/8-24 UNF threaded case with maximum thread engagement of 0.563 inches provides secure and reliable mounting.

Advanced Cable and Connector Technology

Equipped with a Miniature coaxial ClickLoc connector and standard cable, the probe allows easy installation and robust signal transmission. Its CableLoc design provides up to 330 N (75 lbf) pull strength, ensuring the probe cable remains securely attached under heavy-duty operational conditions. Optional FluidLoc cables prevent oil or fluid leakage, enhancing suitability for lubricated machinery environments.

Interchangeability and System Compatibility

The 3300 XL 8 mm probe is fully backward compatible with other 3300 series probes and Proximitor sensors, including 5 mm and non-XL 8 mm systems. This interoperability eliminates the need for bench calibration or matching individual components, significantly reducing maintenance time and simplifying system upgrades.

Industry Compliance and Standardization

Fully compliant with API 670 standards, the 3300 XL 8 mm system guarantees reliability in mechanical configuration, linearity, accuracy, and thermal stability. Its adherence to CSA, ATEX, and IECEx approvals ensures global usability across hazardous and industrial environments, making it a trusted solution for petrochemical, power generation, and heavy manufacturing industries.

Enhanced Design Features

The probe incorporates TipLoc molding, which strengthens the bond between the probe tip and body, ensuring long-term durability. Combined with the CableLoc and optional FluidLoc features, this design delivers unmatched robustness and reliability compared to previous generations, making the 3300 XL 8 mm a top choice for industrial vibration and position monitoring.
