330881-28-04-150-06-02 PROXPAC XL Proximity Transducer

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330881-28-04-150-06-02
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

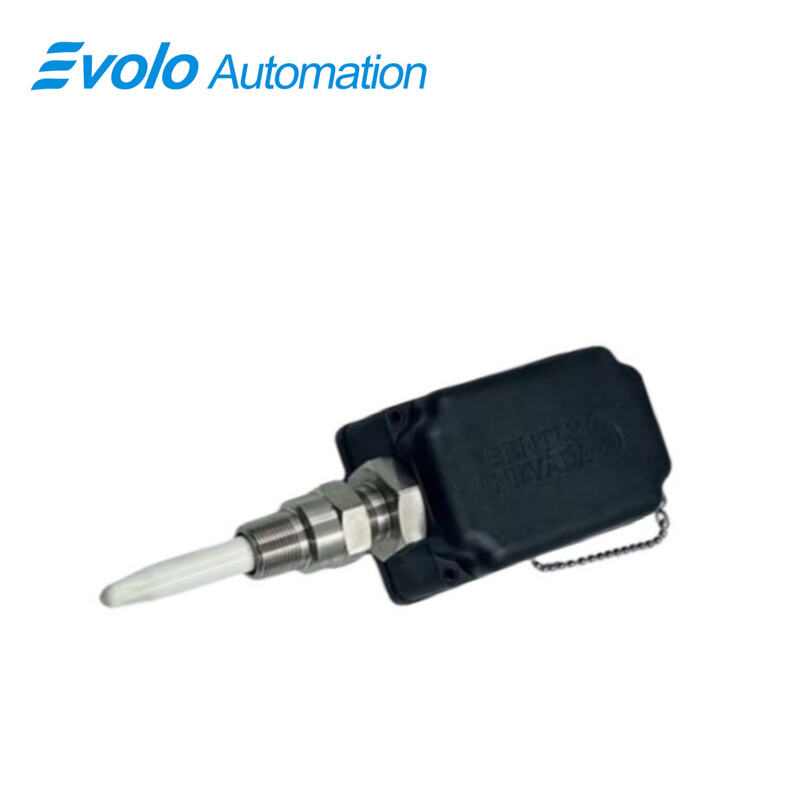

The PROXPAC XL Proximity Transducer (330881-28-04-150-06-02) is a high-performance, self-contained proximity sensing system designed for industrial automation and rotating machinery monitoring, providing precise shaft vibration and displacement measurements. With a 150 mm probe penetration and a 40 mm standoff adapter, this assembly is suitable for recessed or deep housings while maintaining highly accurate readings. The integrated 3300 XL 8 mm Proximitor sensor with multiple approvals eliminates the need for separate Proximitor housings or extension cables, simplifying installation and reducing potential wiring errors.

The housing is made from Polyphenylene Sulfide (PPS) reinforced with glass and conductive fibers, offering excellent mechanical strength, chemical resistance, and electrostatic dissipation. Rated IP66 and Type 4X, the assembly can withstand wet, dusty, and corrosive environments. The transducer supports a linear range of 2 mm (80 mils) with a recommended gap setting of 1.27 mm (50 mils) and is compatible with shafts from 50.8 mm (2.0 in) minimum to 76.2 mm (3.0 in) recommended.

Electrical performance is stable and reliable, featuring supply sensitivity < 2 mV per volt, output resistance of 50 Ω, and field wiring support for 16–24 AWG cables (0.2–1.5 mm²). Operating over a temperature range of -52°C to +100°C (-62°F to +212°F), this PROXPAC XL transducer ensures long-term, precise monitoring of turbines, motors, compressors, and other critical rotating machinery, enabling automated condition monitoring, reduced maintenance costs, and enhanced system reliability.

Applications

1. Turbine Shaft Vibration Monitoring
The 150 mm probe penetration allows deep installation within turbine housings, delivering precise displacement and vibration measurements within a 2 mm linear range, essential for predictive maintenance and failure prevention.

2. Motor and Generator Monitoring
The integrated 3300 XL Proximitor sensor continuously tracks shaft motion and vibration in motors and generators, detecting misalignment, imbalance, and bearing wear to improve automation-based maintenance schedules.

3. Harsh Industrial Environments
With IP66 and Type 4X ratings, this transducer operates reliably in wet, dusty, and corrosive conditions found in petrochemical plants, power generation facilities, and heavy industry applications.

4. Pump and Compressor Monitoring
The 40 mm standoff adapter ensures proper installation in recessed pump and compressor housings, providing accurate vibration and shaft position measurements for condition-based monitoring.

5. Simplified Automation Integration
The self-contained design eliminates external Proximitor housings or extension cables, streamlining wiring and installation for automated industrial systems, reducing potential errors.

Specifications

Competitive Advantage

1. Integrated Proximitor Sensor
Built-in 3300 XL sensor removes the need for separate housings or extension cables, minimizing potential failure points and reducing installation complexity.

2. High Durability Housing
Reinforced PPS with glass and conductive fibers ensures mechanical strength, chemical resistance, and electrostatic dissipation for long-term reliable operation.

3. Accurate and Repeatable Measurements
Supports 2 mm linear range with a recommended gap of 1.27 mm, delivering precise vibration and shaft position data in industrial automation systems.

4. Resistant to Harsh Environments
Rated IP66 and Type 4X, the assembly operates effectively under moisture, dust, and corrosive conditions, extending equipment life and reducing downtime.

5. Easy Installation and Field Maintenance
Preconfigured standoff adapter and compatibility with 16–24 AWG field wiring simplify installation and minimize maintenance complexity in automated industrial setups.
