Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
FC-SDIL-1608 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
FC-SDIL-1608 |
|
Product Type: |
Digital Input Module |
|
Dimensions: |
2 × 19 × 12.8 cm |
|
Weight: |
0.16 kg |
|
Approvals: |
CE; TUV; UL; CSA; FM |
|
Space Requirements: |
4 TE, 3 HE (4 HP, 3U) |
|
Power Requirements: |
5 VDC 160 mA; 24 VDC 110 mA |
|
Input Channels: |
16 |
|
Input Type: |
DIN 19234 (NAMUR) |
|
Switch Level: |
1.4–1.9 mA |
|
Hysteresis: |
0.2 mA ±0.05 mA |
|
Input Filter: |
First-order low-pass 100 Hz |
|
Field Wire Resistance: |
Max 50 Ω |
|
8V Loop Supply: |
7.9–8.7 V output; 170 mA (short-circuit proof) |
|
Connection Monitor Input Resistance: |
0.5 MΩ (-40V < U < 40V) |
|
Test Current: |
0.5 mA |
|
Output Voltage: |
0.5 VDC |
|
Field Fault Voltage: |
Max 250 VAC |
|
Module Connector Code: |
Holes A5, C29 |
|
Chassis Connector Code: |
Large pins A5, C29 |
Description

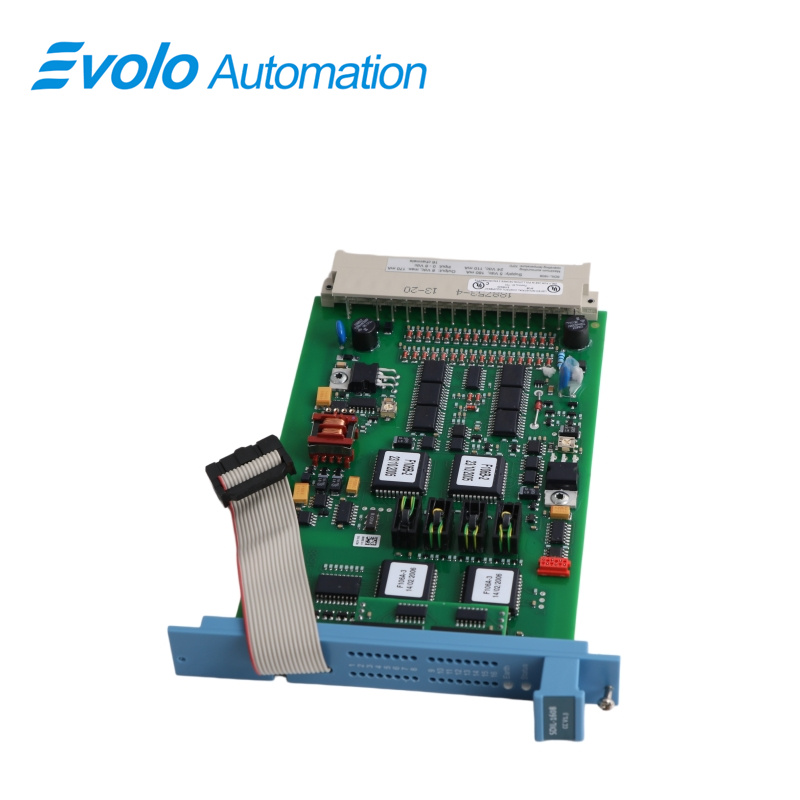

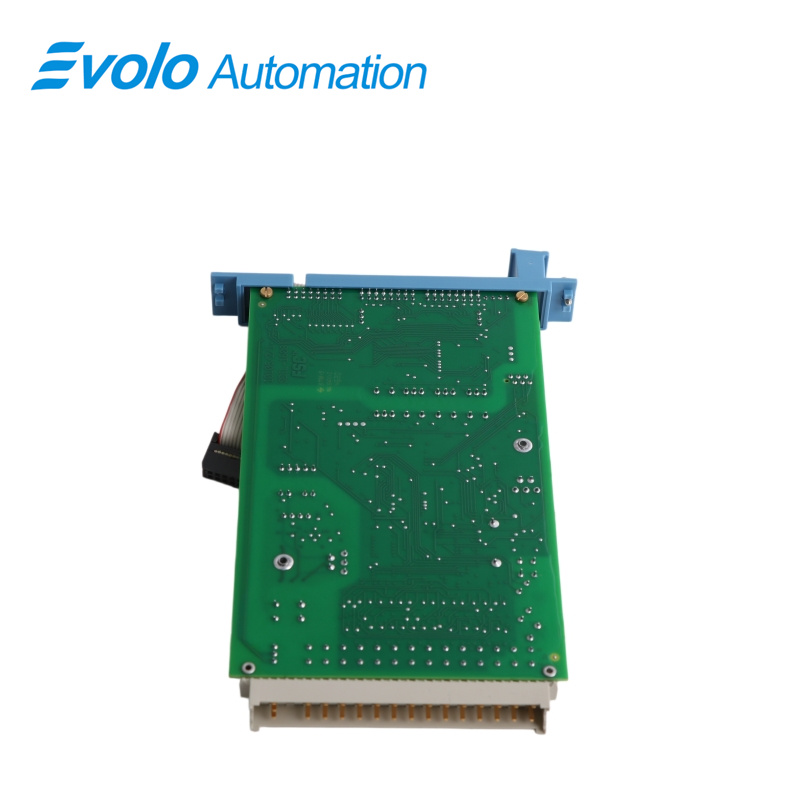

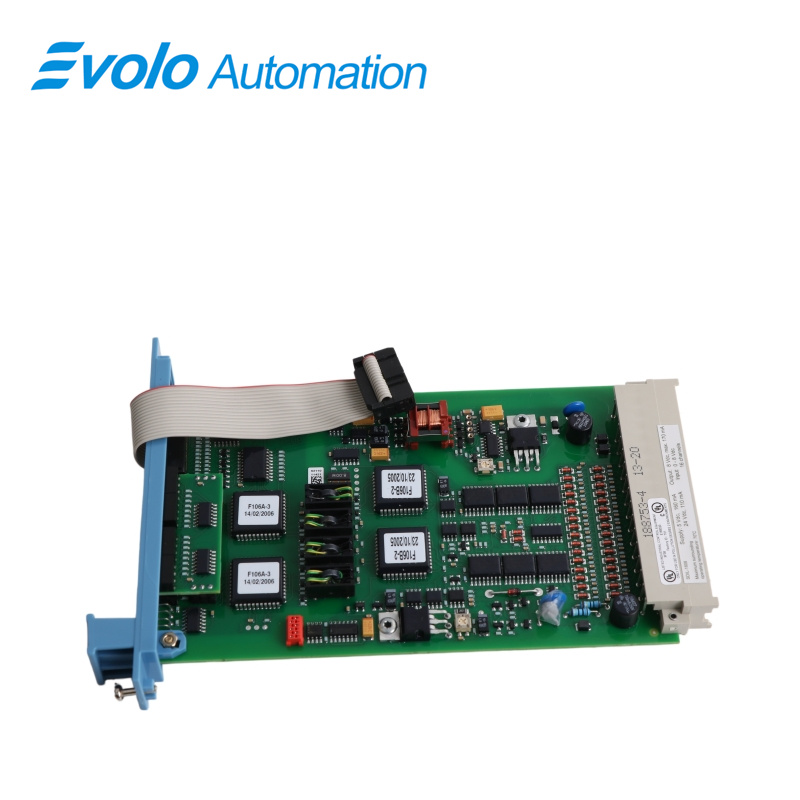

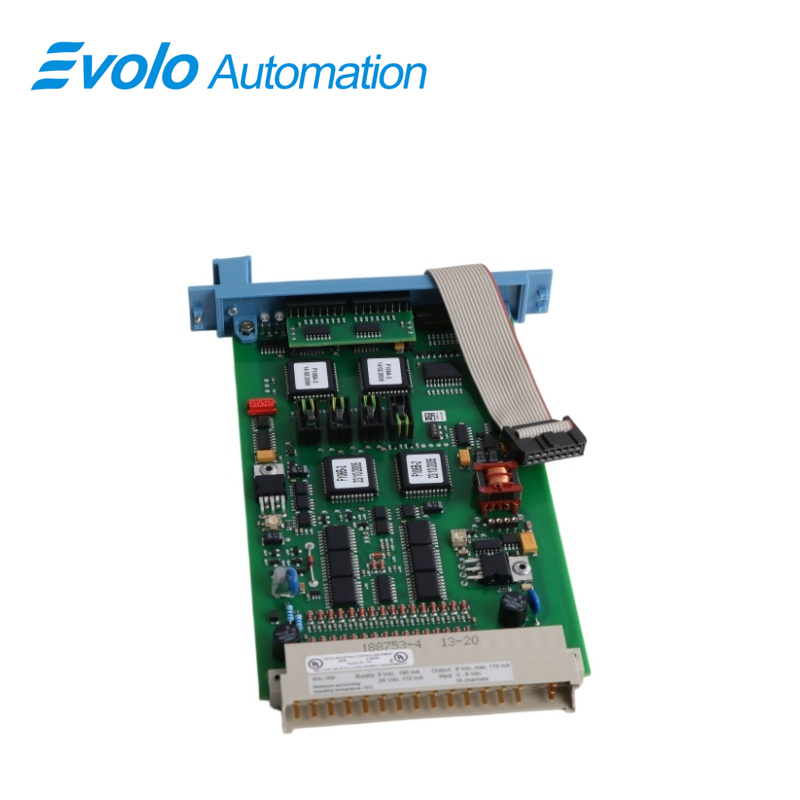

The FC-SDIL-1608 digital input module has sixteen channels for either loop- monitored loops or status signals dcrived from proximity switches, as set in DIN 19234 (NAMUR). The module also supports monitoring of earth faults that occur within these sixteen loops.
Applications
Petroleum refinery: deployed in valve limit monitoring in explosion-proof zones, using NAMUR proximity signals to track valve open/close positions
Long-distance pipeline station: installed in isolated control cabinets, using ground-fault monitoring to detect insulation leaks in buried field cables
Fine chemical plant: integrated into reactor safety interlock systems, using certified hardware to ensure reliable trip execution in high-risk processes
Thermal power plant: applied in coal handling conveyor speed and deviation switch input networks, using filtering to suppress motor electrical noise
Offshore LNG facility: deployed in compact offshore control panels, using protected low-voltage loop power to drive intrinsically safe field transmitters
Self-test
The self-test of the module, which is controlled by the SM Controller, includes:
Functional tests of the various trip levels applied
Channel independence
Monitoring of supply voltage to input devices
Earth connection
Used supply voltages
FAQ
Q: What is the number of input channels of the FC-SDIL-1608?
A: 16.
Q: What is the space specification of the FC-SDIL-1608?
A: 4 TE, 3 HE (4 HP, 3U).
Q: What input type is supported by the FC-SDIL-1608?
A: DIN 19234 (NAMUR).
Q: What is the maximum allowable field wire resistance of the FC-SDIL-1608?
A: 50 Ω.
Q: What is the maximum field fault voltage of the FC-SDIL-1608?
A: 250 VAC.
