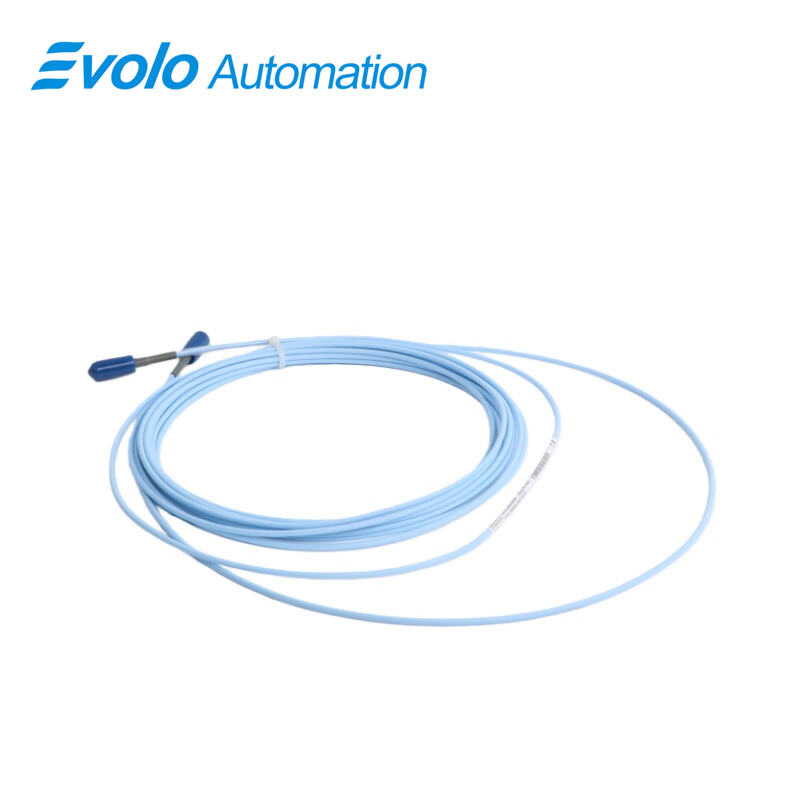

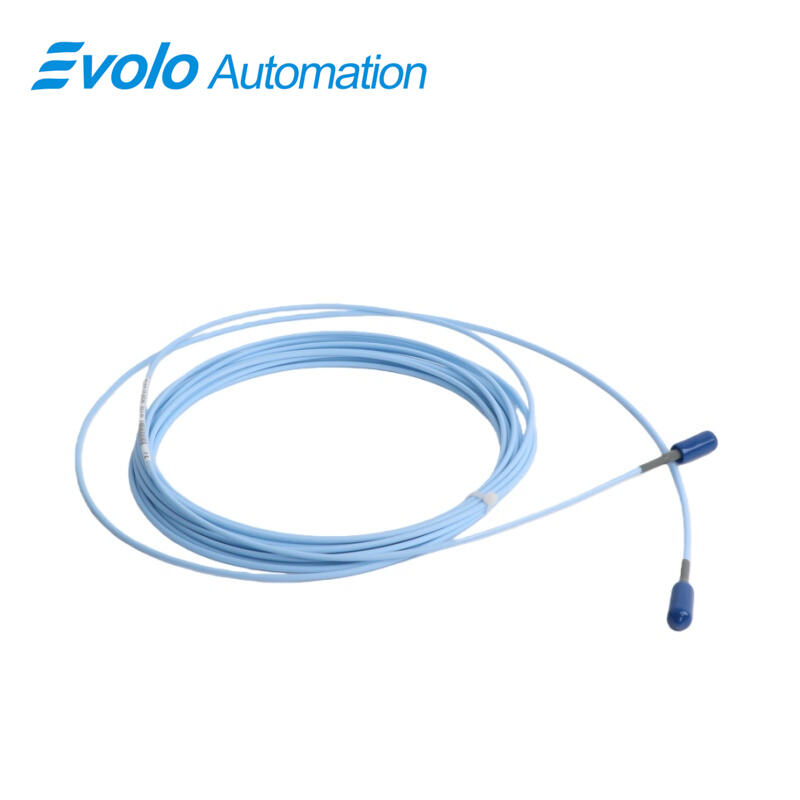

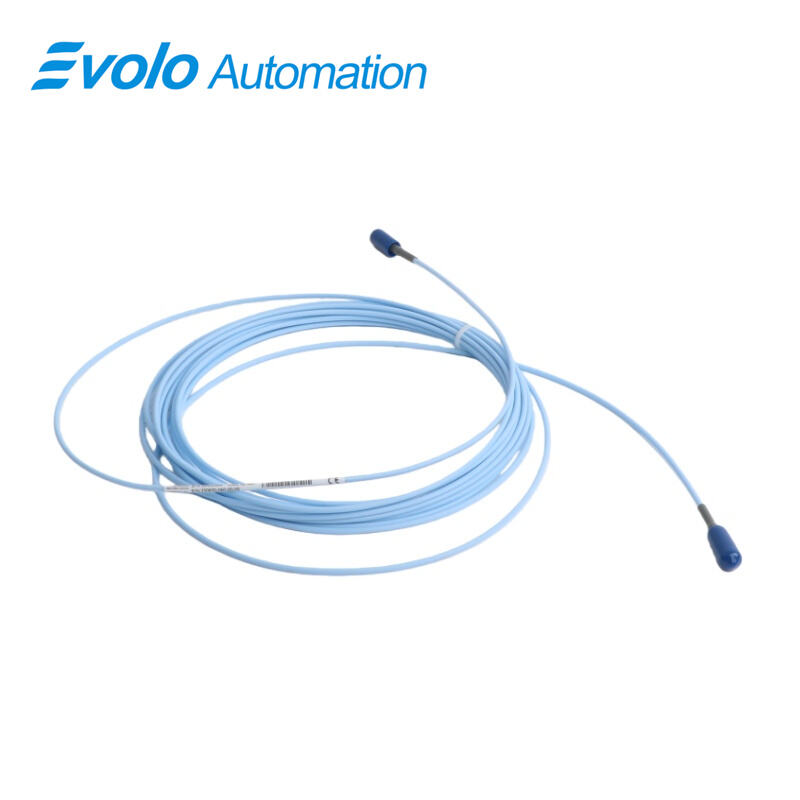

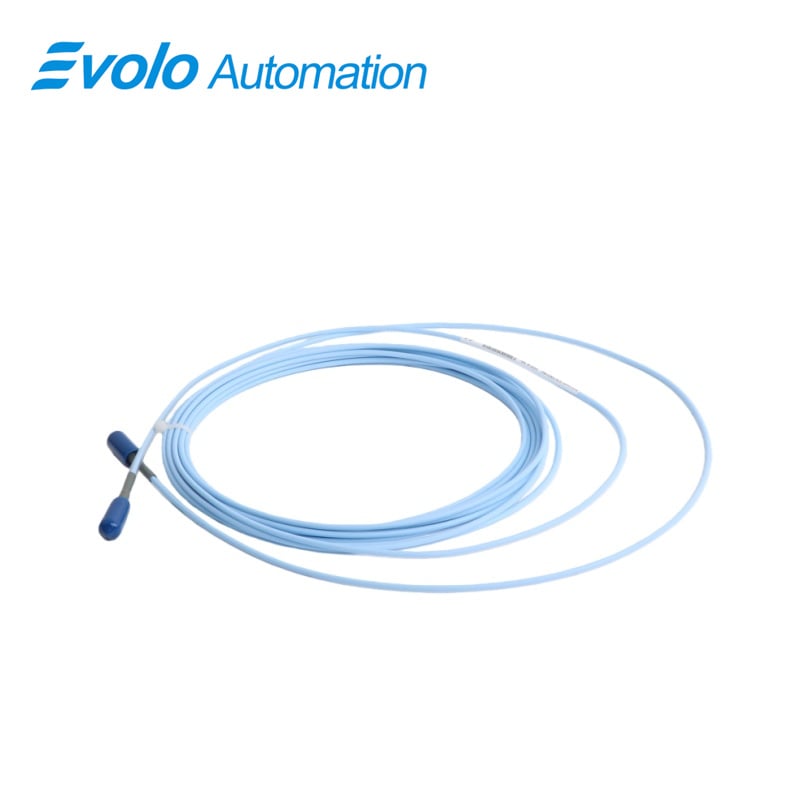

330930-060-02-05 3300 NSv Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330930-060-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330930-060-02-05 3300 NSv Extension Cable is a high-performance, armored interconnect cable specifically designed for the 3300 NSv Proximity Transducer System. Engineered for use in tight installation spaces, it supports precise vibration and position measurements on centrifugal air compressors, refrigeration compressors, and other fluid-film bearing machines with limited counter bore or side-view access. Constructed with stainless steel armor and a polyphenylene sulfide (PPS) probe tip, this extension cable ensures mechanical durability and chemical resistance in demanding industrial environments. It accommodates 0.2 to 1.5 mm² field wiring (16 to 24 AWG) and features gold-plated ClickLoc connectors with recommended connector protectors to prevent liquid ingress and maintain signal integrity. Rated for operation from -52°C to +177°C (-62°F to +351°F), the 3300 NSv Extension Cable provides a linear measurement range of 1.5 mm (60 mils) and a supply sensitivity of less than 2 mV change per volt of input. Fully compatible with previous 3300 RAM probes and extension cables, this cable enables straightforward system upgrades and reliable automation performance in challenging environments.

Applications

Radial Vibration and Position Measurement
Used to monitor radial vibration on shafts smaller than 51 mm (2 in), providing high-accuracy position data for compressors and turbines in tight mechanical configurations.

Axial (Thrust) Position Measurement
Supports axial position sensing on flat targets smaller than 15 mm (0.6 in), ideal for process compressors where space and target size are constrained.

Tachometer and Zero Speed Measurement
Facilitates precise rotational speed detection, enabling accurate zero-speed and Keyphasor phase reference signals for control and monitoring systems.

Upgrading Legacy Systems
Enables seamless replacement of 3300 RAM or 3000-/7000-series 190 Transducer Systems while reusing existing probes, extension cables, and monitoring equipment when applicable.

Side-View and Restricted Installation Environments
Optimized for side-view and counter bore restricted areas where standard 3300 and 3300 XL probes cannot be installed, ensuring reliable measurement even in limited-space applications.

Specifications

Competitive Advantage

Stainless Steel Armored Design
Provides superior mechanical protection against impact, abrasion, and chemical exposure, ensuring durability in harsh industrial environments.

High-Temperature and Chemical Resistance
Rated for -52°C to +177°C (-62°F to +351°F) with PPS probe tip, allowing reliable operation in extreme temperature and chemically aggressive conditions.

Gold-Plated ClickLoc Connectors with Protector
Prevents connection loosening and liquid ingress, maintaining signal integrity and reducing downtime in industrial automation systems.

Mechanical and Electrical Compatibility
Fully interchangeable with previous 3300 RAM probes and extension cables, facilitating system upgrades without redesigning the monitoring infrastructure.

Enhanced Side-View and Small Target Measurement
Supports precise measurements on shafts under 51 mm (2 in) and flat targets under 15 mm (0.6 in), enabling accurate monitoring in compact or restricted machine geometries.
