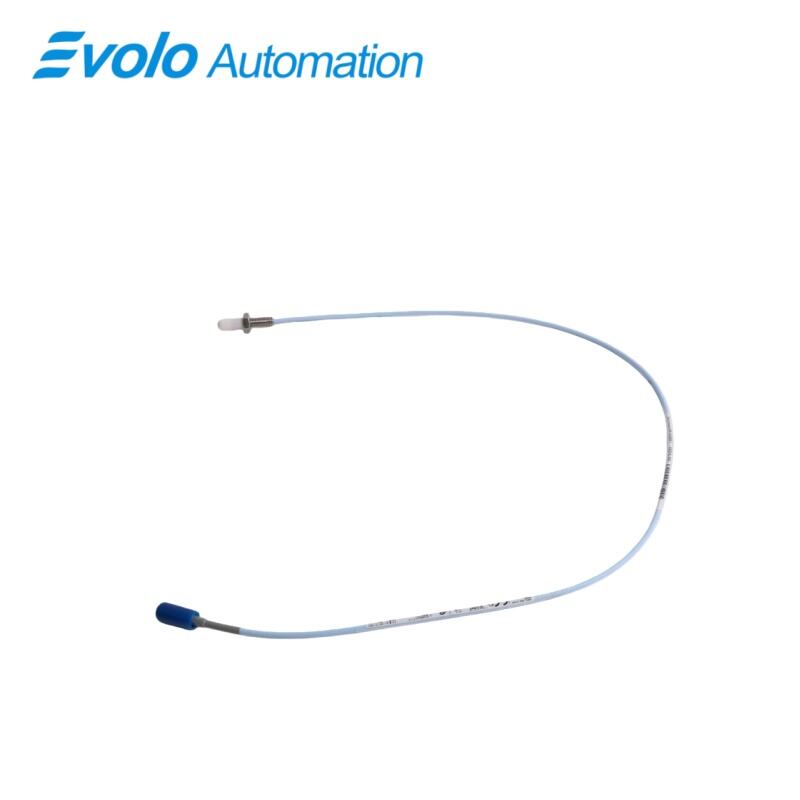

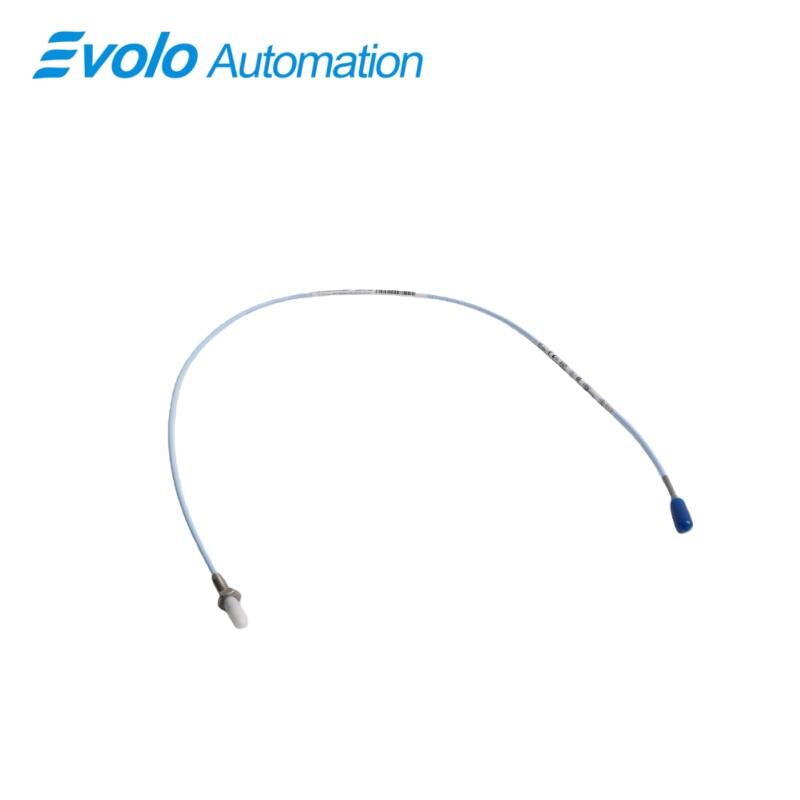

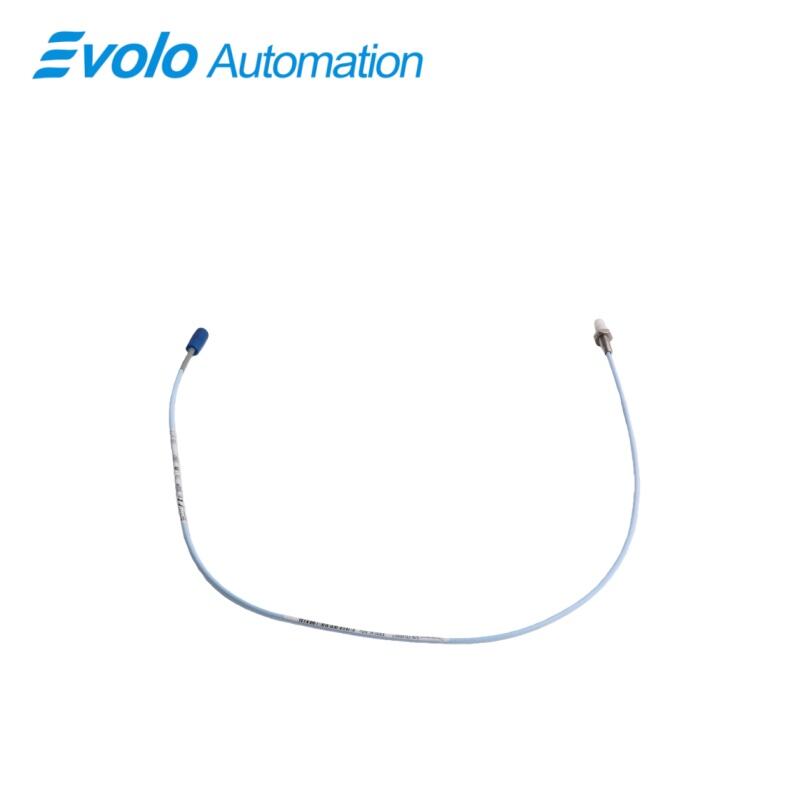

330901-10-24-10-02-00 3300 NSv Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330901-10-24-10-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330901-10-24-10-02-00 3300 NSv Proximity Probes is a compact, high-precision proximity sensing solution engineered specifically for displacement and vibration measurement in space-restricted industrial machinery. As part of the advanced 3300 NSv Proximity Probes family, this model is designed to deliver stable, linear output signals while occupying minimal installation space, making it an ideal choice for modern rotating equipment where traditional probe dimensions are impractical.

The 330901-10-24-10-02-00 3300 NSv Proximity Probes utilizes proven eddy-current sensing technology to produce an accurate voltage output directly proportional to the distance between the probe tip and a conductive target. This enables precise monitoring of shaft vibration, axial position, and radial displacement in high-speed rotating machinery. Its linear measurement range of 1.8 mm supports reliable data acquisition for both continuous condition monitoring and protective machinery systems.

A defining feature of the 330901-10-24-10-02-00 3300 NSv Proximity Probes is its space-optimized mechanical design. With an unthreaded length of 1.0 inch and an overall case length of just 2.4 inches, the probe can be installed in confined bearing housings, internal bulkheads, and compact machinery assemblies without structural modification. The total cable length of 1.0 meter (39 inches) provides sufficient routing flexibility while maintaining consistent electrical performance and signal integrity.

Applications

The 330901-10-24-10-02-00 3300 NSv Proximity Probes is used for vibration and displacement monitoring in compact rotating machinery such as small compressors, pumps, and integrated motor-driven systems, where limited internal space requires a short probe body without compromising measurement accuracy.

In condition monitoring and machinery protection systems, this 3300 NSv Proximity Probes model provides reliable shaft position and vibration feedback in installations exposed to wide temperature variations, supporting stable operation in energy, manufacturing, and process industry environments.

The probe is well suited for retrofit projects and system upgrades in confined installations, where its short unthreaded length, 1.0-meter cable, and ClickLoc connector allow straightforward integration into existing monitoring architectures without redesigning mounting locations.

Specifications

Competitive Advantage

1. Compact Mechanical Design for Restricted Installations

The 330901-10-24-10-02-00 3300 NSv Proximity Probes features a short overall case length and minimal unthreaded section, enabling installation in tight spaces where standard probes cannot be accommodated, reducing installation complexity and modification costs.

2. Stable Electrical Performance for Reliable Signal Quality

With a linear range of 1.8 mm, output resistance of approximately 42 Ω, and low supply sensitivity, this 3300 NSv Proximity Probes model delivers consistent, low-noise signals that support accurate vibration and displacement measurements over long-term operation.

3. Enhanced Connection Security and Environmental Resistance

The miniature coaxial ClickLoc connector with integrated connector protector improves resistance to vibration, contamination, and moisture, ensuring dependable signal transmission and extended service life in demanding industrial environments.
