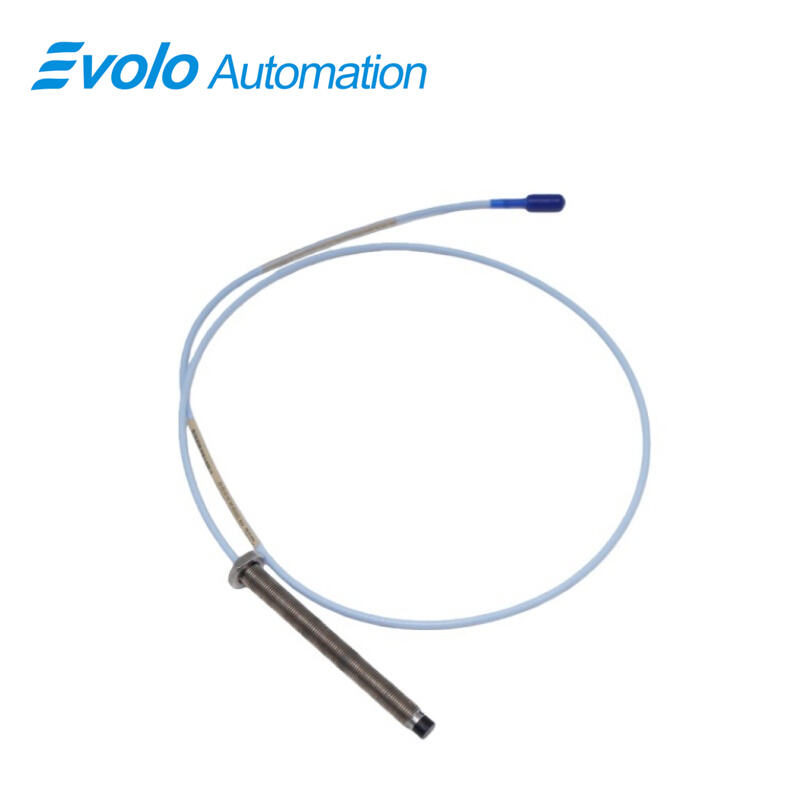

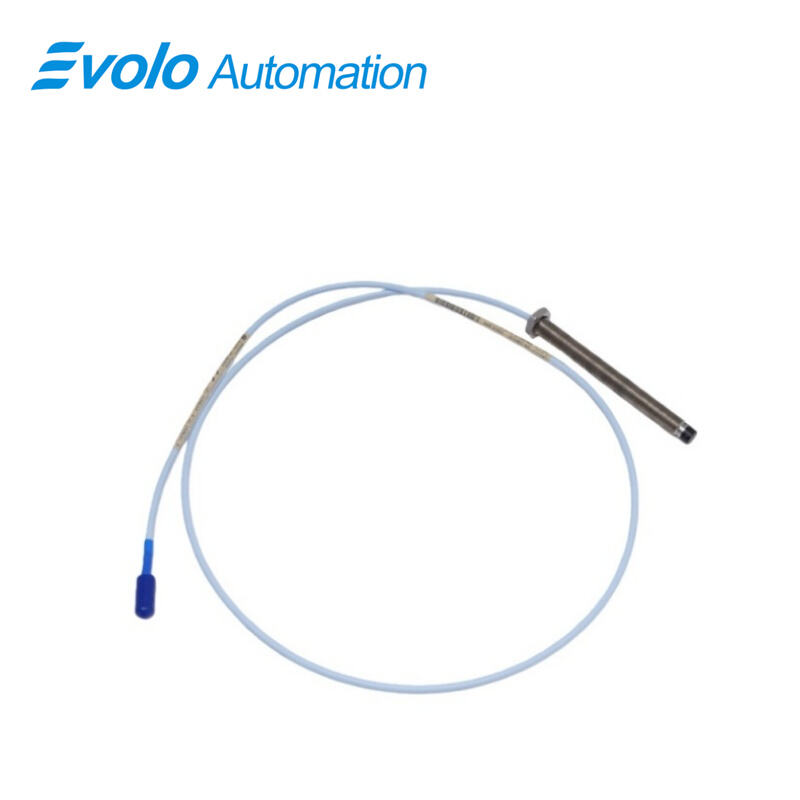

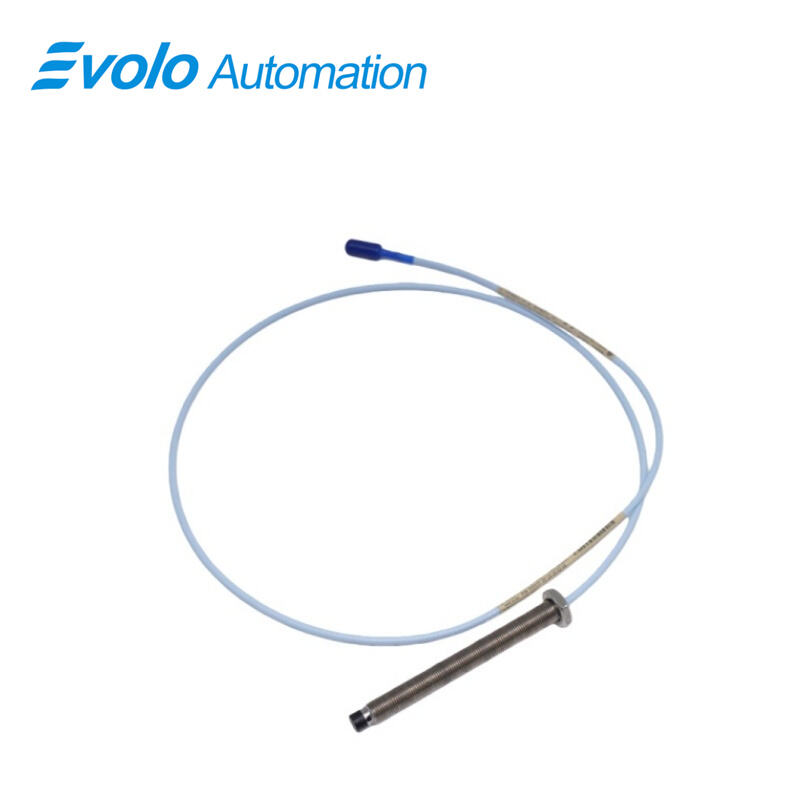

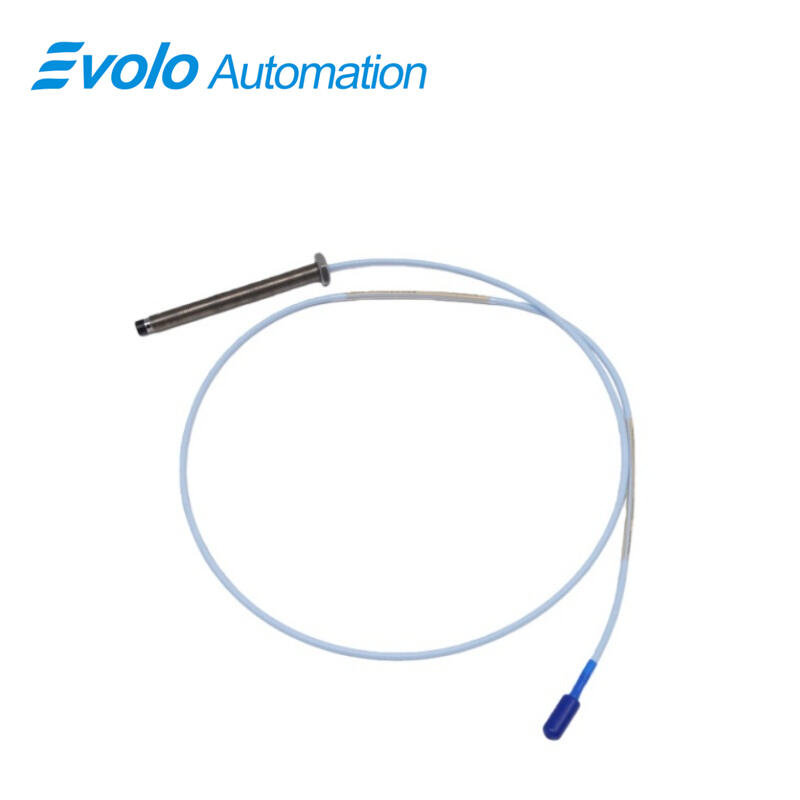

330103-00-10-15-02-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-10-15-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 3300 XL 8 mm Proximity Probe (330103-00-10-15-02-05) is a high-precision eddy current transducer designed for industrial automation and predictive maintenance, providing real-time monitoring of machinery. Its output voltage is directly proportional to the distance between the probe tip and the target conductive surface, allowing precise measurements of both static positions and dynamic vibrations. This makes it ideal for applications in turbines, compressors, pumps, and fluid-film bearings, where accurate monitoring is critical to operational safety and efficiency.

This probe features a 100 mm overall case length with an M10x1 threaded case and 0 mm unthreaded length, ensuring stable installation even in compact spaces. The 1.5-meter (4.9-foot) miniature coaxial ClickLoc cable facilitates connection to standard 3300 XL Proximitor systems while maintaining signal fidelity. Certified for hazardous environments under CSA, ATEX, and IECEx approvals, it operates reliably in extreme temperatures from -52°C to +177°C (-62°F to +350°F).

Technical highlights include a 2 mm linear range (80 mils), 50 Ω output resistance, supply sensitivity <2 mV/V, and extension cable capacitance 69.9 pF/m (21.3 pF/ft). The TipLoc molding enhances the bond between the probe tip and body, and CableLoc design provides 330 N (75 lbf) pull strength, securing the cable and probe tip. Optional FluidLoc cables prevent oil or liquids from entering the machine, protecting both the probe and the monitored equipment. The probe is fully backward compatible with other 3300 series 5 mm and 8 mm probes, enabling straightforward system upgrades without recalibration.

Applications

1. Rotor Vibration Monitoring
Accurately measures rotor vibration in turbines and compressors with ±2 mm linear range, enabling early detection of imbalance or misalignment.

2. Axial Thrust Measurement
Monitors axial movement in fluid-film bearings, reducing risk of overloading and ensuring optimal shaft alignment.

3. Keyphasor Reference Generation
Provides phase-synchronized signals for predictive maintenance, vibration analysis, and rotor balancing applications.

4. Compact Space Installations
The 100 mm case and M10x1 thread allow installation in constrained areas while maintaining high precision.

5. Hazardous Area Monitoring
CSA, ATEX, and IECEx approvals ensure safe operation in oil, gas, and chemical processing environments.

Specifications

Competitive Advantage

1. Extreme Temperature Operation
Operates in -52°C to +177°C, maintaining performance in harsh industrial conditions.

2. Robust Mechanical Design
TipLoc and CableLoc technologies provide 330 N pull strength, preventing mechanical detachment.

3. High Measurement Accuracy
Supply sensitivity under 2 mV per volt and 2 mm linear range ensure precise vibration and position readings.

4. Interchangeable System Components
Fully compatible with 3300 series 5 mm and 8 mm probes, enabling cost-effective upgrades without recalibration.

5. Protection Against Fluid Ingress
Optional FluidLoc cables prevent oil or liquid leaks, protecting probe integrity and reducing maintenance downtime.
