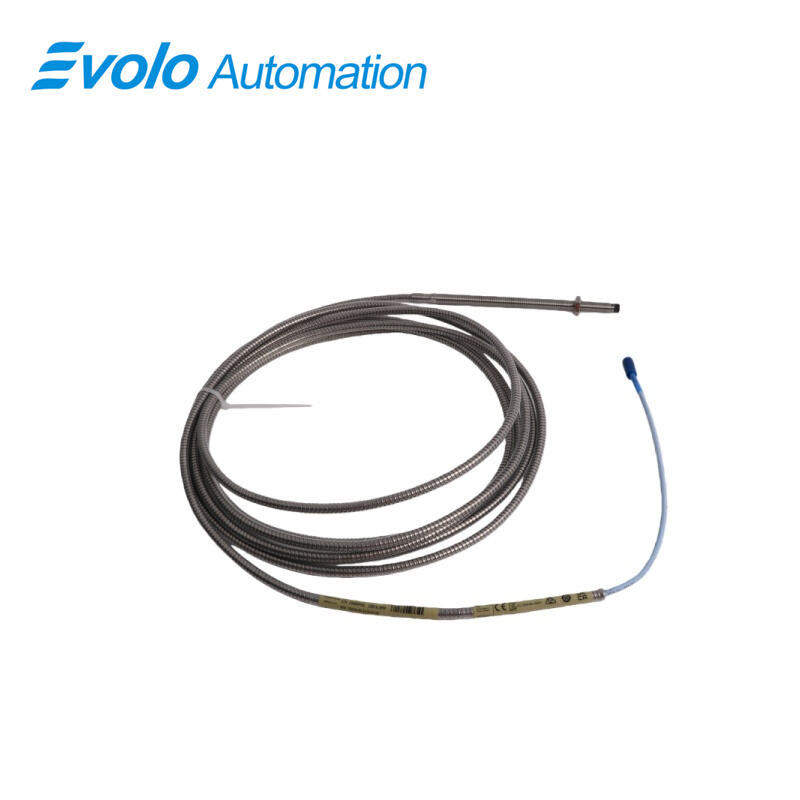

330130-080-00-CN 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-080-00-CN
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-080-00-CN 3300 XL Standard Extension Cable serves as a high-integrity link within the industry-leading Bently Nevada 3300 XL 8 mm proximity transducer system. Specifically engineered for demanding industrial environments, this 330130-080-00-CN 3300 XL Standard Extension Cable ensures the precise transmission of eddy current signals from proximity probes to Proximitor sensors. By maintaining a high-fidelity connection, the 330130-080-00-CN 3300 XL Standard Extension Cable enables accurate measurements of vibration, axial position, and rotational speed. This specific model features an 8.0-meter length and integrated armor, providing a robust physical barrier against mechanical damage while maintaining the electrical characteristics required for API 670 compliance.

One of the primary technical advantages of the 330130-080-00-CN 3300 XL Standard Extension Cable is its 75Ω triaxial construction. This specialized design effectively shields sensitive measurement data from external electromagnetic interference, which is critical in power plants and refineries where large motors and high-voltage equipment are prevalent. The 330130-080-00-CN 3300 XL Standard Extension Cable is built to withstand extreme thermal conditions, operating reliably in temperatures ranging from -50 °C up to +215 °C. Such a wide thermal range allows the 330130-080-00-CN 3300 XL Standard Extension Cable to be routed near hot turbine casings or in frigid outdoor settings without signal degradation or jacket failure.

Applications

1.Hazardous Area Machinery Monitoring

The 330130-080-00-CN 3300 XL Standard Extension Cable is extensively used in locations classified as hazardous due to the presence of flammable gases or vapors. With its global certifications, including CSA, ATEX, and IECEx, it is the preferred choice for monitoring critical machinery in oil refineries, offshore platforms, and chemical processing plants. The armored design ensures that even in these volatile environments, the cable remains protected from accidental impacts or corrosive chemical spills.

2.High-Precision Vibration and Displacement Analysis

This extension cable is specifically designed for fluid-film bearing machines, where precise vibration and position data are vital for preventing catastrophic failures. The 330130-080-00-CN 3300 XL Standard Extension Cable transmits high-frequency signals with minimal attenuation, supporting radial vibration monitoring and axial thrust position sensing. Its low capacitance and 75Ω triaxial build ensure that the monitoring system receives a clear, undistorted correlation of the probe tip's distance from the shaft.

3.Turbine and Compressor Condition Monitoring

In power generation and gas transmission, turbines and compressors operate under extreme conditions. The 330130-080-00-CN 3300 XL Standard Extension Cable provides the necessary reach (8.0 meters) and thermal resistance (-50 °C to +215 °C) to connect probes mounted deep within machine casings to externally located Proximitor sensors. It also supports Keyphasor signals, allowing operators to track phase information and rotational speed for comprehensive diagnostic analysis.

Specifications

Competitive Advantage

1.Global Certification for Hazardous Environments

The 330130-080-00-CN 3300 XL Standard Extension Cable is fully compliant with CSA, ATEX, and IECEx standards. This multi-agency approval ensures the product is internationally recognized as safe for intrinsically safe and non-incendive applications. For global enterprises, this means a single cable model can be standardized across worldwide facilities, simplifying procurement and ensuring strict adherence to safety protocols in explosive atmospheres.

2.Robust Armored Protection and Longevity

Unlike standard unarmored cables that are susceptible to crushing or abrasion, the 330130-080-00-CN 3300 XL Standard Extension Cable features an integrated stainless steel armor and a connector protector. This construction significantly enhances mechanical durability, making it resilient against the physical rigors of heavy industrial sites. This extra layer of protection reduces the frequency of cable replacements and minimizes the risk of signal loss due to environmental wear.

3.Optimized Signal Integrity and Interchangeability

Equipped with 75Ω triaxial technology and a low capacitance of 65 pF/meter, the 330130-080-00-CN 3300 XL Standard Extension Cable ensures superior signal stability over its entire 8-meter length. Furthermore, the cable supports the 3300 XL system's hallmark feature of complete interchangeability. Probes, extension cables, and sensors can be swapped without the need for time-consuming recalibration, providing a cost-effective and flexible solution for machinery maintenance.
