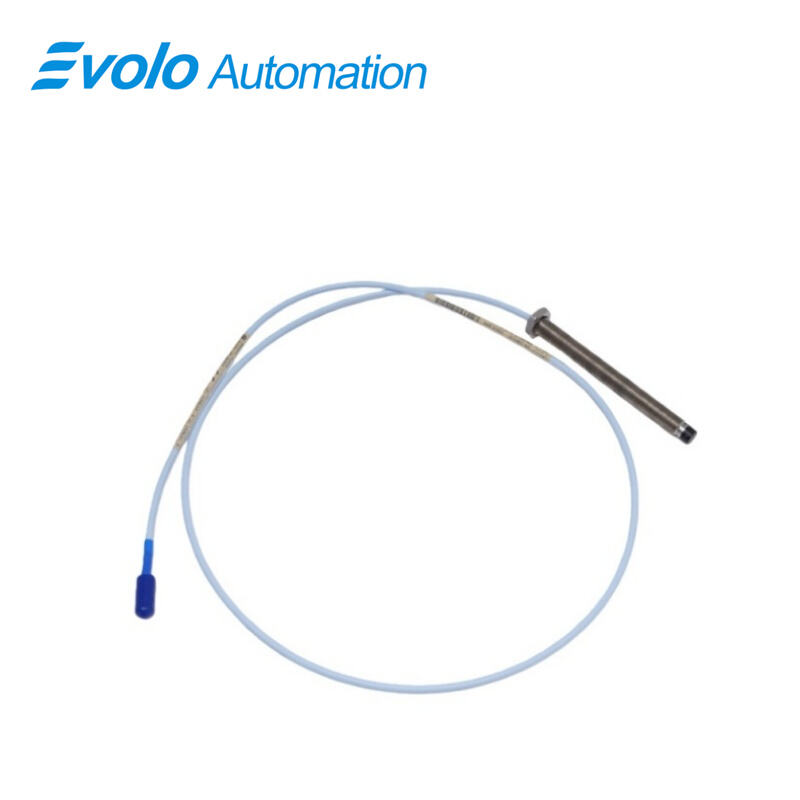

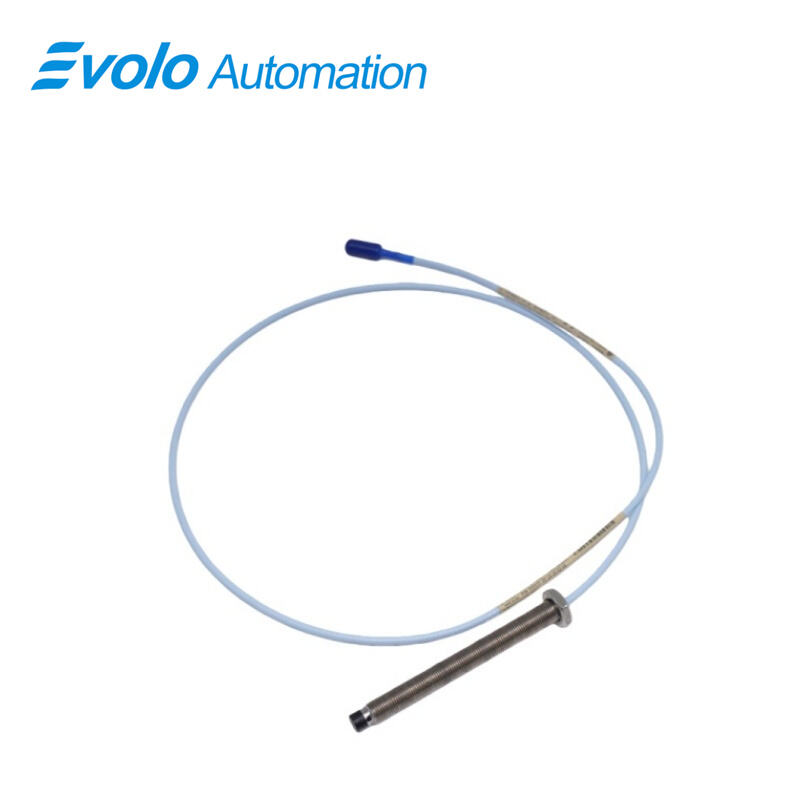

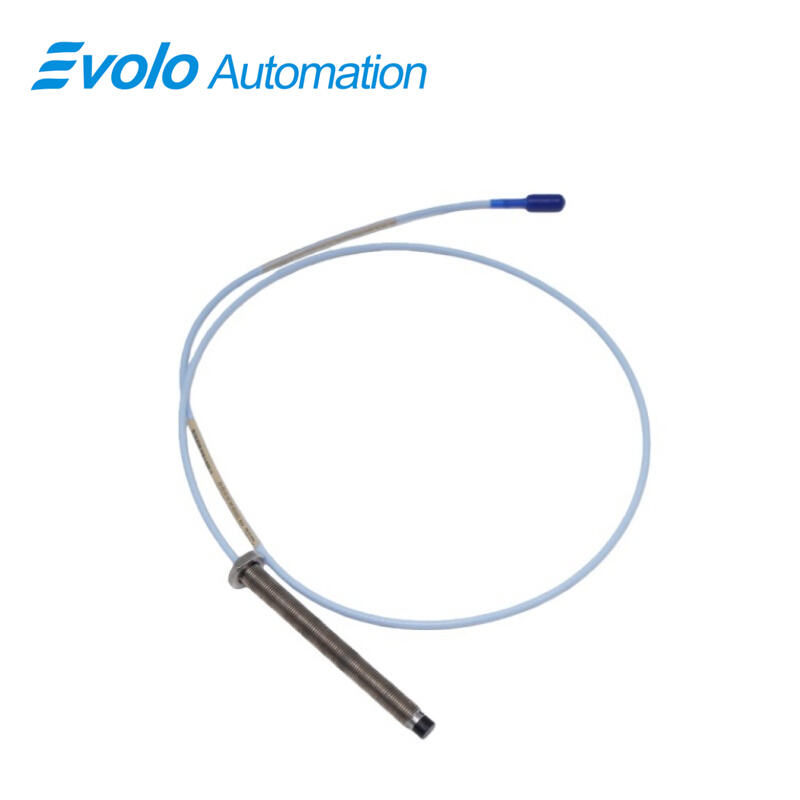

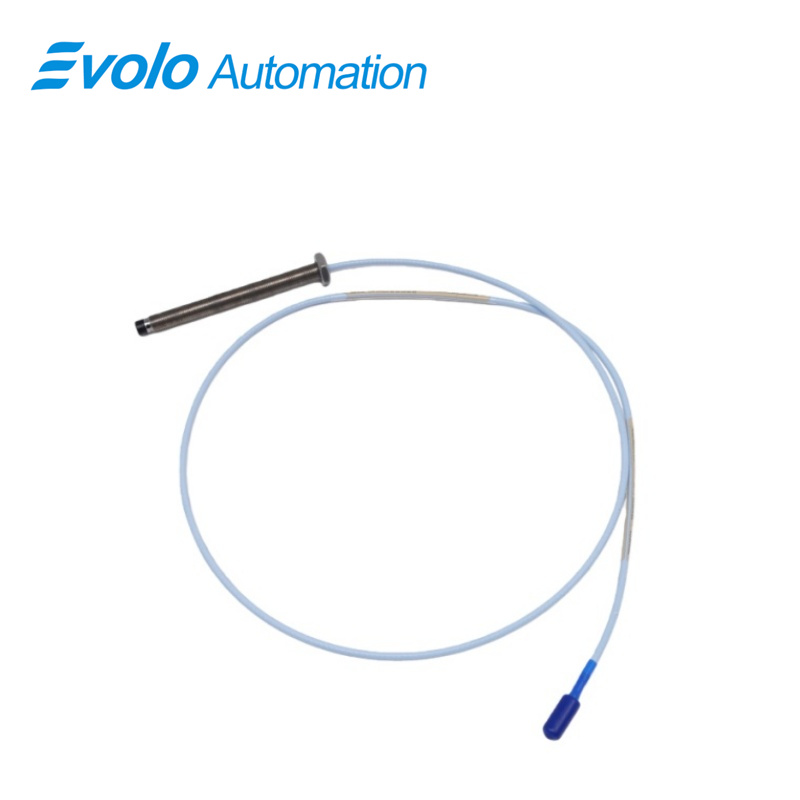

330103-00-05-10-10-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-05-10-10-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330103-00-05-10-10-02-00 3300 XL 8 mm Proximity Probe is an advanced eddy current transducer designed for high-precision industrial automation applications, including vibration, position, and rotational speed monitoring. Engineered with an M10x1 probe thread and a minimum case length of 50 mm, this probe provides exceptional linearity within a 2 mm (80 mils) measurement range. Its output voltage is directly proportional to the distance from the conductive target surface, allowing highly accurate static and dynamic measurements in demanding environments. Operating reliably from -52°C to +177°C (-62°F to +350°F), the probe supports extension cables with 69.9 pF/m capacitance, field wiring from 0.2 to 1.5 mm², and output resistance of 50 Ω, ensuring seamless integration into 3300 XL Proximitor sensor systems. Patented TipLoc and CableLoc technologies enhance probe tip bonding and cable retention up to 330 N (75 lbf), while optional FluidLoc designs prevent oil leakage, increasing operational safety in machinery monitoring. Fully compliant with API 670 standards, this 3300 XL 8 mm system delivers backward compatibility, interchangeability, and exceptional reliability across multiple industrial setups.

Applications

1. Vibration Monitoring of Fluid-Film Bearings
The 3300 XL 8 mm probe detects vibration in high-speed bearings with a linear range of 2 mm, supporting predictive maintenance in turbines and compressors. Accurate output helps reduce unscheduled downtime by up to 25%.

2. Rotational Speed Measurement via Keyphasor Reference
Combined with the Proximitor sensor system, this probe provides precise speed signals for large motors and generators, maintaining less than 2 mV variation per volt of supply change.

3. Shaft Position Tracking in Critical Machinery
Position measurements in pumps and turbines are reliable over extended cable lengths (up to 1.0 m standard, with options), enabling remote monitoring without compromising accuracy.

4. Industrial Automation Process Control
The probe’s miniature coaxial ClickLoc connector ensures fast integration into automated control systems, reducing installation time by 15–20% compared to legacy sensors.

5. Harsh Environment Applications
Operating across -52°C to +177°C, the probe monitors machinery in extreme conditions such as petrochemical plants or high-temperature processing equipment, maintaining stability in output and minimizing recalibration needs.

Specifications

Competitive Advantage

1. API 670 Compliance
Meets the stringent requirements for linearity, accuracy, and temperature stability, enabling immediate deployment in safety-critical applications.

2. TipLoc and CableLoc Patented Designs
Improves mechanical integrity of the probe tip and cable attachment, providing 330 N pull strength and reducing the risk of disconnections during high-vibration operations.

3. FluidLoc Cable Option
Prevents machine oil leakage, improving plant safety and reducing contamination, ideal for lubrication-critical systems.

4. Backward Compatibility and Interchangeability
Supports 5 mm and 8 mm non-XL probes, extension cables, and Proximitor sensors, simplifying system upgrades without component-specific recalibration.

5. High-Temperature and Wide Operating Range
Reliable performance from -52°C to +177°C (-62°F to +350°F) ensures versatility in extreme environments, supporting continuous monitoring in industrial automation setups.
