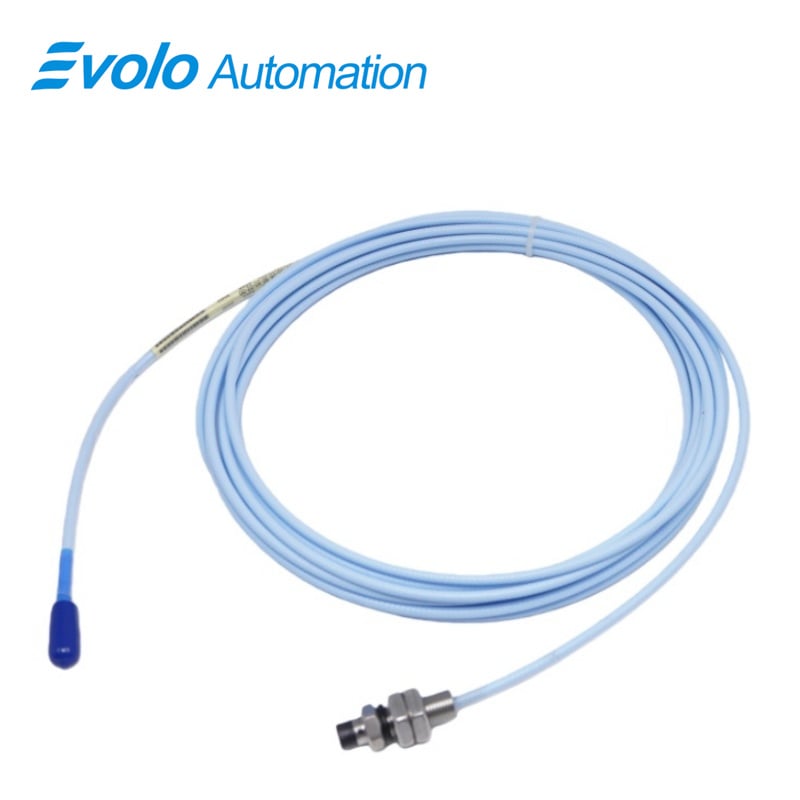

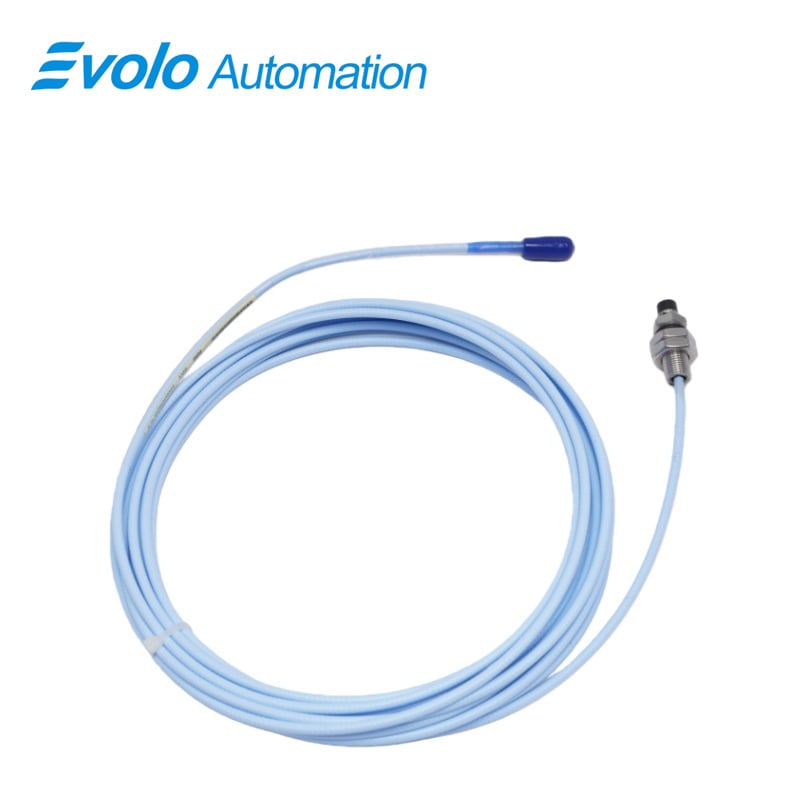

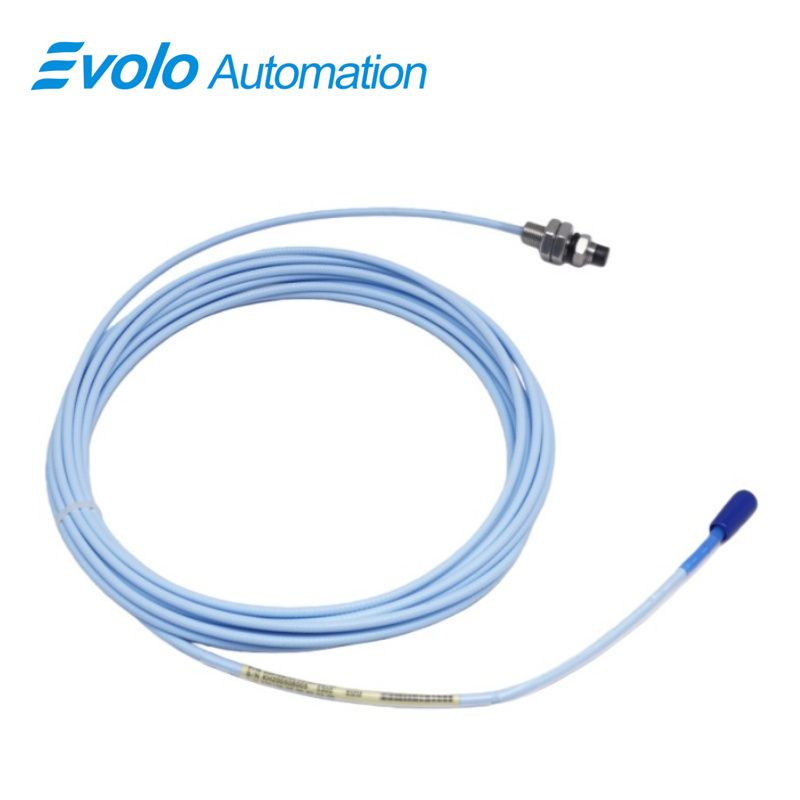

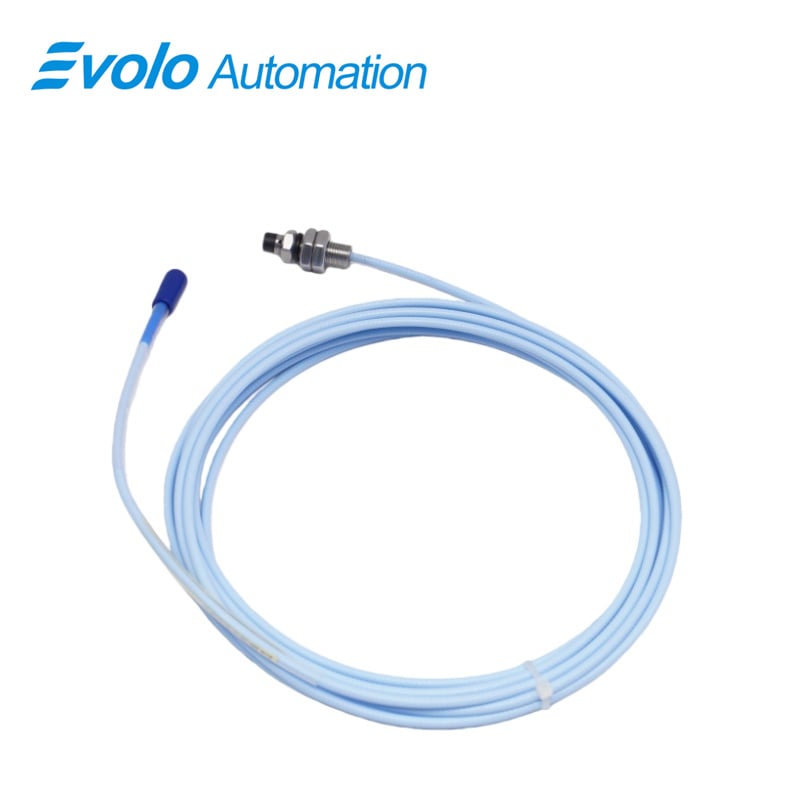

330106-05-30-50-12-CN 3300 XL 8 mm Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330106-05-30-50-12-CN
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330106-05-30-50-12-CN 3300 XL 8 mm Reverse Mount Probe is engineered for high-precision vibration and position measurements in advanced industrial automation systems. Designed as part of the 3300 XL 8 mm Proximity Transducer System, this reverse mount probe delivers an output voltage directly proportional to the distance between the probe tip and the conductive surface, supporting both static (position) and dynamic (vibration) readings. With a linear range of 2 mm (80 mils), the probe accommodates tight mounting spaces while maintaining high accuracy. Constructed from AISI 303/304 stainless steel with a polyphenylene sulfide tip, the probe is rugged, chemically resistant, and rated for -52°C to +177°C (-62°F to +350°F) operation. The FluidLoc cable with miniature ClickLoc connector ensures secure connections and prevents oil leakage, while CSA, ATEX, and IECEx approvals confirm suitability for hazardous locations. The patented TipLoc and CableLoc designs enhance mechanical robustness, providing 330 N (75 lbf) pull strength, and support seamless integration with other 3300 XL components for easy interchangeability and backward compatibility. This probe meets the API 670 Standard, guaranteeing reliable performance in demanding industrial environments.

Applications

Fluid-Film Bearing Vibration Monitoring
Measures axial and radial vibration on pumps and compressors with linear range up to 2 mm, providing early detection of bearing wear.

Keyphasor Reference for Rotating Machinery
Provides precise rotational position signals for speed and phase measurements in turbines and generators.

Reverse-Mount Applications in Confined Spaces
Optimized 8 mm design fits tight machine housings where standard probes cannot be installed, ensuring accurate readings.

Oil & Gas Compressor Shaft Monitoring
Tracks dynamic displacement of high-speed shafts in hazardous environments using ATEX-approved reverse mount probes.

Rotating Equipment Condition Monitoring
Delivers consistent vibration and position feedback for preventive maintenance systems, reducing unplanned downtime.

Specifications

Competitive Advantage

High-Temperature Operation
Operates reliably between -52°C to +177°C, allowing deployment in extreme industrial conditions.

Hazardous Location Compliance
Certified to CSA, ATEX, and IECEx, ensuring safe use in flammable or explosive environments.

Robust Mechanical Design
Patented TipLoc and CableLoc provide 330 N pull strength, preventing probe detachment and enhancing longevity.

Reverse-Mount Flexibility
Specialized 3/8-24 UNF thread and compact design enable installation in constrained spaces without compromising measurement accuracy.

Seamless System Integration
Fully compatible with other 3300 XL probes, extension cables, and Proximitor sensors, supporting quick replacement and reducing calibration efforts.
