330106-05-30-10-02-00 3300 XL 8 mm Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330106-05-30-10-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

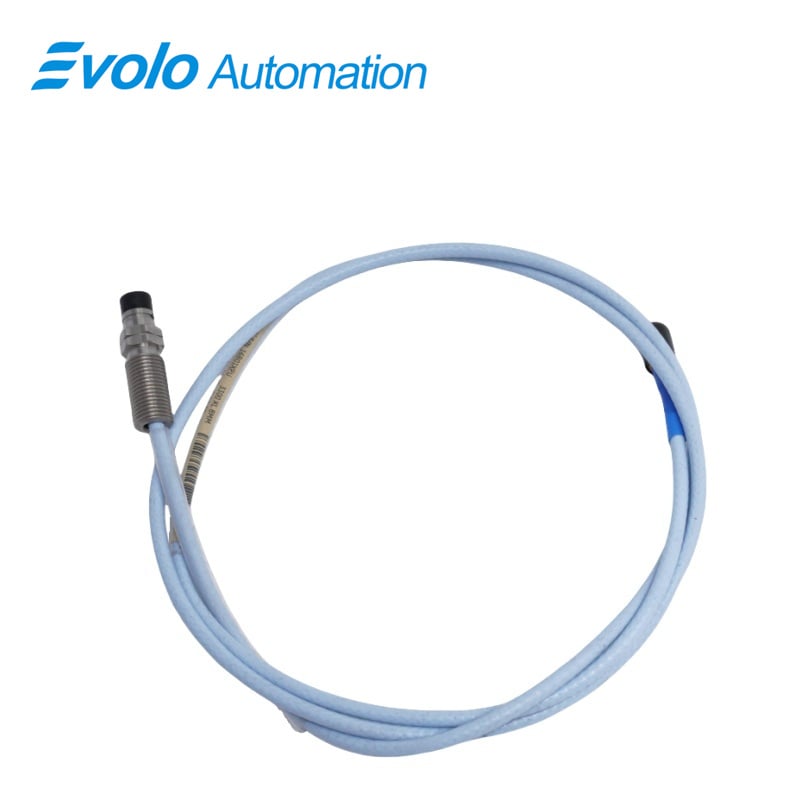

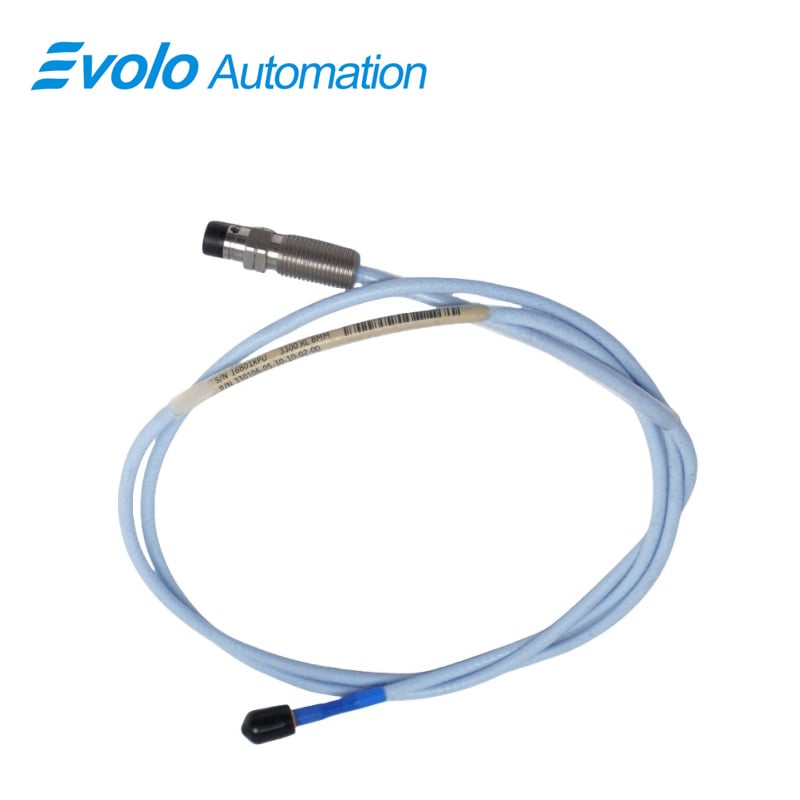

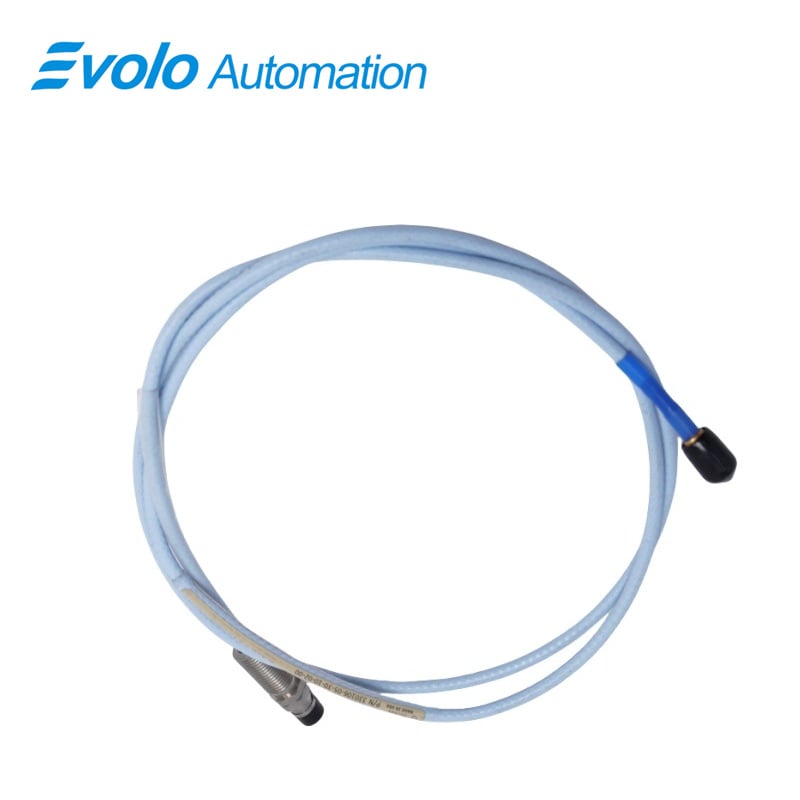

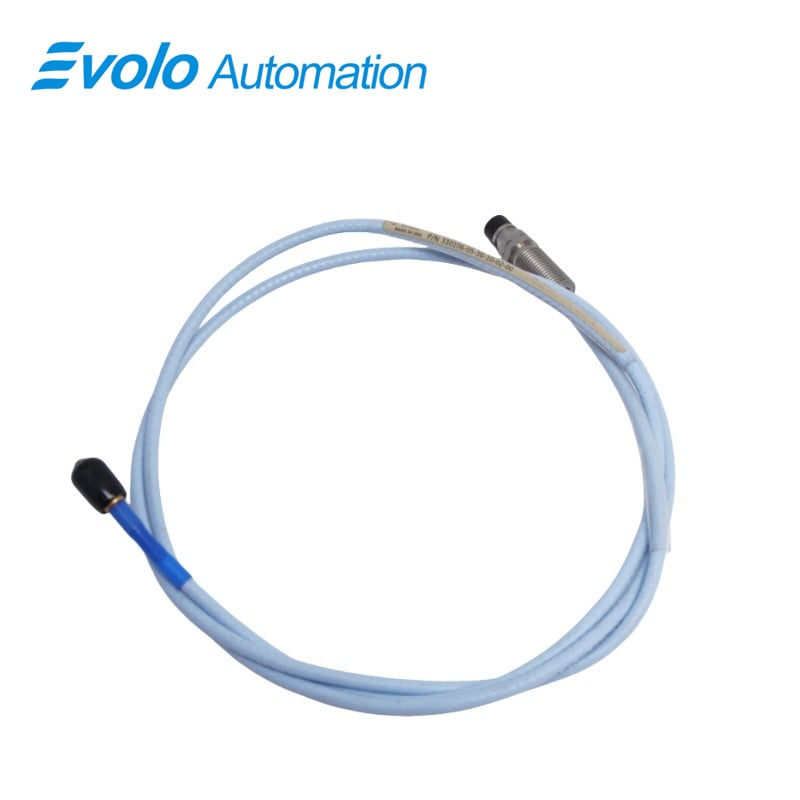

The 330106-05-30-10-02-00 3300 XL 8 mm Reverse Mount Probe is a high-precision eddy current proximity sensor designed for industrial automation and rotating machinery condition monitoring. Featuring a reverse-mount configuration, M10 × 1 stainless steel threads, and a 1.0 meter cable, this 3300 XL 8 mm probe is optimized for installations where front-access mounting is limited or where the probe must be secured from the opposite side of the machine casing. Its polyphenylene sulfide (PPS) probe tip and AISI 303/304 stainless steel housing provide excellent mechanical strength and chemical resistance, ensuring reliable performance in harsh automation environments.

As part of the 3300 XL 8 mm Proximity Transducer System, the 330106-05-30-10-02-00 probe delivers a 2 mm (80 mils) linear range, enabling accurate measurement of both static shaft position and dynamic vibration on fluid-film bearing machines. The probe operates reliably across a wide temperature range of -52°C to +177°C, maintaining signal stability in high-temperature compressors, turbines, and generators. The miniature ClickLoc coaxial connector ensures secure, vibration-resistant electrical connections to extension cables and Proximitor sensors, supporting consistent data transmission to PLC, DCS, and machinery protection platforms.

Designed to meet advanced automation and reliability requirements, this 3300 XL reverse mount probe complies with key performance criteria of API 670, including linearity, accuracy, and temperature stability when used within a complete 3300 XL system. Patented TipLoc molding strengthens the bond between the probe tip and body, while CableLoc technology rated at 330 N pull strength improves mechanical robustness during installation and long-term operation. The 330106-05-30-10-02-00 model provides full interchangeability with other 3300 XL 5 mm and 8 mm components, making it an ideal solution for automation upgrades, standardized installations, and critical rotating equipment monitoring.

Applications

Application 1: Fluid-Film Bearing Vibration Monitoring

In turbines and compressors with fluid-film bearings, the 3300 XL 8 mm reverse mount probe measures radial vibration with a 2 mm linear range, enabling accurate detection of imbalance and misalignment for automated protection systems.

Application 2: Shaft Position Measurement in Compact Casings

The reverse mount design allows installation from the rear of the machine casing, supporting precise shaft position monitoring in automation applications where front-side access is restricted.

Application 3: Keyphasor and Phase Reference Measurement

When configured for phase reference, the probe delivers stable Keyphasor signals for speed tracking and phase analysis, supporting advanced vibration diagnostics in automated condition monitoring systems.

Application 4: High-Temperature Compressor Monitoring

With an operating capability up to +177°C, the probe supports continuous vibration and position monitoring in high-temperature compressor environments common in oil, gas, and petrochemical automation facilities.

Application 5: Retrofit and Standardization Projects

The probe’s backward compatibility with non-XL 3300 series components allows cost-effective retrofitting and standardization across automation fleets without the need for individual component calibration.

Specifications

Competitive Advantage

Competitive Advantage 1: Reverse Mount Installation Flexibility

The reverse mount configuration enables secure probe installation in mechanically constrained designs, reducing installation time and expanding usable mounting options in automation projects.

Competitive Advantage 2: Extended Linear Measurement Range

A 2 mm (80 mils) linear range provides greater tolerance for shaft movement compared to smaller probes, improving measurement accuracy during transient operating conditions.

Competitive Advantage 3: High-Temperature and Environmental Robustness

The -52°C to +177°C operating range and stainless steel construction ensure stable performance in extreme industrial automation environments.

Competitive Advantage 4: Proven Mechanical Reliability

Patented TipLoc and CableLoc technologies with 330 N pull strength reduce the risk of probe tip separation or cable damage, lowering maintenance costs and unplanned downtime.

Competitive Advantage 5: Full System Interchangeability and Compliance

Complete interchangeability with 3300 XL 5 mm and 8 mm systems and compliance with API 670 performance requirements simplify automation system design, spare parts management, and long-term lifecycle support.
