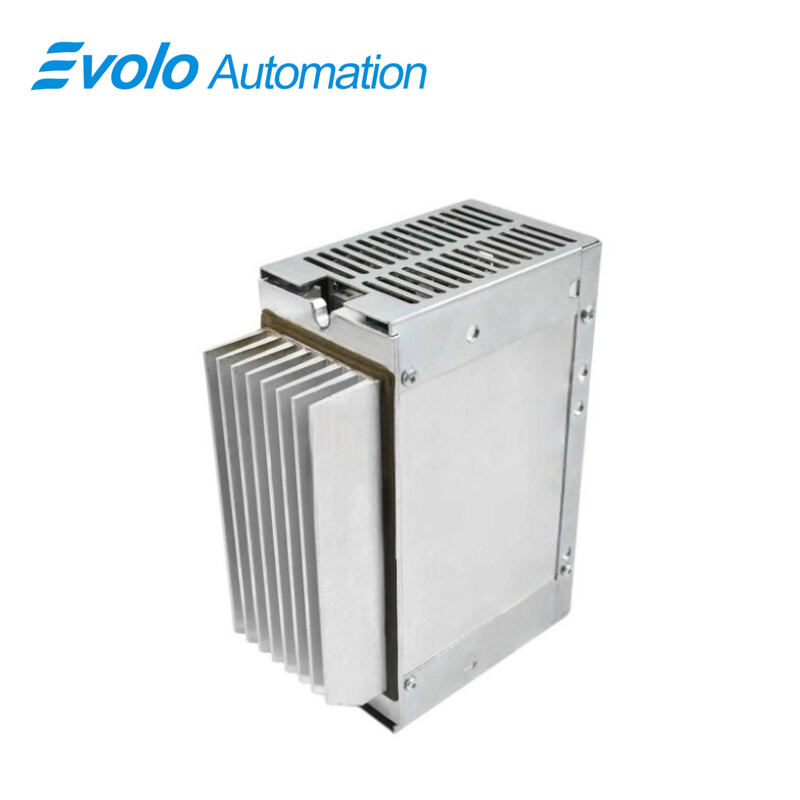

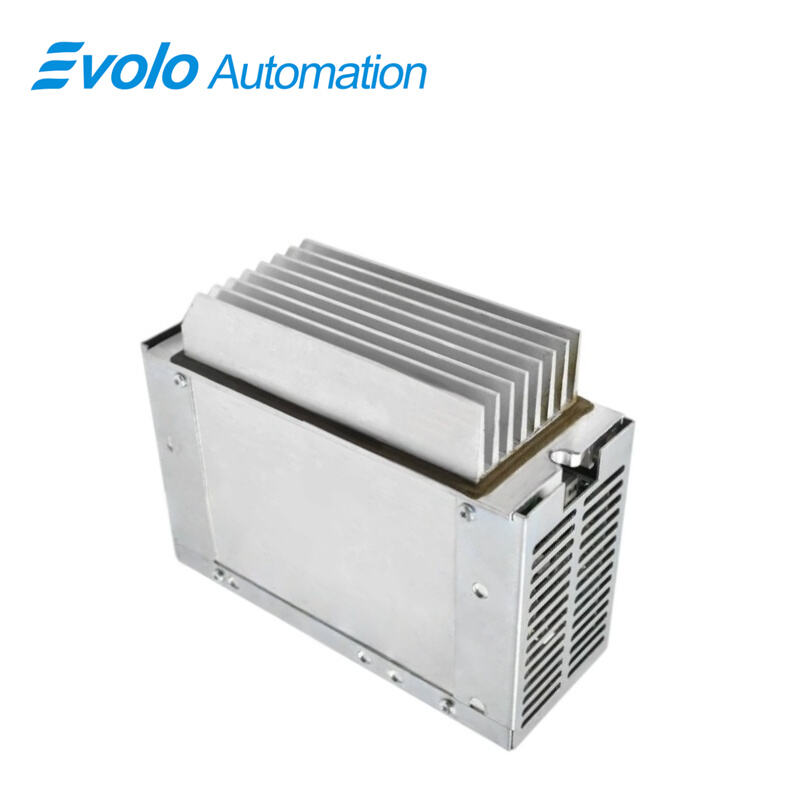

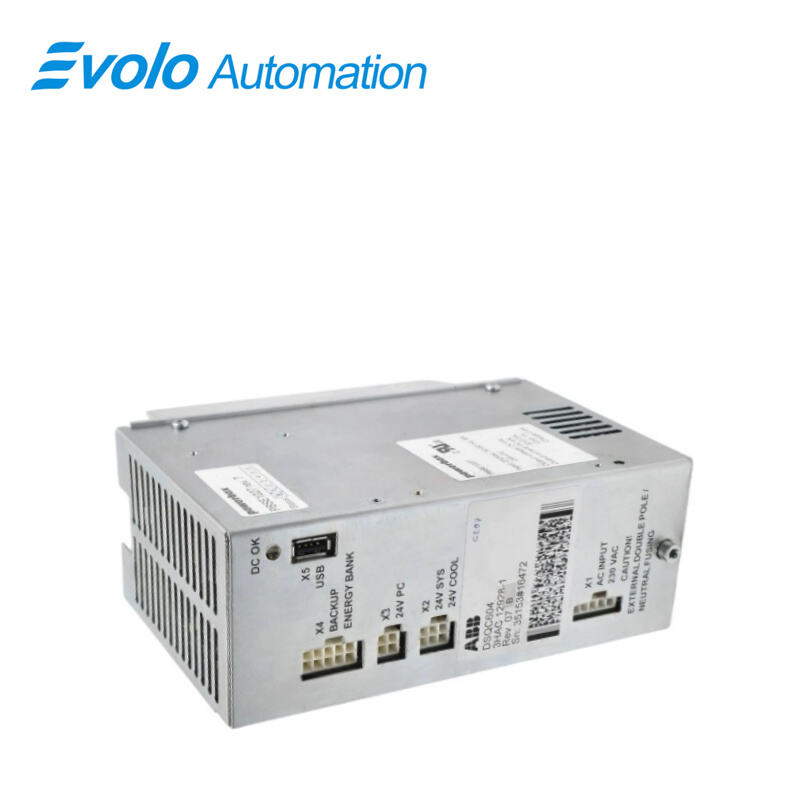

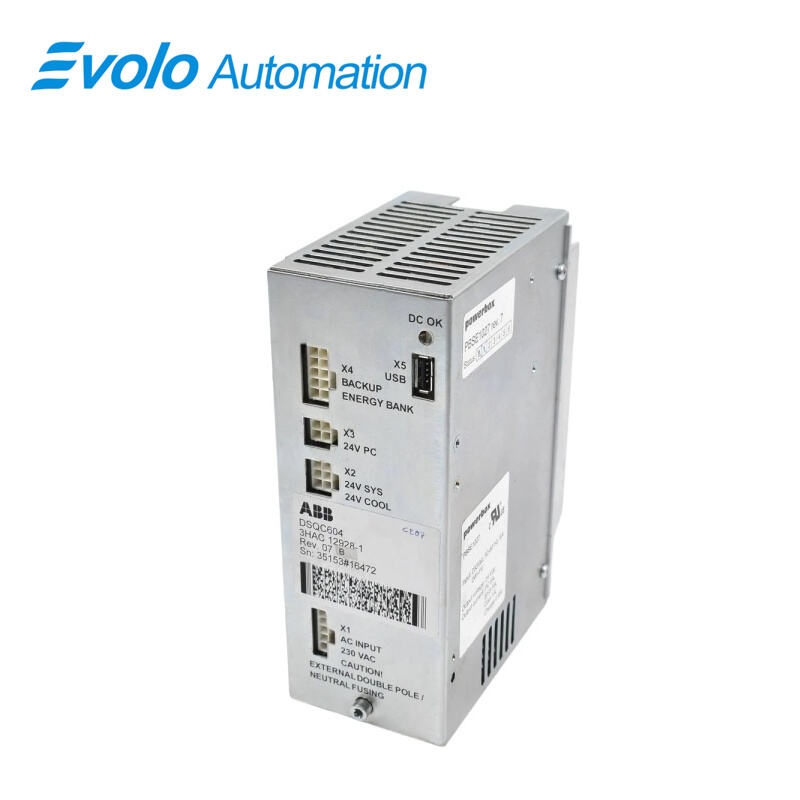

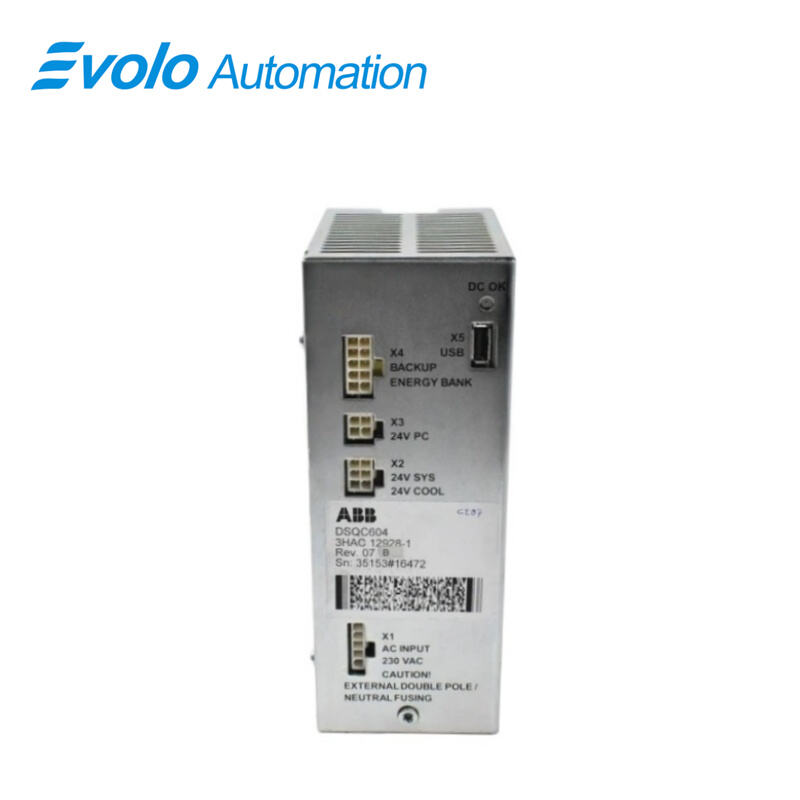

DSQC604 Power Supply

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	DSQC604
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

The DSQC604 is a power supply manufactured by ABB. It is part of the DSQC series of rectifiers, designed for a wide range of industrial applications. The DSQC604 is a single-phase rectifier that delivers up to 600 A of output current at 24 V DC. It is a compact and lightweight device that is easy to install and maintain.

Applications

Heavy machinery assembly plants: Ensure the logic power supply of high-power drives does not reset due to voltage fluctuations when handling heavy-duty parts.

Precision die-casting plants: Stably filter power ripple in high-temperature and high-electromagnetic-interference environments, protecting sensitive control chips.

Semiconductor automation plants: Provide clean DC power distribution, avoiding micron-level trajectory deviations caused by power supply noise.

Automotive painting plants: Ensure communication and power synchronization during continuous painting operations, preventing paint defects caused by downtime.

Food processing plants: Support control cabinet operation in washing environments, providing overcurrent protection for power interfaces.

Competitive Advantage

Compact and lightweight design

High efficiency

Wide operating temperature range

Easy to install and maintain

Overvoltage, undervoltage, overload and short circuit protection

FAQ

Q: Is the DSQC604 itself a switching power supply (UPS/SMPS)?
A: No. The DSQC604 is a power distribution board. It receives 24V from an external high-power supply module, filters it, and distributes it to each drive axis.

Q: Why is the drive still not powered after replacing the DSQC604?
A: Check the fuse or circuit breaker under the module. The DSQC604 only handles low-voltage distribution; the main 400V drive power is controlled by external contactors.

Q: What should I do if the DSQC604 power connector is burnt?
A: This is usually caused by loose wiring leading to localized overheating. Do not attempt cleaning—replace the board and related connector cables to avoid fire risk.

Q: How does the DSQC604 protect the driver from overvoltage damage?
A: The DSQC604 includes onboard TVS (Transient Voltage Suppressor) and protection diodes to absorb minor surge currents, but it cannot protect against lightning or severe high-voltage spikes.

Q: How do I determine if the DSQC604 power output is faulty?
A: Disconnect all loads and power only the DSQC604, then measure output voltage at the terminals. If no voltage is present, the internal circuit is likely damaged.
