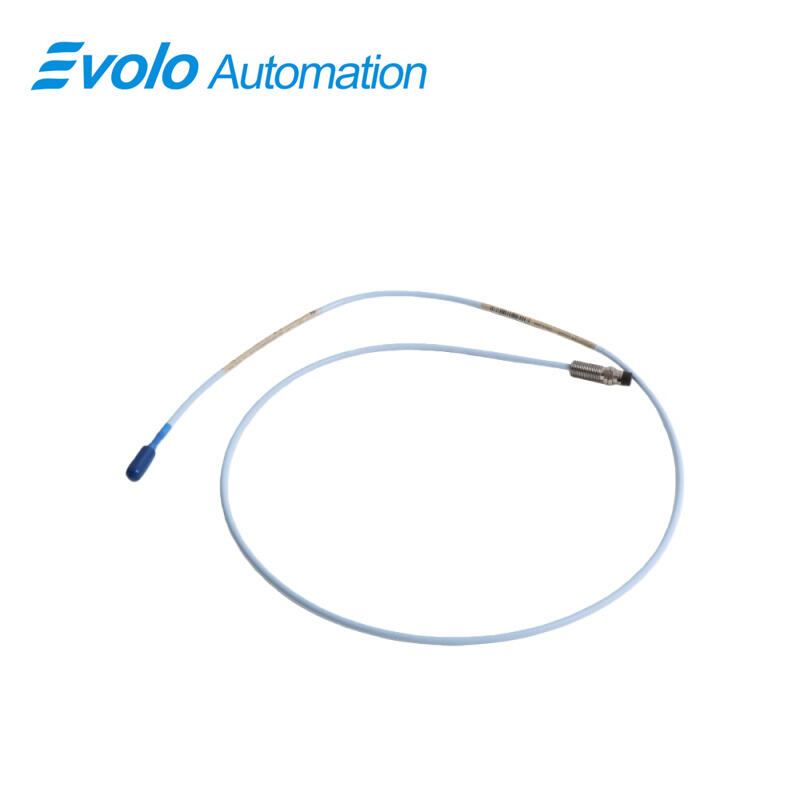

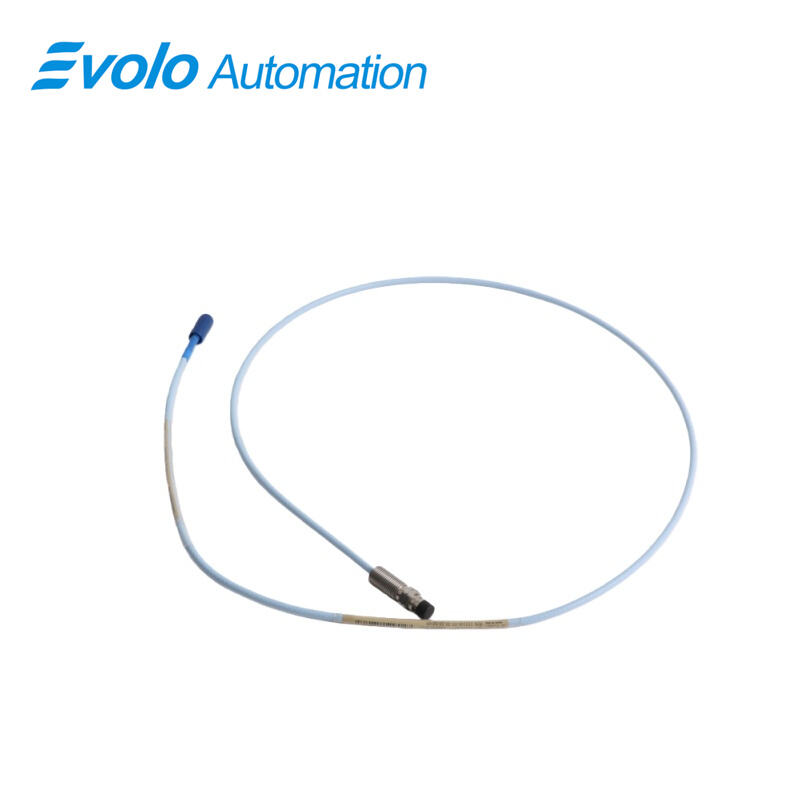

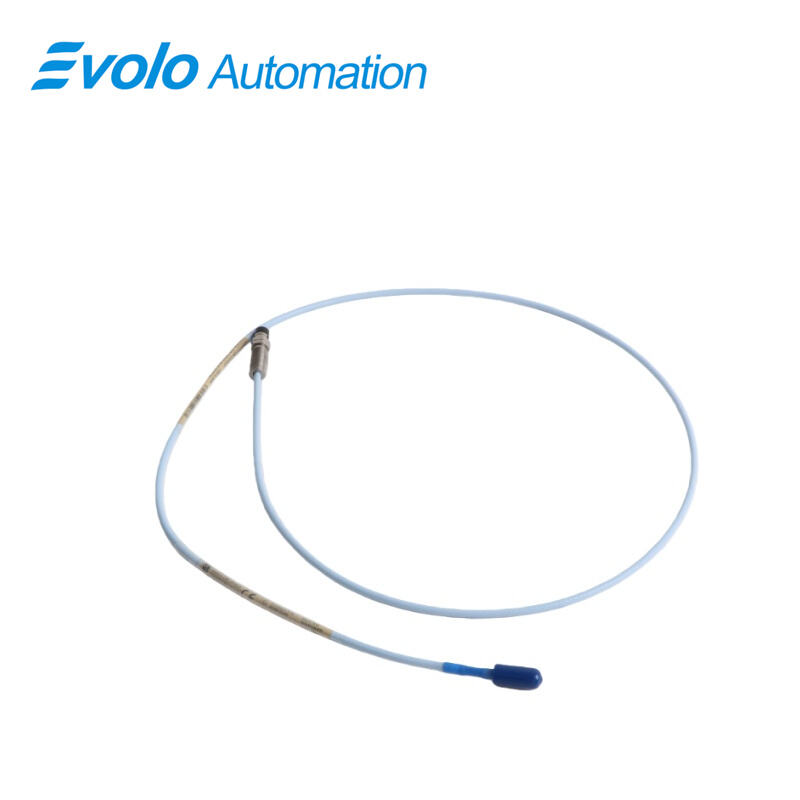

330106-05-30-10-02-05 3300 XL 8 mm Reverse Mount Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330106-05-30-10-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330106-05-30-10-02-05 3300 XL 8 mm Reverse Mount Probe is a high-precision eddy current proximity sensor designed to provide accurate, reliable, and long-term condition monitoring in industrial machinery applications. With its reverse mount configuration, this probe allows installation from the opposite side of the mounting surface, making it ideal for machinery with limited axial space or areas where traditional forward-mount probes cannot be deployed. Its compact overall case length of 50 mm and lightweight design of 0.06 kg facilitate easy integration into confined equipment housings, ensuring minimal interference with surrounding components while maintaining precise measurement capabilities.

Engineered to operate reliably across a wide temperature range of -50°C to +180°C, the 3300 XL 8 mm Reverse Mount Probe is built for harsh industrial environments, including petrochemical plants, power generation facilities, and offshore platforms. The probe case is constructed from AISI 303 or 304 stainless steel, offering excellent resistance to corrosion, mechanical stress, and industrial contaminants. The durable Polyphenylene Sulfide (PPS) probe tip ensures dimensional stability, high resilience, and resistance to chemical attack during prolonged exposure to vibration and extreme temperatures.

The probe operates on the eddy current principle, producing a linear voltage output proportional to the gap between the probe tip and a conductive target. This capability enables accurate monitoring of both static parameters, such as shaft axial displacement, and dynamic parameters, including vibration amplitude and transient motion.

Applications

1.Precision Monitoring in Confined Spaces

The 330106-05-30-10-02-05 probe is ideal for applications where axial space is limited. Its reverse mount design allows installation from the opposite side of the mounting surface, enabling accurate measurement in compact machinery housings, narrow bearing cavities, and small rotating equipment assemblies.

2.Rotating Machinery Condition Monitoring

Designed for both static and dynamic measurement, the probe provides reliable data for rotor axial displacement, vibration amplitude, and transient motion. It is suitable for pumps, compressors, turbines, and other critical rotating machinery, supporting predictive maintenance and operational optimization.

3.Hazardous Environment and High-Temperature Applications

With CSA, ATEX, and IECEx approvals and an operating range of -50°C to +180°C, this probe is engineered for use in hazardous zones, petrochemical plants, offshore platforms, and extreme industrial conditions. Its robust stainless steel case and PPS tip ensure durability and long-term performance under high stress, chemical exposure, and vibration.

Specifications

Competitive Advantage

1.Compact and Space-Saving Design

With a 50 mm overall case length, 0 mm unthreaded length, and a lightweight 0.06 kg body, the 3300 XL 8 mm Reverse Mount Probe is optimized for installation in space-constrained machinery where traditional probes cannot fit. This reduces the need for equipment modifications while ensuring precise measurements.

2.Extreme Durability in Harsh Environments

Constructed from AISI 303/304 stainless steel with a PPS probe tip, the probe withstands mechanical stress, high temperature, vibration, and chemical exposure. Its rugged design ensures consistent performance and reduces maintenance requirements in demanding industrial settings.

3.High-Precision Measurement and Reliable Signal

The probe delivers a linear voltage output over a 0.2–8 mm range with 50 Ω output resistance and minimal supply sensitivity. Its 1.0-meter cable and Miniature ClickLoc connector provide secure and flexible installation while maintaining high-fidelity signal transmission, enabling accurate static and dynamic monitoring for critical rotating machinery.
