330103-00-14-10-02-CN 3300 XL 8 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-14-10-02-CN
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

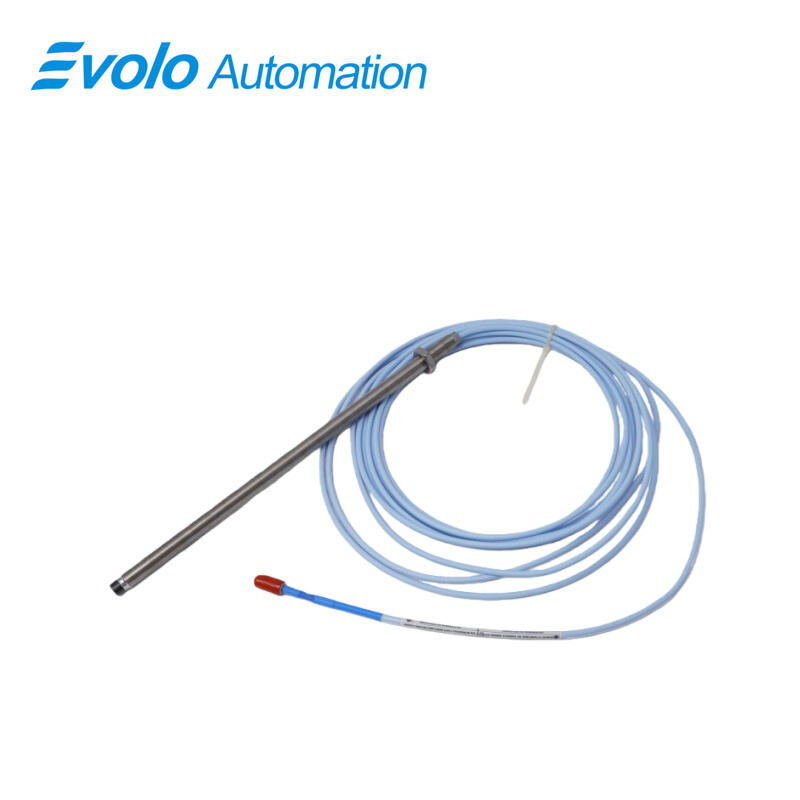

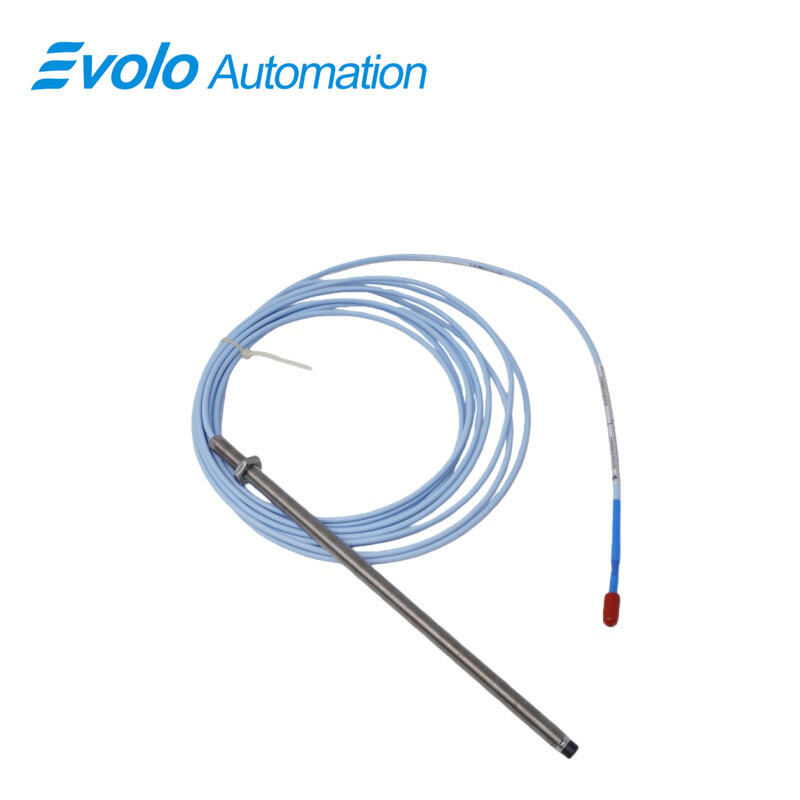

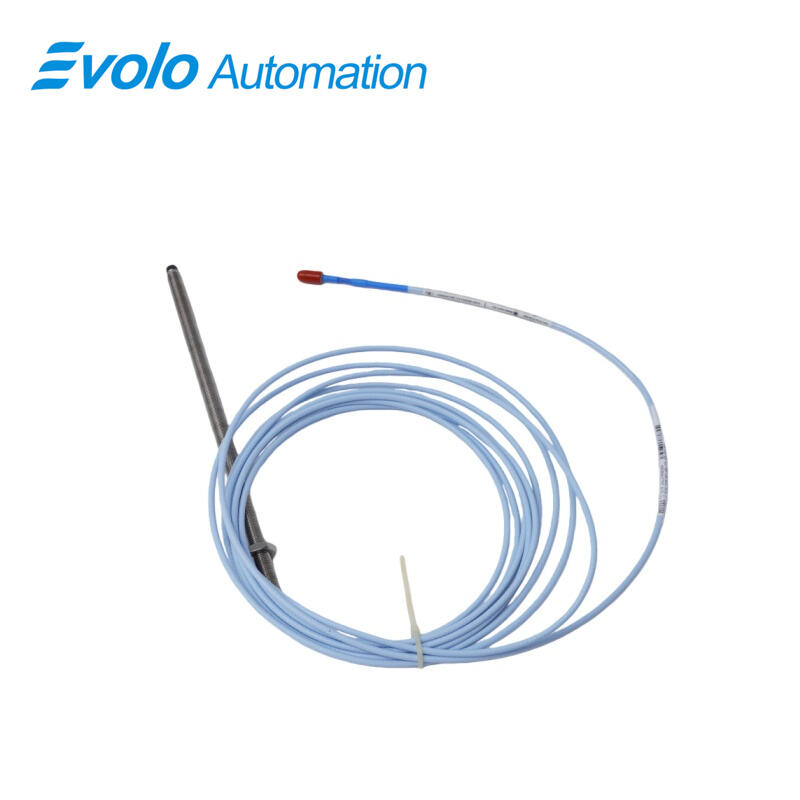

The 330103-00-14-10-02-CN 3300 XL 8 mm Proximity Probe is a high-precision eddy current transducer engineered and manufactured by Bently Nevada, a global leader in machinery condition monitoring solutions, tailored for non-contact measurement of shaft vibration and axial position in critical industrial assets. As a core component of the industry-proven 3300 XL product series, this probe delivers a linear, high-fidelity voltage signal directly proportional to the gap between its probe tip and a conductive target surface, providing the essential data required for predictive maintenance, continuous condition monitoring, and machinery protection in regulated and hazardous environments. Manufactured in the USA and supplied as original new factory-sealed equipment, the 330103-00-14-10-02-CN 3300 XL 8 mm Proximity Probe is designed to meet the stringent performance and safety requirements of sectors such as oil & gas, petrochemicals, power generation, and heavy manufacturing.

Configured with an overall case length of 140 mm, an unthreaded length of 0 mm, and a total cable length of 1.0 meter (3.3 feet), this proximity probe features a miniature coaxial ClickLoc connector that ensures secure, vibration-resistant connections and seamless integration with compatible 3300 XL extension cables and monitoring electronics. What sets the 330103-00-14-10-02-CN 3300 XL 8 mm Proximity Probe apart is its comprehensive suite of global safety certifications, including CSA, ATEX, and IECEx approvals, which authorize direct installation in Zone 1/2 hazardous locations where flammable gases, vapors, or combustible dusts may be present—eliminating the need for costly additional protective enclosures or complex engineering reviews. Constructed with a chemically resistant Polyphenylene Sulfide (PPS) probe tip and a corrosion-resistant AISI 302/304 stainless steel case, the probe is built to withstand harsh industrial conditions, operating reliably across a temperature range of -46°C to +115°C (-51°F to +239°F).

Applications

The 330103-00-14-10-02-CN 3300 XL 8 mm Proximity Probe is specifically designed for continuous shaft vibration and axial position monitoring in Zone 1/2 hazardous locations, making it an ideal compliant solution for gas compressors, offshore platform turbines, and petrochemical plant pumps where flammable substances require certified safety equipment.

This probe is widely applied in power generation and hydrocarbon processing facilities to monitor critical assets such as steam turbines, centrifugal compressors, and feedwater pumps, enabling early detection of mechanical faults including imbalance, misalignment, and bearing wear to support predictive maintenance programs and prevent catastrophic machinery failures.

Equipped with high-precision measurement capabilities, the 330103-00-14-10-02-CN 3300 XL 8 mm Proximity Probe serves as a reliable Keyphasor® timing signal provider by detecting shaft keyways or notches, supporting phase analysis, dynamic balancing, and overspeed protection for a wide range of industrial rotating machinery.

Specifications

Competitive Advantage

1.Global Hazardous Area Certification for Simplified Compliance

Pre-equipped with CSA, ATEX, and IECEx approvals, the probe eliminates the need for additional protective modifications or complex engineering reviews when deployed in explosive atmospheres. This significantly reduces project compliance costs and installation time compared to uncertified alternatives, making it a cost-effective choice for regulated industries.

2.Durable Material Construction for Harsh Environment Reliability

Featuring a chemical-resistant PPS probe tip and corrosion-resistant AISI 302/304 stainless steel case, the probe delivers exceptional durability in environments contaminated with oils, moisture, and corrosive agents. Its robust build ensures stable performance and extended service life, lowering the total cost of ownership for long-term industrial applications.

3.Seamless 3300 XL System Integration for Plug-and-Play Convenience

As a genuine component of Bently Nevada’s 3300 XL product series, the probe guarantees perfect compatibility with matching extension cables and monitoring electronics. This plug-and-play integration simplifies installation, streamlines maintenance workflows, and protects existing investments in the 3300 XL machinery condition monitoring ecosystem.
