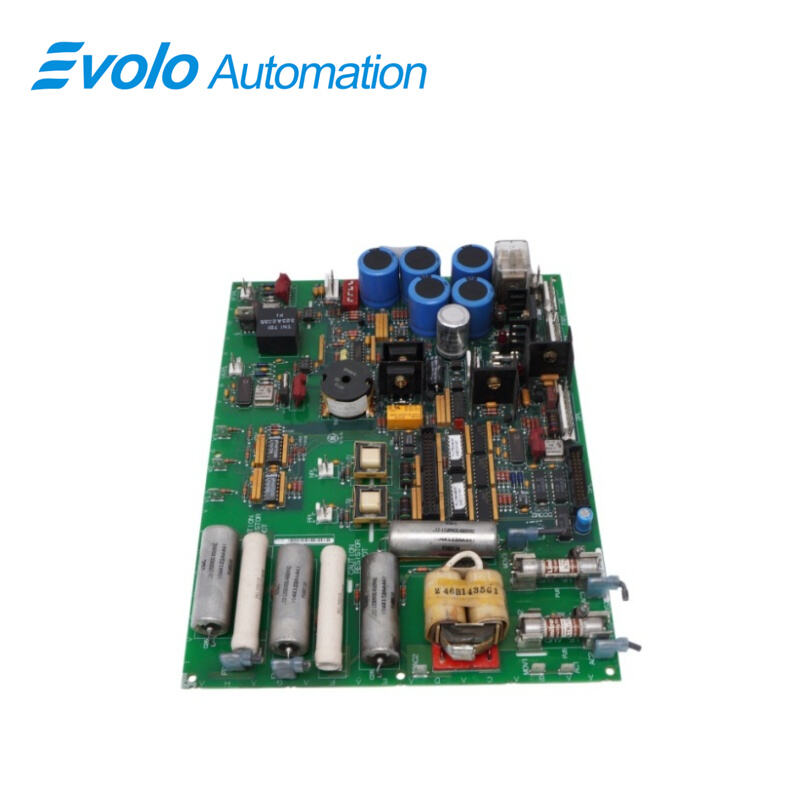

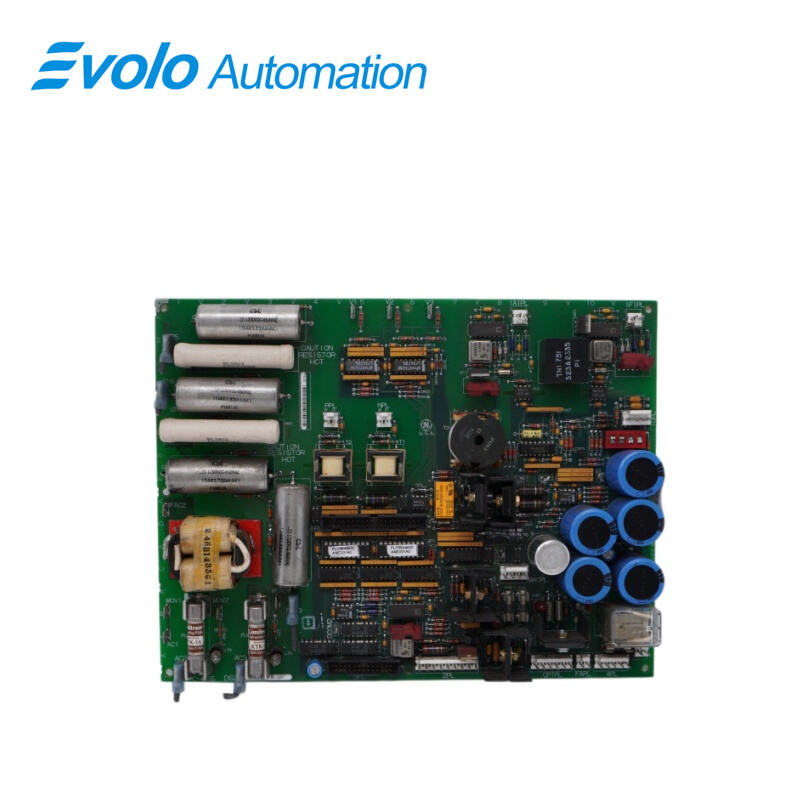

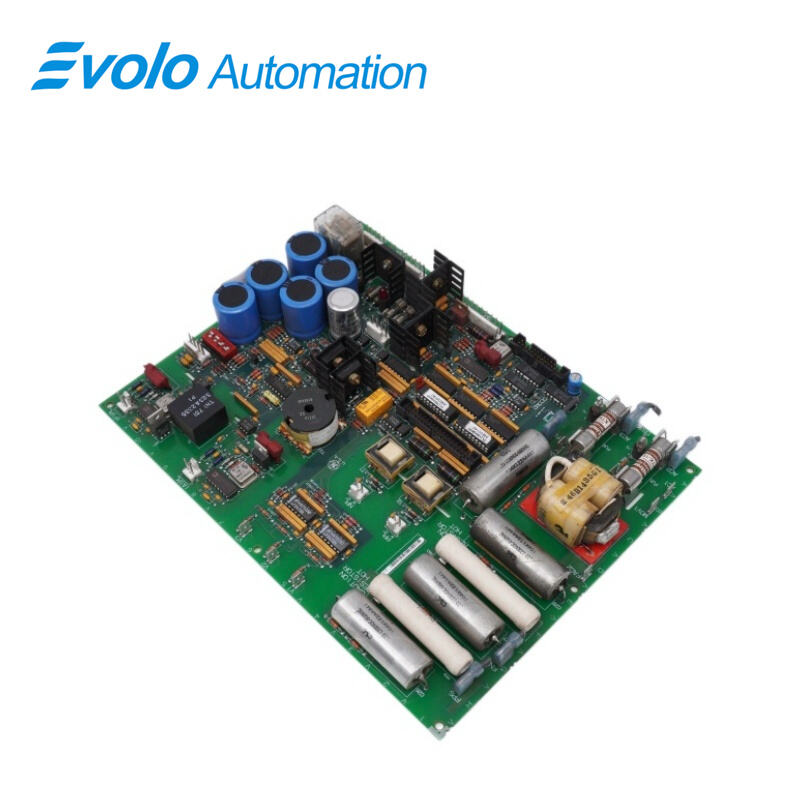

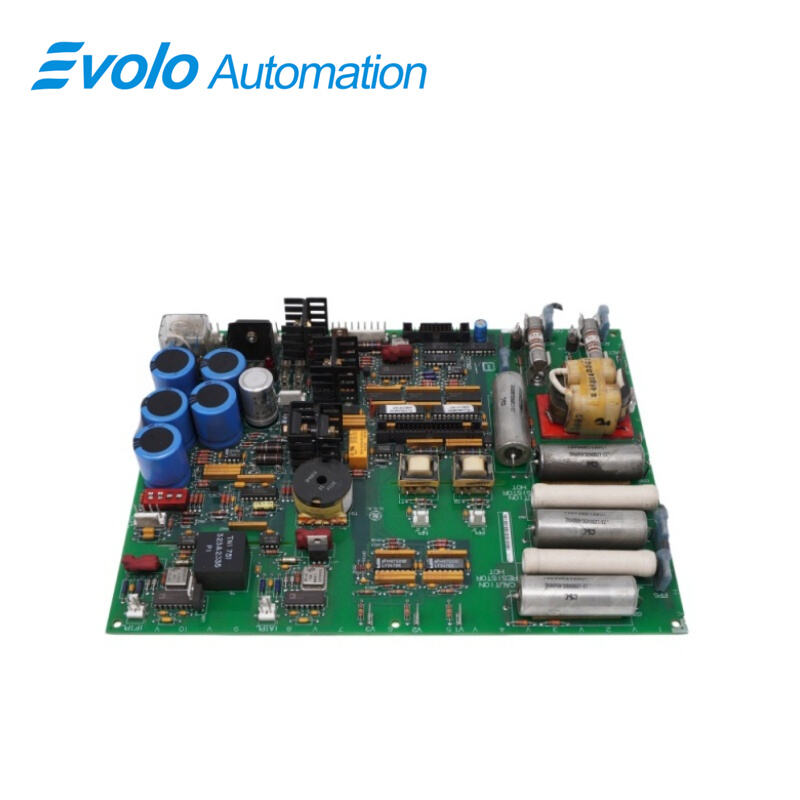

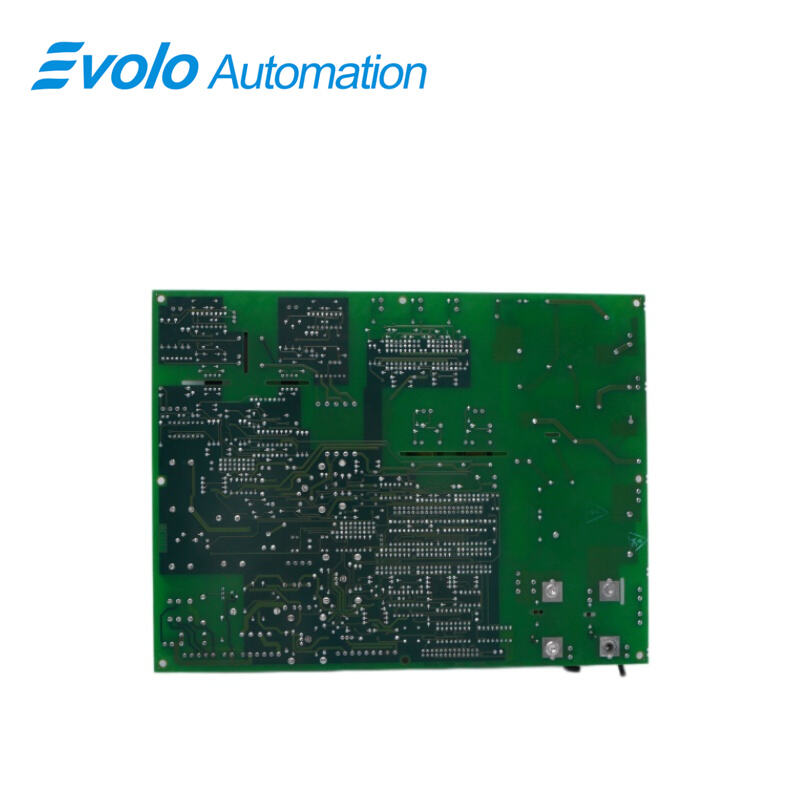

DS200SDCIG1AFB DC Power/Instrumentation Board, China DS200SDCIG1AFB DC Power/Instrumentation Board Manufacturers, Suppliers, Factory

Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	DS200SDCIG1AFB
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Functional Acronym	SDCI
PCB Coating	Normal Coating
Integrated Circuits	Power supplies, motor field circuits, SCR gating driver circuits, AC/DC motor signal instrumentation circuits
Fuse FU1	115 V AC power supply fuse
Fuse FU2	Signal-level power supply fuse
Fuse FU3	Signal-level power supply fuse
Fuse FU5	Internal NRX/MOV assembly fuse
Fuse FU6	Internal NRX/MOV assembly fuse
Product Number Info	Normal assembly type; domestic manufacture; SDCI functional acronym; normal PCB coating; Group one Mark V Series; three revisions (two functional, one artwork)
Jumpers	JPI MD control source jumper; JP2 MA AC contactor drop-out time jumper
Switch SW1	Select AC line CT burdens as a function of nominal DC output current

Description

The GE DS200SDCIG1AFB is a programmable automation controller (PAC) that represents the future of programmable automation control. As a new generation of industrial controllers, it combines the advantages of PCs and PLCs, and will gradually replace PLC systems as the mainstream product in control systems, with increasingly widespread applications in industrial automation control.

The GE DS200SDCIG1AFB is a programmable automation controller (PAC) that represents the future of programmable automation control. As a new generation of industrial controller, it integrates the advantages of PC and PLC, will gradually replace the PLC system to become the mainstream product of the control system, and the application of industrial automation control will be more and more extensive.

Applications

Provide logic power and interface for DC2000 drives
The GE DS200SDCIG1AFB supplies necessary DC logic power and interface circuits to operate DC2000 motor drives in industrial automation systems.
Control motor armature SCR gating
With built-in driver circuits, the GE DS200SDCIG1AFB facilitates precise armature SCR gating for AC or DC motors, enabling accurate motor speed and torque control.
Instrument AC/DC motor signals
The GE DS200SDCIG1AFB collects and conditions line signals from connected motors, supporting data acquisition and monitoring of industrial equipment.
Configure AC line CT burden
Using SW1 on the GE DS200SDCIG1AFB, operators can select AC line CT burdens according to the nominal DC output current, optimizing measurement and control performance.
Replace or upgrade hardware easily
The GE DS200SDCIG1AFB supports jumper adjustments (JPI and JP2) and fuse replacement (FU1–FU6), allowing fast maintenance and adaptation in automation panels.

Specifications

Mounting	Panel mount with standard standoffs
Connector Types	Screw terminals and PCB edge connectors
Operating Temperature	−10 °C to +55 °C
Storage Temperature	−20 °C to +85 °C
Humidity Range	5–95% RH non-condensing
Response Time	<10 ms for logic and signal processing
Signal Accuracy	±1% of nominal DC output
Current Handling	Up to 5 A per motor field circuit

Frequently Asked Questions

What does DS200SDCIG1AFB provide to DC2000 drives?

DS200SDCIG1AFB provides logic power and interface circuitry for DC2000 drives with input voltages up to 600 VAC.

How do I break down the DS200SDCIG1AFB model number?

To break down DS200SDCIG1AFB, start with the first portion of DS200SDCIG1AFB, "DS200SDCI," which is the base number for DS200SDCIG1AFB identifying the printed wiring board. Followed by the base number, the "G" in DS200SDCIG1AFB indetifies a group, which is a variation of a particular board and in this case is a DC Power Supply and Instrumentation Board. The 1 followed by the G indicates DS200SDCIG1AFB is a "G1" version SDCI. The proceeding characters in DS200SDCIG1AFB's model number indicate the DS200SDCIG1AFB board's revision level.

Which manual applies to DS200SDCIG1AFB?

The manual that applies to DS200SDCIG1AFB is Manual GEI-100173. This manual for DS200SDCIG1AFB is the GE Drive Systems Replacement Procedures for SDCI DC Power Supply and Instrumentation Board Manual. While DS200SDCIG1AFB mainly covers replacing a DS200SDCIG1AFB, this manual is the specific manual for DS200SDCIG1AFB and the manual also provides essential information in understanding DS200SDCIG1AFB.
