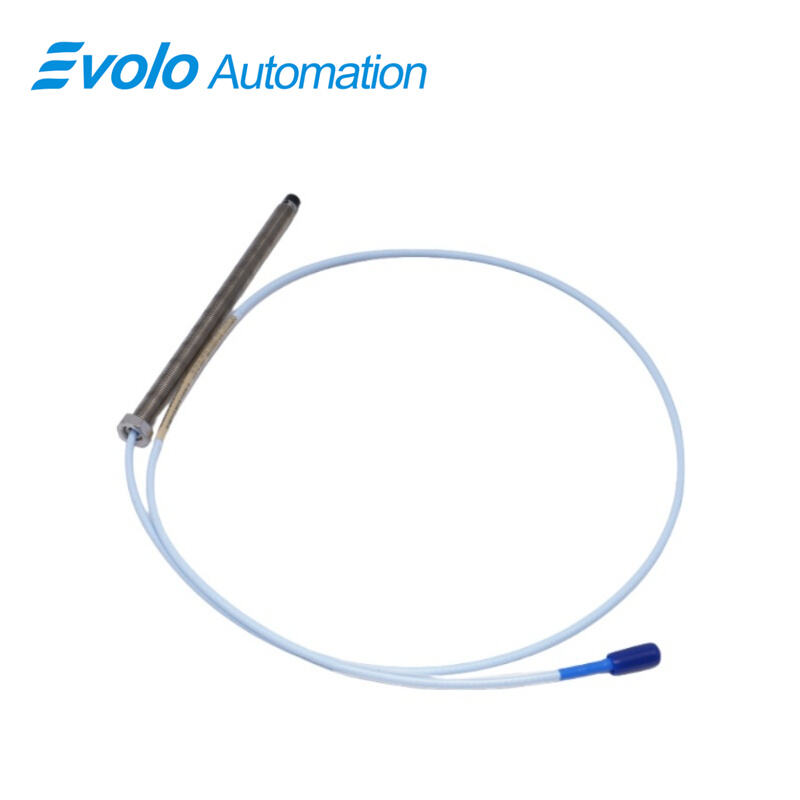

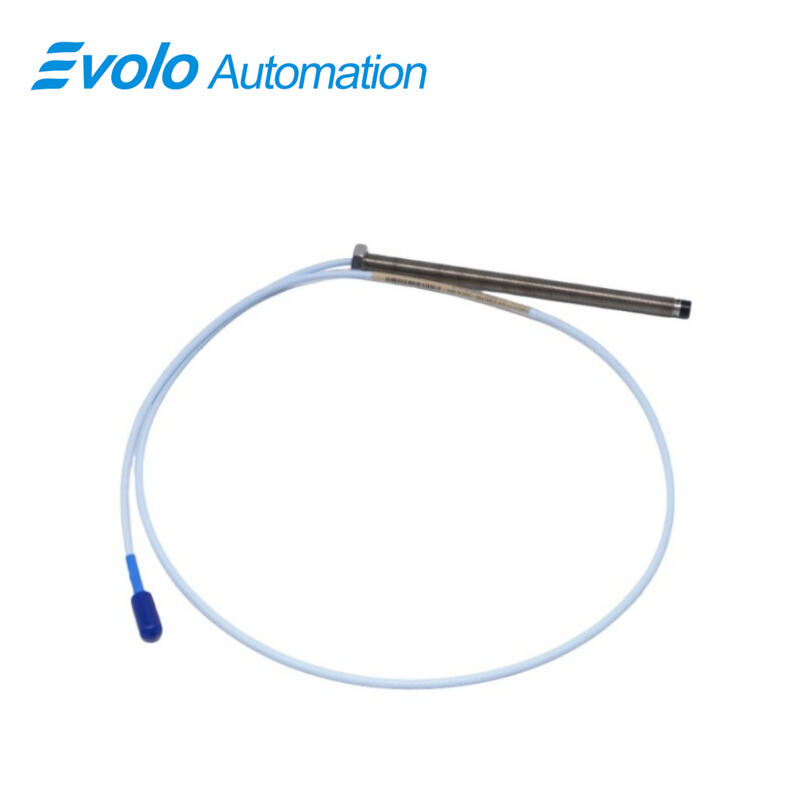

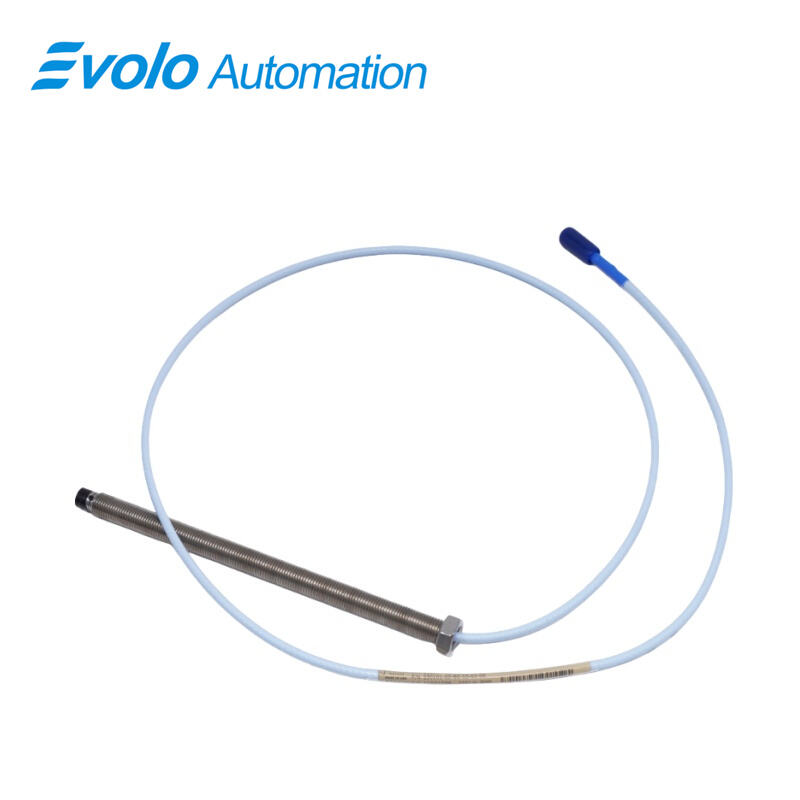

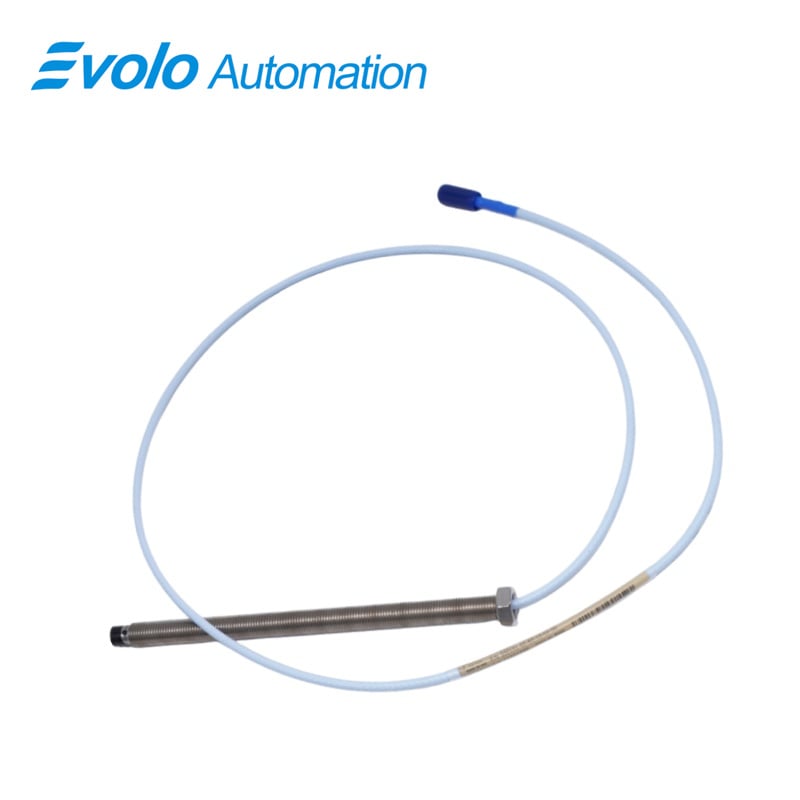

330101-00-59-10-01-05 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-59-10-01-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-59-10-01-05 3300 XL 8 mm Proximity Probe is a high-performance eddy current transducer designed for precision position and vibration monitoring in industrial automation systems. With a 5.9-inch overall case length and 3/8-24 UNF threaded probe, it ensures robust mounting and reliable measurements on fluid-film bearing machines and other rotating equipment. The probe provides a linear output over 2 mm (80 mils), directly proportional to the distance between the probe tip and the measured conductive surface, supporting both static (position) and dynamic (vibration) applications.

Equipped with a Miniature coaxial ClickLoc connector and standard cable, the 3300 XL 8 mm probe delivers stable signal output with less than 2 mV variation per volt of supply fluctuation. Operating across a wide temperature range of -52°C to +177°C (-62°F to +350°F), and approved under CSA, ATEX, and IECEx standards, this probe is suitable for harsh industrial environments. The probe’s patented TipLoc molding provides a strong bond between tip and body, while the CableLoc design ensures 330 N (75 lbf) pull strength, enhancing system reliability. Optional FluidLoc cable configurations prevent fluid ingress, protecting both machine and signal integrity. Its backward compatibility with 3300 5 mm and other XL components allows easy upgrades and seamless integration into existing monitoring systems, offering advanced automation and predictive maintenance capabilities.

Applications

Application 1: Fluid-Film Bearing Vibration Monitoring

Monitors radial vibration on rotating shafts, helping detect misalignment or imbalance and preventing costly machine failures. Linear range of 2 mm ensures precise readings.

Application 2: Shaft Position Measurement

Provides accurate shaft position monitoring, supporting dynamic control and automated alignment processes in fluid-film bearing equipment.

Application 3: Keyphasor Signal Generation

Delivers phase reference signals for machinery diagnostics, enabling rotor speed and synchronization monitoring in automated systems.

Application 4: Predictive Maintenance Automation

Integrates into monitoring systems to predict mechanical failures using vibration data, reducing downtime by up to 20% in industrial operations.

Application 5: Retrofitting and Upgrading Existing Systems

Compatible with previous 3300 series probes and Proximitor sensors, allowing system upgrades without replacing all components, saving installation time and cost.

Specifications

Competitive Advantage

Competitive Advantage 1: High Accuracy and Linearity

2 mm linear range and less than 2 mV voltage change per volt ensure precise measurement even under fluctuating power conditions.

Competitive Advantage 2: Robust Mechanical Design

3/8-24 UNF threaded probe and TipLoc molding provide strong mechanical attachment, maintaining accuracy under vibration and high stress.

Competitive Advantage 3: Harsh Environment Compatibility

Supports operating temperatures from -52°C to +177°C and is CSA, ATEX, IECEx approved, ensuring reliability in extreme conditions.

Competitive Advantage 4: Enhanced Cable Security

CableLoc design with 330 N pull strength prevents accidental disconnection and maintains signal integrity during machine operation.

Competitive Advantage 5: Fluid Resistance

Optional FluidLoc cable prevents oil or coolant ingress, protecting both probe and system electronics, enhancing machine uptime and safety.
