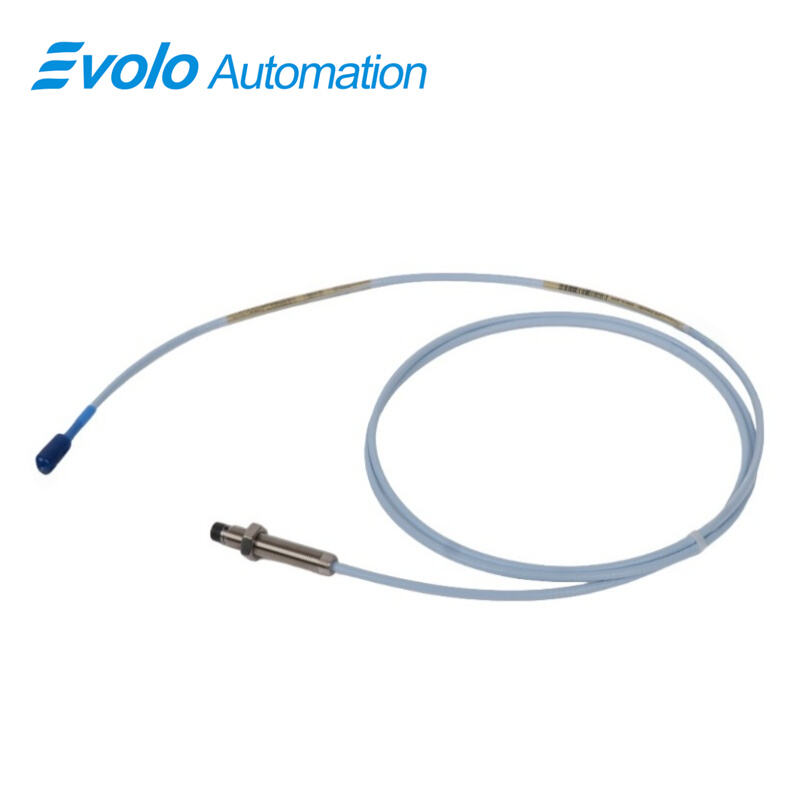

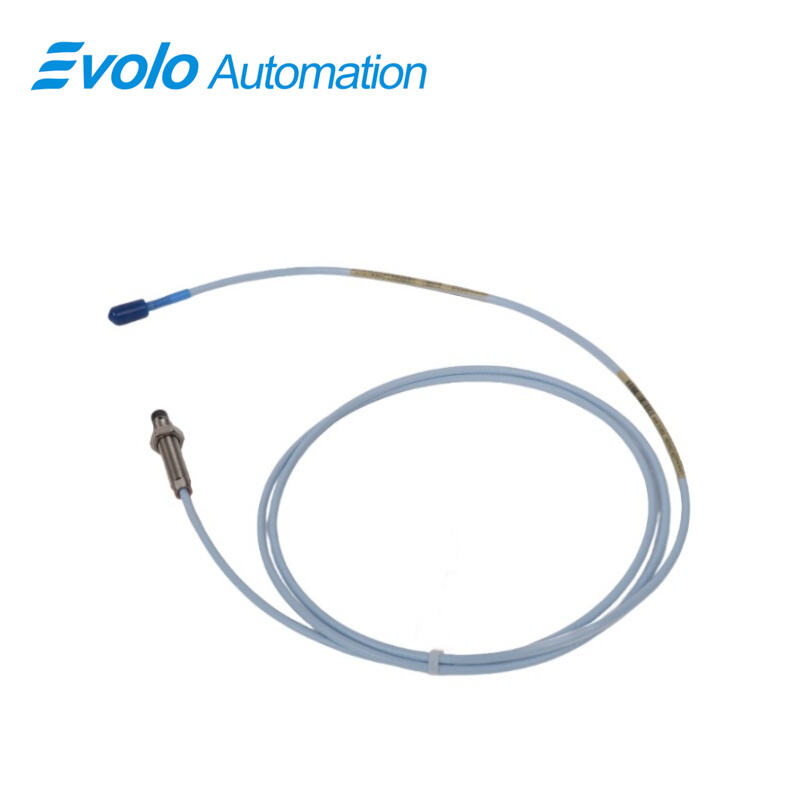

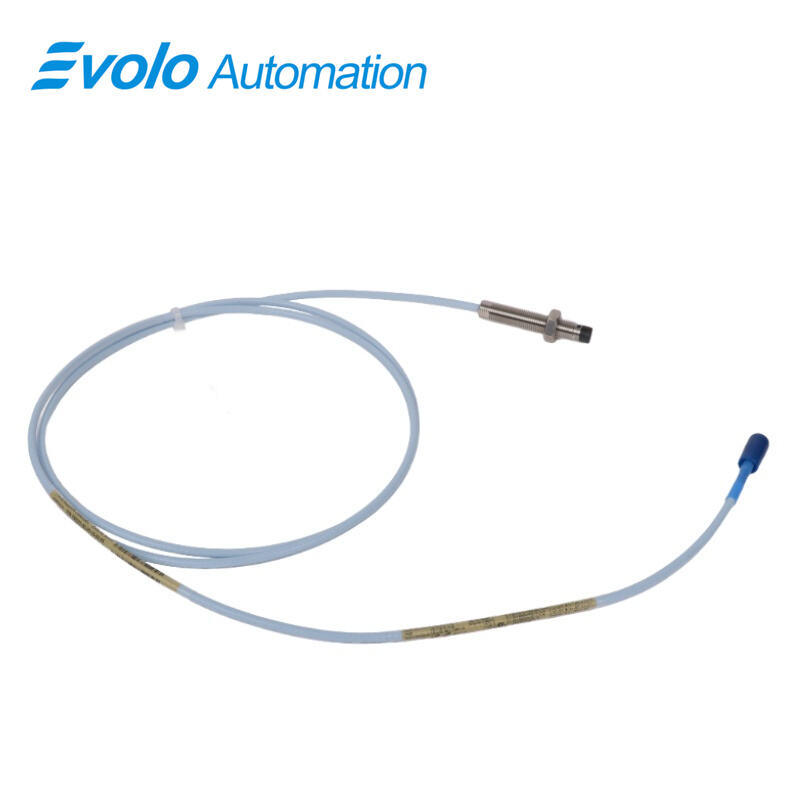

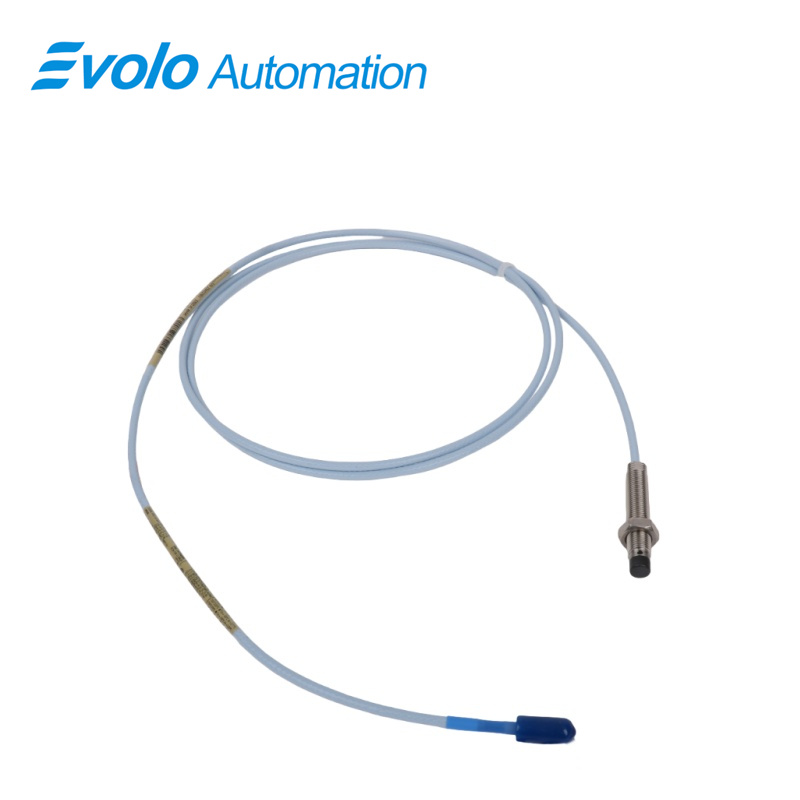

330101-00-20-20-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330101-00-20-20-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330101-00-20-20-02-00 3300 XL 8 mm Proximity Probe is a precision eddy-current transducer engineered for industrial automation and machine condition monitoring. It delivers a voltage output directly proportional to the distance between the probe tip and a conductive target, enabling accurate static (position) and dynamic (vibration) measurements. With a 2 mm linear range and a 3/8-24 UNF probe thread, the probe is ideal for tight installation spaces and extreme temperature environments ranging from -52°C to +177°C (-62°F to +350°F).

The probe features a 2.0-meter (6.6 ft) miniature coaxial ClickLoc cable for reliable, low-noise signal transmission. Its TipLoc molded probe tip ensures a robust mechanical bond, while the CableLoc design provides 330 N (75 lbf) pull strength, ensuring secure attachment of the probe cable to the probe body. Optional FluidLoc cables prevent leakage of oil or other liquids, making it suitable for automated machinery in harsh industrial environments. Fully compatible with the 3300 XL series, this probe allows easy interchangeability of probes, extension cables, and Proximitor sensors, reducing maintenance effort while maintaining API 670 compliance for mechanical configuration, linearity, and temperature stability.

Applications

1. Fluid-Film Bearing Vibration Monitoring
Monitors radial and axial vibrations in turbines, pumps, and compressors with a 2 mm linear range, enabling predictive maintenance for machinery under high-speed operation.

2. Shaft Position Measurement
Provides precise shaft or rotor position tracking, ensuring optimal alignment and minimizing wear in automated production lines.

3. Keyphasor Reference and Speed Measurement
Generates phase reference signals for rotating machinery, supporting real-time speed and position monitoring in condition-based automation systems.

4. High-Temperature Machine Monitoring
Operates reliably in environments up to 177°C, making it suitable for automated processes involving hot machinery surfaces.

5. Retrofit and Maintenance-Friendly Applications
Allows gap adjustment and probe replacement without machine disassembly, reducing downtime for automated systems and enhancing operational efficiency.

Specifications

Competitive Advantage

1. High Measurement Accuracy
A linear range of 2 mm and supply sensitivity below 2 mV per volt change ensures precise vibration and position measurements, critical for automated feedback systems.

2. Enhanced Mechanical Reliability
TipLoc and CableLoc designs secure the probe tip and cable with 330 N (75 lbf) pull strength, reducing maintenance frequency and unexpected failures.

3. Optional FluidLoc Cable Protection
Prevents oil and liquid leakage, protecting sensitive control electronics and maintaining automation system reliability.

4. Full Component Interchangeability
Compatible with existing 3300 XL probes, cables, and Proximitor sensors, eliminating the need for individual calibration and reducing installation time.

5. Compliance with Industry Standards
Supports API 670 for linear range, mechanical configuration, and temperature stability, ensuring dependable operation in critical industrial automation applications.
