Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330101-00-18-15-12-05 |
Minimum Order Quantity: |
1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option(Minimum unthreaded length): |
0.0 in |
|
Overall Case Length Option(Minimum case length): |
1.8 in |
|
Total Length Option: |
1.5 meter (4.9 feet) |
|
Connector and Cable-Type Option: |
Miniature coaxial ClickLoc connector, FluidLoc cable |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Probe Case Thread: |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement: |
0.563 in |
|
Dimension: |
20.5x22.4x3.3cm |
|
Weight: |
0.12kg |
Description

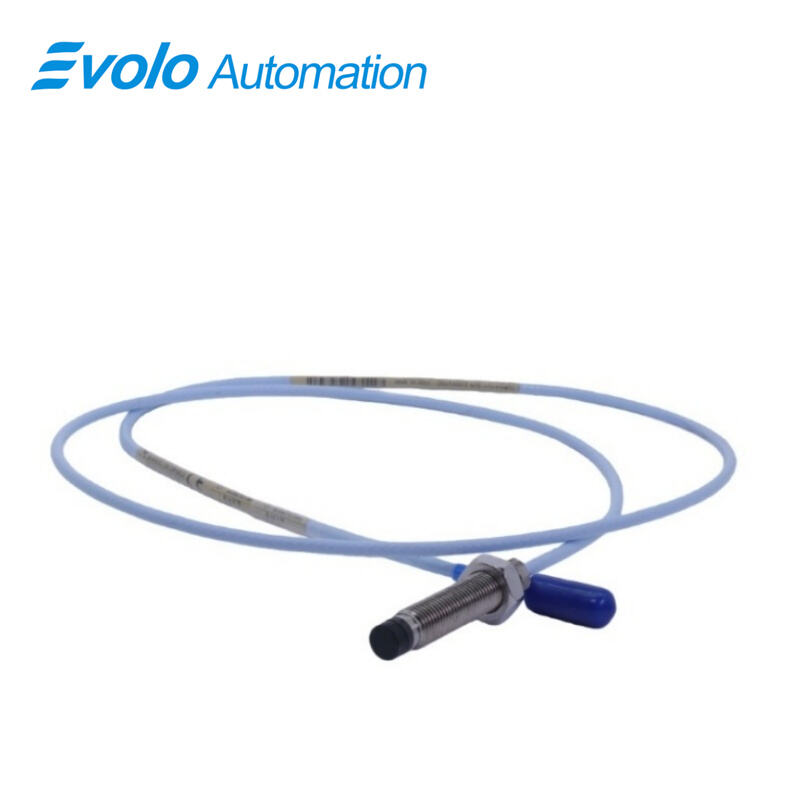

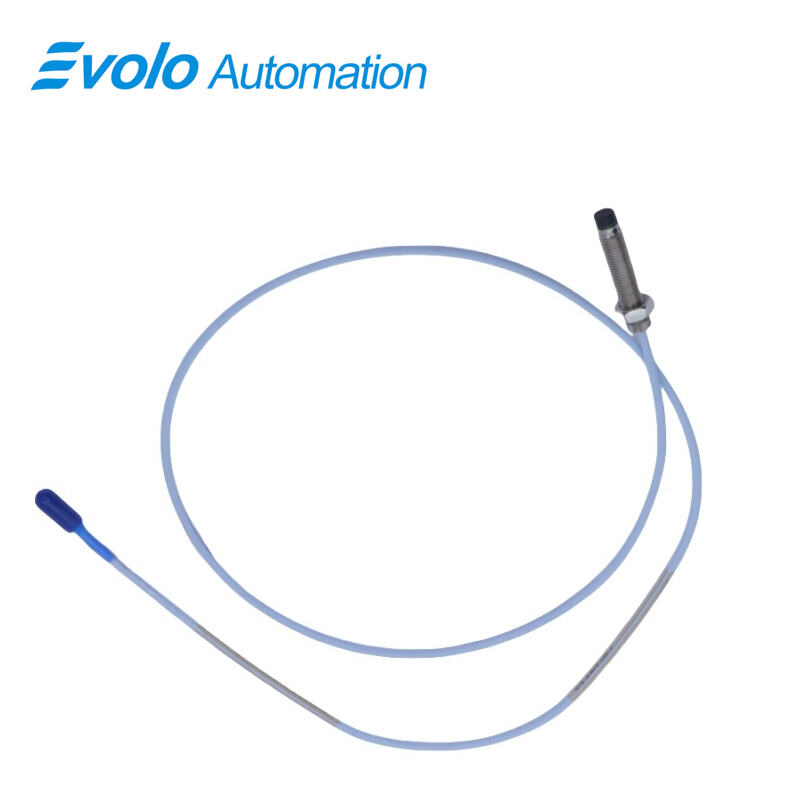

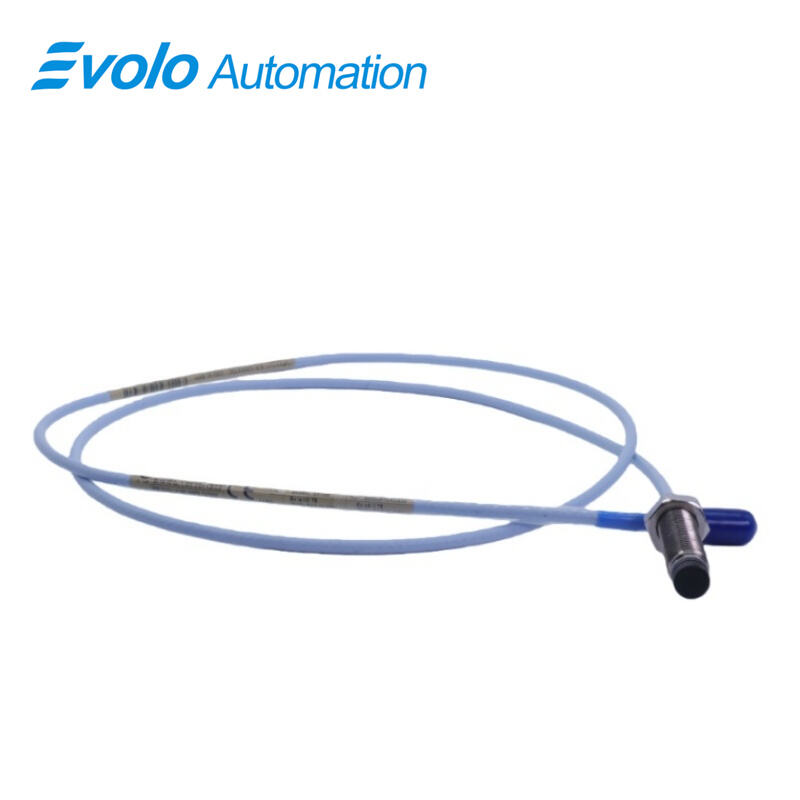

The 330101-00-18-15-12-05 3300 XL 8 mm Proximity Probe is a precision eddy current displacement sensor engineered for high-reliability industrial automation and rotating equipment monitoring. This 3300 XL 8 mm Proximity Probe converts the gap between the probe tip and a conductive target into a stable proportional voltage signal, enabling accurate measurement of both static shaft position and dynamic vibration. With a 2 mm (80 mils) linear measurement range, the probe is widely used in automated machinery protection and condition monitoring systems for fluid-film bearing machines.
Designed for demanding automation environments, the 330101-00-18-15-12-05 proximity probe features a compact 3/8-24 UNF threaded stainless-steel case, a 1.5 meter FluidLoc cable, and a Miniature ClickLoc coaxial connector that ensures secure, vibration-resistant connections. The FluidLoc cable technology prevents oil and process fluids from migrating through the cable into monitoring cabinets, improving long-term system reliability. With an operating temperature range of -52°C to +177°C, 50 ohm output resistance, and low supply sensitivity below 2 mV/V, the 3300 XL 8 mm Proximity Probe delivers consistent signal quality in harsh industrial automation systems. Multiple international approvals including CSA, ATEX, and IECEx further support its use in hazardous and regulated process environments.
Applications
Application 1: Radial Vibration Monitoring in Turbines
In automated turbine protection systems, the 3300 XL 8 mm Proximity Probe measures radial shaft vibration with high resolution. The 2 mm linear range and stable output allow early detection of imbalance and misalignment, reducing forced outages.
Application 2: Shaft Position Measurement in Compressors
The 330101-00-18-15-12-05 proximity probe provides accurate shaft position feedback in centrifugal and axial compressors. Its low supply sensitivity ensures consistent readings even during voltage fluctuations in automation power supplies.
Application 3: Keyphasor and Phase Reference Measurement
When configured for phase reference, the 3300 XL 8 mm Proximity Probe generates precise Keyphasor signals. This supports accurate speed calculation and phase analysis within automated vibration monitoring platforms.
Application 4: Speed and Overspeed Protection
Integrated into machinery protection systems, the 3300 XL 8 mm Proximity Probe supports tachometer and speed measurements. Reliable signal stability enhances overspeed protection logic in critical rotating machinery.
Application 5: Predictive Maintenance in Process Automation
The 330101-00-18-15-12-05 3300 XL 8 mm Proximity Probe supplies continuous vibration and displacement data to predictive maintenance systems. This data enables trend analysis that optimizes maintenance schedules and extends equipment service life.
Specifications
|
Operating and Storage Temperature: |
-52°C to +177°C (-62°F to +350°F) |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
Competitive Advantage
Competitive Advantage 1: International Hazardous Area Certifications
With CSA, ATEX, and IECEx approvals, the 3300 XL 8 mm Proximity Probe is suitable for hazardous automation environments, reducing compliance risk and simplifying global deployments.
Competitive Advantage 2: FluidLoc Cable for Enhanced System Protection
The FluidLoc cable prevents oil and liquid ingress through the cable core, significantly improving signal integrity and reducing maintenance costs in fluid-rich industrial applications.
Competitive Advantage 3: Wide Operating Temperature Range
Operating reliably from -52°C to +177°C, the 330101-00-18-15-12-05 proximity probe maintains accuracy in extreme thermal conditions without recalibration.
Competitive Advantage 4: Robust Mechanical and Electrical Design
Patented TipLoc and CableLoc technologies provide up to 330 N pull strength, ensuring mechanical stability and long-term durability in high-vibration automation environments.
Competitive Advantage 5: API 670 Performance Compliance and Interchangeability
The 3300 XL 8 mm Proximity Probe meets API 670 performance expectations and offers backward compatibility with legacy 3300 series components, lowering upgrade costs while enhancing automation system reliability.
