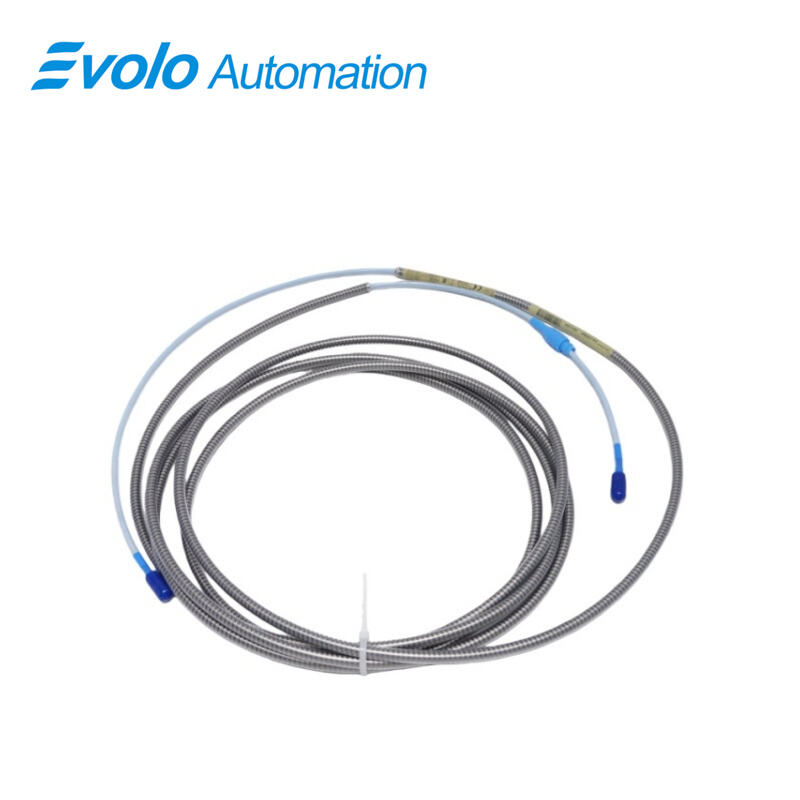

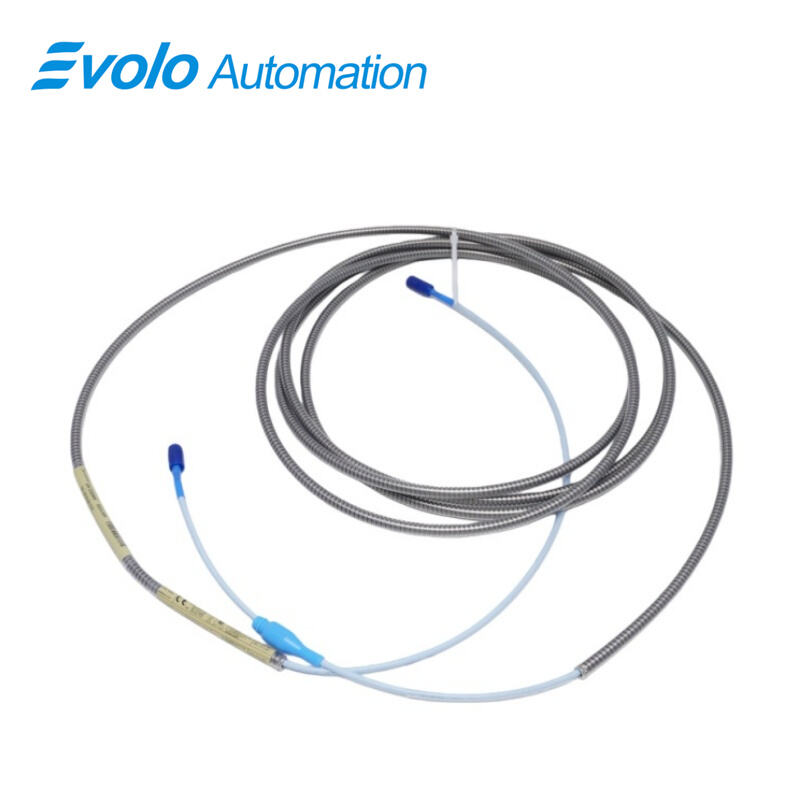

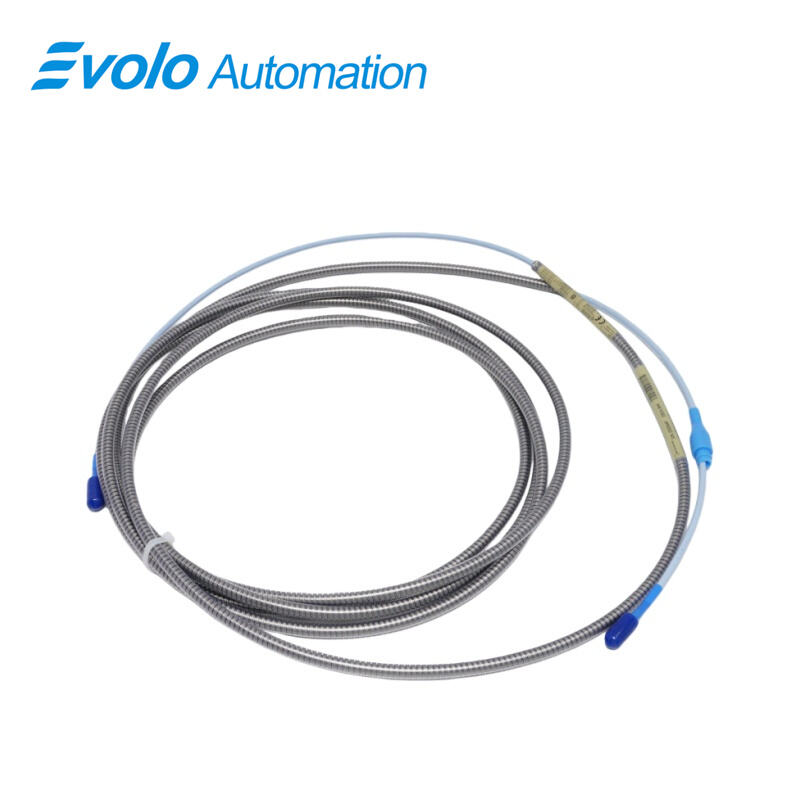

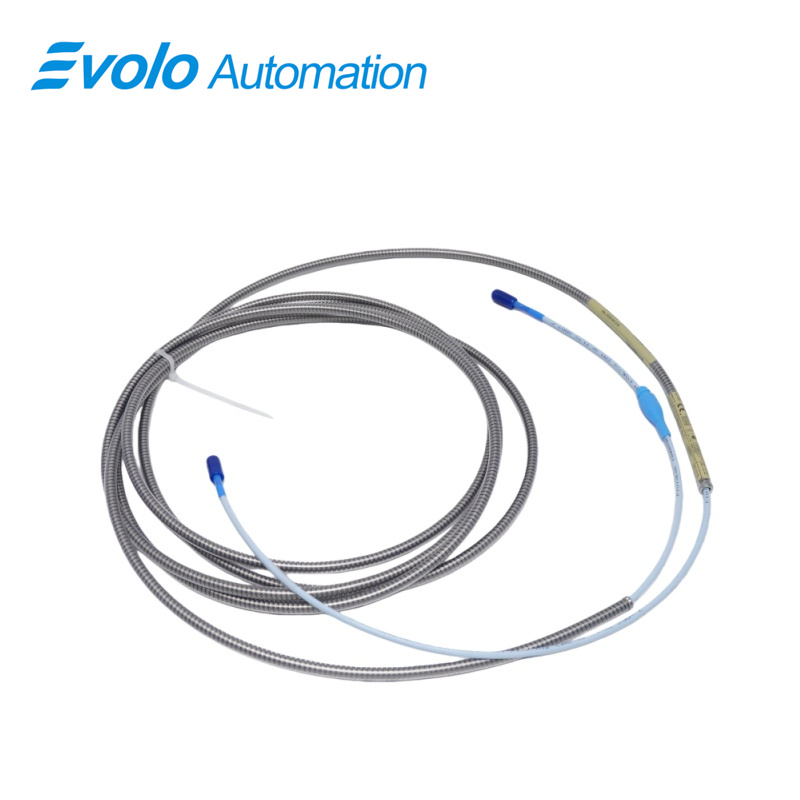

330130-060-02-05 3300 XL Standard Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330130-060-02-05
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330130-060-02-05 3300 XL Standard Extension Cable is a high-performance industrial automation accessory designed to connect 3300 XL 8 mm Proximity Probes to Proximitor sensors with precision and reliability. Constructed with 75Ω triaxial conductors and fluoroethylene propylene (FEP) insulation, this 6.0-meter (19.7 feet) cable ensures minimal signal loss, supporting frequencies up to 10 kHz over field wiring distances up to 305 meters (1000 feet). The cable maintains exceptional supply sensitivity, with less than 2 mV output change per volt of input variation, and a linear range of 2 mm (80 mils) for accurate vibration and position measurements. The standard connector protector safeguards against mechanical stress and environmental contaminants, while CSA, ATEX, and IECEx approvals make it suitable for use in hazardous and industrial environments. The 3300 XL Standard Extension Cable also supports full interchangeability with other 3300 XL system components, eliminating the need for separate calibration and enhancing system flexibility. Optional FluidLoc configurations prevent leakage of oil or fluids, making the cable ideal for installation in fluid-film bearing machinery and other high-performance industrial applications.

Applications

1. Vibration Monitoring in Rotating Machinery
The cable enables connection of 3300 XL probes to Proximitor sensors for real-time vibration monitoring in turbines, compressors, and pumps, ensuring accurate dynamic measurement of shaft displacement.

2. Position Measurement in Fluid-Film Bearings
Facilitates precise static position measurements in high-speed bearings, supporting accurate gap monitoring and preventive maintenance scheduling.

3. Keyphasor Reference Signal Transmission
Delivers clean, low-noise signals from 3300 XL probes to monitoring systems for Keyphasor phase and speed detection, critical for rotational machinery synchronization.

4. Hazardous Area Instrumentation
With CSA, ATEX, and IECEx approvals, the cable is suitable for connecting probes in classified zones, enabling safe and reliable operation in petrochemical and offshore facilities.

5. Extended Field Wiring Applications
Supports distances up to 305 meters (1000 feet) without significant signal degradation,

Specifications

Competitive Advantage

1. High-Frequency Performance
The FEP-insulated 75Ω triaxial design ensures accurate transmission of signals up to 10 kHz, enabling precise vibration analysis even under long-distance wiring conditions.

2. Excellent Supply Voltage Stability
Less than 2 mV change per volt of input voltage variation provides consistent and reliable measurements, critical in sensitive industrial monitoring applications.

3. Mechanical and Environmental Durability
Standard cable with connector protector and optional FluidLoc design resists mechanical stress, oil ingress, and harsh environmental conditions, extending operational lifetime.

4. Full Interchangeability
Compatible with all 3300 XL probes and Proximitor sensors, eliminating the need for bench calibration, reducing installation time, and enhancing system modularity.

5. Hazardous Area Compliance
Certified for CSA, ATEX, and IECEx use, ensuring safe deployment in flammable or explosive environments while maintaining measurement accuracy and reliability.
