Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
CC-TCNT01 51308307-175 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
CC-TCNT01 51308307-175 |
|
Product Type: |
C300 Controller Module |
|
Dimensions: |
22 × 12 × 5.3 cm |
|
Weight: |
0.22 kg |
|
Power Function: |
24 VDC power distribution to controller module |
|
Supply Rating: |
0.311 A |
|
Processor: |
High-speed embedded processor |
|
Memory: |
Integrated RAM and flash (control strategies and diagnostics) |
|
Communication: |
FTE (Fault Tolerant Ethernet), I/O Link, ControlNet |
|
Mounting: |
UCN chassis / 35 mm DIN rail |
|
Power Supply: |
24 VDC |
|
Operating Temperature: |
0°C to +60°C |
|
Housing Material: |
Flame-retardant ABS plastic (UL 94 V-0 compliant) |
Description

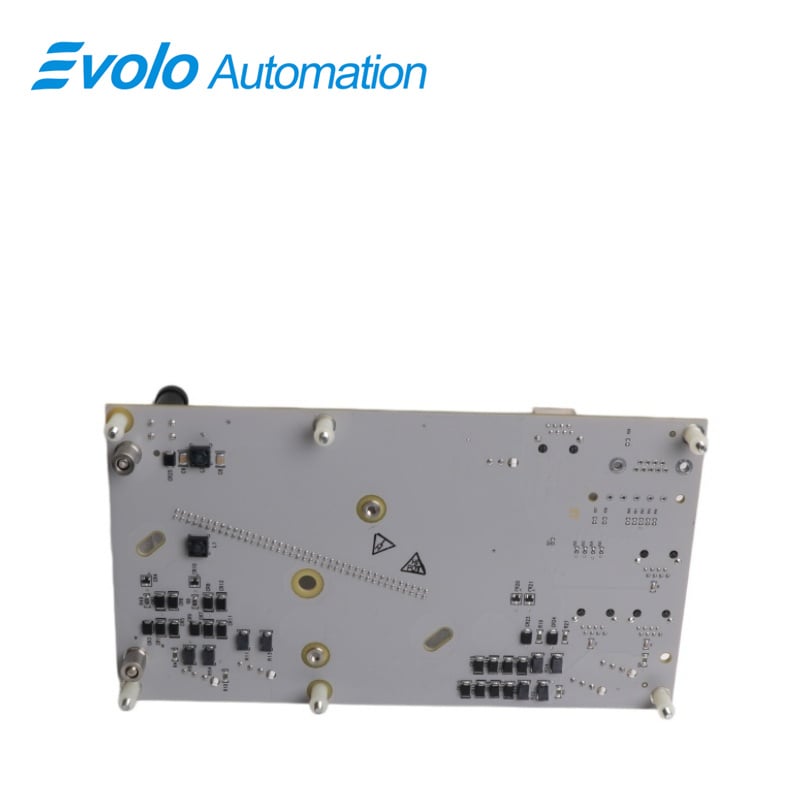

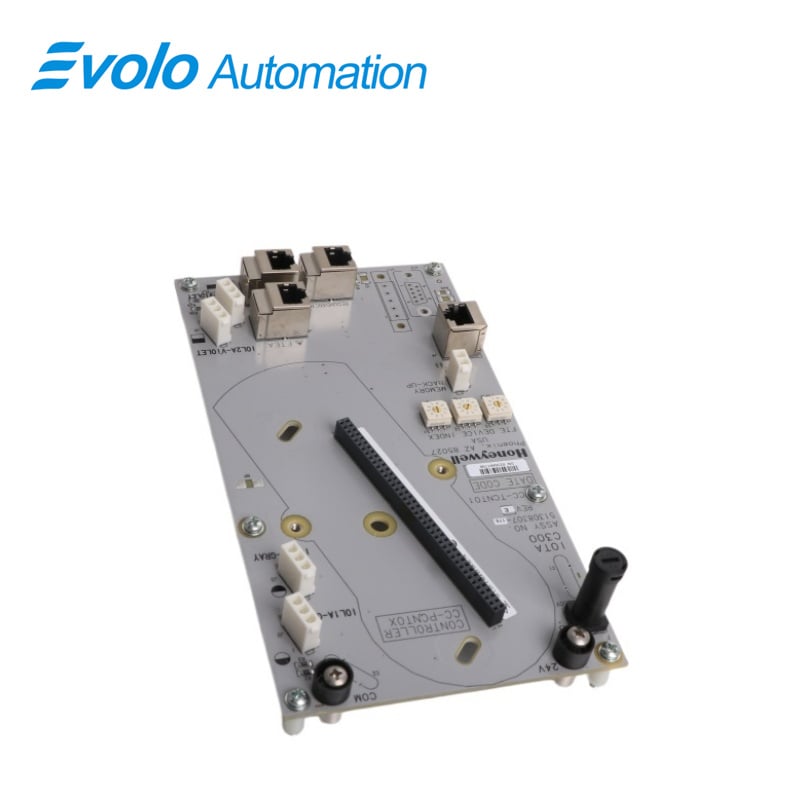

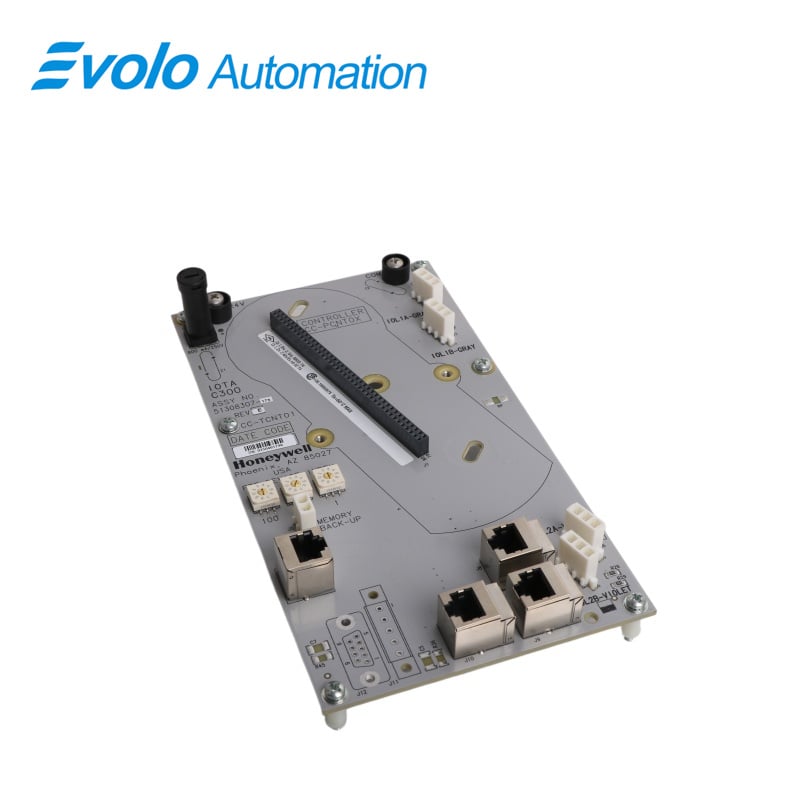

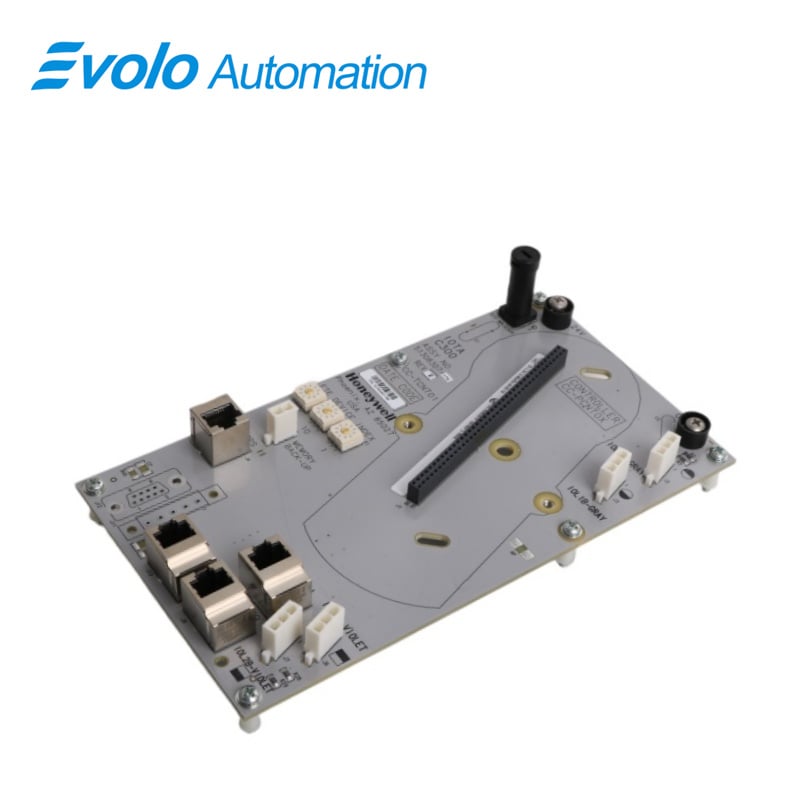

The Honeywell CC-TCNT01 51308307-175 is a C300 controller module used in the Experion PKS C300 system. It distributes two DC power supplies to the upper-level control hardware, ensuring sufficient power for operation. Through a dedicated channel on the base, it allows data from all field input/output hardware to smoothly enter the control hardware for processing.
Applications
Oil refineries: Core DCS controller managing complex PID loops with redundant industrial Ethernet ensuring continuous operation of critical units.
Thermal power plants: Real-time coordination control of boilers and turbines with fast embedded processing for generator parameter regulation and protection.
Large chemical plants: Execution of complex process control and interlock logic with durable enclosure design suitable for harsh chemical environments.
Coal gasification plants: Centralized control of distributed gasifier nodes enabling efficient and low-latency process coordination across regions.
Features
Deterministic Control: Executes control strategies with predictable timing
Redundancy Support: Enables controller redundancy for high availability
Integrated Diagnostics: Monitors health and performance of control loops and hardware
Fast I/o Processing: Interfaces with Series C I/O modules for real-time data acquisition
Scalable Architecture: Supports expansion across large distributed systems
Secure Communication: Uses FTE for robust and fault-tolerant networking
FAQ
Q: What is the input voltage of the CC-TCNT01 51308307-175?
A: 24 VDC.
Q: What is the housing material of the CC-TCNT01 51308307-175?
A: Flame-retardant ABS plastic.
Q: Which communication protocols are supported by the CC-TCNT01 51308307-175?
A: FTE, I/O Link, and ControlNet.
Q: What is the rated current of the CC-TCNT01 51308307-175?
A: 0.311 A.
Q: What is the allowable operating temperature range of the CC-TCNT01 51308307-175?
A: 0°C to +60°C.
