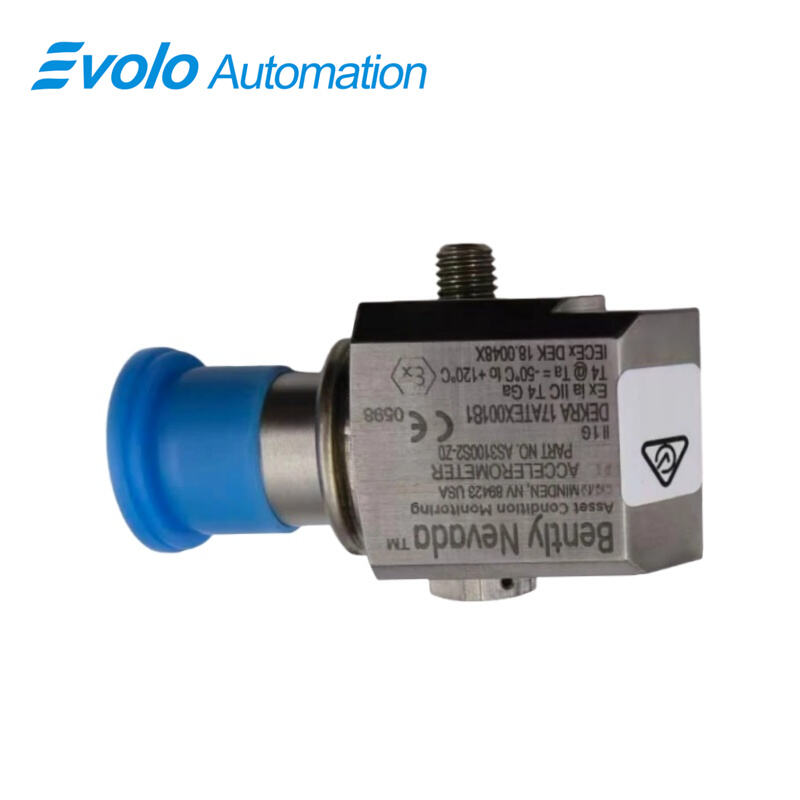

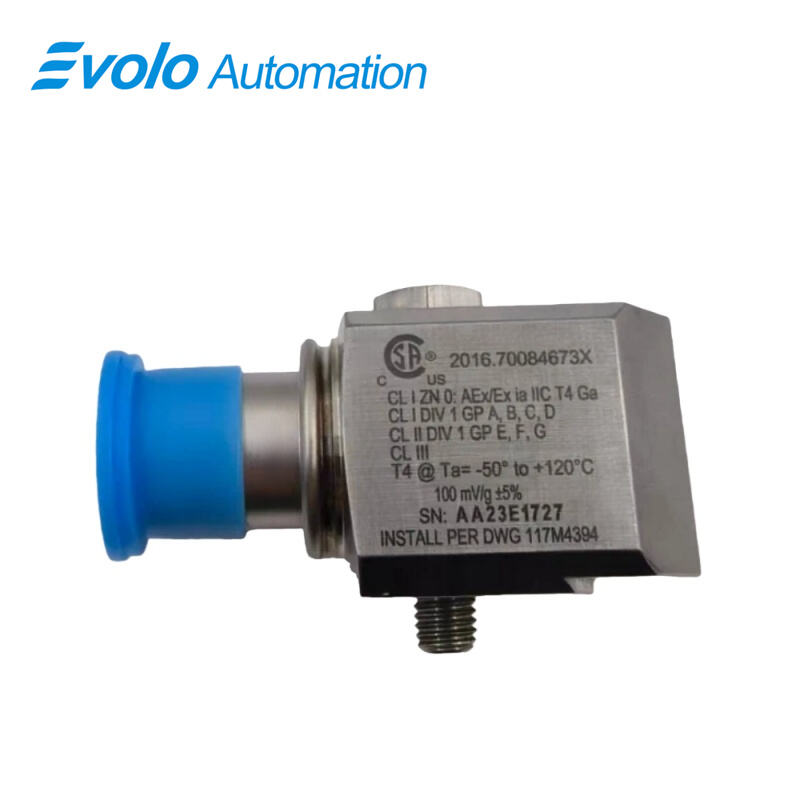

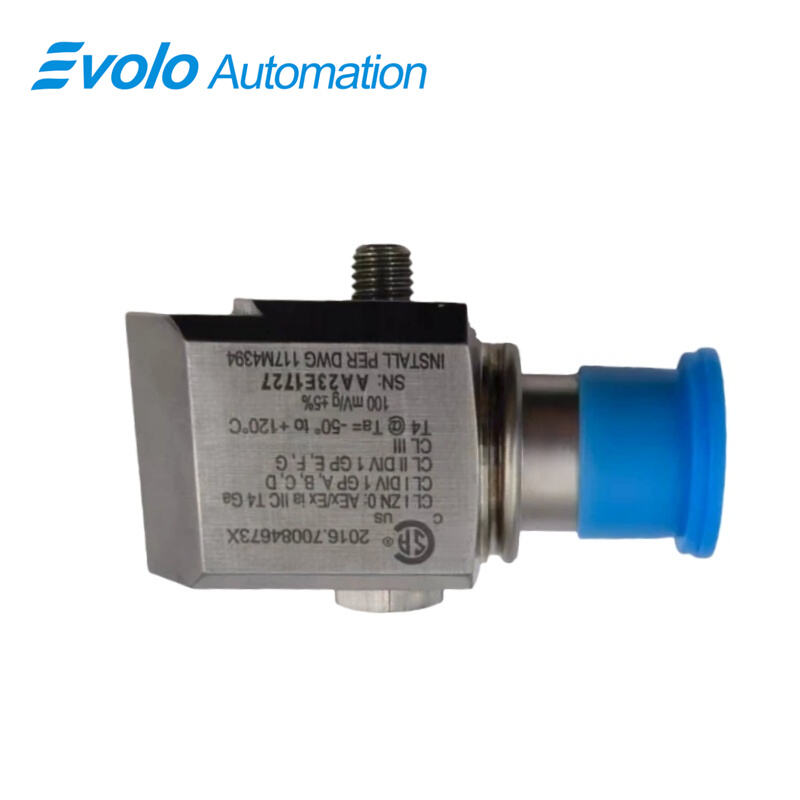

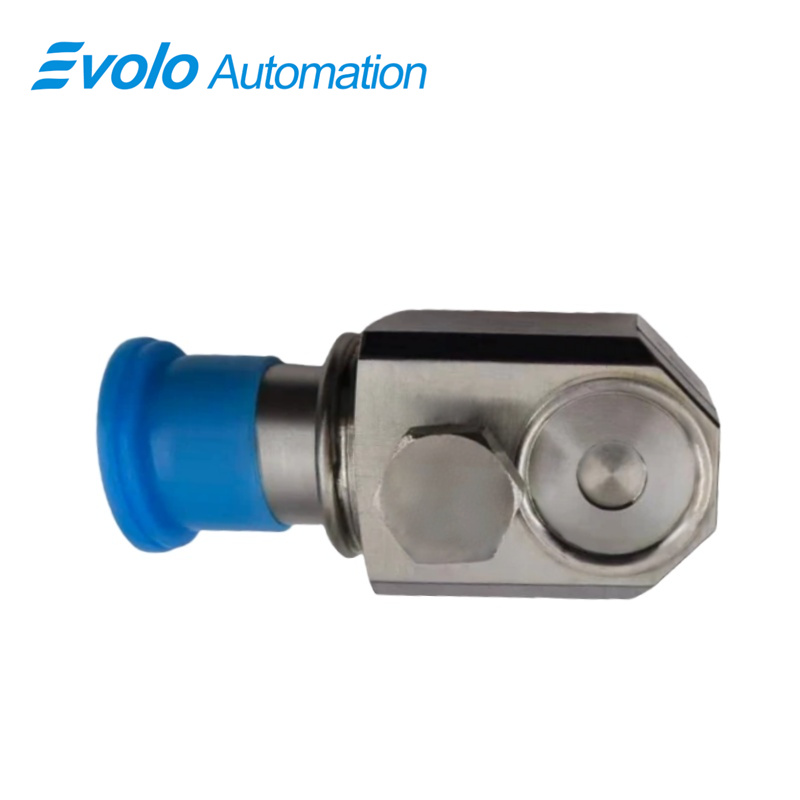

AS3100S2-Z0 Side Exit Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	AS3100S2-Z0
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The AS3100S2-Z0 Side Exit Sensor is an advanced IEPE (Integrated Electronics Piezo-Electric) accelerometer designed for high-precision vibration monitoring in harsh industrial environments. With a sensitivity of 100 mV/g and an acceleration range up to 80 g peak, this sensor captures high-fidelity dynamic signals across a broad frequency range of 0.7–10,000 Hz, ensuring accurate monitoring of critical machinery. Its side-exit cable configuration allows installation in compact or constrained spaces while maintaining hermetic sealing, stainless steel construction, and corrosion resistance, making it suitable for aggressive environments, including hazardous areas rated Zone 0.

The AS3100S2-Z0 incorporates an integrated amplifier for strong signal output, minimizing electrical noise (700 μg broadband, spectral noise 10 μg/√Hz @10 Hz, 5 μg/√Hz @100–1000 Hz), and operates reliably over a temperature range of -50°C to 120°C. The sensor is case isolated, EMI/RFI shielded, and offers reverse wiring and ESD protection, ensuring long-term durability in industrial automation and condition monitoring systems. With bias voltage of 12 Vdc, max output impedance 100 Ω, and voltage source 18–30 Vdc, it interfaces seamlessly with standard constant-current supplies for process control, predictive maintenance, and vibration analysis.

Applications

1. Rotating Machinery Vibration Monitoring
The AS3100S2-Z0 provides precise vibration measurements up to 80 g, allowing detection of imbalance, misalignment, and bearing faults in motors, pumps, and compressors. Frequency response of 0.7–10 kHz ensures even high-speed machinery vibrations are captured for predictive maintenance.

2. Hazardous Area Process Monitoring
Rated Zone 0, this sensor can safely monitor equipment in explosive atmospheres, such as chemical reactors or oil & gas pipelines, with robust stainless construction and hermetic sealing providing corrosion resistance and safe operation.

3. Compact Space Installations
Its side-exit cable design and compact dimensions (28 × 9.2 × 7.5 cm) allow installation in confined machinery housings where traditional top-exit accelerometers cannot fit, ensuring seamless integration into tight spaces.

4. Walk-Around Condition Monitoring Programs
Lightweight at 0.14 kg, the AS3100S2-Z0 is suitable for portable vibration analysis tools, enabling maintenance personnel to conduct regular inspections without complex mounting, reducing downtime and labor costs.

5. High-Temperature Industrial Applications
With a temperature tolerance of -50°C to 120°C, the sensor can operate reliably in furnaces, engines, and other high-heat environments while maintaining sensitivity ±5% at 25°C, providing consistent vibration readings.

Specifications

Competitive Advantage

1. High-Fidelity Vibration Measurement
The sensor’s piezoelectric element and integrated amplifier deliver exceptional dynamic range and linearity, capturing even subtle vibrations with minimal noise (spectral noise 5–10 μg/√Hz).

2. Harsh Environment Resilience
Constructed with stainless steel, hermetic seal, and corrosion resistance, the AS3100S2-Z0 withstands aggressive industrial conditions and can be hosed down or submersed with proper connectors.

3. Safety in Hazardous Zones
Certified Zone 0, it allows safe deployment in explosive or flammable environments, ensuring compliance with strict industrial safety regulations.

4. Easy Integration and Reliability
With reverse wiring and ESD protection, case isolation, and EMI/RFI shielding, the sensor minimizes installation errors, prevents ground loops, and maintains long-term operational stability.

5. Flexible Mounting Options
The side-exit cable and compact, lightweight design allow installation in confined spaces or mobile walk-around programs, expanding monitoring coverage without compromising accuracy or durability.
