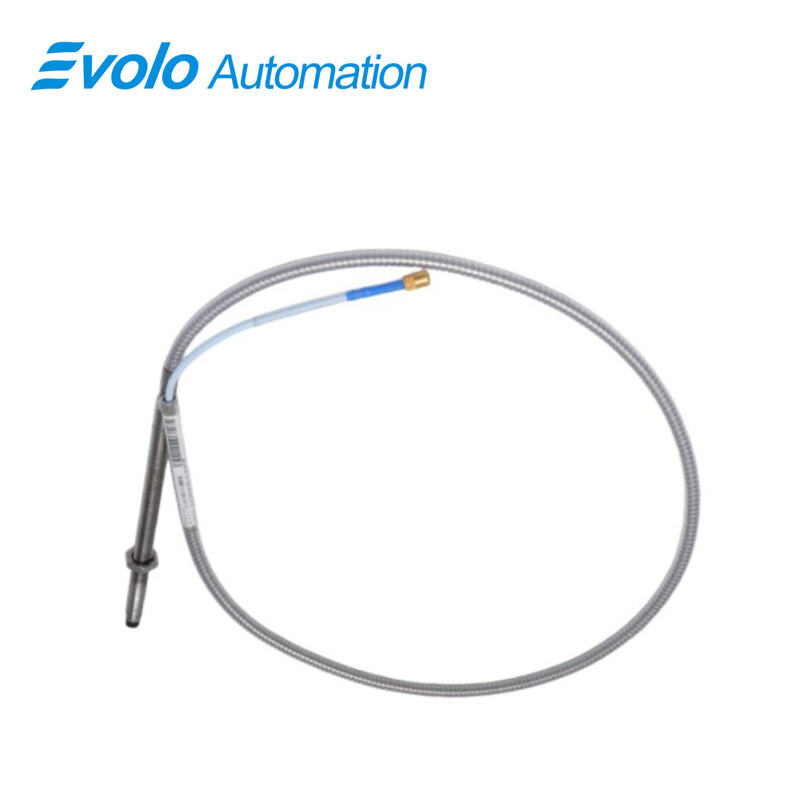

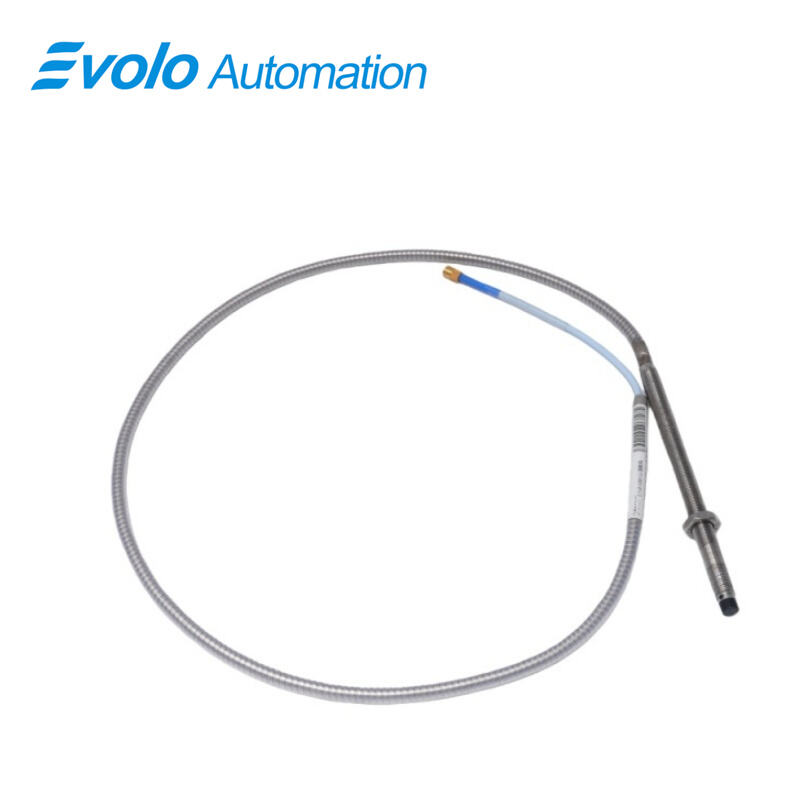

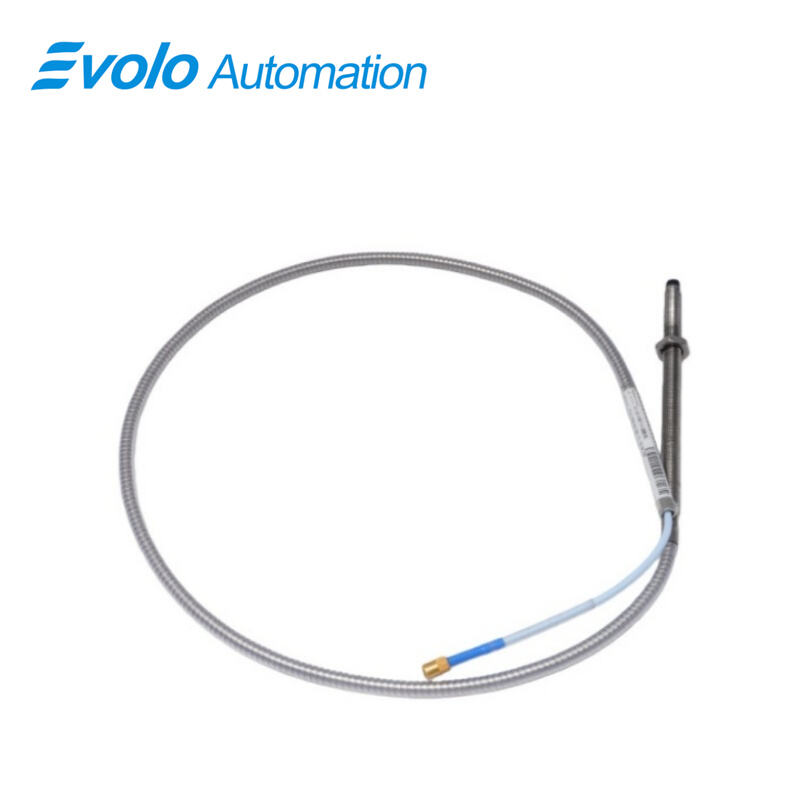

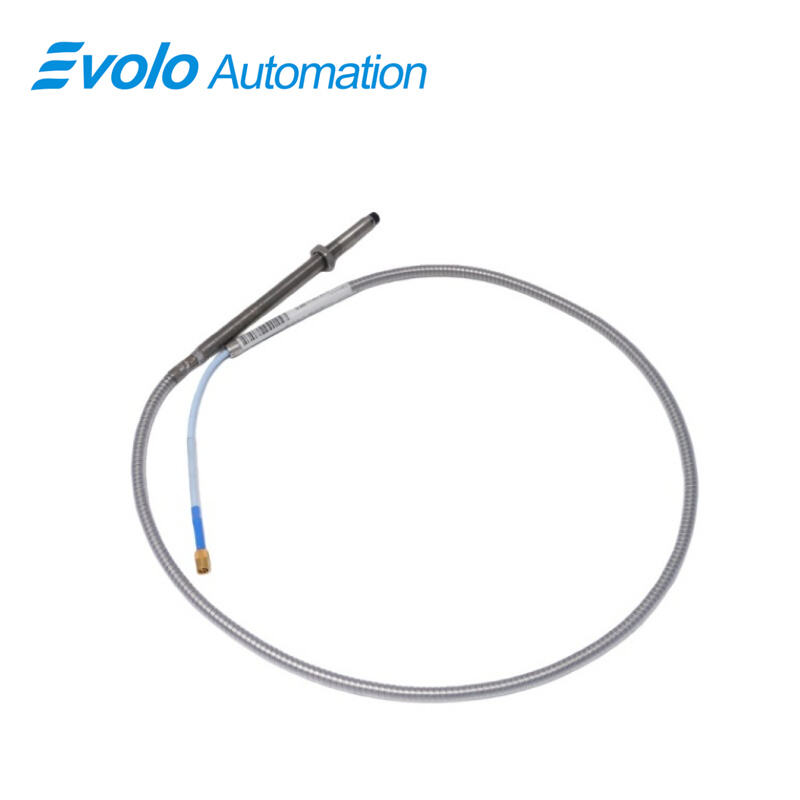

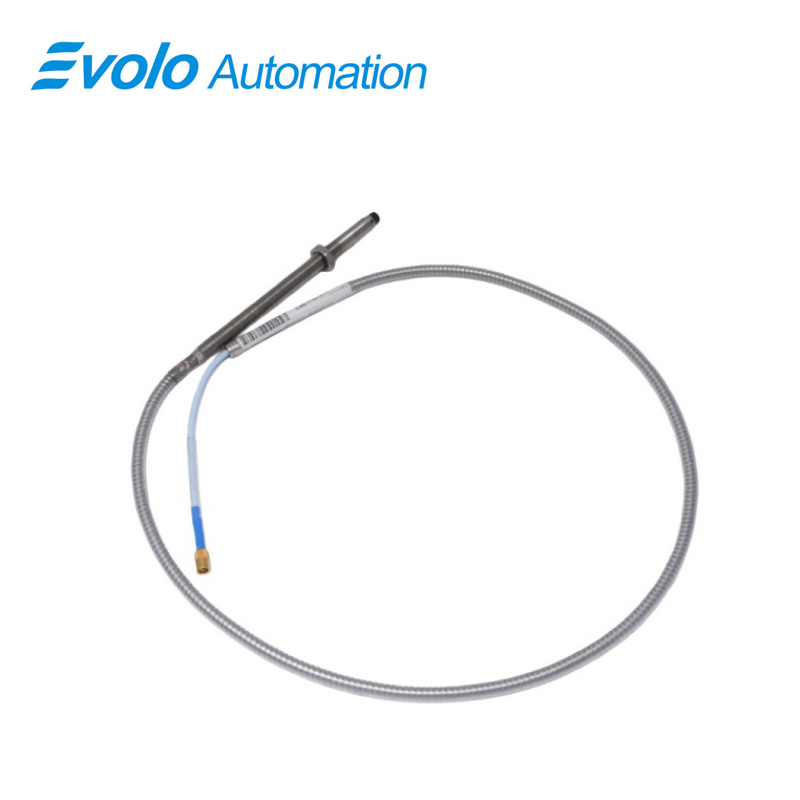

330104-00-17-90-02-CN 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330104-00-17-90-02-CN
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330104-00-17-90-02-CN 3300 XL 8 mm Proximity Probe is a high-precision sensor designed for industrial automation and machinery condition monitoring, providing accurate non-contact vibration and displacement measurements. Its output voltage is directly proportional to the distance between the probe tip and the measured conductive surface, enabling precise monitoring of both static (position) and dynamic (vibration) conditions.

This probe supports a total system length of 9.0 meters (29.5 feet) and comes with a miniature coaxial ClickLoc connector and standard cable, ensuring secure and reliable connections for automated monitoring systems. Engineered to operate in harsh environments, the probe withstands temperatures from -52°C to +177°C (-62°F to +350°F) and maintains performance under high electrical variation with supply sensitivity of less than 2 mV per volt. The robust M10x1 probe thread and 15 mm maximum thread engagement provide reliable mechanical installation, while TipLoc and CableLoc technologies enhance mechanical durability, providing 330 N (75 lbf) pull strength and protecting against cable disconnections in high-vibration industrial applications. Optional FluidLoc cables prevent leakage of oil or other liquids, ensuring safe operation in fluid-laden environments.

Compliant with API 670 standards, this probe is fully interchangeable with other 3300 XL series components, supporting flexible deployment in retrofits or new automation installations without bench calibration. Its extended case length of 170 mm allows mounting in both constrained spaces and larger industrial setups, providing a versatile solution for precision monitoring in automated machinery.

Applications

1. Fluid-Film Bearing Vibration Measurement
Monitors bearing vibrations with ±0.01 mm sensitivity, allowing predictive maintenance and preventing unscheduled machinery downtime.

2. Shaft Position Monitoring
Measures radial shaft displacement in turbines and compressors, ensuring automated alignment and protection against misalignment-induced failures.

3. Keyphasor Signal Generation
Provides precise phase reference for rotor dynamics analysis, improving accuracy of automated condition monitoring and rotor imbalance detection.

4. High-Speed Rotating Machinery Monitoring
Captures rapid dynamic changes in high-speed machinery, enabling automated control systems to detect early-stage anomalies.

5. Retrofit Automation Systems
Supports integration with legacy 3300 series components, enabling upgrades to modern automation without complete system replacement, reducing installation costs and downtime.

Specifications

Competitive Advantage

1. Extended Linear Range
The 8 mm probe delivers a 2 mm linear range, providing accurate measurements over larger gaps than standard probes in compact industrial machinery.

2. Mechanical Durability
TipLoc and CableLoc designs provide 330 N pull strength, reducing probe and cable failure in high-vibration automated environments.

3. High-Temperature Operation
Operational range from -52°C to +177°C ensures reliable automation monitoring in extreme industrial conditions, including steam turbines and high-friction machinery.

4. Interchangeability and Compliance
Fully compatible with 3300 XL and non-XL 3300 series components, eliminating the need for bench calibration while complying with API 670 for mechanical configuration and accuracy.

5. Fluid and Environmental Protection
Optional FluidLoc cable and robust CSA, ATEX, IECEx approvals enable safe operation in environments exposed to oils, lubricants, or hazardous conditions, enhancing overall automation reliability.
