Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
CC-TAIX01 51308363-175 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Description |
Specification |
|
Model |
CC-TAIX01 51308363-175 |
|
Part name |
Analog Input Module |
|
Dimensions |
14.6x12.1x7.2cm |
|
Weight |
0.26kg |
|
Current consumption |
0.320 A @ 24 VDC |
|
Heat dissipation |
2.464 W |
|
IOTA current |
0.195 A |
|
Operating temperature |
-20°C to +60°C |
|
Storage temperature |
-40°C to +85°C |
|
Accuracy |
±0.1% of full scale |
|
Input signal types |
Voltage, Current |
|
Number of channels |
8 |
Description

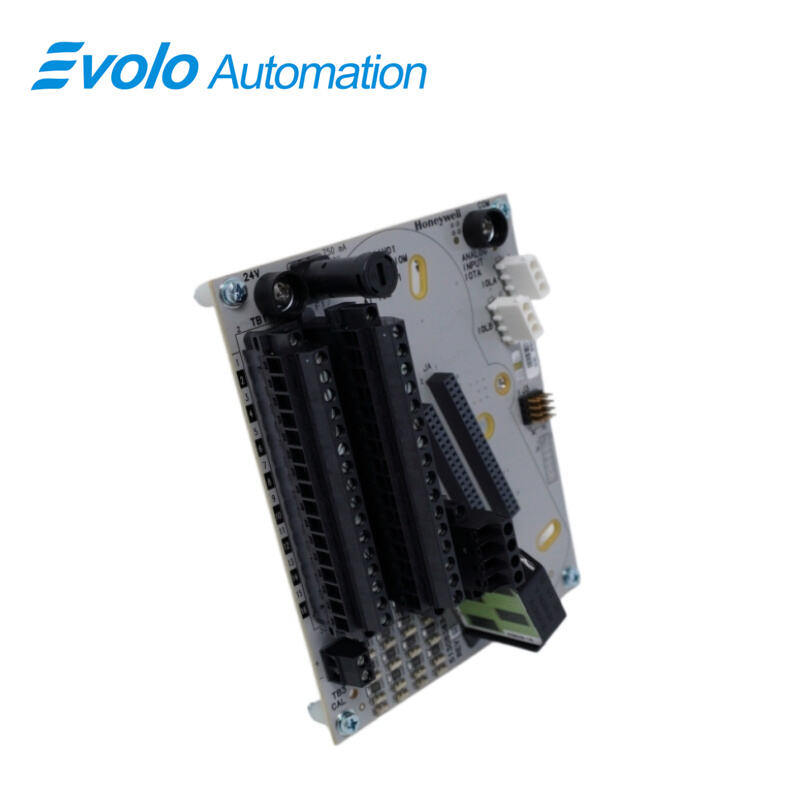

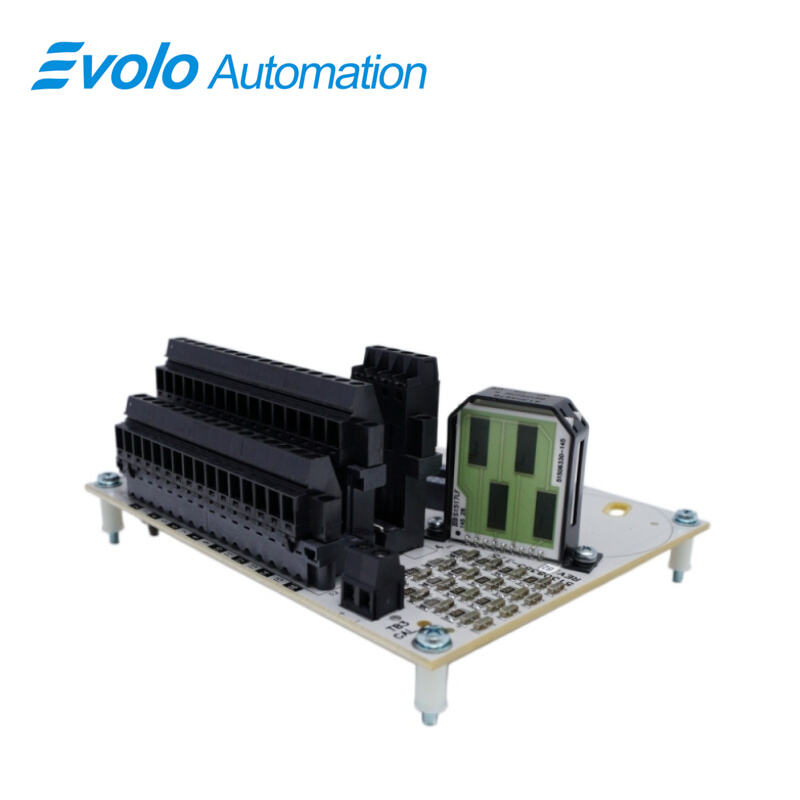

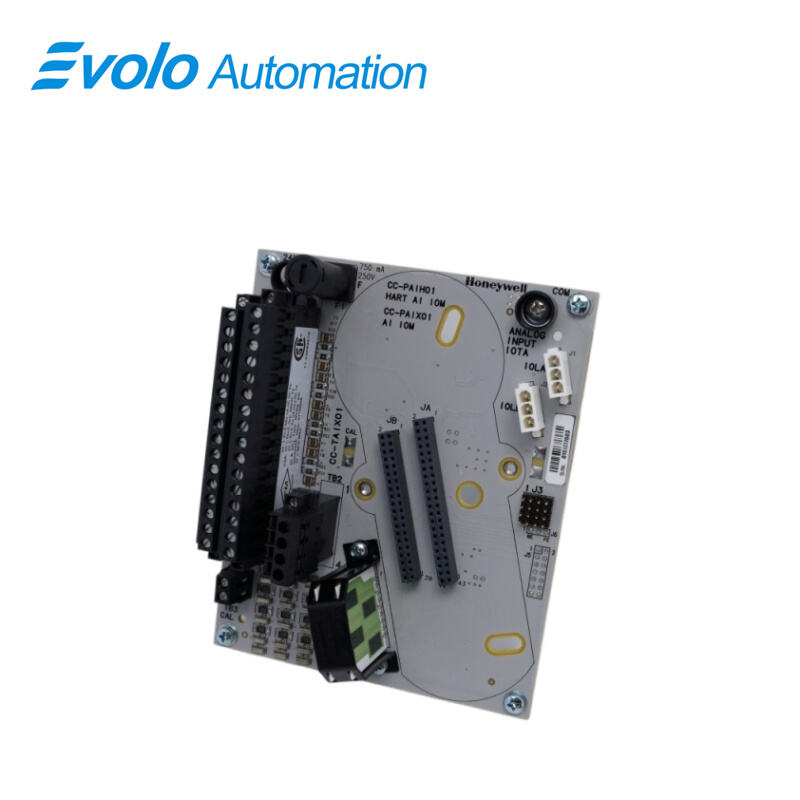

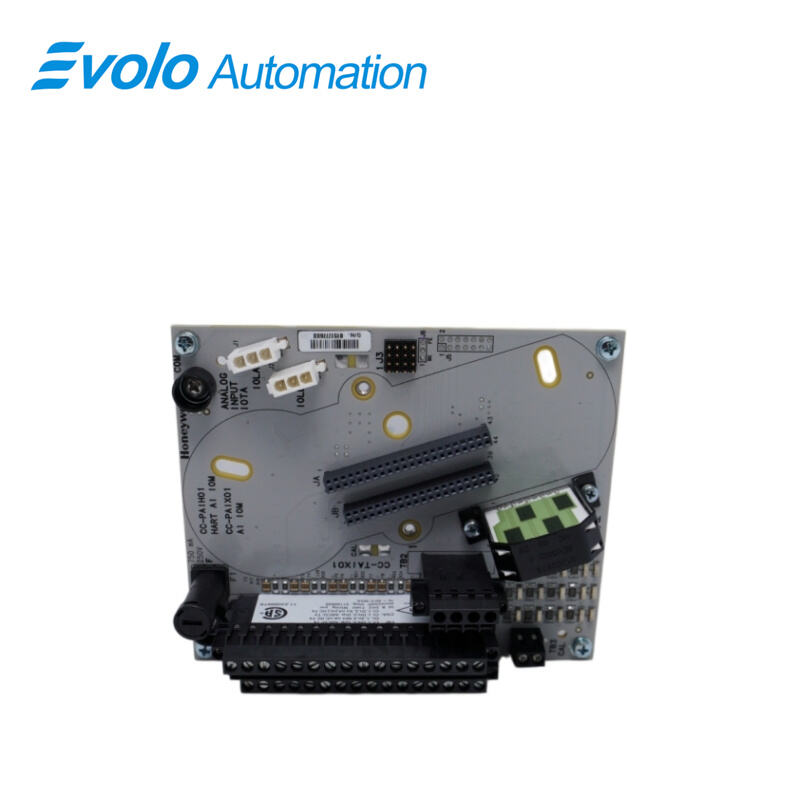

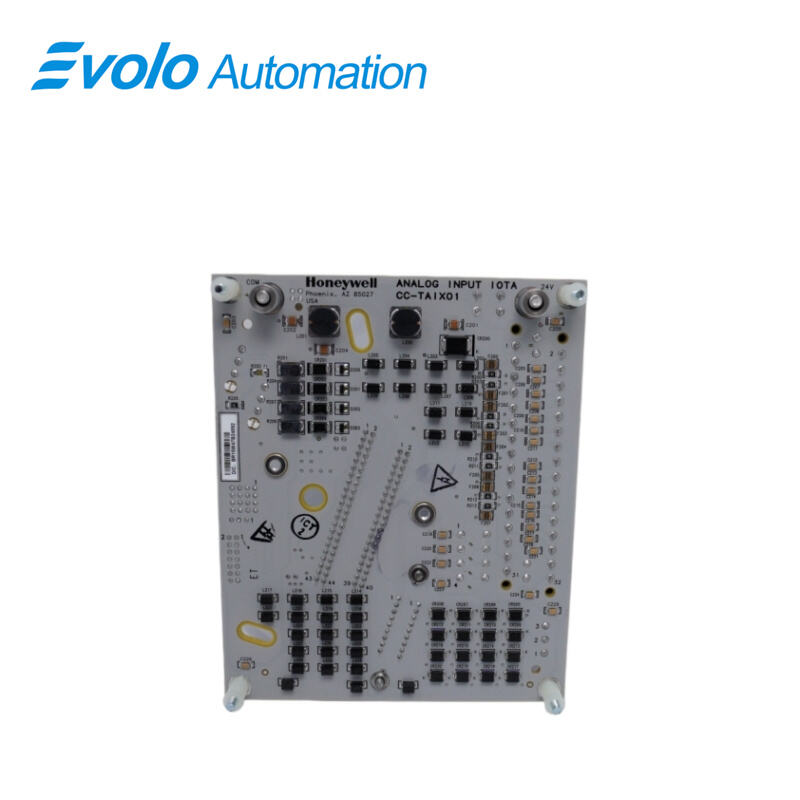

The Honeywell CC-TAIX01 51308363-175 is an analog input module designed for the Experion Process Knowledge System (PKS). It facilitates the accurate conversion of analog signals from field devices into digital data for processing within the distributed control system (DCS). This module supports a variety of input types, including voltage, current, resistance, and temperature sensors, making it suitable for diverse industrial applications.
Applications
Crude Oil Refineries: Collect pressure and temperature signals for safe refining control.
Fertilizer Plants: Provide stable level and temperature monitoring in ammonia synthesis systems.
Fine Chemical Plants: Enable high-precision flow control to ensure product consistency.
Thermal Power Plants: Collect boiler pressure signals under strong electromagnetic interference.
Troubleshooting and Maintenance Recommendations
Troubleshooting: If signal channel deviation occurs, first verify the contact impedance of the IOTA terminals; use the Experion software diagnostic function to view the module power consumption status in real time and check if data fluctuations are caused by overheating.
Maintenance Recommendations: It is recommended to regularly clean the bottom ventilation openings of the IOTA to ensure optimal heat dissipation performance; when operating in extreme temperature environments, monitor the impact of its heat dissipation on the overall temperature rise of the cabinet.
FAQ
Q: What is the typical current consumption of the CC-TAIX01 51308363-175 under 24 Vdc supply?
A: Typical operating current is 0.320 A, providing high energy efficiency.
Q: What signal accuracy can the CC-TAIX01 51308363-175 achieve?
A: It offers ±0.1% full-scale accuracy for precision process control applications.
Q: How many channels does the CC-TAIX01 51308363-175 support, and what signals can it receive?
A: It supports 8 independent channels for standard voltage and current analog inputs.
Q: How does the CC-TAIX01 51308363-175 perform under extreme temperatures?
A: It operates from -20°C to 60°C and withstands storage temperatures up to 85°C.
Q: Does the CC-TAIX01 51308363-175 require extra cooling during operation?
A: No. With only 2.464 W heat dissipation, standard cabinet ventilation is sufficient.
