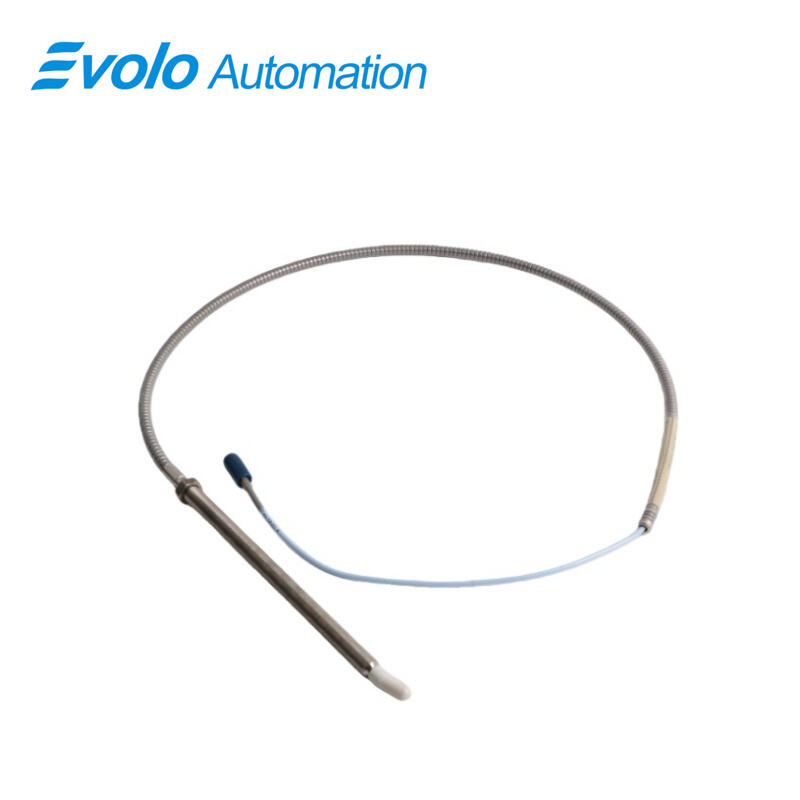

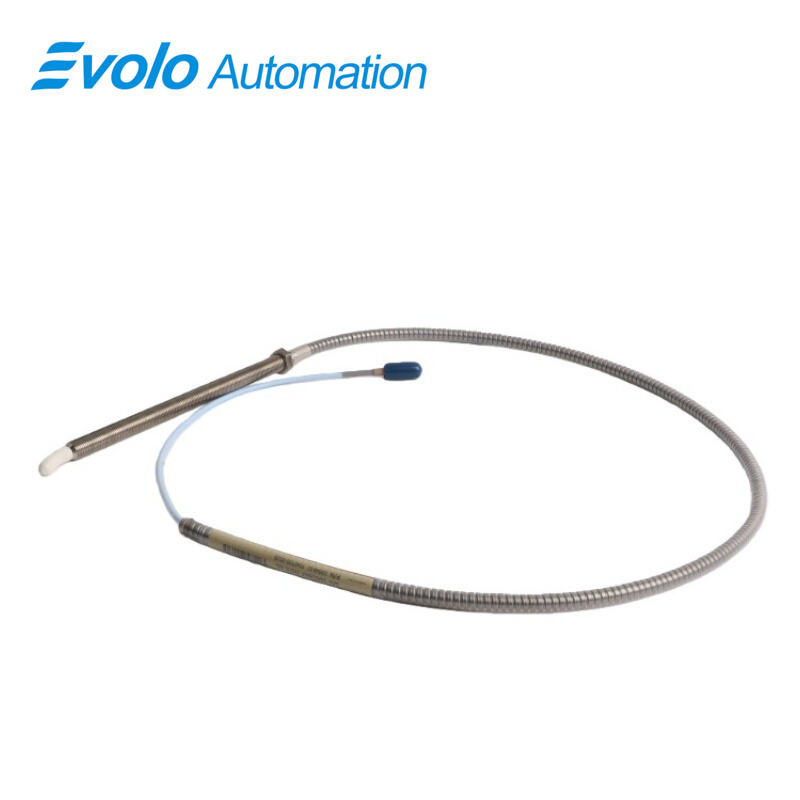

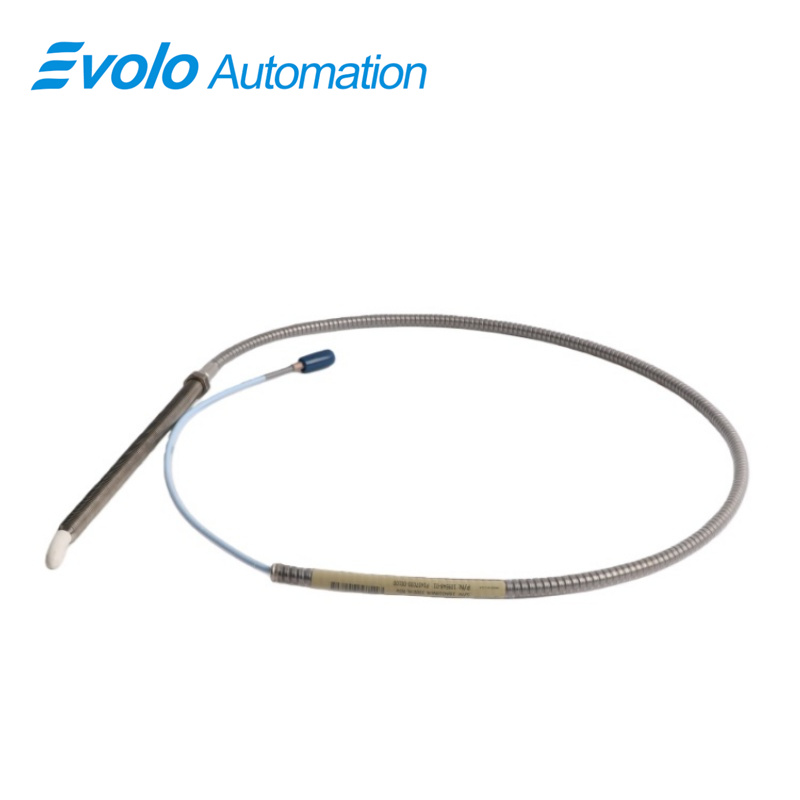

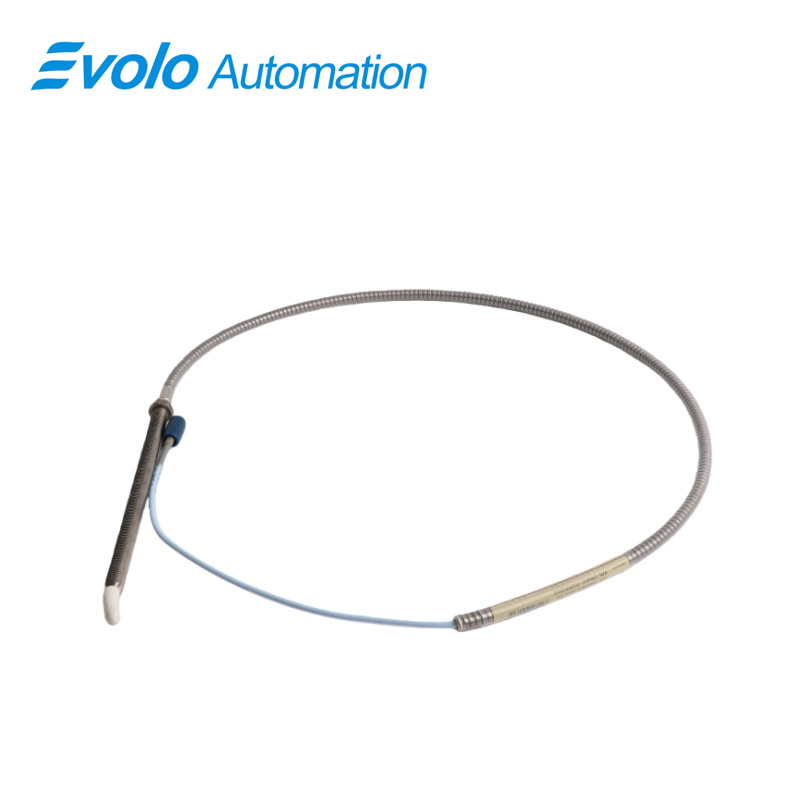

AAP1407030-00100 Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	AAP1407030-00100
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The AAP1407030-00100 Proximity Probe is an advanced eddy current sensor engineered for high-precision, non-contact displacement measurement in industrial automation systems. Featuring an 8 mm probe diameter and an M8 x 1 threaded housing, this sensor reliably detects ferromagnetic conductive materials within a measurement range of 0 to 2.0 mm (0 to 0.08 in). Its 4–20 mA DC output ensures seamless integration with process control systems, while the miniature coaxial ClickLoc connector and 0.5 m cable provide flexible connectivity in compact installations. Designed to operate across a wide temperature range of -40°C to +125°C (-40°F to +257°F) and powered by 24 VDC ±10%, the AAP1407030-00100 delivers precise monitoring for rotating machinery, turbines, pumps, and other critical industrial equipment. Optional reverse mount and threaded configurations allow for versatile installation, making it ideal for automation applications where accuracy, durability, and reliability are paramount. With a maximum thread engagement of 12 mm, this probe ensures secure mounting and consistent performance in harsh industrial environments.

Applications

1. Turbine Shaft Monitoring
The probe monitors shaft vibration and displacement in gas and steam turbines, maintaining accuracy within ±0.01 mm. Real-time 4–20 mA output allows automated control systems to adjust operating conditions, reducing wear and downtime.

2. Pump Rotor Alignment
AAP1407030-00100 is used to detect rotor misalignment in centrifugal and axial pumps. Continuous displacement measurement enables predictive maintenance, preventing costly failures.

3. Motor and Generator Vibration Analysis
Non-contact measurement of motor and generator shafts ensures early detection of imbalances or eccentricity, maintaining optimal performance. Typical measurement range covers 0–2 mm with high linearity.

4. Industrial Automation Robotics
Installed on robotic actuators or linear drives, the sensor tracks precise linear and angular displacement, supporting high-speed automation processes with minimal signal noise and ≤500 Ω load resistance compatibility.

5. Aerospace and High-Speed Machinery Testing
In high-speed rotating machinery tests, the probe provides accurate, high-temperature-resistant displacement readings, supporting analysis for material fatigue, resonance, and dynamic balancing up to 125°C.

Specifications

Competitive Advantage

1. High Accuracy in Harsh Environments
Eddy current technology ensures precise displacement measurement of ±0.01 mm, even in extreme temperatures from -40°C to +125°C.

2. Compact and Flexible Design
With an 8 mm probe diameter, miniature ClickLoc connector, and 0.5 m cable, the sensor fits tight spaces without compromising performance or durability.

3. Easy Integration with Automation Systems
Standard 4–20 mA DC output and ≤500 Ω load resistance allow seamless interfacing with PLCs, DCS, and monitoring systems.

4. Versatile Mounting Options
Threaded M8 x 1 housing and optional reverse mount allow secure and flexible installation for diverse industrial applications.

5. Durable and Reliable Operation
Constructed for ferromagnetic conductive materials, the probe withstands vibration, shock, and high-temperature conditions, ensuring consistent performance in critical industrial processes.
