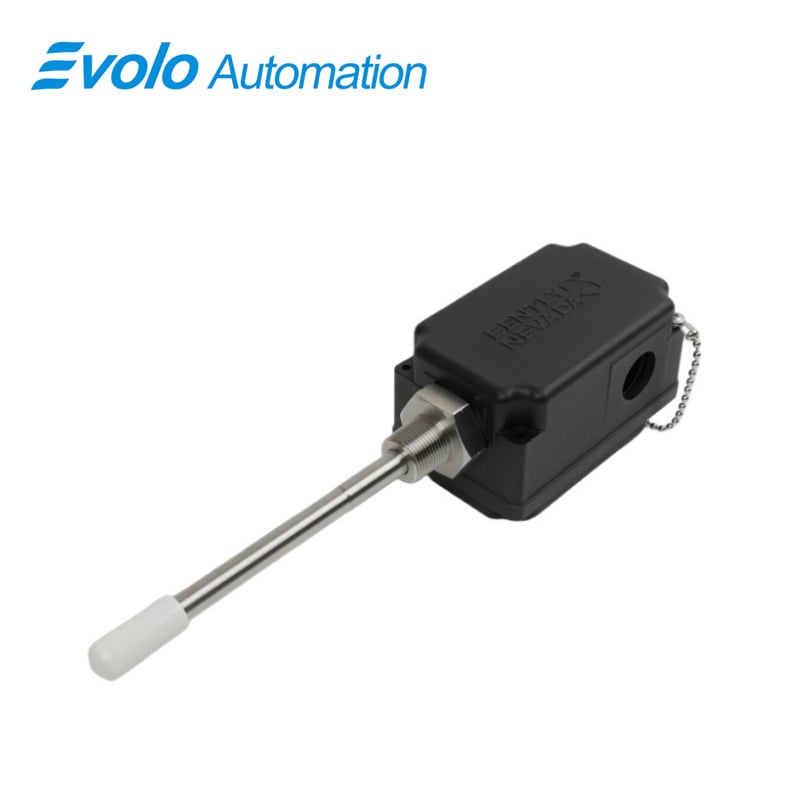

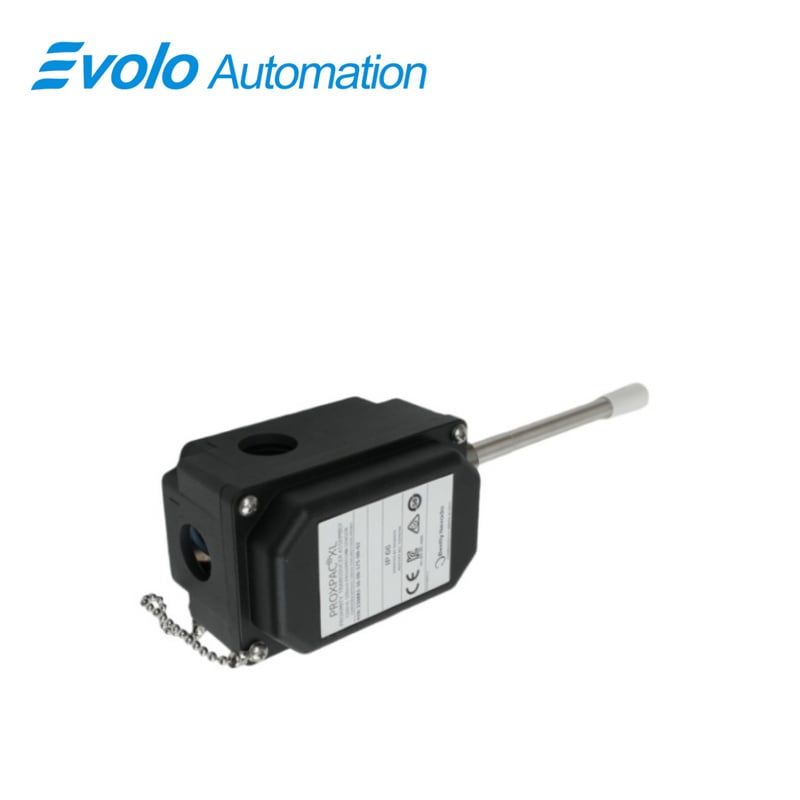

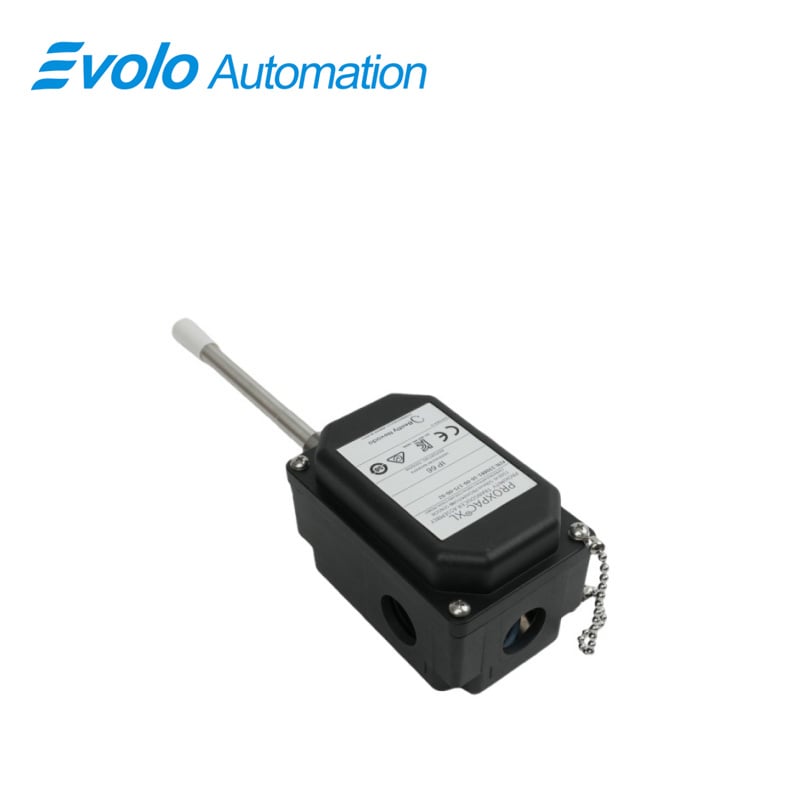

330881-BR-07-155-06-02 PROXPAC XL Proximity Transducer

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330881-BR-07-155-06-02
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The PROXPAC XL Proximity Transducer (330881-BR-07-155-06-02) is a high-precision industrial transducer engineered for automated condition monitoring and machinery protection. This model features a 155 mm probe penetration with a 70 mm standoff adapter, making it suitable for deep or recessed shaft installations where reliable vibration and displacement measurement is critical. It includes a 3300 XL Proximitor sensor without approvals, forming a self-contained sensing assembly that eliminates the need for extension cables or separate Proximitor housings. Field wiring connects directly to monitoring systems, simplifying installation and reducing potential failure points.

The transducer housing is crafted from Polyphenylene Sulfide (PPS) reinforced with glass and conductive fibers, delivering mechanical robustness, chemical resistance, and electrostatic dissipation. With IP66 and Type 4X ratings, it performs reliably in extreme industrial environments, including wet, dusty, or corrosive locations. Electrical specifications include <2 mV supply sensitivity per volt, 50 Ω output resistance, and compatibility with 0.2–1.5 mm² (16–24 AWG) field wiring. The linear range is 2 mm (80 mils) with a recommended gap of 1.27 mm (50 mils), suitable for shafts from 50.8 mm (2.0 in) minimum to 76.2 mm (3.0 in) recommended. Operating temperature ranges from -52°C to +100°C (-62°F to +212°F), with storage capability up to +105°C (+221°F), making it ideal for turbines, motors, compressors, and automated industrial machinery.

Applications

1. Large Turbine Vibration Monitoring
The 155 mm penetration and 70 mm standoff allow precise vibration measurement in large turbine rotors, improving predictive maintenance accuracy.

2. Long-Reach Motor Shaft Monitoring
Ideal for deep motor housings, this transducer ensures accurate shaft displacement readings in industrial motor control systems.

3. Compressor and Pump Condition Assessment
Provides real-time vibration and displacement data for rotating equipment, enabling automated control and predictive maintenance strategies.

4. Harsh Industrial Environments
IP66 and Type 4X ratings allow reliable operation in dusty, wet, or corrosive conditions, ensuring continuous monitoring of critical assets.

5. Direct Integration into Automation Systems
Self-contained design eliminates additional Proximitor housings, allowing straightforward field wiring to machinery monitoring systems.

Specifications

Competitive Advantage

1. Integrated 3300 XL Sensor
Removes the need for separate Proximitor housings or extension cables, simplifying installation and reducing failure points.

2. High-Strength PPS Housing
Glass- and fiber-reinforced PPS provides superior mechanical stability and electrostatic charge dissipation for long-term reliability.

3. Deep Shaft Measurement
155 mm probe penetration and 2 mm linear range enable accurate measurements even in recessed or extended shaft applications.

4. Environmentally Resistant
Rated IP66 and Type 4X, the transducer withstands harsh industrial conditions, extending operational life.

5. Easy Installation and Wiring
Supports 3/4-14 NPT mounting threads and 16–24 AWG wiring, making integration into automated monitoring systems straightforward and reliable.
