330103-00-15-10-02-00 3300 XL 8 mm Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330103-00-15-10-02-00
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

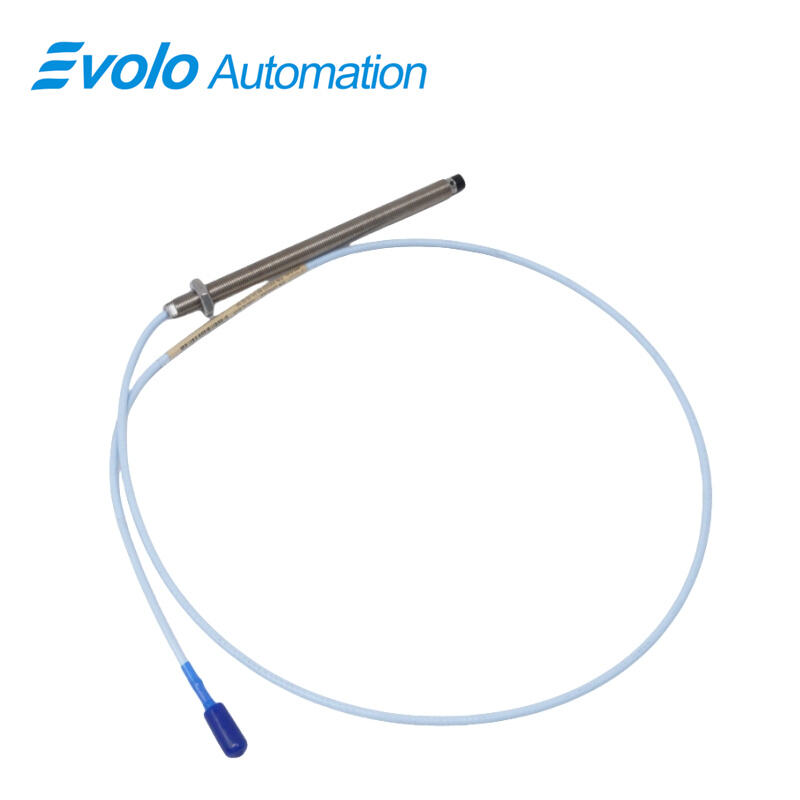

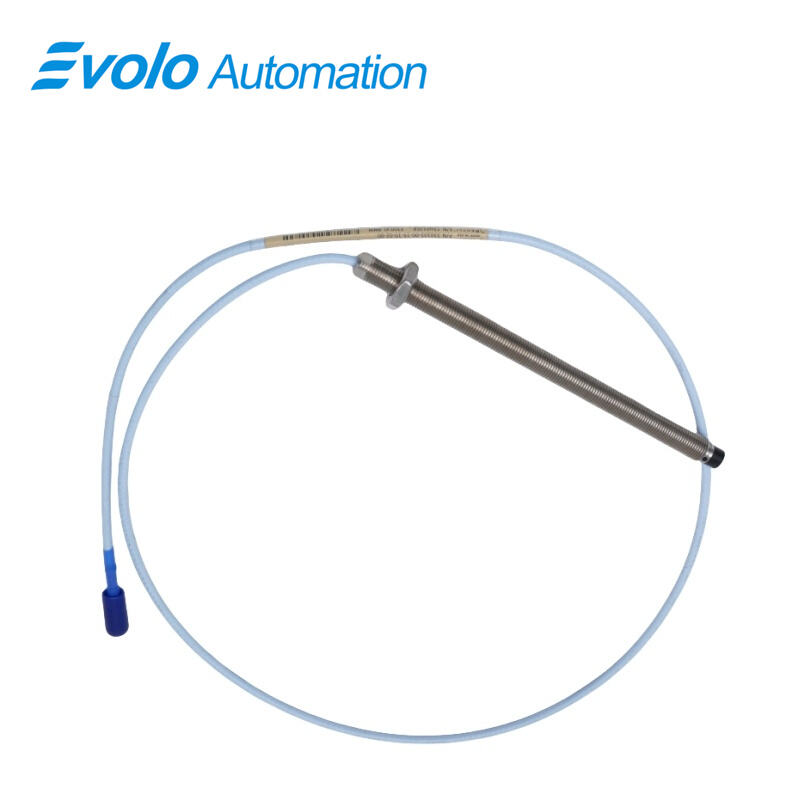

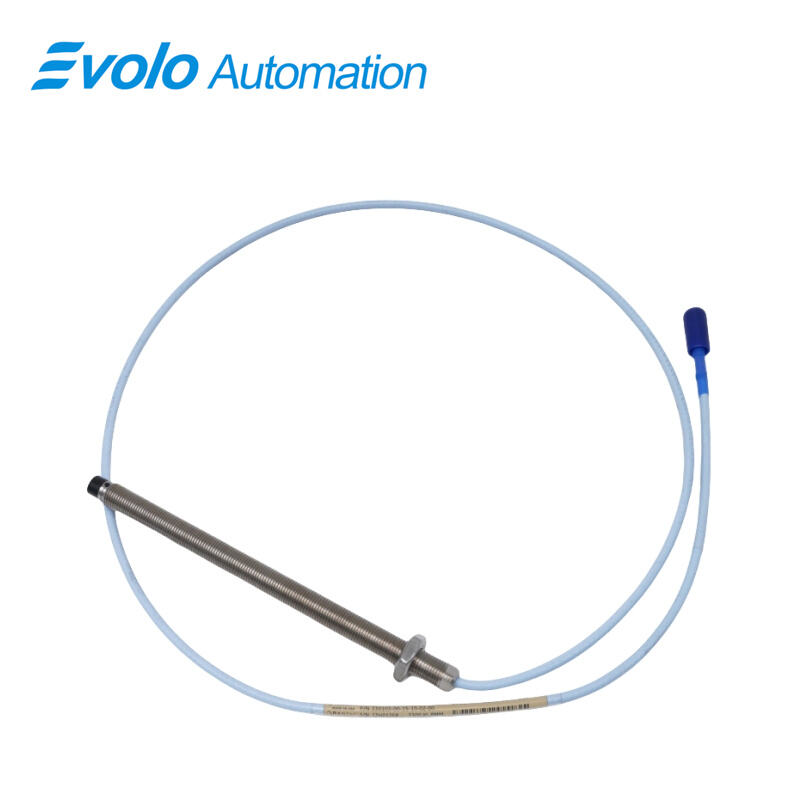

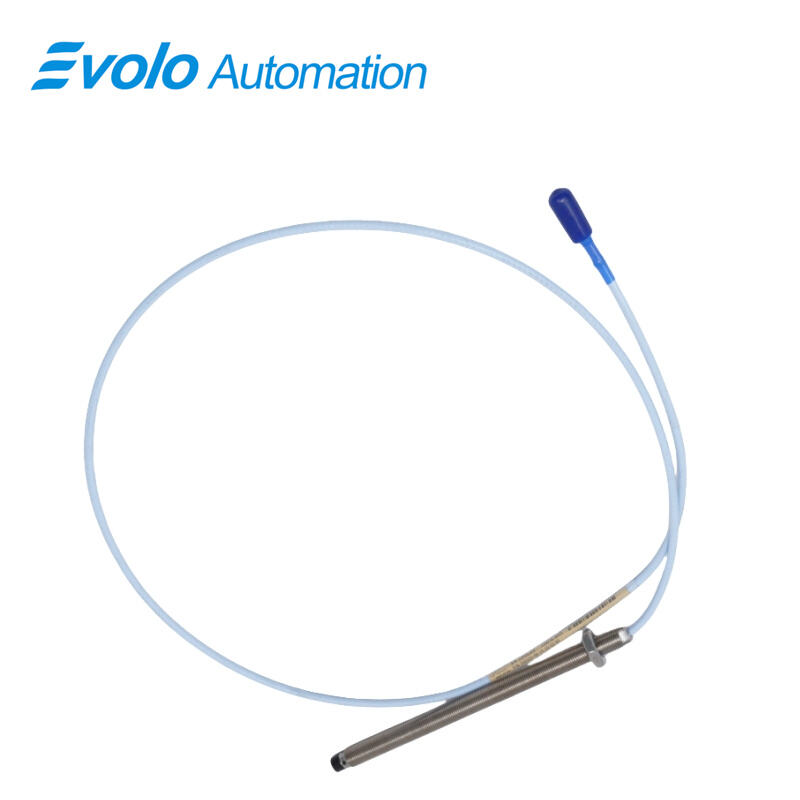

The 330103-00-15-10-02-00 3300 XL 8 mm Proximity Probe is a high-performance eddy current transducer designed for precise monitoring of position and vibration in industrial automation environments. With a minimum unthreaded length of 0 mm, overall case length of 150 mm, and total cable length of 1.0 meter (3.3 feet), the probe provides accurate measurements in compact and restricted spaces. Operating across a broad temperature range of -52°C to +177°C (-62°F to +350°F), the probe maintains a linear measurement range of 2 mm (80 mils) and ensures less than 2 mV variation in output per volt of supply change. Its M10x1 thread accommodates a maximum engagement length of 15 mm, supporting secure installation on rotating machinery. Equipped with a miniature coaxial ClickLoc connector, 50 Ω output resistance, and extension cable capacitance of 69.9 pF/m (21.3 pF/ft), the 3300 XL system delivers precise and reliable data for both static and dynamic applications. This probe, though not requiring agency approvals, supports full compatibility with 3300 series Proximitor sensors and extension cables, enabling straightforward component replacement and minimizing downtime. Patented TipLoc and CableLoc designs enhance the mechanical integrity of the probe and cable, while optional FluidLoc configurations prevent oil or fluid leakage, ensuring reliable operation in automated industrial systems.

Applications

1. Rotating Equipment Vibration Analysis
The 3300 XL 8 mm probe monitors dynamic vibration on fluid-film bearings with a linear range of 2 mm, producing precise 4–20 mA output signals that enable predictive maintenance and early fault detection in turbines, compressors, and pumps.

2. Shaft Position Measurement
With a stable output sensitivity (<2 mV per volt supply change), the probe provides high-accuracy static position measurement for turbine, motor, or gearbox shafts, ensuring alignment and operational efficiency within ±0.01 mm tolerances.

3. Keyphasor Signal Generation
The system outputs reliable phase reference signals for Keyphasor applications, supporting speed monitoring and rotational synchronization in automated control systems without the need for additional calibration.

4. Compact Machine Monitoring
The 1-meter total length and 0 mm unthreaded design make this probe ideal for applications where installation space is limited, such as compact pumps, small turbines, or confined gear housings, maintaining measurement integrity in restricted areas.

5. Oil-Lubricated Equipment Protection
Optional FluidLoc cables prevent oil or fluid leakage through the probe cable interior, enabling continuous monitoring in oil-lubricated turbines, pumps, or compressors while maintaining system cleanliness and signal reliability.

Specifications

Competitive Advantage

1. Compact Design for Restricted Spaces
The 0 mm unthreaded length and 150 mm case length allow installation in tight spaces, providing measurement capability where standard probes may not fit, without sacrificing performance.

2. Enhanced Mechanical Durability
Patented TipLoc molding and CableLoc design increase probe and cable pull strength up to 330 N (75 lbf), reducing mechanical failure risks during installation and operation.

3. Stable and Accurate Signal
Low output resistance (50 Ω) combined with controlled extension cable capacitance (69.9 pF/m) ensures minimal signal distortion over long or short cable runs, delivering accurate data for automated systems.

4. Broad Temperature Operation
Operating reliably from -52°C to +177°C (-62°F to +350°F), this probe supports harsh industrial environments including high-temperature turbines, chemical plants, and heavy machinery.

5. Full Compatibility with 3300 Series Components
Backward-compatible with all 3300 series Proximitor sensors and extension cables, this probe simplifies maintenance and replacement, reducing downtime and inventory requirements.
